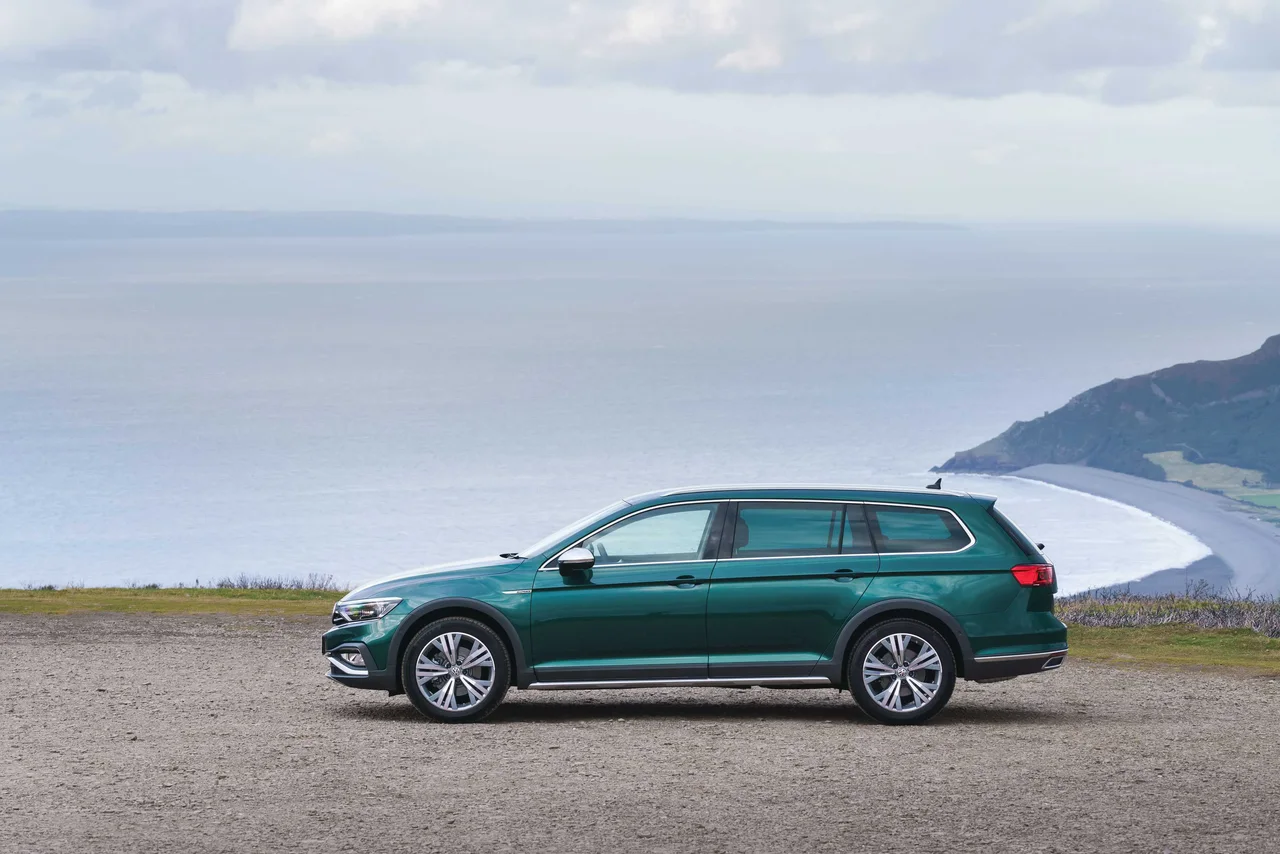

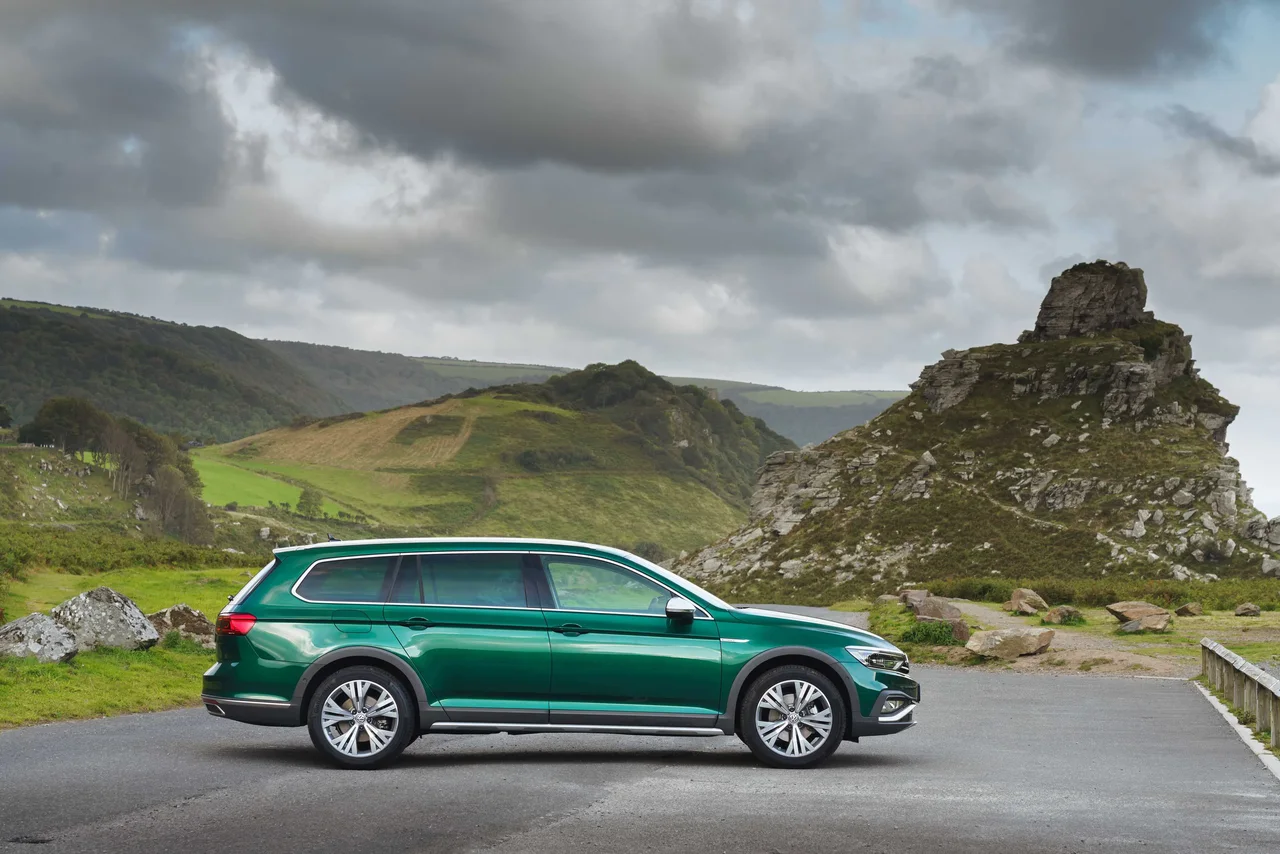

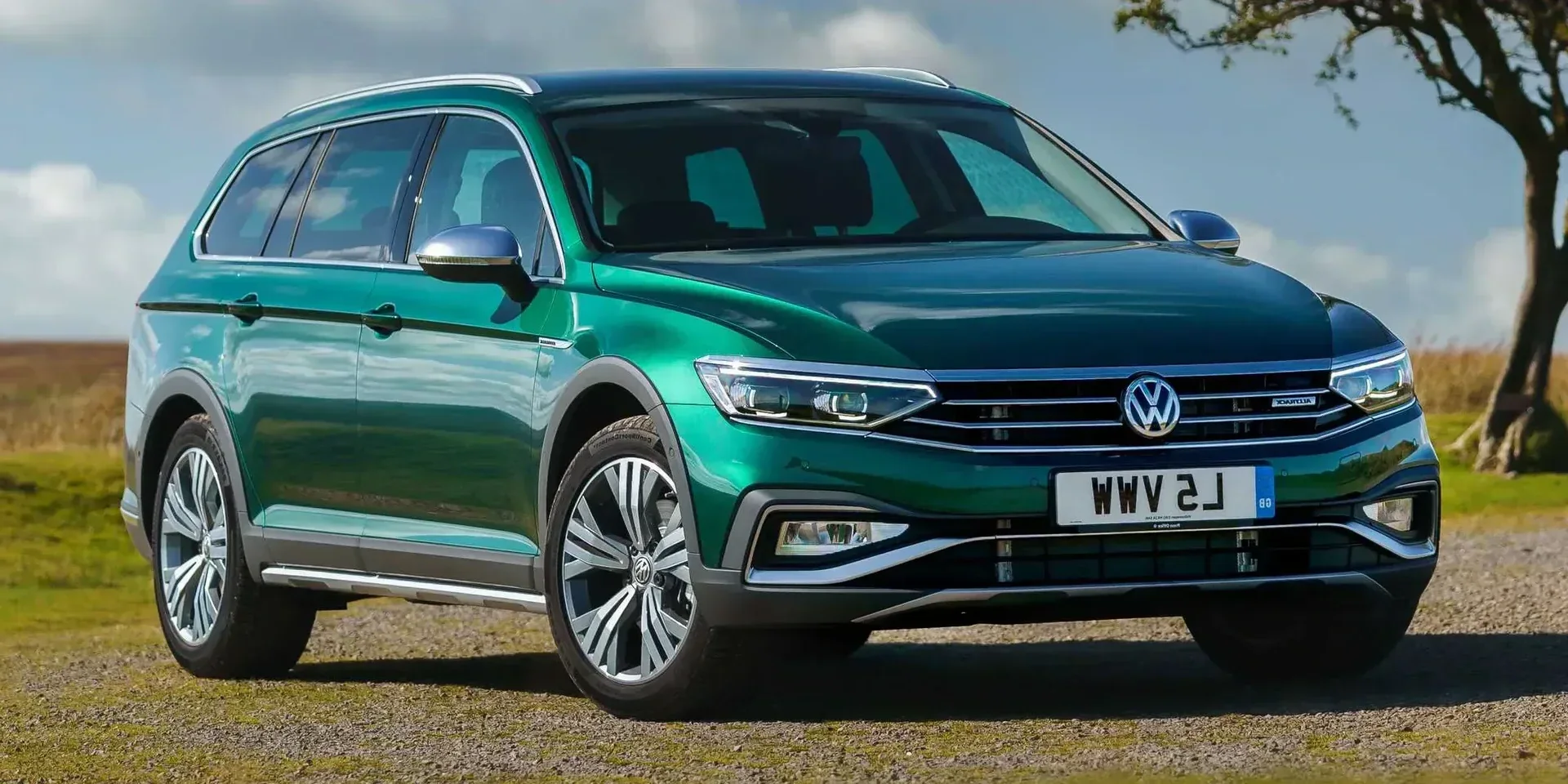

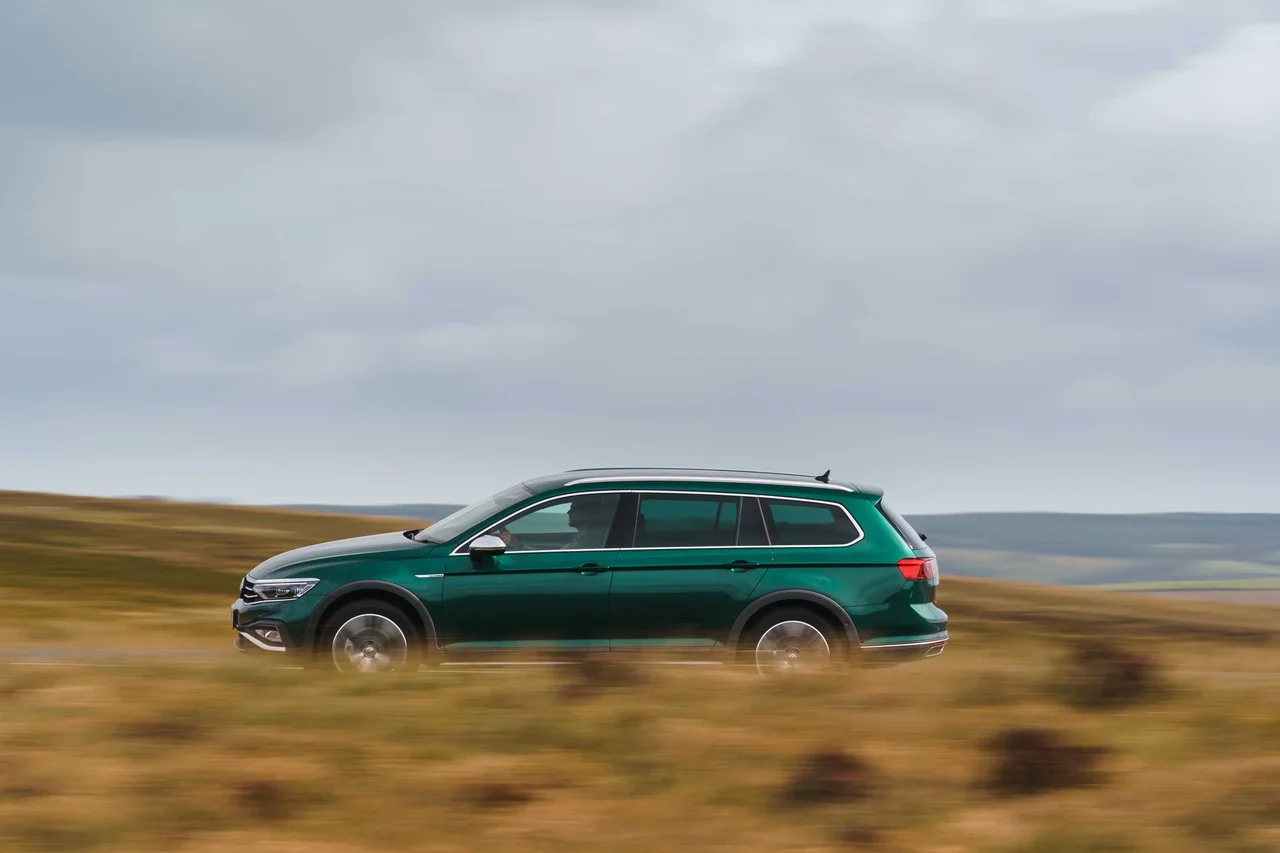

2020 Volkswagen Passat Alltrack

GermanyGasolineAWDCrossover

Photos

Specifications

Vehicle Details

Year
2020
Make
Volkswagen
Model
Passat
Variant
Alltrack
Body Style
Crossover
Generation
B8 Facelift (Type CB)
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
2.0 TSI OPF 4Motion DSG Sequential
Engine Configuration
Inline
Power (hp)
272 hp
Power (kW)
200 kW
Torque
350 Nm (258 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
5.6 seconds (estimated)
0–100 km/h
5.9 seconds
Displacement
1,984 cc

Dimensions

Length
4,780 mm (188.2 in)
Width
1,853 mm (73.0 in)
Height
1,527 mm (60.1 in)
Wheelbase
2,788 mm (109.8 in)
Curb weight
1,695 kg (3,737 lb)

Engine & Performance

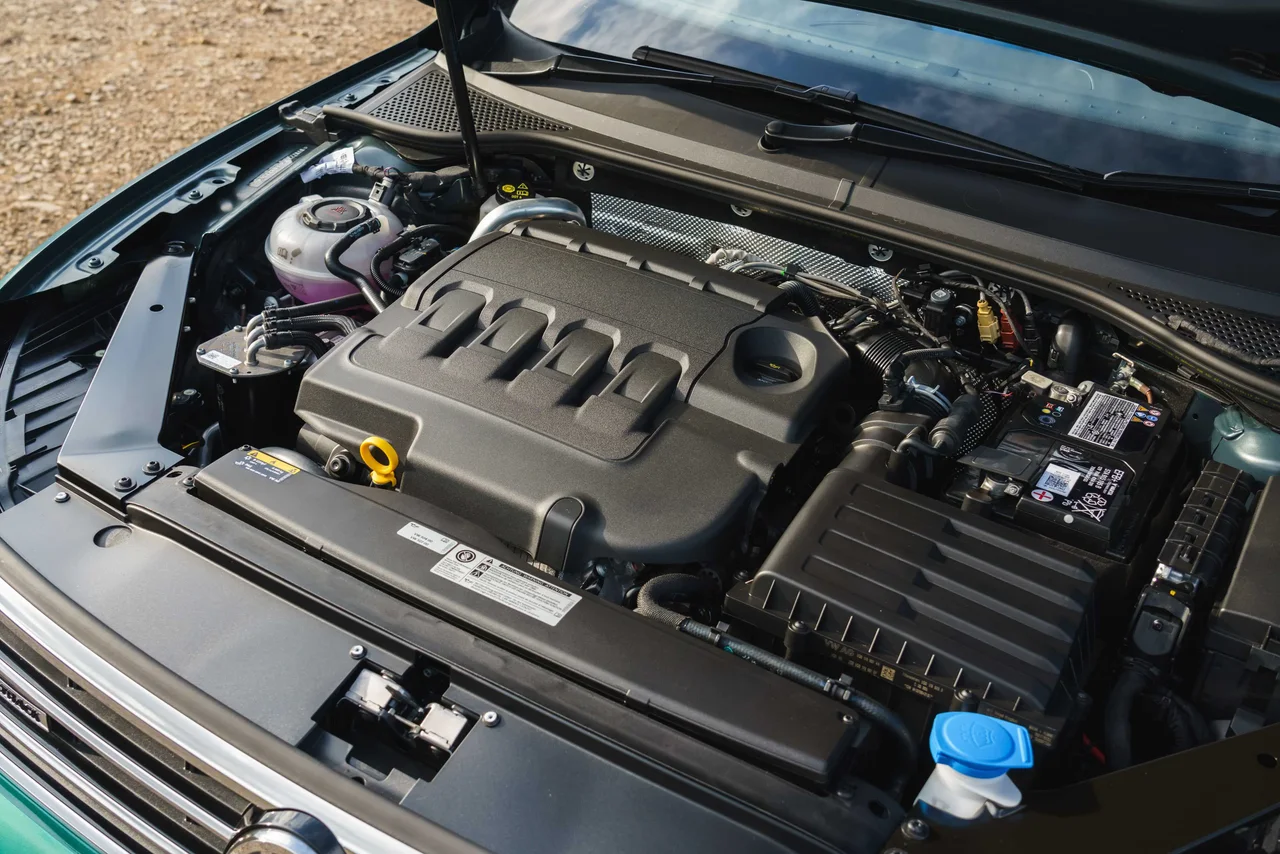

Engine

Engine Specification
Rev. at Max Power
5,500 - 6,200 rpm
Rev. at Max Torque
2,000 - 5,400 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Oil, Volume
5.7 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km (37,282 mi)

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
66 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -TEMP-EVAP-ISC
Emission Class
C
Emission Control
  • Catalyst
  • Particle Filter
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
WLTP Consumption
Low (l/100km) (WLTP)
13.3 litres / 100 km
Medium (l/100km)
8.8 litres / 100 km
High (l/100km)
7.4 litres / 100 km
Extra High (l/100km)
8.3 litres / 100 km
Combined (l/100km)
8.4 - 8.8 litres / 100 km
Fuel Consumption NEDC
City
9 litres / 100 km
Highway
6.1 litres / 100 km
Combined
7.1 litres / 100 km
Emission WLTP
CO₂, Combined
191 - 199 g/km
Emission NEDC
CO₂, Combined
163 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,083 mm (82.0 in)
Track, Front
1,580 - 1,586 mm (62.2 - 62.4 in)
Track, Rear
1,563 - 1,569 mm (61.5 - 61.8 in)
Turning Circle
11.7 m
Ground Clearance
173 mm (6.8 in)

Interior

Head Room, Front
1,031 mm (40.6 in)
Head Room, Rear
1,007 mm (39.6 in)
Leg Room, Front
1,077 mm (42.4 in)
Leg Room, Rear
993 mm (39.1 in)
Hip Room, Front
1,387 mm (54.6 in)
Hip Room, Rear
1,392 mm (54.8 in)
Shoulder Room, Front
1,506 mm (59.3 in)
Shoulder Room, Rear
1,506 mm (59.3 in)

Weight

Gross Weight
2,290 kg (5,049 lb)
Max Trailer Load, braked 12%
2,200 kg (4,850 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
435 - 625 kg (959 - 1,378 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
90 kg (198 lb)
Permitted Axle Load, front
1,110 kg (2,447 lb)
Permitted Axle Load, rear
1,230 kg (2,712 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Automatic Anti-glare
Driver side
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Yes
Ground Light
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Slim Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Silver
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

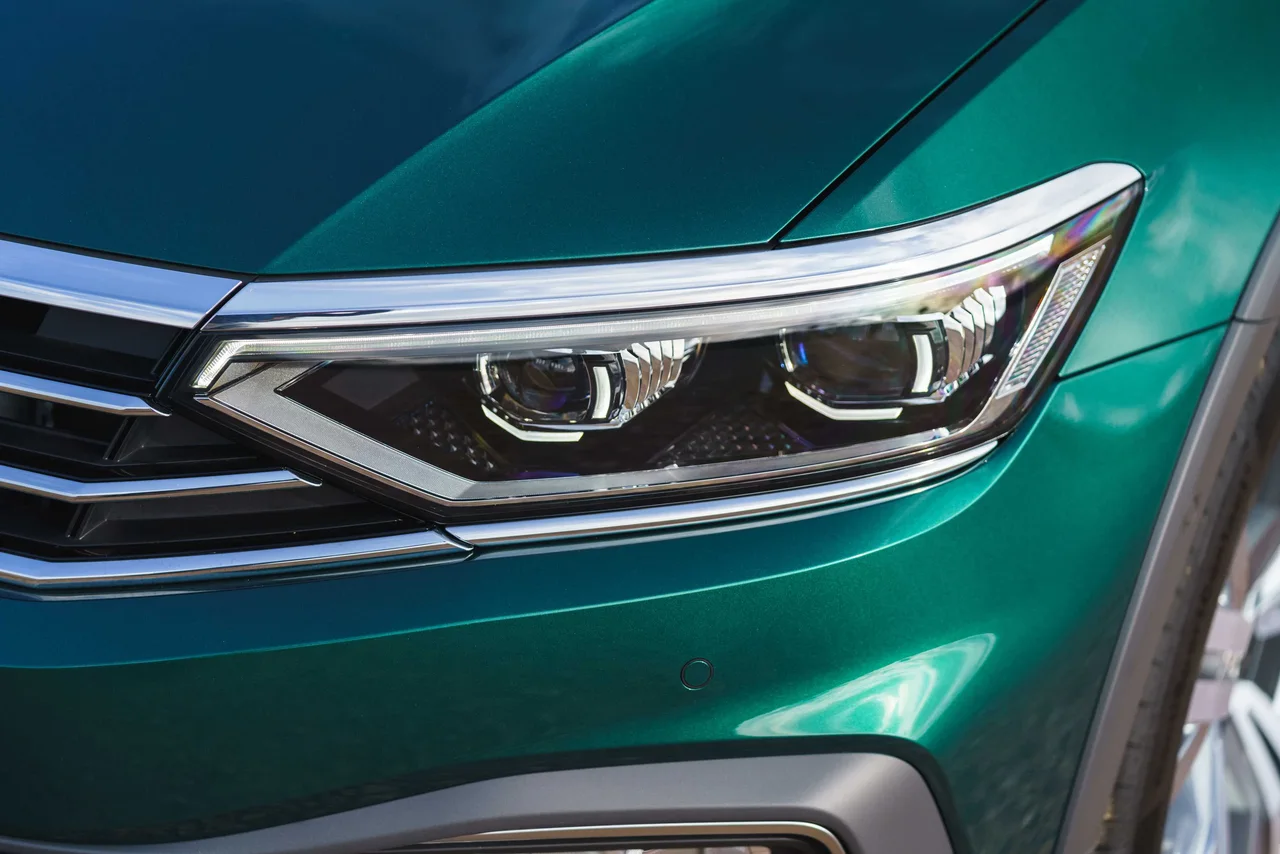

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Come Home/Leaving Lights
Fog Lights
Front
LED
Rear
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Main Beam Assist
Optional
Dynamic Turn Signal
Optional
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
125 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Tire Pressure Monitoring System (TPMS)
Direct
Optional
Spare Wheel
Full-size
Optional
Spare Wheel › Full-size
Alloy
Optional
Steel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Back Seat Controls
Optional
Connectivity
Radio
  • AM
  • FM
Media Format
  • MP3
  • WMA
App-Connect
  • Android Auto
  • Apple CarPlay (Wired | Wireless)
  • MirrorLink
Bluetooth
Phone
Cellular Network
Optional
Connectivity › Radio
DAB
Optional
RDS
Optional
Connectivity › Media Format
Memory Card Reader
SD
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Number of Ports
2 pcs
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
6.5 - 9.2"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Gesture Control
Optional
Features
Dynamic Volume
Optional
Speakers
Total Number of Speakers
8 - 11 pcs
Speakers Max. Watt
700 W
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Optional
Card Holder
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Sliding (Electrical | Manual)
Barrier Net/Grid
Yes
Cargo Hooks
Yes
Carpet
Optional
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
639 litres
Volume, Back Seat Collapsed
1,769 litres
Depth
1,172 mm (46.1 in)
Depth, Back Seat Collapsed
2,018 mm (79.4 in)
Width, Between Wheel Arches
1,005 mm (39.6 in)
Trunk Door Opening Height
2,076 mm (81.7 in)
Automatic Open
From Inside Car
Optional
Motion Activated
Optional
Carpet
Rubber/Rug
Optional

Design

Transmission Knob Material
Leather
Pedals
Standard
Pedals
Stainless Steel
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Collapsible
Optional
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Front Seats › Power Seat, Driver
Semi-Powered
Yes
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Massage
Driver
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Voice Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Normal
  • Sport
Dynamic Chassis Control (DCC)
Yes
Horn
Dual Note
GPS
Internet
Optional

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Distance Monitoring (FDM)
Optional
Emergency Steering Assist
Optional
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2014
Adult Occupant
85 %
Child Occupant
87 %
Vulnerable Road Users
66 %
Safety Assist
76 %
Overall
5/5 stars
Test Year
2015
Overall Score
35.89
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
14.89
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Good
Pedestrian
Protection (Assessment)
Acceptable
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car

ACRISS

Type
Wagon/Estate (W)

Similar crossovers

Suggested vehicles
