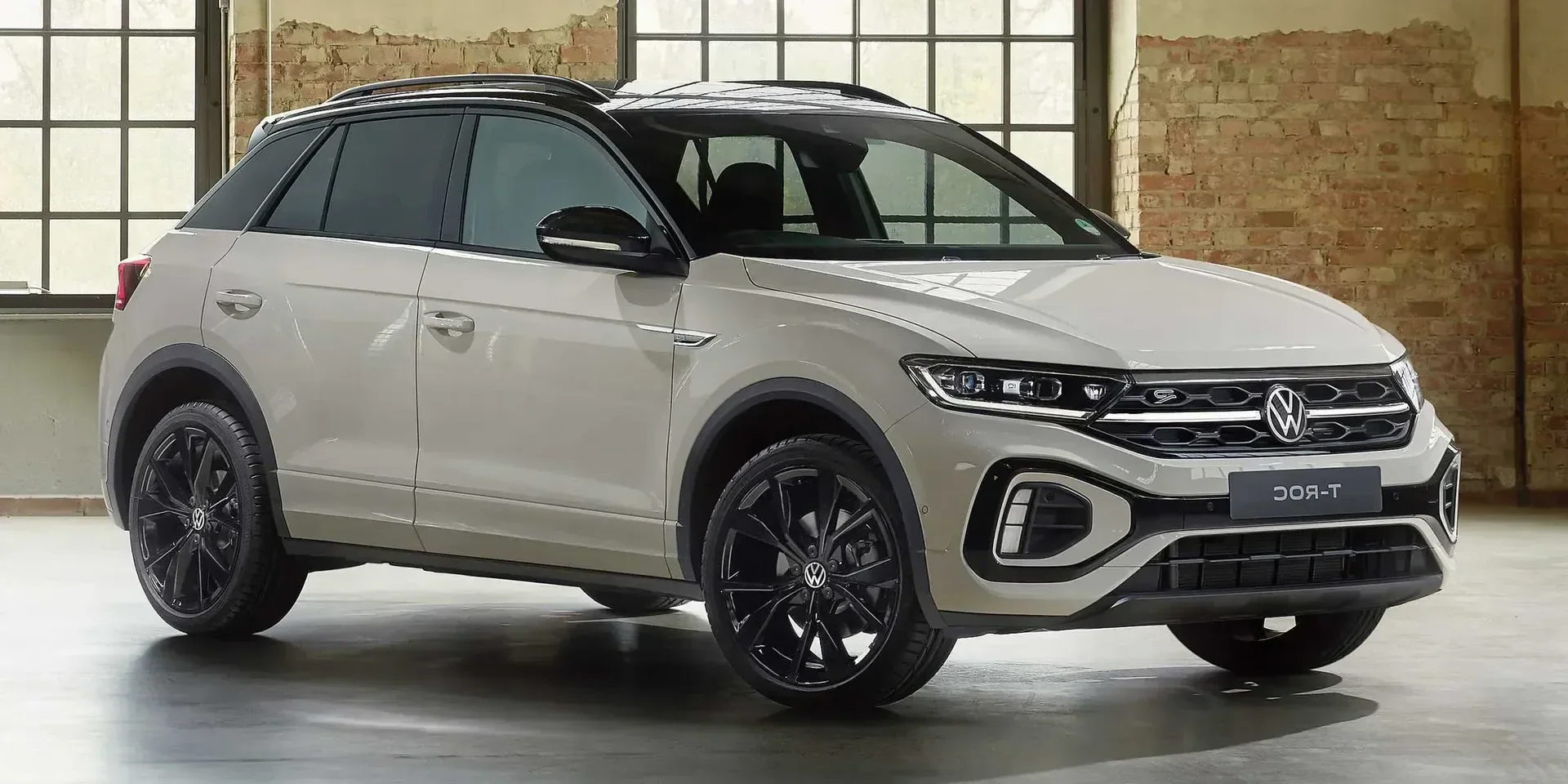

2021 Volkswagen T-Roc R

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2021
Make
Volkswagen
Model
T-Roc
Variant
R
Body Style
SUV
Generation
Type A1
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
R DSG Sequential
Engine Configuration
Inline
Power (hp)
300 hp
Power (kW)
221 kW
Torque
400 Nm (295 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.6 seconds (estimated)
0–100 km/h
4.8 seconds
Displacement
1,984 cc

Dimensions

Length
4,234 mm (166.7 in)
Width
1,819 mm (71.6 in)
Height
1,573 mm (61.9 in)
Wheelbase
2,590 mm (102.0 in)
Curb weight
1,575 kg (3,472 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,300 - 6,600 rpm
Rev. at Max Torque
2,000 - 5,200 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Oil, Volume
5.7 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
9.3 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Transmission, Fluid
120,000 km (74,565 mi)
Transmission, Fluid Filter
120,000 km (74,565 mi)
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front (1)
Brakes Material
Cast Iron
Front Brakes
Diameter
340 mm (13.4 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
310 mm (12.2 in)
Width
22 mm (0.9 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Sports Suspension
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
55 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -TEMP-EVAP-ISC
Emission Class
D
Emission Control
  • Catalyst
  • Particle Filter
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
WLTP Consumption
Combined (l/100km)
8.5 litres / 100 km
Fuel Consumption NEDC
City
9.1 - 9.5 litres / 100 km
Highway
6.5 - 6.6 litres / 100 km
Combined
7.5 - 7.7 litres / 100 km
Emission WLTP
CO₂, Combined
192 - 195 g/km
Emission NEDC
CO₂, Combined
171 - 176 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,992 mm (78.4 in)
Track, Front
1,538 - 1,546 mm (60.6 - 60.9 in)
Track, Rear
1,533 - 1,541 mm (60.4 - 60.7 in)
Overhang, Front
831 mm (32.7 in)
Overhang, Rear
800 mm (31.5 in)
Approach Angle
16.4 °
Breakover Angle
12.5
Departure Angle
18.4 °
Turning Circle
11.1 m
Ground Clearance
161 mm (6.3 in)

Interior

Head Room, Front
993 - 1,043 mm (39.1 - 41.1 in)
Head Room, Rear
961 - 982 mm (37.8 - 38.7 in)
Hip Room, Front
1,471 mm (57.9 in)
Hip Room, Rear
1,474 mm (58.0 in)

Weight

Gross Weight
2,070 kg (4,564 lb)
Max Trailer Load, braked 12%
1,700 kg (3,748 lb)
Max Trailer Load, braked 8%
1,900 kg (4,189 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
421 - 570 kg (928 - 1,257 lb)
Max Roof Load
50 kg (110 lb)
Max Towbar Download
80 kg (176 lb)
Permitted Axle Load, front
1,070 kg (2,359 lb)
Permitted Axle Load, rear
1,050 kg (2,315 lb)

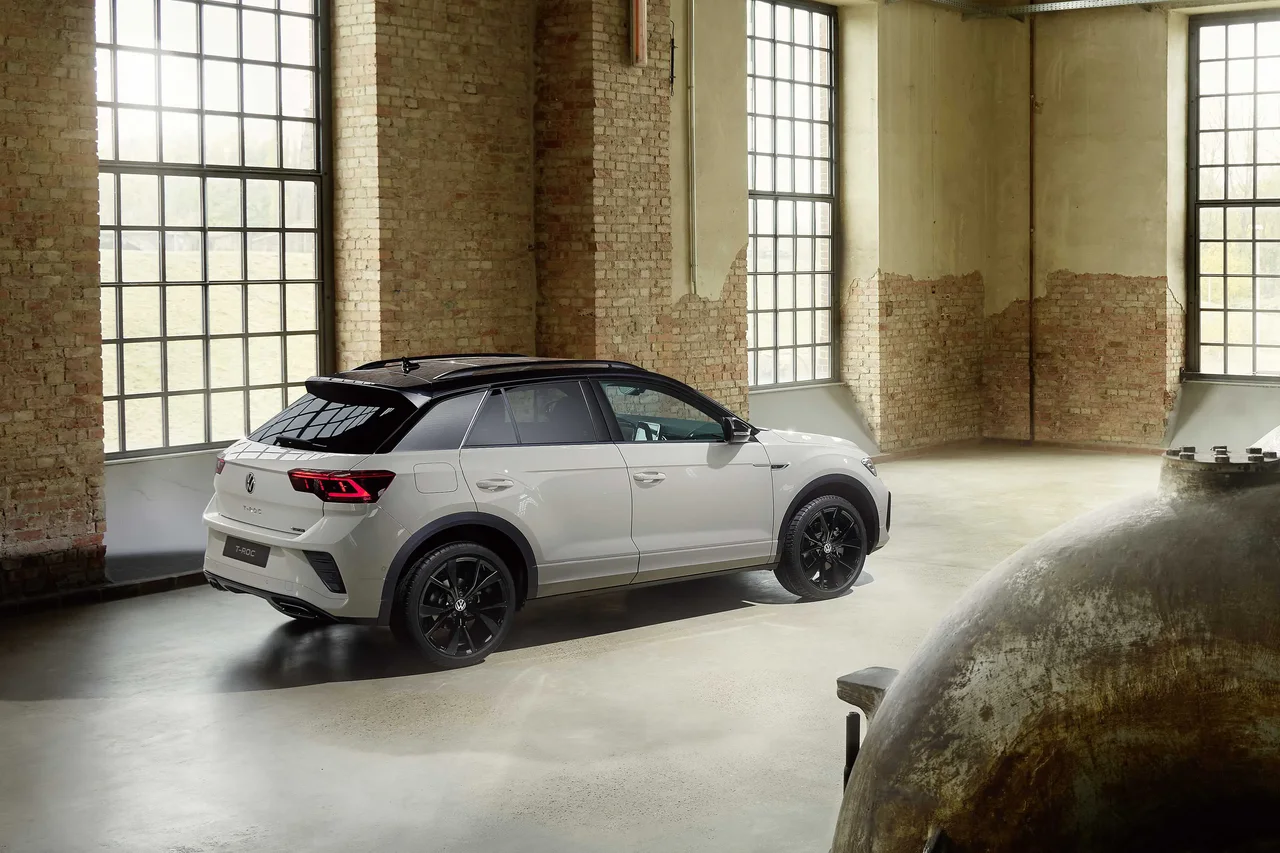

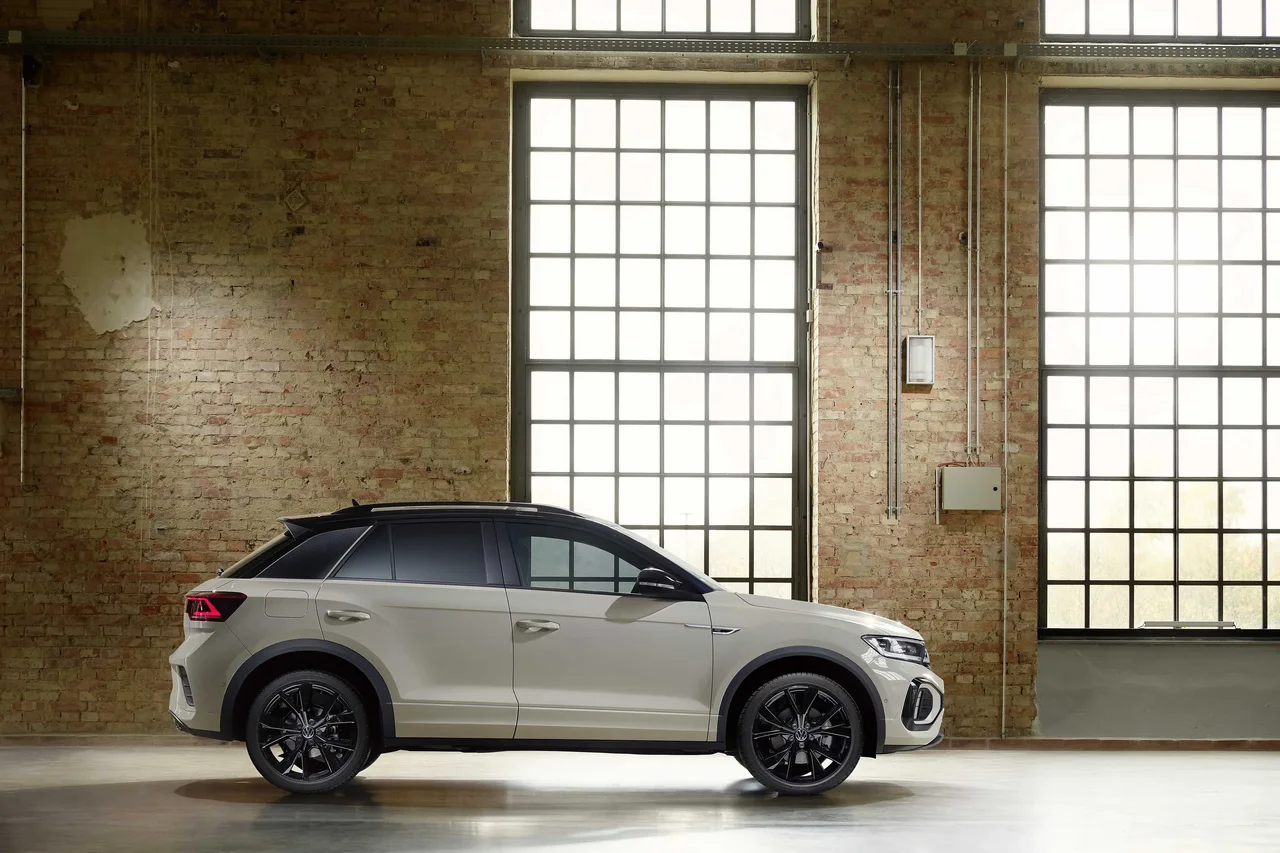

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
MQB A1

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Safety Glass
Front
Laminated
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Antenna
Glass-integrated
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Dynamic Cornering Lights
Fog Lights
Front
LED
Rear
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Turn Signal
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
120 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel

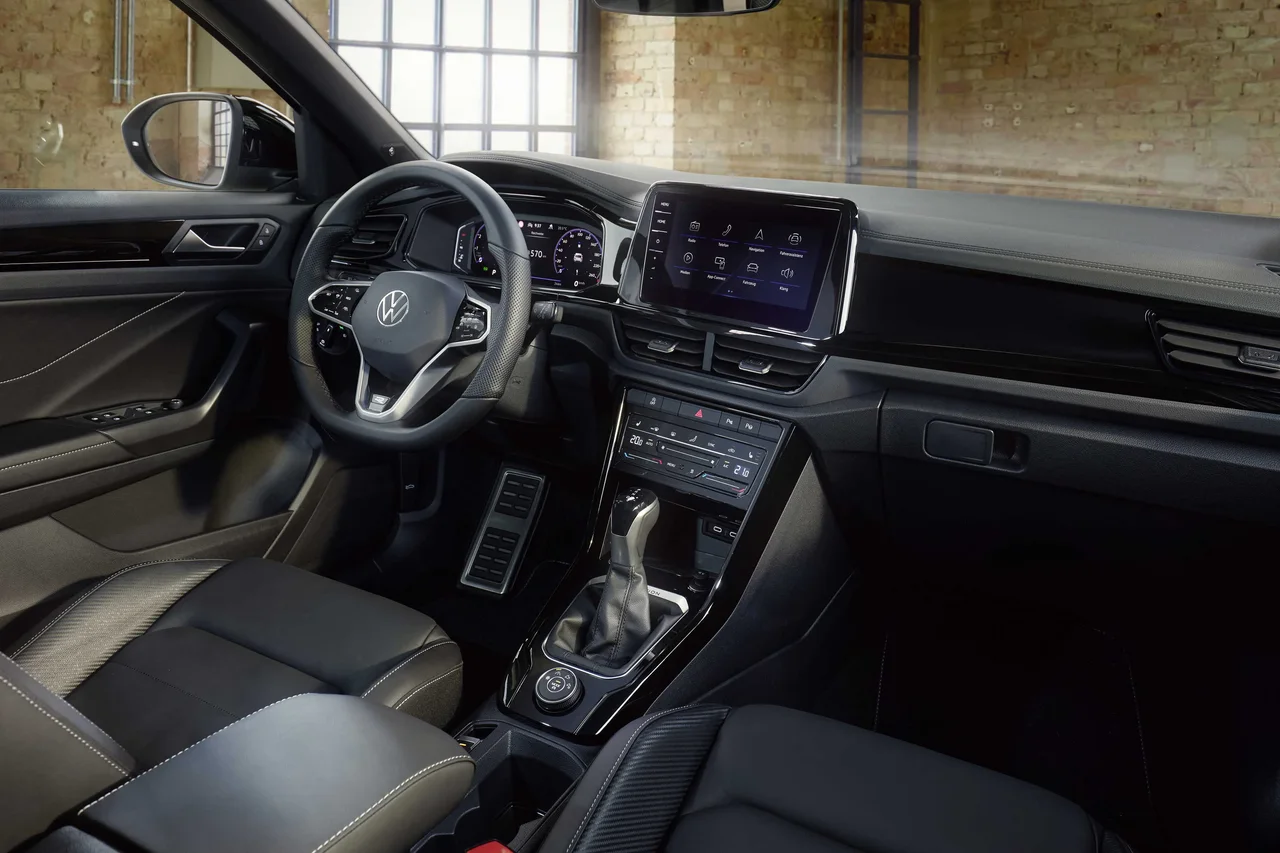

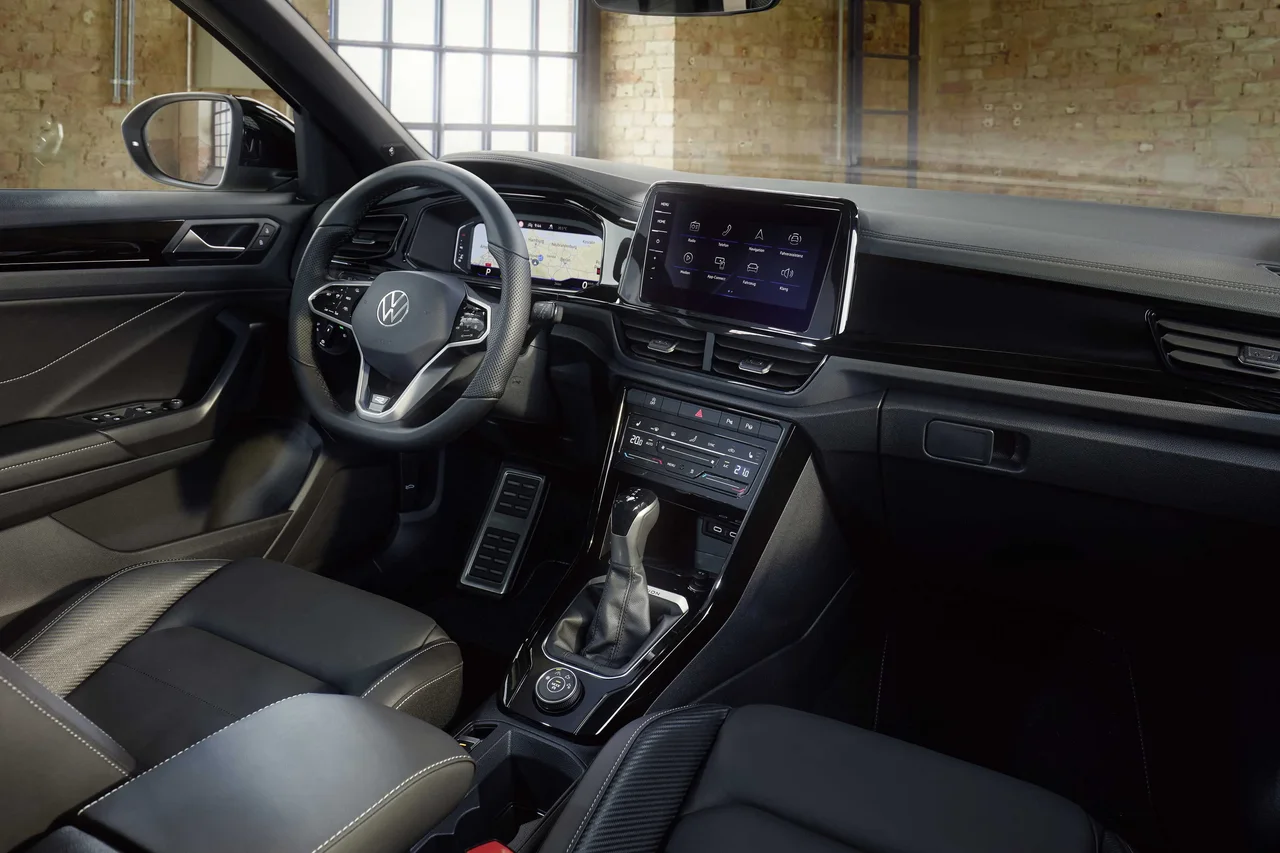

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Oil Temperature
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Media Format
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Armrest Hatch/Mid-console
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
Front
Armrest Hatch/Mid-console
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
MirrorLink
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Optional
Card Holder
Optional
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Material
Textile
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Cover
Yes
Flat Surface
Yes
Rear Trunk
Volume
445 litres
Volume, Back Seat Collapsed
1,290 litres
Depth
830 mm (32.7 in)
Depth, Back Seat Collapsed
1,532 mm (60.3 in)
Width
1,127 mm (44.4 in)
Width, Between Wheel Arches
1,011 mm (39.8 in)
Height
640 mm (25.2 in)
Trunk Door Opening Height
2,089 mm (82.2 in)
Sill Height
750 mm (29.5 in)

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Transmission Knob Material
Leather
Pedals
Stainless Steel

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Collapsible
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Descent Control (HDC)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
96 %
Child Occupant
87 %
Vulnerable Road Users
79 %
Safety Assist
71 %
Overall
5/5 stars
Test Year
2017
ANCAP Safety Rating
5
Adult Occupant
Total Points
36.6 /38
Frontal Impact
15.2 /16
Lateral Impact
16 /16
Rear Impact
2.4 /4
Protection
96 %
Protection
36.6
Full Width
7.68
Frontal Offset
7.45
Side Impact
8
Pole
8
Whiplash Protection (Front)
2.43
AEB (City)
3
Child Occupant
Total Points
43 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Protection
87 %
Protection
43
Vulnerable Road Users
Total Points
33.5 /49
Pedestrian
  • 17.3
  • 4.4
  • 6
AEB Pedestrian
5.8 /9
Safety Assist
Speed Assistance (points)
0 /3
Lane Support (points)
2.7 /4
Safety Assist
71 %
Safety Assist
8.6
Speed Assistance System
0
Seat Belt Reminders
3
Lane Support System
2.8
AEB (Interurban)
2.8
Pedestrian
Protection
79 %
Protection
33.5

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Trunk
on Floor
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Subcompact SUV
European Segment
  • J-Segment JB-Segment
  • JC-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Fog Light, Front
H8
Turn Indicators, Front
BAU15s (PY21W)
Glove Compartment
W2.1×9.5d (W3W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)

ACRISS

Category
Intermediate Elite (J)
Type
Crossover (G)

Similar suvs

Suggested vehicles
