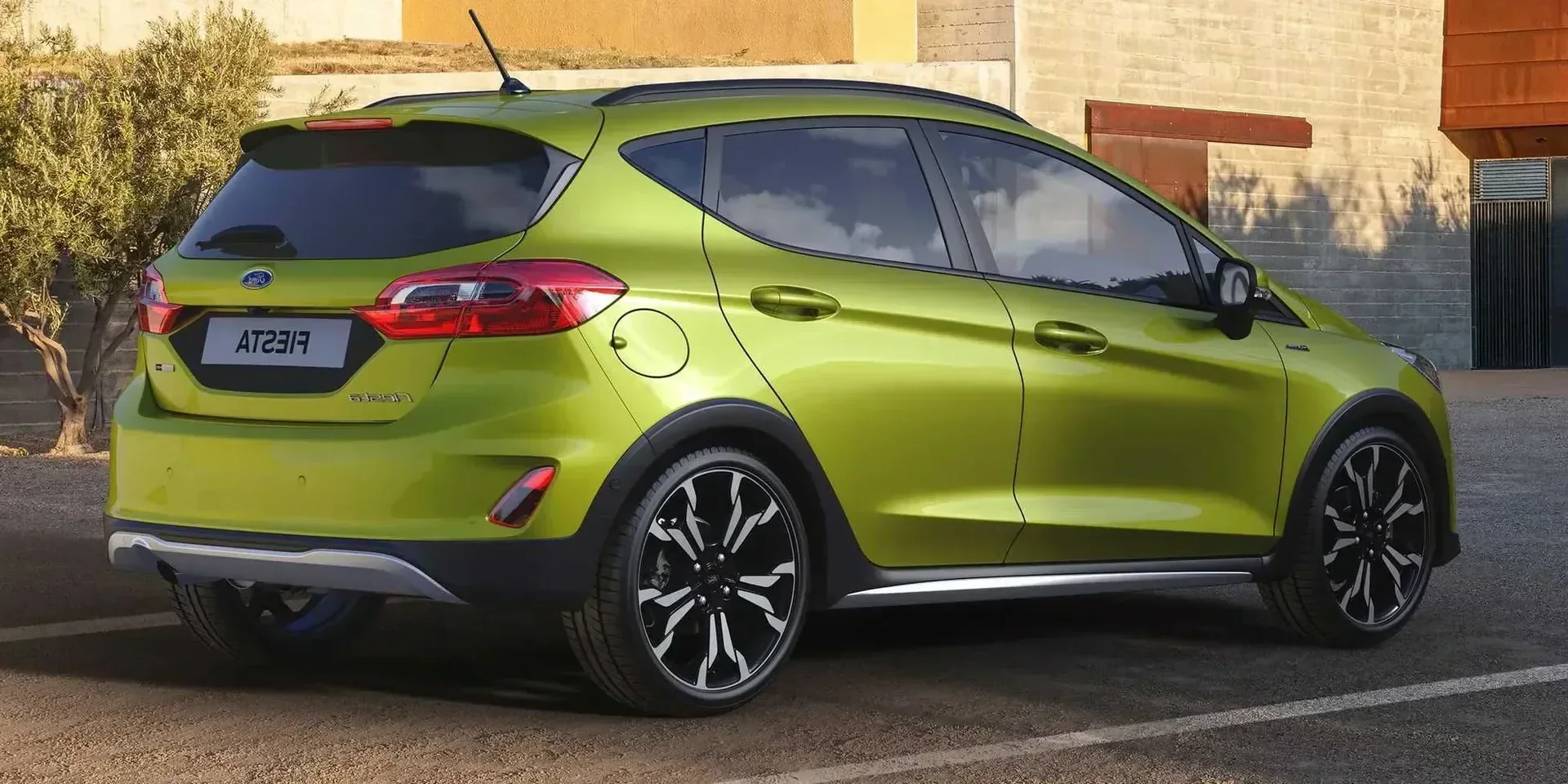

2022 Ford Fiesta Active

United StatesMild Hybrid GasolineFWDCrossover

Specifications

Vehicle Details

Year
2022
Make
Ford
Model
Fiesta
Variant
Active
Body Style
Crossover
Generation
HF/HG/HJ
Seats
5
Doors
5
Fuel
Mild Hybrid Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.0 EcoBoost Hybrid Manual
Engine Configuration
Inline
Power (hp)
155 hp
Power (kW)
114 kW
Torque
240 Nm (177 lb-ft)
Top speed
219 km/h (136 mph)
0–60 mph
8.5 seconds (estimated)
0–100 km/h
8.9 seconds
Displacement
999 cc

Dimensions

Length
4,068 mm (160.2 in)
Width
1,756 mm (69.1 in)
Height
1,498 mm (59.0 in)
Wheelbase
2,493 mm (98.1 in)
Curb weight
1,219 kg (2,687 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
2,500 rpm
Engine Configuration
Bore
71.9 mm (2.8 in)
Stroke
82 mm (3.2 in)
Compression Ratio
10 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Mild-Hybrid
Yes
Service Intervals
Air Filter
48,000 km (29,826 mi)
Engine Coolant
160,000 km / 6 years
Accessory Belt
160,000 km (99,419 mi)

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes

Suspensions

Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Yes

Fuel

General
Tank Volume
42 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6d -ISC-FCM
Fuel Consumption NEDC
City
4.8 - 5.5 litres / 100 km
Highway
3.5 - 3.9 litres / 100 km
Combined
4 - 4.5 litres / 100 km
Emission NEDC
CO₂, Combined
92 - 103 g/km

Dimensions & Weight

Exterior

Track, Front
1,513 mm (59.6 in)
Track, Rear
1,476 mm (58.1 in)
Overhang, Front
857 mm (33.7 in)
Overhang, Rear
718 mm (28.3 in)
Turning Circle
10.3 m
Ground Clearance
130 - 152 mm (5.1 - 6.0 in)

Interior

Head Room, Front
992 mm (39.1 in)
Head Room, Rear
955 mm (37.6 in)
Leg Room, Front
1,125 mm (44.3 in)
Leg Room, Rear
835 mm (32.9 in)
Shoulder Room, Front
1,347 mm (53.0 in)
Shoulder Room, Rear
1,301 mm (51.2 in)

Weight

Gross Weight
1,680 - 1,685 kg (3,704 - 3,715 lb)
Max Trailer Load, braked 12%
1,000 kg (2,205 lb)
Max Trailer Load, braked 8%
1,000 kg (2,205 lb)
Max Trailer Load, unbraked
605 kg (1,334 lb)
Cargo Capacity
461 - 466 kg (1,016 - 1,027 lb)
Max Roof Load
50 kg (110 lb)
Max Towbar Download
45 kg (99 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Fixed
Antenna
Whip
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Fog Lights
Yes
Special Features
Come Home/Leaving Lights
Fog Lights
Rear
Yes
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
4 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Fastening Type
Lug Nuts
Tightening Torque
135 Nm
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Manual
Number of Climate Zones
1
Number of Vents, Front
4 pcs
Connectivity
Radio
  • AM
  • FM
WiFi
Optional
Connectivity › Radio
DAB
Optional
CD
Optional
Displays
Center Display
Yes
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Multifunction Steering Wheel
Cruise Control
Resume
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
311 litres
Volume, Back Seat Collapsed
1,093 litres

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Manual
Backrest Angle
Yes
Lumbar Support
Manual
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Manual
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Traffic Light Recognition
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Yes
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Collision Avoidance System
Optional
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
87 %
Child Occupant
84 %
Vulnerable Road Users
64 %
Safety Assist
60 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
2 years
Rust Damage
12 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
  • H1
  • H15
Datyime Running Light
H15
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (WY5W)
Turn Indicators, Rear
BAU15s (PY21W)
