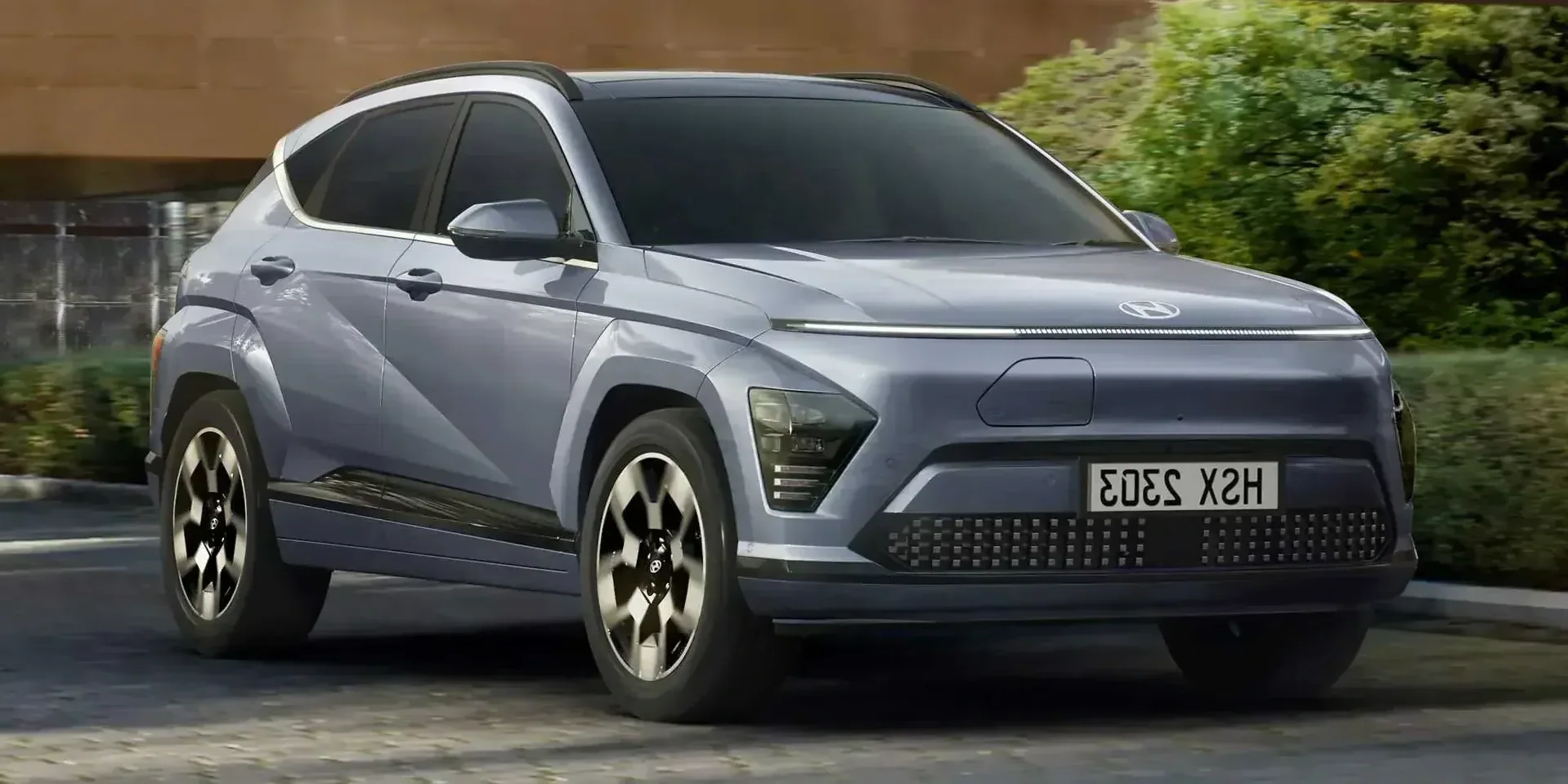

2023 Hyundai Kona Electric Long Range

South KoreaElectricFWDSUV

Photos

Specifications

Vehicle Details

Year
2023
Make
Hyundai
Model
Kona
Variant
Electric Long Range
Body Style
SUV
Generation
SX2
Seats
5
Doors
5
Fuel
Electric
Drivetrain
FWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
Electric Long Range Single Speed
Engine Configuration
Electric
Power (hp)
218 hp
Power (kW)
160 kW
Torque
255 Nm (188 lb-ft)
Top speed
172 km/h (107 mph)
0–60 mph
7.4 seconds (estimated)
0–100 km/h
7.8 seconds
Electric range
512 km (318 mi)
Battery
65.4 kWh

Dimensions

Length
4,350 mm (171.3 in)
Width
1,825 mm (71.9 in)
Height
1,570 mm (61.8 in)
Wheelbase
2,660 mm (104.7 in)

Engine & Performance

Engine

Configuration Combustion
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Electric
Electric Engine Power
160 kW
Electric Engine Horsepower (Metric)
218 hp
Torque
255 Nm (188 lb-ft)
Battery Capacity, Gross
65.4 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Front
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Energy & Range

WLTP Consumption
Electric Range
512 km (318 mi)
Fuel Consumption NEDC
Combined
0 litres / 100 km
Emission WLTP
CO₂, Combined
0 g/km
Emission NEDC
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Track, Front
1,591 mm (62.6 in)
Track, Rear
1,600 mm (63.0 in)
Overhang, Front
860 - 865 mm (33.9 - 34.1 in)
Overhang, Rear
830 - 860 mm (32.7 - 33.9 in)
Turning Circle
10.6 m
Ground Clearance
160 - 170 mm (6.3 - 6.7 in)

Interior

Head Room, Front
974 - 1,013 mm (38.3 - 39.9 in)
Head Room, Rear
972 mm (38.3 in)
Leg Room, Front
1,059 mm (41.7 in)
Leg Room, Rear
970 mm (38.2 in)
Shoulder Room, Front
1,443 mm (56.8 in)
Shoulder Room, Rear
1,402 mm (55.2 in)

Weight

Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Intermittent Control
Yes
Rear Wiper
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Safety Glass
Front
Laminated
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Main Beam Assist
Fog Lights
Rear
LED
Special Features
Headlight Range Adjustment
Manual (Electric)

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Central Bore (CB), rear
67.1
Fastening Type
Lug Nuts
Tightening Torque
107 - 127 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel

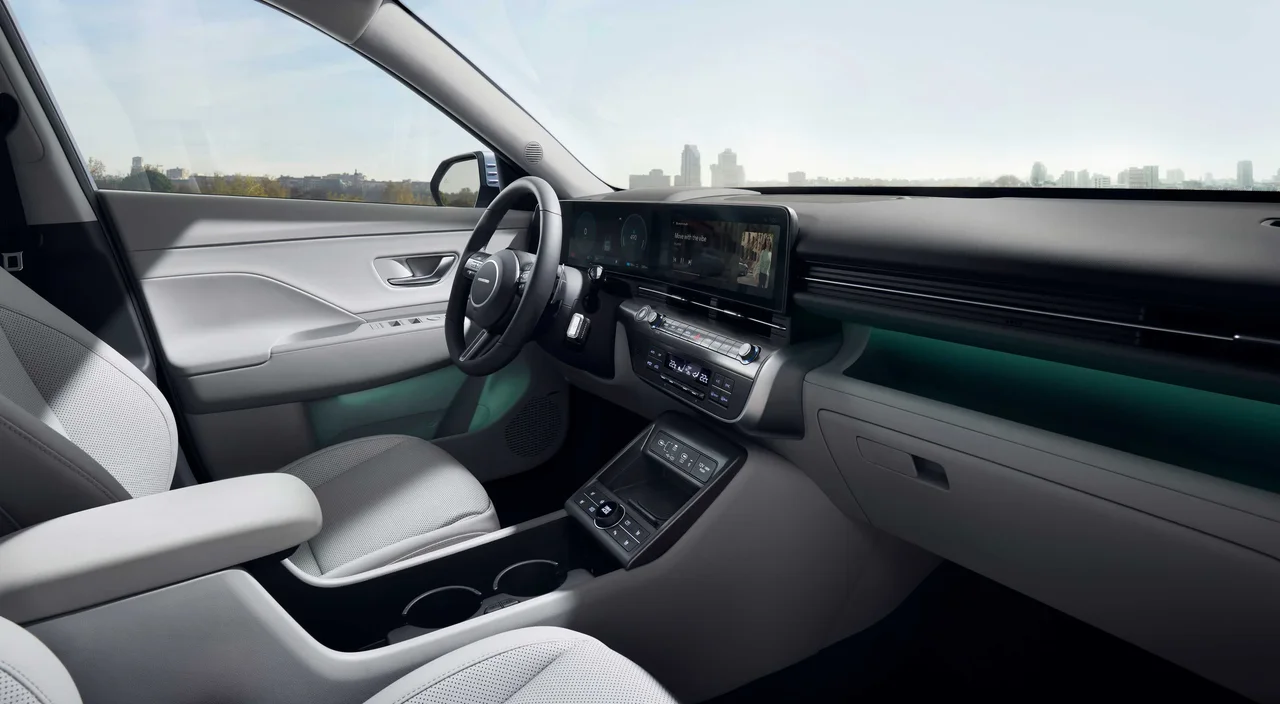

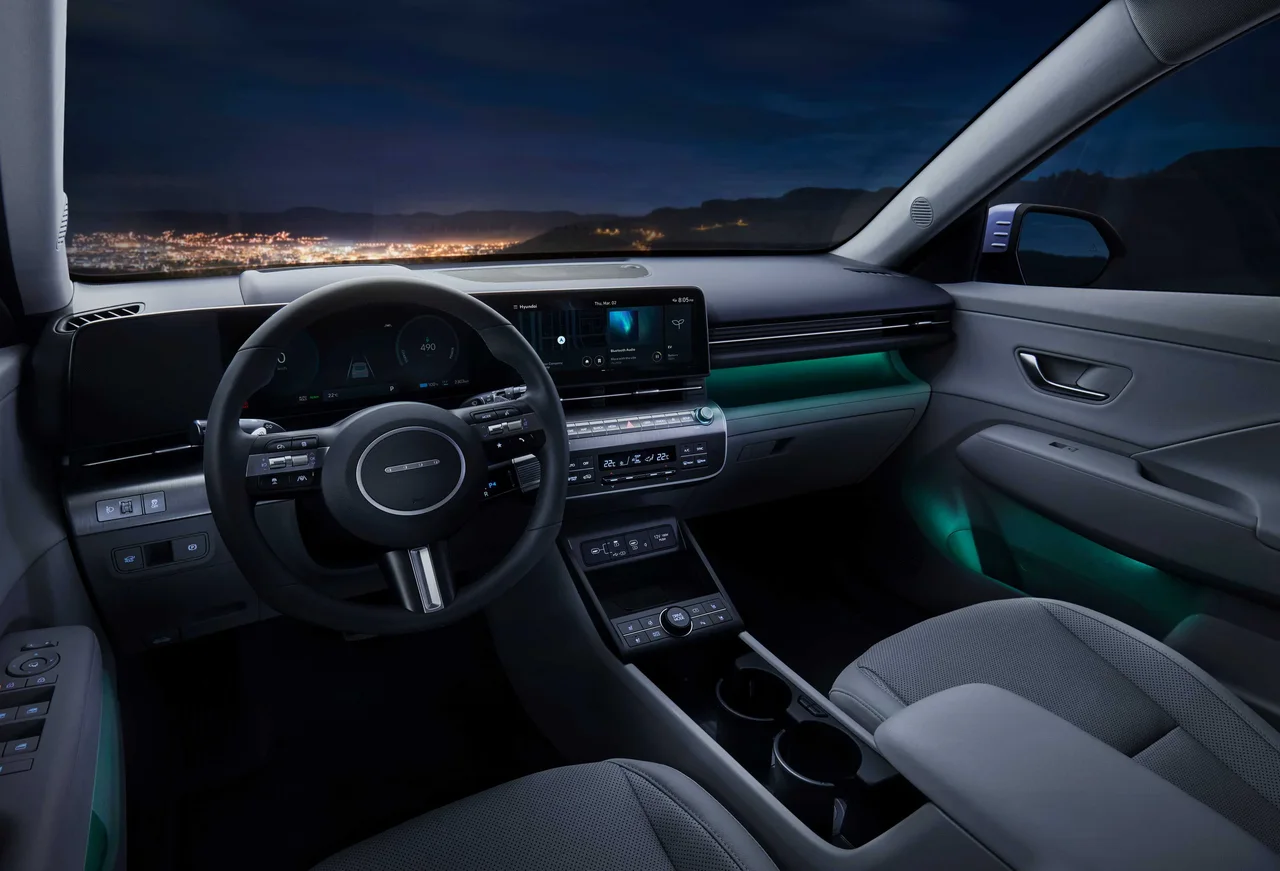

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
12.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Buttons
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Number of Ports
2 pcs
Displays
Center Display
12.25"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 - 7 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
  • Buttons
  • Scrolling Wheel
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel

Trunk

Rear Trunk
Yes
Cover
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
466 litres
Volume, Back Seat Collapsed
1,300 litres

Design

Transmission Knob Material
Leather

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Cruise Control
Yes
Cameras
Rear
Voice Control
  • Media
  • Phone
Cameras
View Location
Center Display

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Sport
Over-the-Air Updates
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Sign Assist
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Parking Sensors
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes
Emergency Call
Smartphone as a Key
Optional

Safety Testing

General
Test Year
2023
Adult Occupant
80 %
Child Occupant
83 %
Vulnerable Road Users
64 %
Safety Assist
60 %
Overall
4/5 stars
Adult Occupant
Total Points
32.1 /38
Frontal Impact
10.9 /16
Lateral Impact
15.4 /16
Rear Impact
3.4 /4
Rescue and Extrication
2.5 /2
Child Occupant
Total Points
40.8 /49
Crash Test Performance
  • 14.6
  • 8 /16
Safety Features
6.3 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
40.8 /49
Pedestrian
  • 12.2
  • 0
  • 1.8
AEB Pedestrian
5.1 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
4.5 /9
AEB Cyclist (assesment)
Adequate
Safety Assist
Speed Assistance (points)
1.8 /3
Speed Assistance (assesment)
Adequate
Occupant Status Monitoring (points)
1.8 /3
Occupant Status Monitoring (assesment)
Adequate
Seat Belt Reminder (points)
0.7 /2
Seat Belt Reminder (assesment)
Adequate
Driver Monitoring (points)
1.1
Driver Monitoring (assesment)
Adequate
Lane Support (points)
2.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
4.8 /6
AEB Car-to-Car (assesment)
Adequate

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Similar suvs

Suggested vehicles
