2023 Mercedes-Benz CLA

GermanyGasolineAWDCoupe

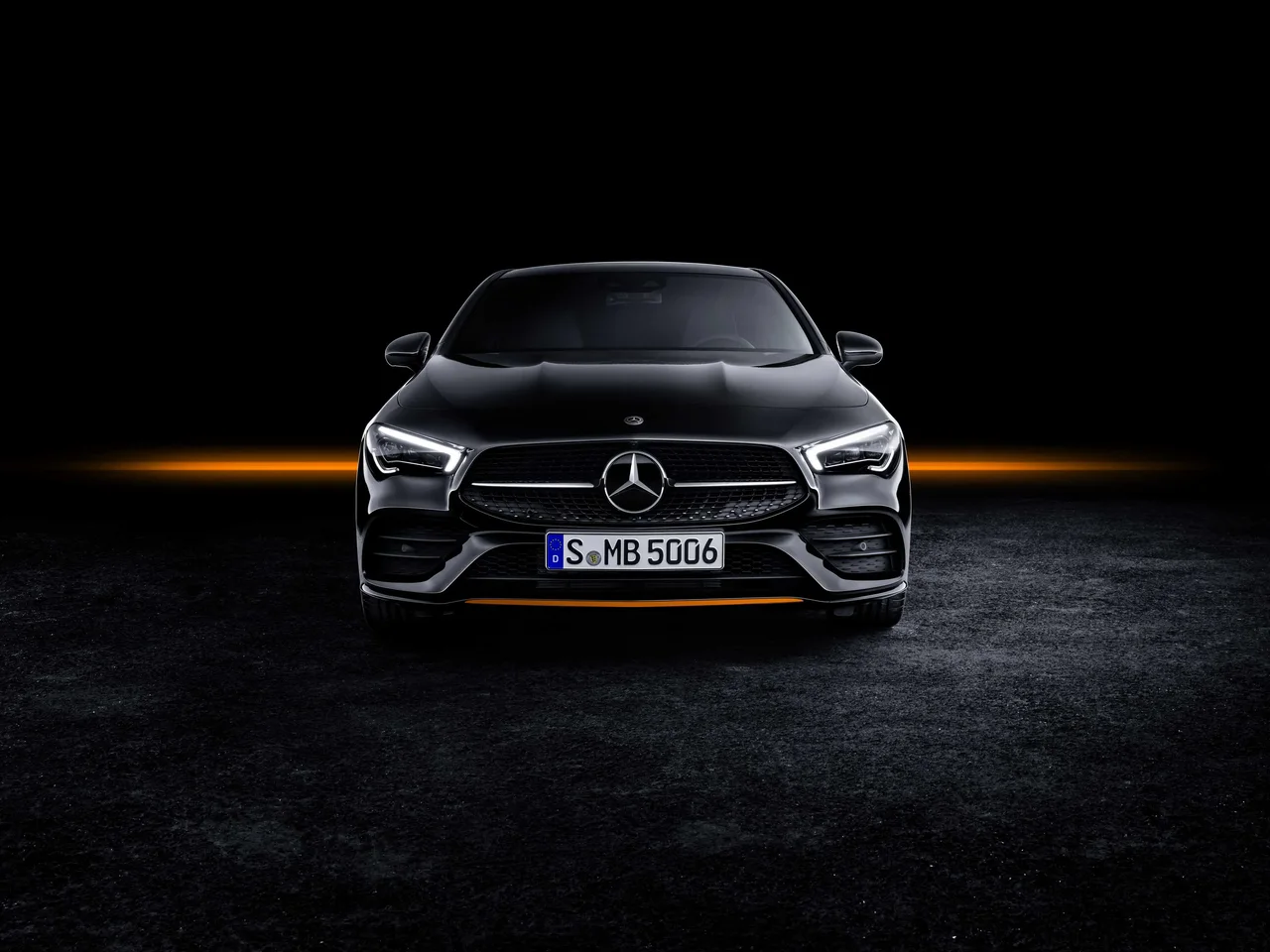

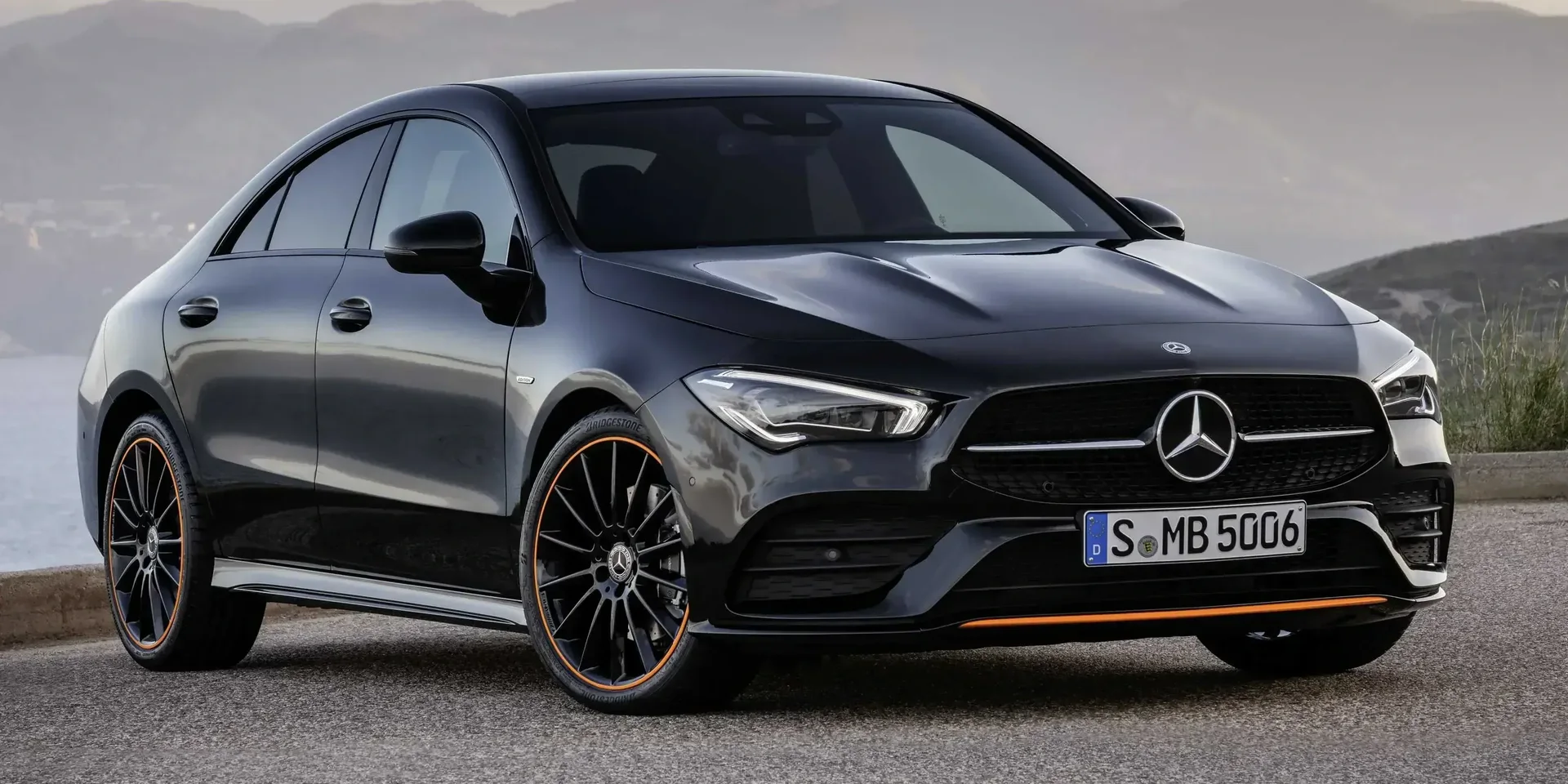

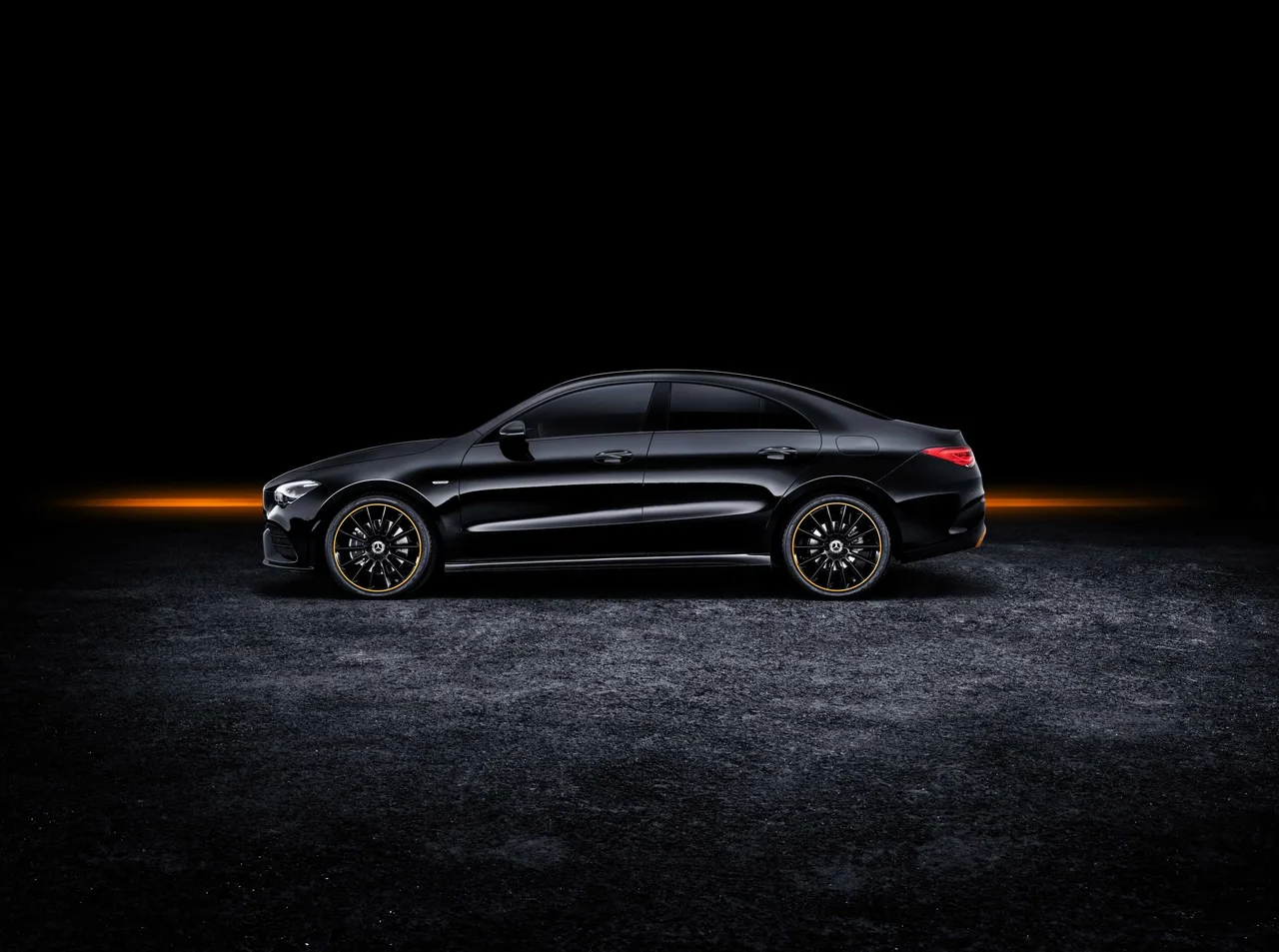

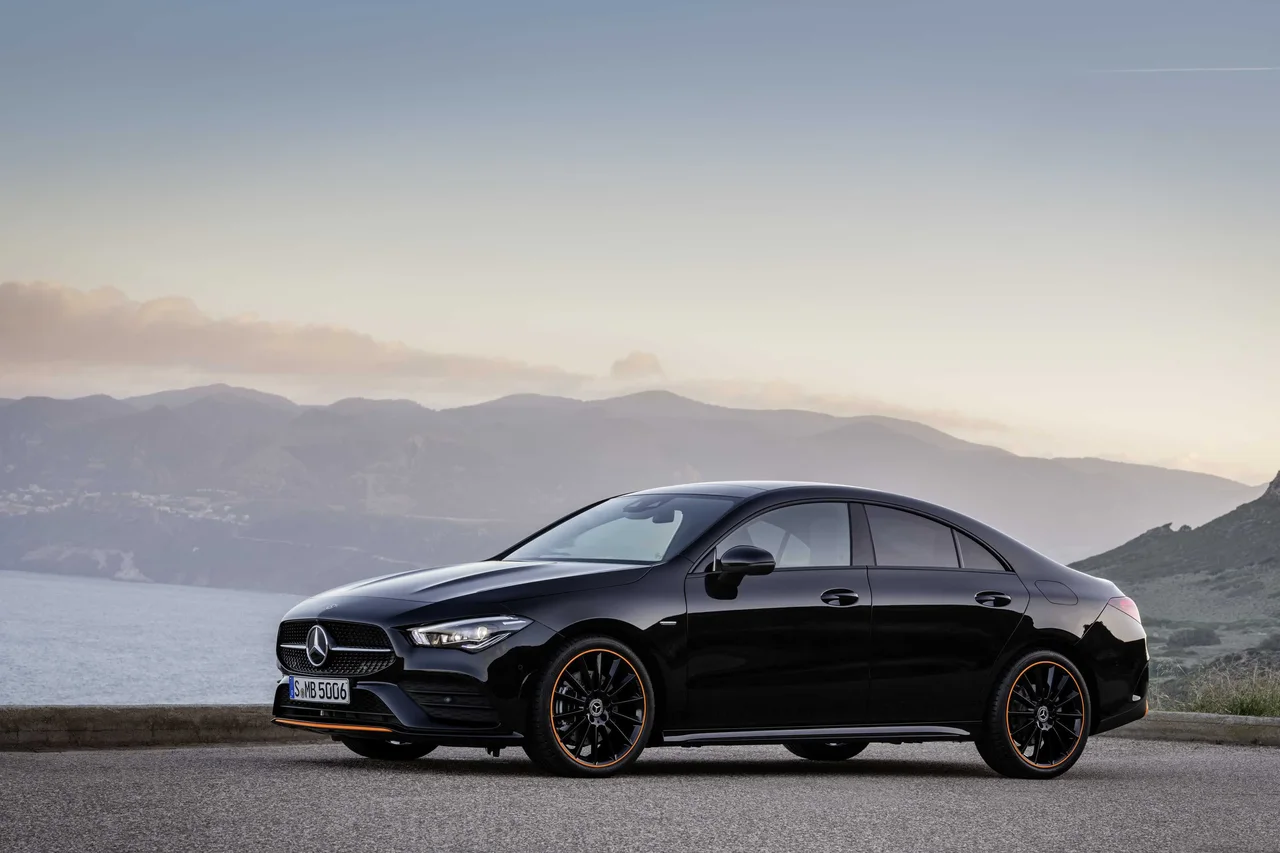

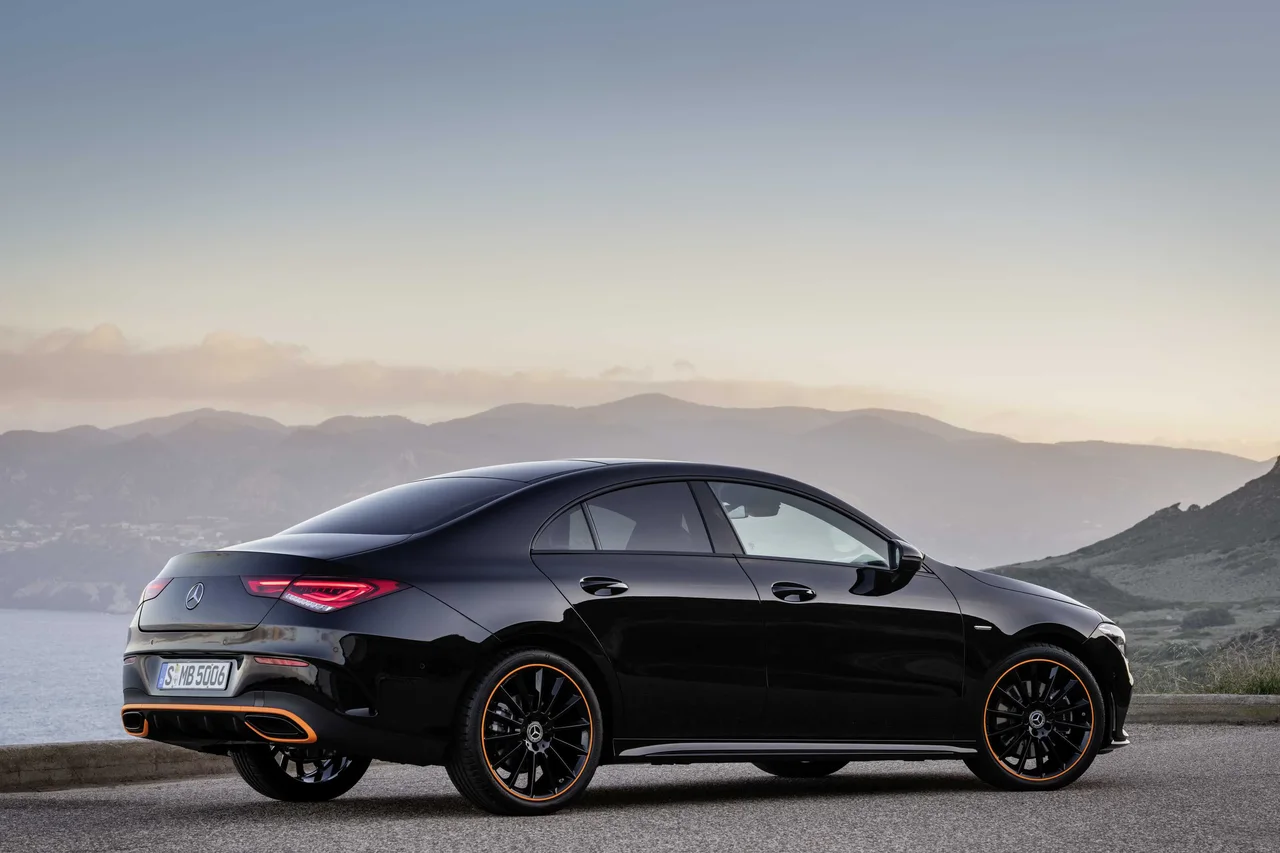

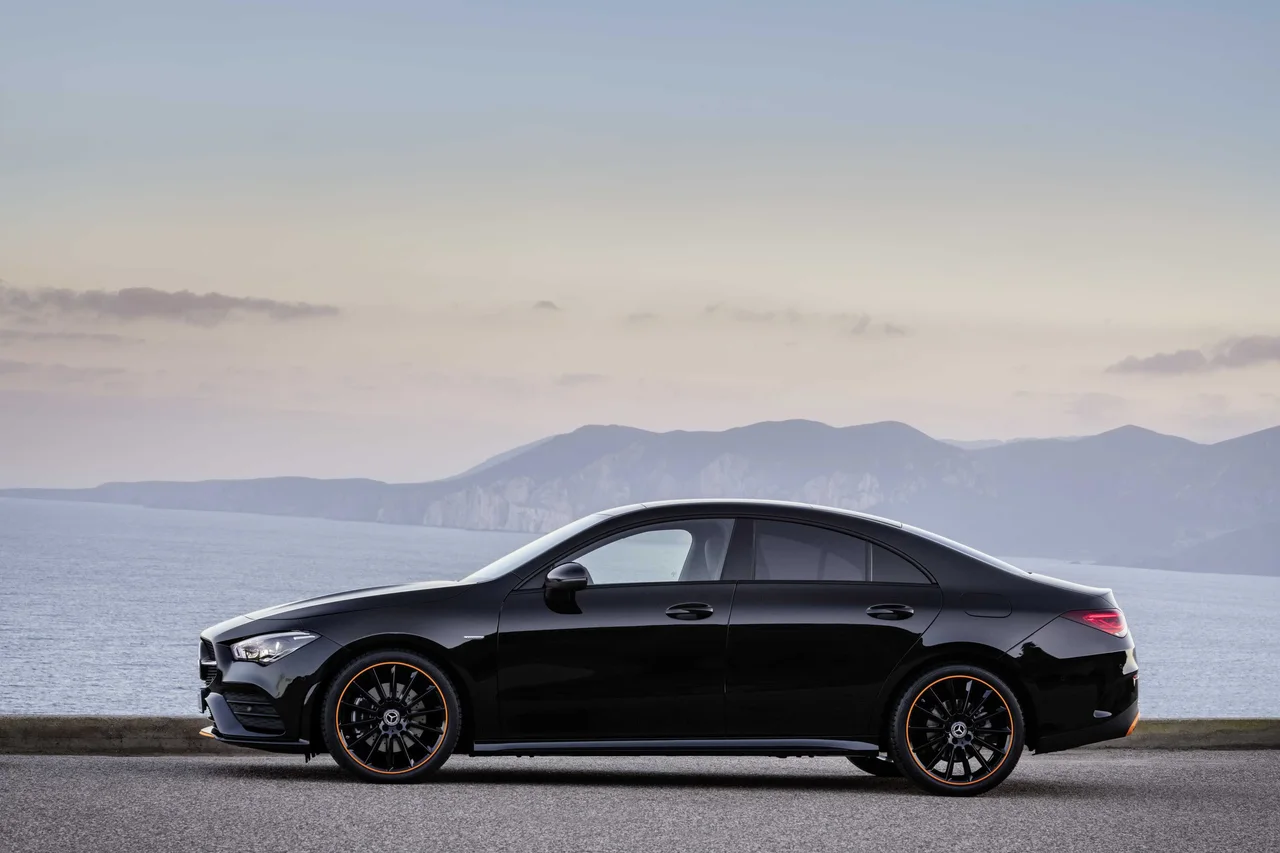

Photos

Specifications

Vehicle Details

Year
2023
Make
Mercedes-Benz
Model
CLA
Body Style
Coupe
Generation
C118
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic

Powertrain

Engine Name
250 4MATIC 7G-DCT
Engine Configuration
Inline
Power (hp)
224 hp
Power (kW)
165 kW
Torque
350 Nm (258 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
6.0 seconds (estimated)
0–100 km/h
6.3 seconds
Displacement
1,991 cc

Dimensions

Length
4,688 mm (184.6 in)
Width
1,830 mm (72.0 in)
Height
1,444 mm (56.9 in)
Wheelbase
2,729 mm (107.4 in)
Curb weight
1,550 kg (3,417 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,800 - 4,000 rpm
Engine Fluids
Engine Oil, Volume
5.8 litres
Engine Configuration
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Mount
Transversally
Service Intervals
Fuel Filter
250,000 km / 15 years
Spark Plug
100,000 km / 5 years
Brake Fluid
2 years
Engine Coolant
250,000 km / 15 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Front Brakes
Cooling
Perforated

Fuel

General
Tank Volume
51 litres
Emission
Emission Standard
Euro 6d -ISC-FCM
Emission Class
C
WLTP Consumption
Low (l/100km) (WLTP)
10.4 - 10.8 litres / 100 km
Medium (l/100km)
7.3 - 8 litres / 100 km
High (l/100km)
6 - 6.7 litres / 100 km
Extra High (l/100km)
6.3 - 7.3 litres / 100 km
Combined (l/100km)
7 - 7.7 litres / 100 km
Fuel Consumption NEDC
City
8.7 - 8.8 litres / 100 km
Highway
5.2 - 5.4 litres / 100 km
Combined
6.5 - 6.7 litres / 100 km
Emission WLTP
CO₂, Combined
158 - 175 g/km
Emission NEDC
CO₂, Combined
148 - 153 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,999 mm (78.7 in)
Width, open Doors
2,841 mm (111.9 in)
Track, Front
1,612 mm (63.5 in)
Track, Rear
1,602 mm (63.1 in)
Overhang, Front
927 mm (36.5 in)
Overhang, Rear
1,032 mm (40.6 in)
Turning Circle
11.1 m
Ground Clearance
104 mm (4.1 in)

Interior

Head Room, Front
1,023 mm (40.3 in)
Head Room, Rear
908 mm (35.7 in)
Leg Room, Front
1,062 mm (41.8 in)
Leg Room, Rear
861 mm (33.9 in)
Hip Room, Front
1,400 mm (55.1 in)
Hip Room, Rear
1,372 mm (54.0 in)
Shoulder Room, Front
1,457 mm (57.4 in)
Shoulder Room, Rear
1,454 mm (57.2 in)

Weight

Gross Weight
2,085 kg (4,597 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
535 kg (1,179 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-C
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
User Memory
Optional
Heated
Yes
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Automatic Parking Fold
Optional
Side Mirrors › Folding
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Frameless Windows
  • First Row
  • Second Row
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Glass-integrated
Solar Roof
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Headlight Range Adjustment
Fog Lights
Rear
Yes
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
6.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
130 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
7 - 10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
Memory Card Reader
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
USB
Yes
Connectivity › Media Inputs › USB
Number of Ports
3 pcs
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
10.25"
Entertainment Screens
Optional
Displays › Center Display
Touchpad
Optional
Displays › Entertainment Screens
Back of Headrest
Optional
Speakers
Total Number of Speakers
10 pcs
Tweeters
4 pcs
Midrange Speakers
5 pcs
Speakers Max. Watt
225 W
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
1 pcs
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Bottom of the Doors
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Release Button
Yes
Barrier Net/Grid
Optional
Flat Surface
Yes
Soft Close
Optional
Second Trunk Compartment
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
460 litres
Trunk Door Opening Height
1,841 mm (72.5 in)
Sill Height
770 mm (30.3 in)
Automatic Open
Button on Trunk Door
Optional
Motion Activated
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Cushion Tilt
Optional
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Cushion Tilt
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Collapsible
Optional
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Voice Control
  • Climate Control
  • Media
  • Phone
Wireless Phone Connection with Antenna
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Cameras
Rear
Optional
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Sport
Smartphone App
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Yes
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Yes
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Night Vision
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Emergency Call
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
96 %
Child Occupant
91 %
Vulnerable Road Users
91 %
Safety Assist
75 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Rust Damage
30 years

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Turn Indicators, Rear
BAU15s (PY21W)

ACRISS

Category
Intermediate Elite (J)
Type
4-5 Doors (D)

Similar coupes

Suggested vehicles
