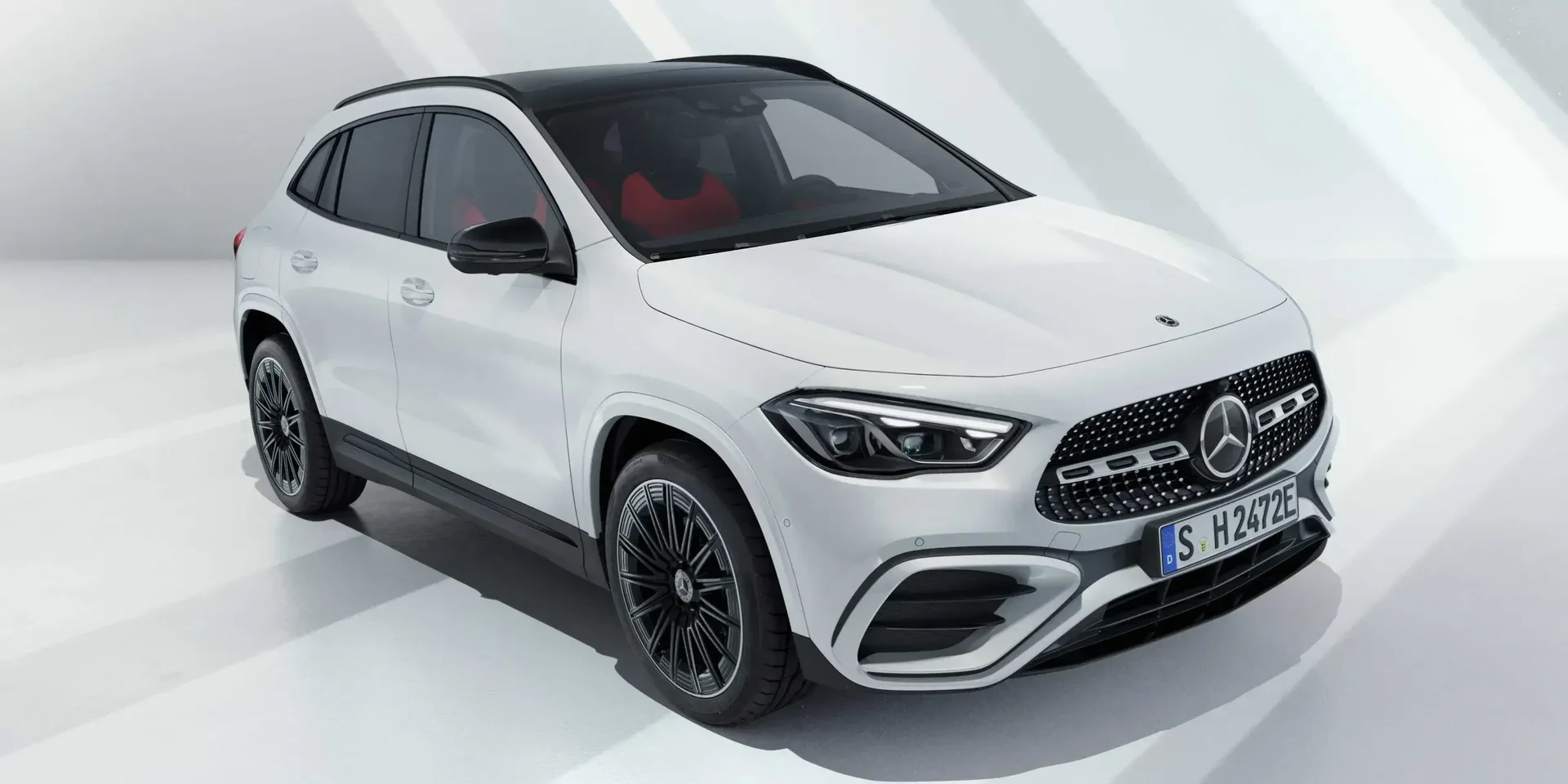

2023 Mercedes-Benz GLA

GermanyPlug In Hybrid GasolineFWDSUV

Photos

Specifications

Vehicle Details

Year
2023
Make
Mercedes-Benz
Model
GLA
Body Style
SUV
Generation
H247 Facelift
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic

Powertrain

Engine Name
250 e 8G-DCT
Engine Configuration
Inline
Power (hp)
218 hp
Power (kW)
160 kW
Torque
270 Nm (199 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
7.5 seconds (estimated)
0–100 km/h
7.9 seconds
Electric range
69 km (43 mi)
Battery
15.6 kWh
Displacement
1,332 cc

Dimensions

Length
4,412 mm (173.7 in)
Width
1,834 mm (72.2 in)
Height
1,616 mm (63.6 in)
Wheelbase
2,729 mm (107.4 in)
Curb weight
1,800 kg (3,968 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
2,000 - 3,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
5.5 litres
Configuration Combustion
Bore
72.2 mm (2.8 in)
Stroke
81.3 mm (3.2 in)
Compression Ratio
10.6 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
80 kW
Electric Engine Horsepower (Metric)
109 hp
Battery Capacity, Gross
15.6 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Configuration Electric › Charge AC
Charge Time
3.75 h
Charge Power
3.7 kW
Configuration Electric › Charge DC
Charge Time
25 min
Charge Power
22 kW
Service Intervals
Oil Change & Engine Filter
25,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
35 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6
WLTP Consumption
Weighted, Combined
1.1 - 1.4 litres / 100 km
Combined
21.1 - 23.8 kWh/100km
Electric Range
69 - 77 km (43 - 48 mi)
Emission WLTP
CO₂, Weighted, Combined
24 - 31 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,020 mm (79.5 in)
Track, Front
1,605 mm (63.2 in)
Track, Rear
1,606 mm (63.2 in)
Overhang, Front
907 mm (35.7 in)
Overhang, Rear
776 mm (30.6 in)
Turning Circle
11.4 m
Ground Clearance
143 mm (5.6 in)

Interior

Head Room, Front
1,037 mm (40.8 in)
Head Room, Rear
969 mm (38.1 in)
Leg Room, Front
1,045 mm (41.1 in)
Leg Room, Rear
896 mm (35.3 in)
Hip Room, Front
1,456 mm (57.3 in)
Hip Room, Rear
1,455 mm (57.3 in)
Shoulder Room, Front
1,419 mm (55.9 in)
Shoulder Room, Rear
1,393 mm (54.8 in)

Weight

Gross Weight
2,300 kg (5,071 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
500 kg (1,102 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Optional
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Heated Washer Nozzles
Optional
Intermittent Control
Yes
Rear Wiper
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Yes
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Optional
Special Features
  • Main Beam Assist
  • Headlight Range Adjustment
Special Features
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Optional
Back Seat Controls
Optional
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
Media Format
Hard Drive
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 5G
  • 4G
  • 3G
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Rear
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
10.25"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Gesture Control
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Optional
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Door Handles
Optional
Bottom of the Doors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Trunk
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Optional
Barrier Net/Grid
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
385 litres
Volume, Back Seat Collapsed
1,385 litres
Depth
804 mm (31.7 in)
Depth, Back Seat Collapsed
1,587 mm (62.5 in)
Width
1,050 mm (41.3 in)
Trunk Door Opening Height
2,119 mm (83.4 in)
Sill Height
692 mm (27.2 in)
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional

Design

Pedals
Standard
Pedals
Stainless Steel
Optional
Sport
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Seat Depth
Optional
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Rear
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Active Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Phone Application
Optional
Cameras
View Location
Center Display
Wireless Phone Charger
Front
Optional

Other Features

GPS
Navigation
Driving Mode Selection
  • Comfort
  • Eco
  • Sport
Smartphone App
Yes
Over-the-Air Updates
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Collision Warning (RCW)
Optional
Forward Distance Monitoring (FDM)
Optional
Emergency Steering Assist
Optional
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Optional
Emergency Stop Signal (ESS)
Optional
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Location Tracking
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Emergency Call
Yes
Immobiliser
Electronic
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Warranty

EV Battery
100,000 km / 6 years

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Small SUV

Similar suvs

Suggested vehicles
