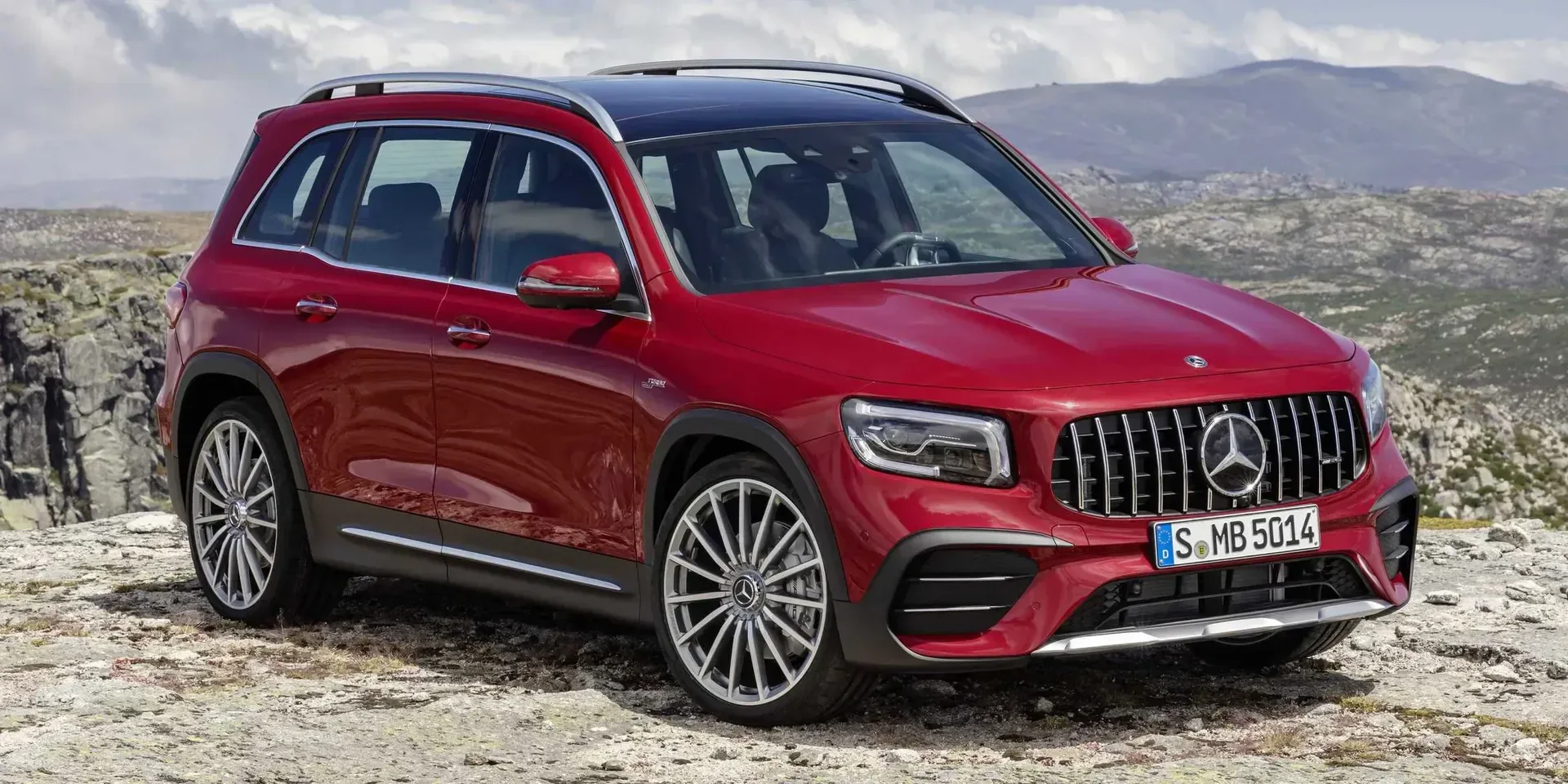

2023 Mercedes-Benz GLB AMG GLB

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2023
Make
Mercedes-Benz
Model
GLB
Variant
AMG GLB
Body Style
SUV
Generation
X247
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic

Powertrain

Engine Name
AMG GLB 35 4MATIC 8G-DCT
Engine Configuration
Inline
Power (hp)
306 hp
Power (kW)
225 kW
Torque
400 Nm (295 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
5.0 seconds (estimated)
0–100 km/h
5.2 seconds
Displacement
1,991 cc

Dimensions

Length
4,634 mm (182.4 in)
Width
1,834 mm (72.2 in)
Height
1,658 mm (65.3 in)
Wheelbase
2,829 mm (111.4 in)
Curb weight
1,755 kg (3,869 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,800 - 6,100 rpm
Rev. at Max Torque
3,000 - 4,000 rpm
Engine Configuration
Compression Ratio
10 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Mount
Transversally

Transmission & Drivetrain

Transmission
Automatic
Gear Selector
Paddles

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Colour
Silver

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
60 litres
Emission
Emission Standard
Euro 6d -ISC-FCM
Emission Class
C
WLTP Consumption
Combined (l/100km)
8.8 - 9.4 litres / 100 km
Fuel Consumption NEDC
Combined
7.5 - 7.6 litres / 100 km
Emission WLTP
CO₂, Combined
201 - 213 g/km
Emission NEDC
CO₂, Combined
171 - 173 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,020 mm (79.5 in)
Track, Front
1,605 mm (63.2 in)
Track, Rear
1,606 mm (63.2 in)
Overhang, Front
905 mm (35.6 in)
Overhang, Rear
900 mm (35.4 in)
Turning Circle
12.5 m
Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
1,069 mm (42.1 in)
Head Room, Rear
983 - 999 mm (38.7 - 39.3 in)
Head Room, Third Row
883 mm (34.8 in)
Leg Room, Front
1,044 mm (41.1 in)
Leg Room, Rear
937 - 968 mm (36.9 - 38.1 in)
Leg Room, Third Row
740 mm (29.1 in)
Hip Room, Front
1,419 mm (55.9 in)
Hip Room, Rear
1,394 mm (54.9 in)
Shoulder Room, Front
1,420 mm (55.9 in)
Shoulder Room, Rear
1,397 mm (55.0 in)
Shoulder Room, Third Row
1,113 mm (43.8 in)

Weight

Gross Weight
2,260 kg (4,982 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
505 kg (1,113 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Mercedes-Benz Platforms
MFA2

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Folding
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Fixed
Antenna
Glass-integrated
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)

Lights

Daytime Running Light
LED
Fog Lights
Optional
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Automatic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
Optional
Media Inputs
USB
App-Connect
Optional
Phone Preparation
Yes
Cellular Network
4G
Connectivity › Radio
FM
Optional
DAB
Optional
Internet Radio
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
10.25"
Center Display Controls
  • Touchscreen
  • Touchpad
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
12 pcs
Speakers Max. Watt
590 W
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Door
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Heat/Cooling
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes
Adjustments
User Memory
Optional

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Barrier Net/Grid
Optional
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
565 litres
Volume, Back Seat Collapsed
1,800 litres
Depth
936 mm (36.9 in)
Depth, Back Seat Collapsed
1,687 mm (66.4 in)
Height
953 mm (37.5 in)
Trunk Door Opening Height
2,082 mm (82.0 in)
Sill Height
740 mm (29.1 in)
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional
Key Button
Optional
Motion Activated
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Powered
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Powered
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Adjustments
Backrest Angle
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40
Second Seat Row › Adjustments
Seat Depth
Optional
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Seat Colour
Black
Stitching Colour
Black

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Remote Engine Start
Optional
Garage Remote Control
Optional
Speed Limiter
Yes
Cameras
Optional
Voice Control
Optional
Wireless Phone Connection with Antenna
Optional
Wireless Phone Charger
Optional
Cameras
Front
Optional
Cameras › Front
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
GPS Preparation
Yes
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Dynamic
  • Eco
  • Individual
  • Sport
  • Auto

Accessories

Fire Extinguisher
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Optional
Emergency Stop Signal (ESS)
Optional
Lane Assist System
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Electrical
Active Bonnet
Yes
Emergency Call
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
92 %
Child Occupant
88 %
Vulnerable Road Users
78 %
Safety Assist
74 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Rust Damage
30 years

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Rear
BAU15s (PY21W)

ACRISS

Type
Crossover (G)

Similar suvs

Suggested vehicles
