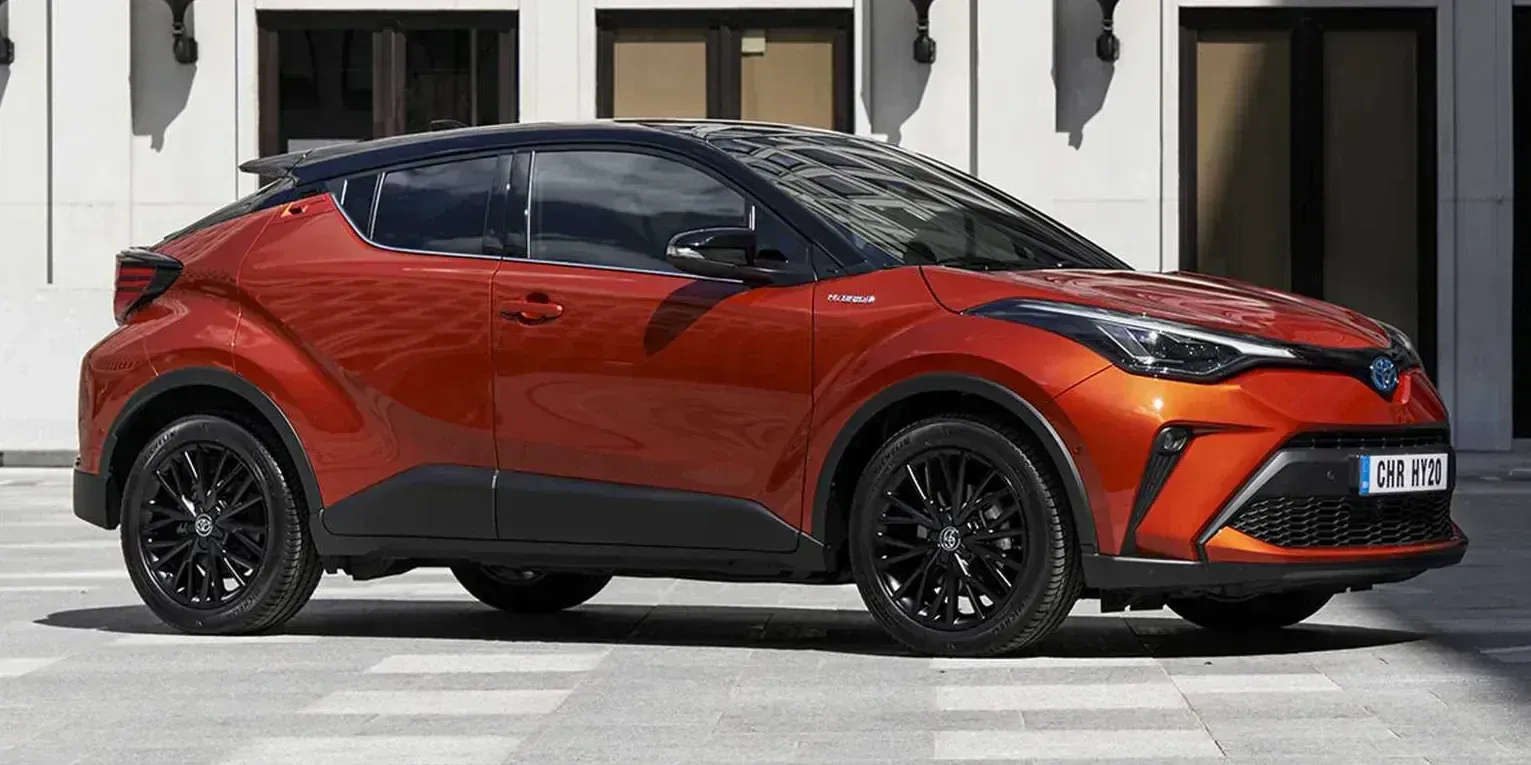

2023 Toyota C-HR

JapanHybrid GasolineFWDSUV

Photos

Specifications

Vehicle Details

Year
2023
Make
Toyota
Model
C-HR
Body Style
SUV
Generation
1st Generation Facelift
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Continuously variable)

Powertrain

Engine Name
Hybrid CVT
Engine Configuration
Inline
Power (hp)
122 hp
Power (kW)
90 kW
Torque
142 Nm (105 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
10.5 seconds (estimated)
0–100 km/h
11 seconds
Displacement
1,798 cc

Dimensions

Length
4,385 mm (172.6 in)
Width
1,795 mm (70.7 in)
Height
1,555 mm (61.2 in)
Wheelbase
2,640 mm (103.9 in)
Curb weight
1,420 kg (3,131 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Torque
3,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-30
  • 10W-30
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
  • 15W-40
Engine Oil, Volume
4.2 litres
Configuration Combustion
Bore
80.5 mm (3.2 in)
Stroke
88.3 mm (3.5 in)
Compression Ratio
13 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Hybrid
Electric Engine Power
53 kW
Electric Engine Horsepower (Metric)
72 hp
Service Intervals
Spark Plug
90,000 km (55,923 mi)
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Continuously variable)

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
43 litres
General › Fuel Cap Position
Rear
Yes
Emission
Emission Standard
Euro 6d
Emission Class
A+
WLTP Consumption
Combined (l/100km)
4.8 - 4.9 litres / 100 km
Fuel Consumption NEDC
City
3.2 - 3.5 litres / 100 km
Highway
4.2 - 4.3 litres / 100 km
Combined
3.8 - 3.9 litres / 100 km
Emission WLTP
CO₂, Combined
109 - 111 g/km
Emission NEDC
CO₂, Combined
86 g/km

Dimensions & Weight

Exterior

Track, Front
1,540 mm (60.6 in)
Track, Rear
1,550 mm (61.0 in)
Overhang, Front
940 mm (37.0 in)
Overhang, Rear
805 mm (31.7 in)
Turning Circle
10.4 - 11 m
Ground Clearance
150 mm (5.9 in)

Interior

Head Room, Front
968 mm (38.1 in)
Head Room, Rear
973 mm (38.3 in)
Leg Room, Front
1,104 mm (43.5 in)
Leg Room, Rear
805 mm (31.7 in)
Hip Room, Front
1,345 mm (53.0 in)
Hip Room, Rear
1,219 mm (48.0 in)
Shoulder Room, Front
1,245 mm (49.0 in)
Shoulder Room, Rear
1,333 mm (52.5 in)

Weight

Gross Weight
1,860 kg (4,101 lb)
Max Trailer Load, braked 12%
725 kg (1,598 lb)
Max Trailer Load, unbraked
725 kg (1,598 lb)
Cargo Capacity
360 - 400 kg (794 - 882 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Mechanical
Heated
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Tow Hook
  • Front
  • Rear
Normal Roof
Yes

Lights

Daytime Running Light
LED
Special Features
Main Beam Assist

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Central Bore (CB), rear
60.1
Fastening Type
Lug Nuts
Tightening Torque
103 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Oil Temperature
Analogue
Instrument Cluster › Trip Computer
Display
3.7 - 4.2"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Manual
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
  • RDS
Media Format
  • CD
  • MP3
  • WMA
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
AUX
Yes
USB
Yes
Connectivity › Media Inputs › USB
Placement
Front

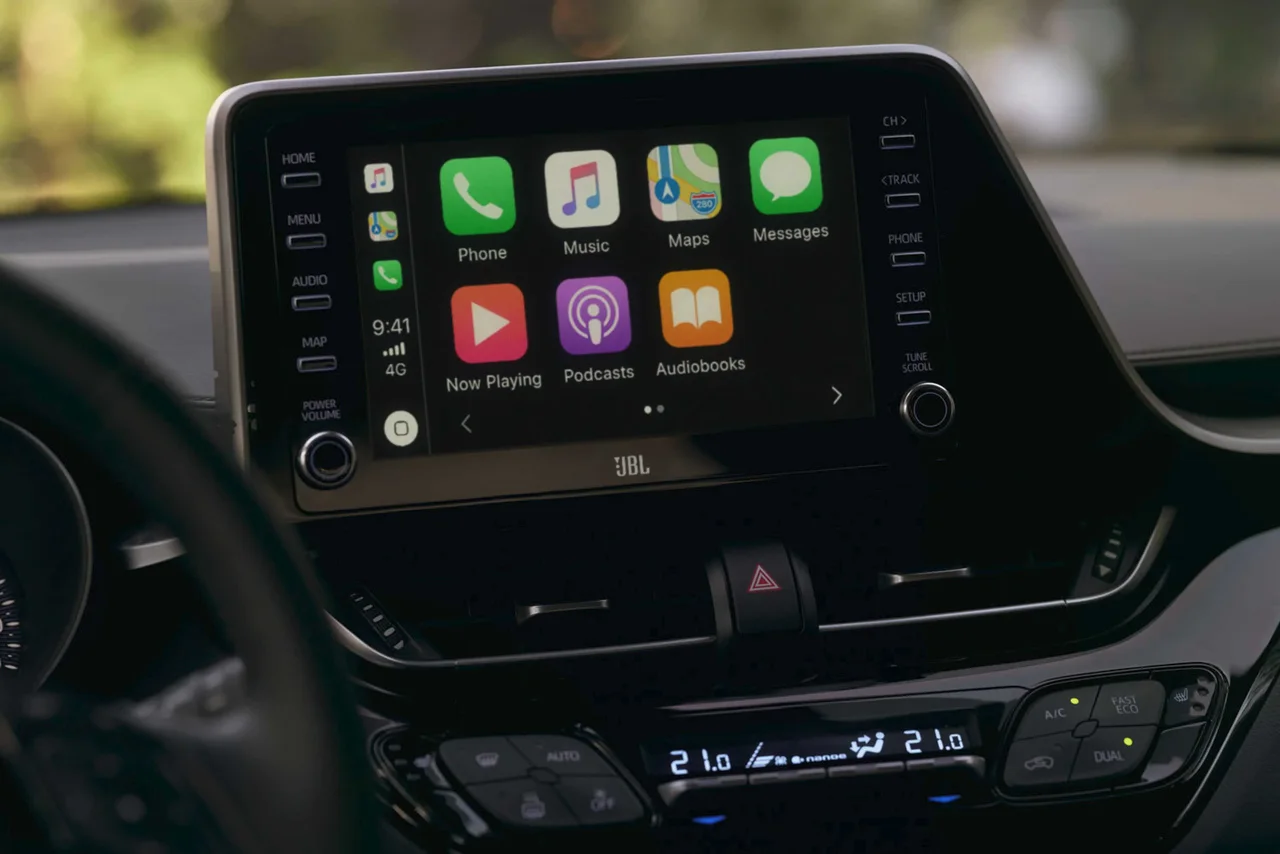

Displays
Center Display
Yes
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
4 - 6 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
Yes
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Colour
Black
Steering Mechanism
Rack and Pinion
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Cover
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
350 litres
Depth
750 mm (29.5 in)
Depth, Back Seat Collapsed
1,555 mm (61.2 in)
Width
1,300 mm (51.2 in)
Width, Between Wheel Arches
955 mm (37.6 in)

Design

Interior Decor Colour
Black
Transmission Knob Material
Leather
Colour
Black

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Heated Seats
Optional
Armrest
Middle
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Cameras
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional

Accessories

Tool Kit and Jack
Yes
Warning Triangle
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Yes
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2017
Adult Occupant
95 %
Child Occupant
77 %
Vulnerable Road Users
76 %
Safety Assist
78 %
Overall
5/5 stars
IIHS
Test Year
2020
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

ACRISS

Type
Crossover (G)
