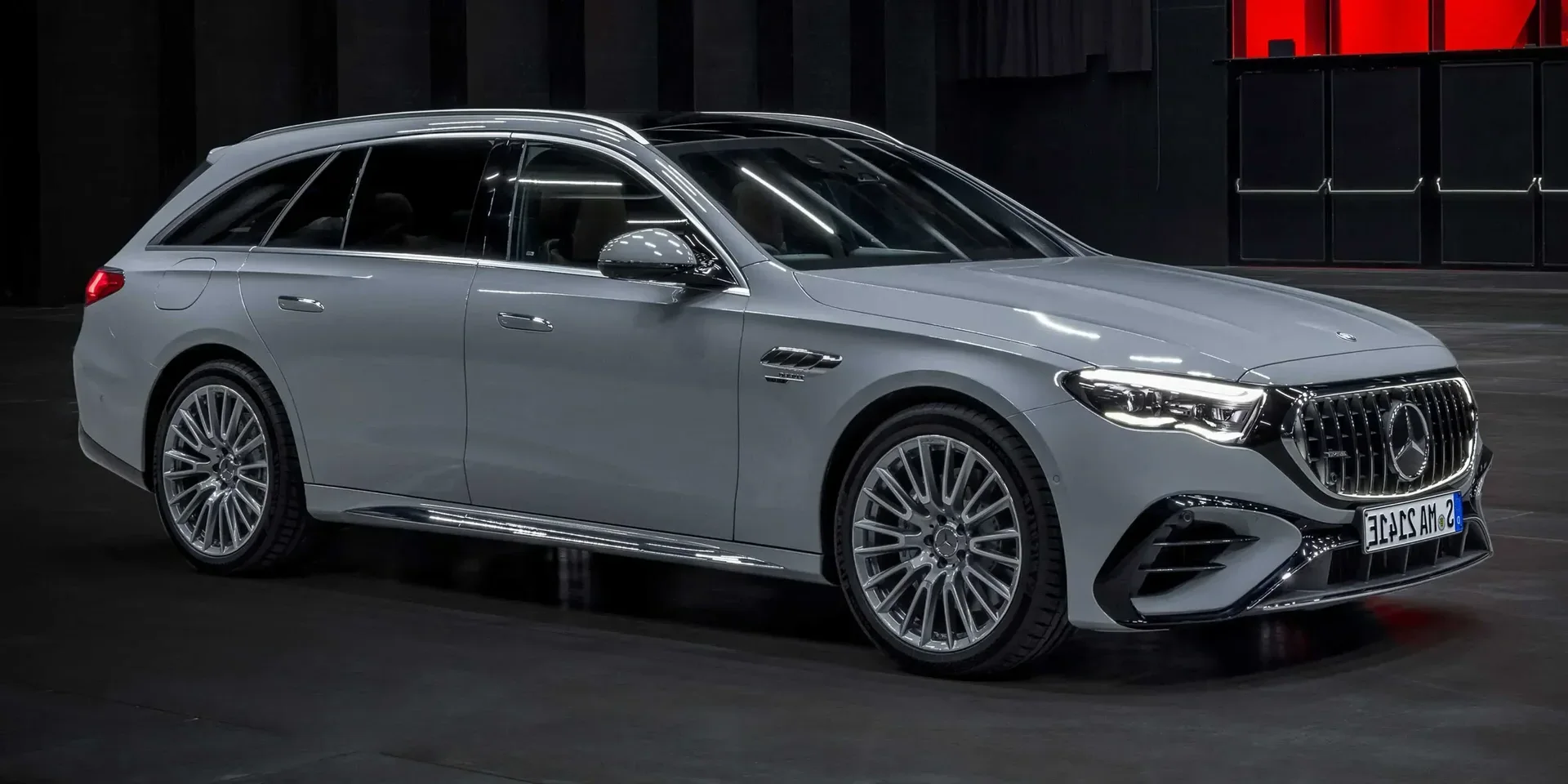

2024 Mercedes-Benz E-Class AMG E

GermanyPlug In Hybrid GasolineAWDWagon

Photos

Specifications

Vehicle Details

Year
2024
Make
Mercedes-Benz
Model
E-Class
Variant
AMG E
Body Style
Wagon
Generation
W214
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 9-speed

Powertrain

Engine Name
AMG E 53 HYBRID T 4MATIC+ AMG SpeedShift TCT 9-speed
Engine Configuration
Inline
Power (hp)
585 hp
Power (kW)
430 kW
Torque
750 Nm (553 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.0 seconds (estimated)
0–100 km/h
4.2 seconds
Electric range
97 km (60 mi)
Battery
28.6 kWh
Displacement
2,999 cc

Dimensions

Length
4,949 mm (194.8 in)
Width
1,880 mm (74.0 in)
Height
1,469 mm (57.8 in)
Wheelbase
2,961 mm (116.6 in)
Curb weight
2,435 kg (5,368 lb)

Engine & Performance

Engine

Engine Fluids
Synthetic Oil (viscosity)
  • 0W-40
  • 5W-40
Semi-synthetic Oil (viscosity)
5W-40
Engine Oil, Volume
9.9 litres
Configuration Combustion
Engine Configuration
Inline
Turbocharger
Yes
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Battery Capacity, Gross
28.6 kWh
Battery Capacity, Net
21.22 kWh
Configuration Electric › Charge AC
Charge Time
145 min
Charge Power
11 kW
Configuration Electric › Charge DC
Charge Time, to 80%
20 min
Charge Power
60 kW
Service Intervals
Oil Change & Engine Filter
25,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 9-speed

Fuel

General
Tank Volume
60 litres
Emission
Emission Standard
Euro 6 Euro 6e (-bis)
Emission Class
  • B
  • G
WLTP Consumption
Combined (l/100km)
8.9 litres / 100 km
Weighted, Combined
3.1 litres / 100 km
Combined
17.8 kWh/100km
Electric Range
97 km (60 mi)
Electric Range, City
98 km (61 mi)
Emission WLTP
CO₂, Weighted, Combined
70 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,065 mm (81.3 in)
Track, Front
1,634 mm (64.3 in)
Track, Rear
1,651 mm (65.0 in)
Overhang, Front
848 mm (33.4 in)
Overhang, Rear
1,140 mm (44.9 in)
Turning Circle
11.6 m

Interior

Head Room, Front
1,065 mm (41.9 in)
Head Room, Rear
1,006 mm (39.6 in)
Leg Room, Front
1,060 mm (41.7 in)
Leg Room, Rear
917 mm (36.1 in)
Hip Room, Front
1,468 mm (57.8 in)
Hip Room, Rear
1,460 mm (57.5 in)
Shoulder Room, Front
1,509 mm (59.4 in)
Shoulder Room, Rear
1,519 mm (59.8 in)

Weight

Gross Weight
2,975 kg (6,559 lb)
Max Trailer Load, braked 12%
2,100 kg (4,630 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
540 kg (1,190 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Optional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Yes
Ground Light
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Folding
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Wiper Blades
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Adaptive Headlights
  • Dynamic Cornering Lights
  • Come Home/Leaving Lights
Fog Lights
Front
LED
Rear
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Dynamic Turn Signal
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
130 - 150 Nm
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Oil Temperature
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Compass
Yes
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Optional
Controls
Touchscreen
Back Seat Controls
Optional
Air Ionizer
Optional
Fragrance System
Optional
Climate Control › Air Condition
Refrigerant
R1234yf
Climate Control › Back Seat Controls
Buttons
Optional
Touchscreen
Optional
Connectivity
Radio
  • AM
  • FM
  • DAB+
Media Format
  • FLAC
  • MP3
App-Connect
  • Android Auto
  • Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Connectivity › Cellular Network
5G
Optional
Connectivity › Cellular Network › 5G
4G
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
  • Bottom of the Doors
Ambient Light
Yes
Selectable Light Colour
Yes
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Sport
Optional
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Sliding (Electrical)
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Soft Close
Optional
Second Trunk Compartment
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
460 litres
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Interior Decor Material
Plastic
Pedals
Standard
Pedals
Aluminium
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Optional
Cushion Tilt
Optional
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Optional
Cushion Tilt
Optional
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
  • Driver
  • Passenger
Armrest
Middle (Heated)
Massage
Optional
Ventilated Seats
Optional
Easy Entry
Optional
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Heated Seats › Areas
Neck
Optional
Front Seats › Massage
Driver
Optional
Passenger
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Headrests, Centre Seat, Foldable: Type
Manual
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
40/20/40
Heated Seats
Optional
Second Seat Row › Collapsible › Backrest Release
On Top of Backrest
Optional
Second Seat Row › Headrests
Outer Seats
  • Height Adjustment
  • Tilt Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes
Tilt Adjustment
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Climate Control
  • Media
  • Phone
Wireless Phone Charger
Front
Cruise Control
Adaptive Cruise Control
Queue Assist
Cameras
View Location
Center Display
Voice Control
Navigation
Optional
Wireless Phone Charger
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Individual
  • Sport
Dynamic Chassis Control (DCC)
Yes
Horn
Dual Note

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Automatic Locking Retractor
Yes
Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Yes
Emergency Steering Assist
Optional
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Sign Assist
Yes
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
  • Side
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Obstacle Detection Sensor
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Night Vision
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Electrical
Active Bonnet
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2024
Adult Occupant
92 %
Child Occupant
90 %
Vulnerable Road Users
84 %
Safety Assist
87 %
Overall
5/5 stars
Adult Occupant
Total Points
37.1 /38
Frontal Impact
14.2 /16
Lateral Impact
16 /16
Rear Impact
3.8 /4
Rescue and Extrication
3.2 /2
Child Occupant
Total Points
44.2 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
8.3 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 15
  • 0.7
  • 8.3
AEB Pedestrian
7.8 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
7.8 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.5 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
1.4 /3
Occupant Status Monitoring (assesment)
Marginal
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
0.4
Driver Monitoring (assesment)
Weak
Lane Support (points)
3 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
9 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Similar wagons

Suggested vehicles
