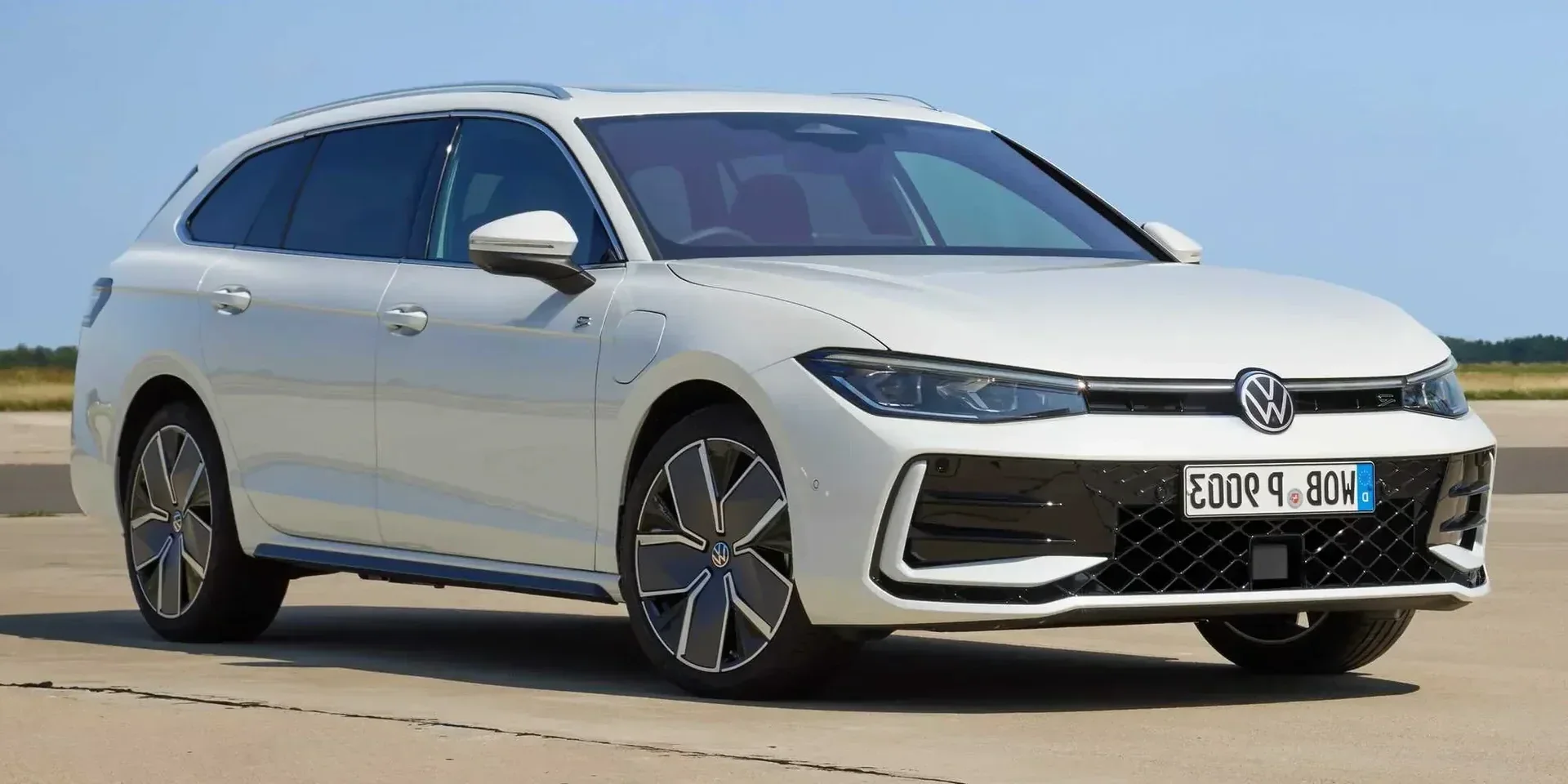

2024 Volkswagen Passat Variant eHybrid

GermanyPlug In Hybrid GasolineFWDWagon

Photos

Specifications

Vehicle Details

Year
2024
Make
Volkswagen
Model
Passat
Variant
Variant eHybrid
Body Style
Wagon
Generation
B9 (Type CJ)
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Dual-clutch), 6-speed

Powertrain

Engine Name
eHybrid DSG Sequential
Engine Configuration
Inline
Power (hp)
204 hp
Power (kW)
150 kW
Torque
350 Nm (258 lb-ft)
Top speed
220 km/h (137 mph)
0–60 mph
7.6 seconds (estimated)
0–100 km/h
8 seconds
Electric range
131 km (81 mi)
Battery
19.7 kWh
Displacement
1,498 cc

Dimensions

Length
4,917 mm (193.6 in)
Width
1,849 mm (72.8 in)
Height
1,497 mm (58.9 in)
Wheelbase
2,841 mm (111.9 in)
Curb weight
1,849 kg (4,076 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 - 6,000 rpm
Rev. at Max Torque
1,500 - 4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
4.3 litres
Configuration Combustion
Bore
74.5 mm (2.9 in)
Stroke
85.9 mm (3.4 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Configuration Combustion › ICE Specifications
Power
110 kW
Horsepower (Metric)
150 hp (148 bhp)
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
85 kW
Electric Engine Horsepower (Metric)
115 hp (114 bhp)
Front Engines
Yes
Battery Capacity, Net
19.7 kWh
AC Charge Type
  • Single-phase
  • Three-phase
Configuration Electric › Front Engines
Power (kW)
85 kW
Horsepower
115 hp
Number of Engines
1
Configuration Electric › Charge AC
Charge Time
2.5 h
Charge Power
11 kW
Configuration Electric › Charge DC
Charge Time, to 80%
26 min
Charge Power
40 kW
Service Intervals
Air Filter
90,000 km / 6 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 6-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front
Brakes Material
Steel
Front Brakes
Diameter
312 mm (12.3 in)
Width
25 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
12 mm (0.5 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Front
Electronic Damper Control (EDC)
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
45 litres
General › Fuel Cap Position
Rear
Right
General › Charging Socket Position
Front
Left
Emission
Emission Standard
Euro 6 (Euro 6e)
Emission Class
  • B
  • D
Emission Control
  • Catalyst
  • Particle Filter
  • Adaptive Cylinder Management
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
WLTP Consumption
Low (l/100km) (WLTP)
6.7 litres / 100 km
Medium (l/100km)
4.8 litres / 100 km
High (l/100km)
4.6 litres / 100 km
Extra High (l/100km)
5.5 litres / 100 km
Combined (l/100km)
5.2 litres / 100 km
Weighted, Combined
0.4 litres / 100 km
Low
14.3 kWh/100km
Medium
13.4 kWh/100km
High
14 kWh/100km
Extra High
23 kWh/100km
Combined
16.6 kWh/100km
Electric Range
131 - 132 km (81 - 82 mi)
Electric Range, City
158 km (98 mi)
Emission WLTP
CO₂, Weighted, Combined
8 - 9 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,090 mm (82.3 in)
Track, Front
1,577 - 1,585 mm (62.1 - 62.4 in)
Track, Rear
1,560 - 1,574 mm (61.4 - 62.0 in)
Overhang, Front
957 mm (37.7 in)
Overhang, Rear
1,119 mm (44.1 in)
Approach Angle
12.9 °
Breakover Angle
10.5
Departure Angle
13.5 °
Turning Circle
12 m

Interior

Head Room, Front
1,001 - 1,049 mm (39.4 - 41.3 in)
Head Room, Rear
968 - 1,008 mm (38.1 - 39.7 in)
Shoulder Room, Front
1,508 mm (59.4 in)
Shoulder Room, Rear
1,506 mm (59.3 in)

Weight

Gross Weight
2,350 kg (5,181 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, braked 8%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
501 – 587 kg (1,105 – 1,294 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
90 kg (198 lb)
Permitted Axle Load, front
1,160 kg (2,557 lb)
Permitted Axle Load, rear
1,240 kg (2,734 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Convex
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Intermittent Control
Yes
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Noise Reducing Windows
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Silver

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Optional
Special Features
  • Automatic Headlight Activation
  • Come Home/Leaving Lights
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Turn Signal
Optional
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Yes

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Central Bore (CB), rear
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
120 - 140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Back Seat Controls
Optional
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
  • Android Auto
  • Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
WiFi
Yes
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Armrest Hatch/Mid-console
  • Rear
Displays
Center Display
12.9"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Features
Active Noise Cancellation
Optional
Speakers
Total Number of Speakers
8 - 13 pcs
Speakers Max. Watt
700 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Door Handles (Interior)
Ambient Light
Yes
Selectable Light Colour
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
230V Outlet
Optional
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › 230V Outlet
Trunk
Optional
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Automatic Open
Button on Trunk Door
Automatic Close
Yes
Cover
Sliding (Electrical | Manual)
Barrier Net/Grid
Optional
Hatch Through Rear Seats
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
690 litres
Volume, Back Seat Collapsed
1,770 litres
Depth
1,140 mm (44.9 in)
Depth, Back Seat Collapsed
2,027 mm (79.8 in)
Width, Between Wheel Arches
1,010 mm (39.8 in)
Height
693 mm (27.3 in)
Trunk Door Opening Height
2,087 mm (82.2 in)
Sill Height
626 mm (24.6 in)
Automatic Open
Key Button
Optional
Motion Activated
Optional

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Pedals
Standard
Pedals
Stainless Steel
Optional

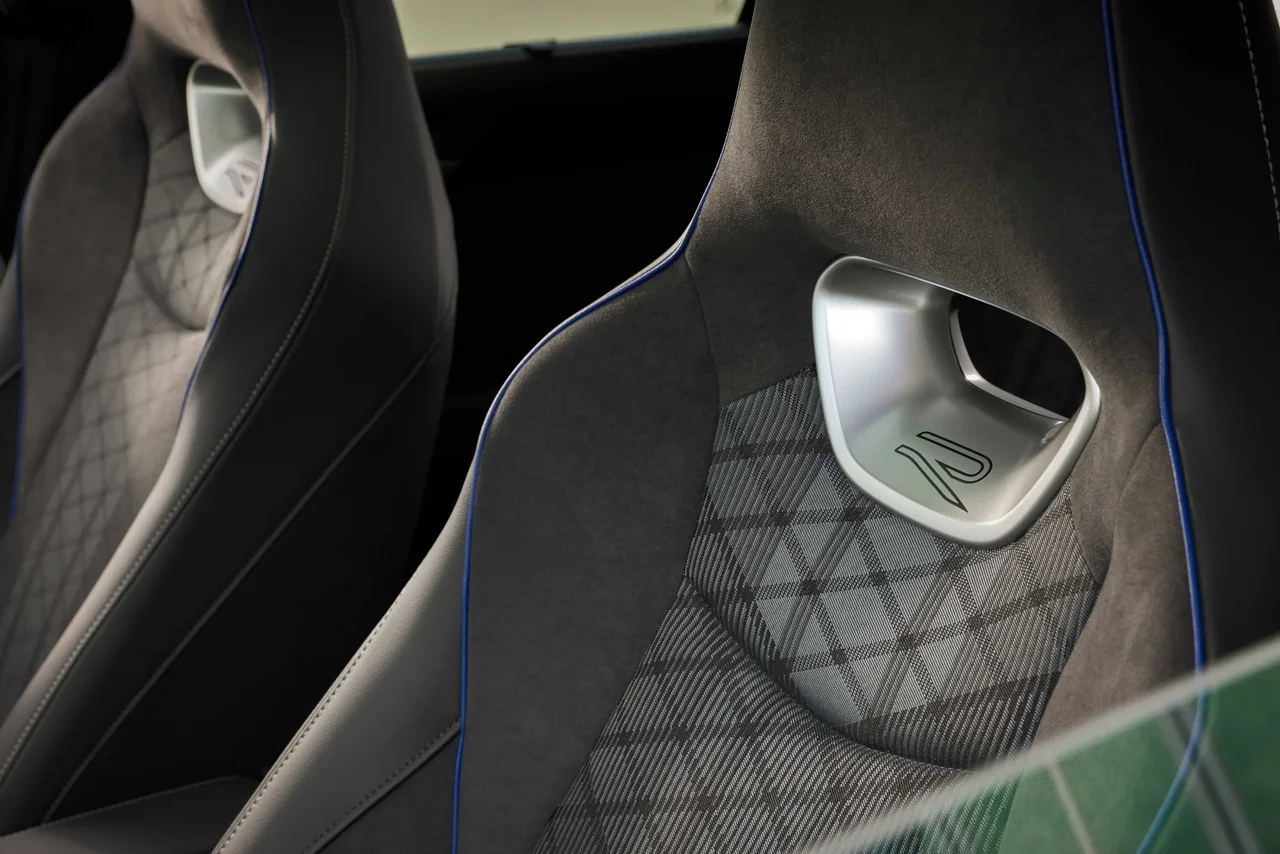

Seats

Colour & Material
Upholstery
Textile
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Cushion Edge
Manual
Cushion Tilt
Optional
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Cushion Edge
Manual
Cushion Tilt
Optional
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Massage
Optional
Front Seats › Power Seat, Driver
Semi-Powered
Yes
Front Seats › Power Seat, Passenger
Semi-Powered
Yes
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Massage
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Climate Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Front
Cameras
View Location
Center Display

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
Optional
Dynamic Chassis Control (DCC)
Optional
Horn
Dual Note
GPS
Map-update
Internet
Driving Mode Selection
Comfort
Optional
Eco
Optional
Individual
Optional
Normal
Optional
Sport
Optional

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Collision Warning (RCW)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Sign Assist
Yes
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Active Lane Change
Yes
Parking Assist
Semi-Automatic
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Electrical
Reversing Alarm
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2024
Adult Occupant
93 %
Child Occupant
87 %
Vulnerable Road Users
82 %
Safety Assist
80 %
Overall
5/5 stars
Adult Occupant
Total Points
37.3 /38
Frontal Impact
13.9 /16
Lateral Impact
16 /16
Rear Impact
3.4 /4
Rescue and Extrication
4 /2
Child Occupant
Total Points
43 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 11.5
  • 4.5
  • 7.4
AEB Pedestrian
7 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
8 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
1.7 /3
Speed Assistance (assesment)
Adequate
Occupant Status Monitoring (points)
1.3 /3
Occupant Status Monitoring (assesment)
Marginal
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
0.3
Driver Monitoring (assesment)
Weak
Lane Support (points)
3 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
8.5 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years
EV Battery
160,000 km / 8 years

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car

Similar wagons

Suggested vehicles
