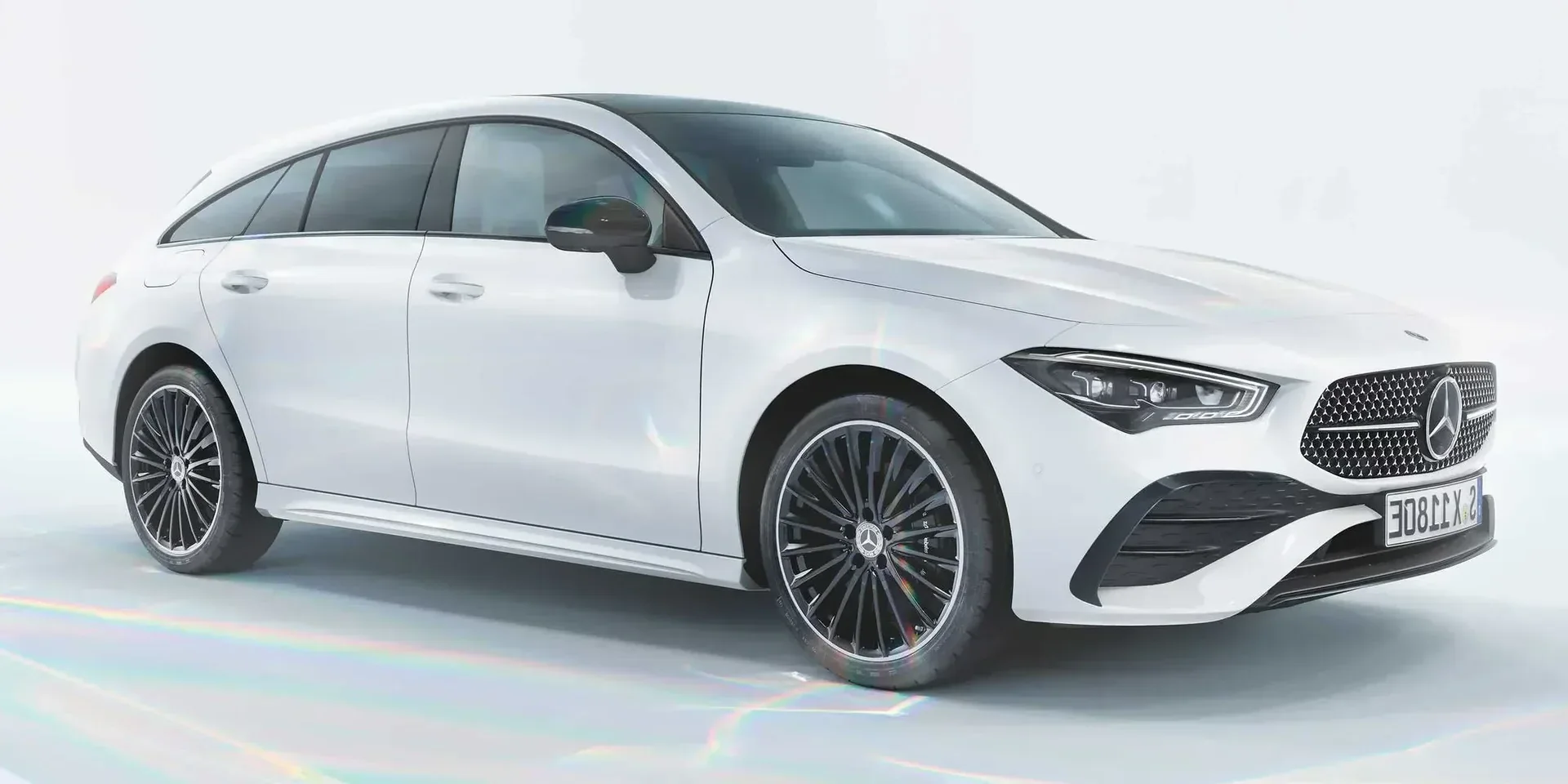

2023 Mercedes-Benz CLA

GermanyPlug In Hybrid GasolineFWDWagon

Photos

Specifications

Vehicle Details

Year
2023
Make
Mercedes-Benz
Model
CLA
Body Style
Wagon
Generation
C118 Facelift
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic

Powertrain

Engine Name
250 e Shooting Brake 8G-DCT
Engine Configuration
Inline
Power (hp)
218 hp
Power (kW)
160 kW
Torque
450 Nm (332 lb-ft)
Top speed
226 km/h (140 mph)
0–60 mph
7.3 seconds (estimated)
0–100 km/h
7.7 seconds
Electric range
68 km (42 mi)
Battery
13.5 kWh
Displacement
1,332 cc

Dimensions

Length
4,692 mm (184.7 in)
Width
1,834 mm (72.2 in)
Height
1,433 mm (56.4 in)
Wheelbase
2,729 mm (107.4 in)
Curb weight
1,655 kg (3,649 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
2,000 - 3,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
4.5 litres
Configuration Combustion
Bore
72.2 mm (2.8 in)
Stroke
81.3 mm (3.2 in)
Compression Ratio
10.6 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
80 kW
Electric Engine Horsepower (Metric)
108 hp
Torque
450 Nm (332 lb-ft)
Battery Capacity, Gross
13.5 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2
Configuration Electric › Charge AC
Charge Time
3.7 h
Charge Power
3 kW
Configuration Electric › Charge DC
Charge Time, to 80%
25 h
Charge Power
22 kW
Service Intervals
Oil Change & Engine Filter
25,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Colour
Grey
Front Brakes
Cooling
Ventilated
Brake Caliper Colour
Red
Optional

Suspensions

Suspension, Front
Independent
Yes
Suspension, Rear
Independent
Yes

Fuel

General
Tank Volume
35 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
  • Left
  • Right
Emission
Emission Standard
Euro 6d -ISC-FCM
WLTP Consumption
Weighted, Combined
0.8 - 1.1 litres / 100 km
Combined
15.1 - 17.2 kWh/100km
Electric Range
68 - 80 km (42 - 50 mi)
Emission WLTP
CO₂, Weighted, Combined
19 - 26 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,999 mm (78.7 in)
Track, Front
1,602 mm (63.1 in)
Track, Rear
1,605 mm (63.2 in)
Overhang, Front
924 mm (36.4 in)
Overhang, Rear
1,039 mm (40.9 in)
Turning Circle
11.1 m

Interior

Head Room, Front
1,025 mm (40.4 in)
Head Room, Rear
955 mm (37.6 in)
Leg Room, Front
1,062 mm (41.8 in)
Leg Room, Rear
861 mm (33.9 in)
Hip Room, Front
1,400 mm (55.1 in)
Hip Room, Rear
1,372 mm (54.0 in)
Shoulder Room, Front
1,457 mm (57.4 in)
Shoulder Room, Rear
1,454 mm (57.2 in)

Weight

Gross Weight
2,175 kg (4,795 lb)
Max Trailer Load, braked 12%
1,600 kg (3,527 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
520 kg (1,146 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
House Colour
Same as Car
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
Frameless Windows
  • First Row
  • Second Row
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Adaptive Headlights
Fog Lights
Rear
LED
Special Features
Dynamic Turn Signal
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Optional
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
Yes
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
10.25"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Gesture Control
Optional
Speakers
Speakers Max. Watt
710 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Armrest
Optional
Lights
Read Light
  • Front
  • Rear
Guide Light
Bottom of the Doors
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Front
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Material
Leather
Colour
Black
Steering Wheel, Stitching Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Barrier Net/Grid
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
485 litres
Volume, Back Seat Collapsed
1,350 litres
Depth
1,048 mm (41.3 in)
Depth, Back Seat Collapsed
1,792 mm (70.6 in)
Width
1,050 mm (41.3 in)
Trunk Door Opening Height
1,990 mm (78.3 in)
Sill Height
756 mm (29.8 in)
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional
Key Button
Optional

Design

Pedals
Standard
Pedals
Stainless Steel
Optional
Sport
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
  • Manual
  • Powered
Seat Height
  • Manual
  • Powered
Backrest Angle
  • Manual
  • Powered
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
  • Manual
  • Powered
Seat Height
  • Manual
  • Powered
Backrest Angle
  • Manual
  • Powered
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Rear
Voice Control
  • Climate Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Active Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Phone Application
Optional
Cameras
View Location
Center Display
Wireless Phone Charger
Front
Optional

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Normal
  • Sport
Dynamic Chassis Control (DCC)
Optional
Smartphone App
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Optional
Forward Collision Warning (FCW)
Optional
Rear Collision Warning (RCW)
Optional
Forward Distance Monitoring (FDM)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Traffic Light Recognition
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Location Tracking
Yes
Central Locking
Remote
Child Safety Locks
Yes
Emergency Call
Optional
Reversing Alarm
Optional
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

EV Battery
100,000 km / 6 years

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Similar wagons

Suggested vehicles
