2026 Hyundai Santa Fe HEV

South KoreaHybrid Gasoline2WDSUV

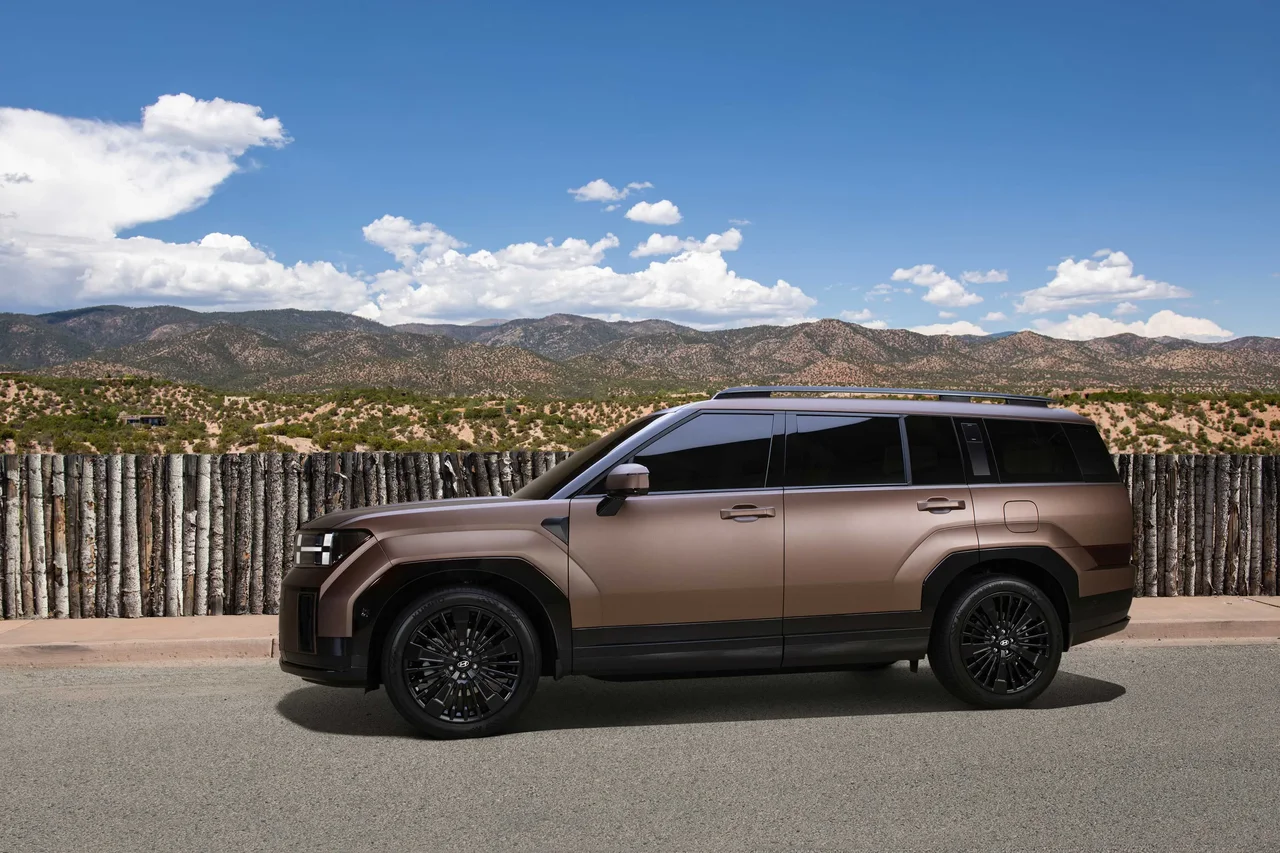

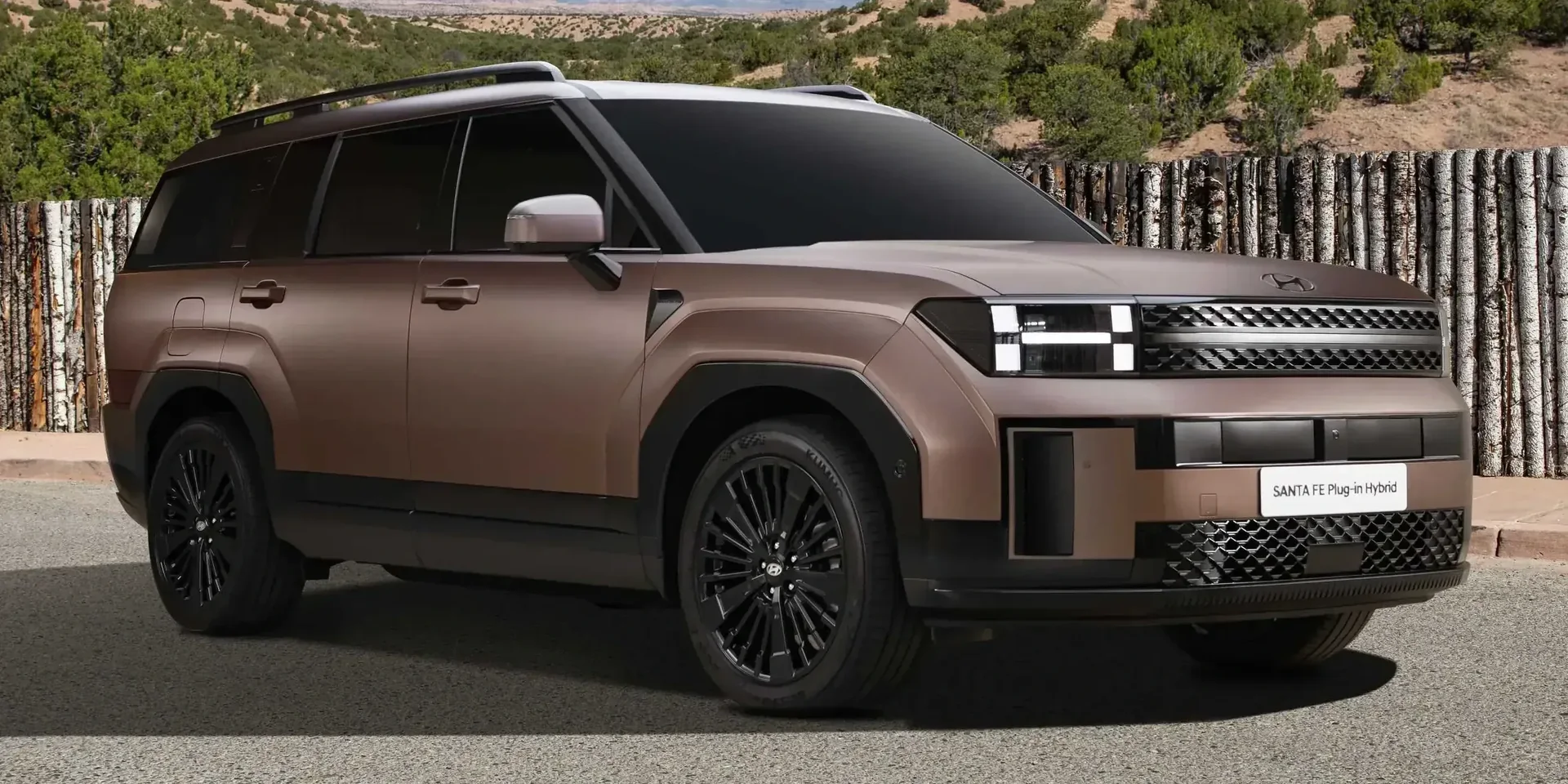

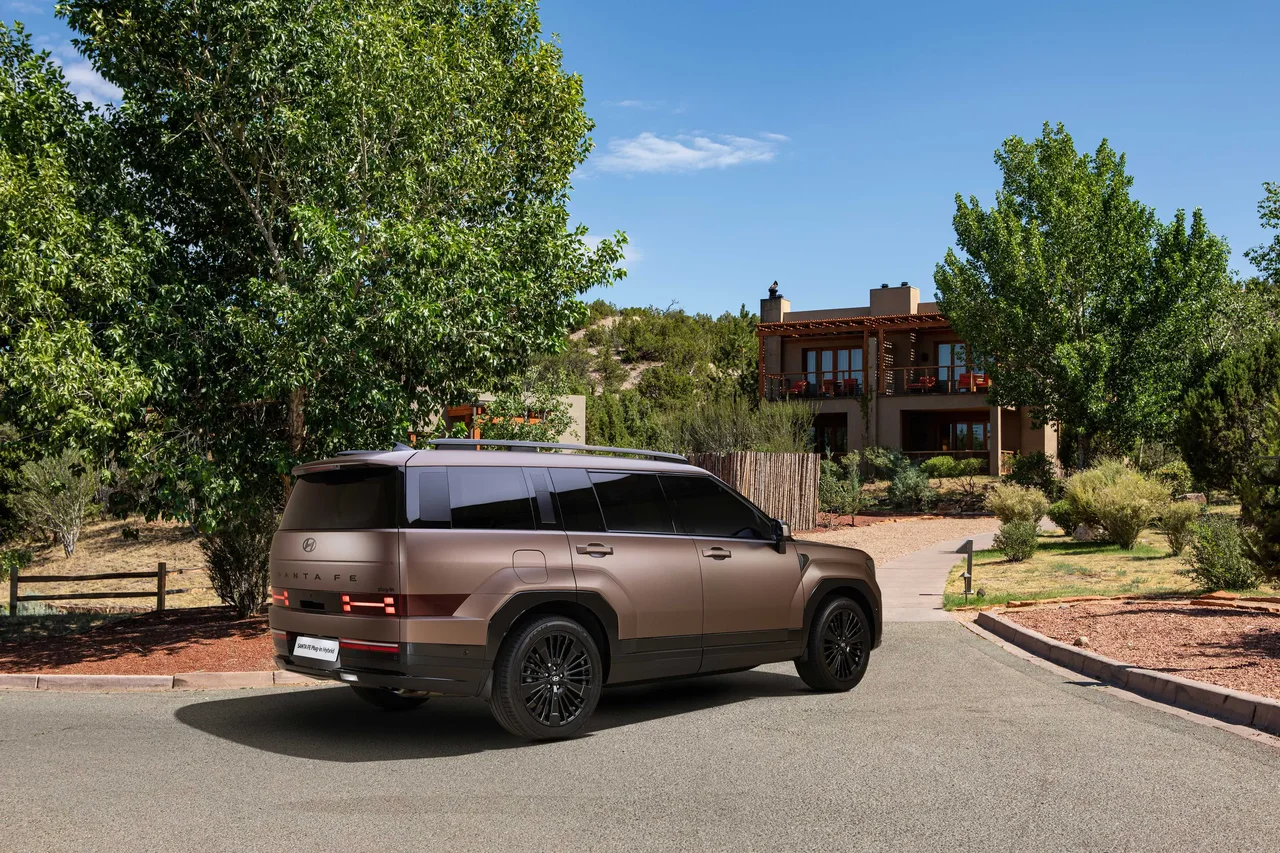

Photos

Specifications

Vehicle Details

Year
2026
Make
Hyundai
Model
Santa Fe
Variant
HEV
Body Style
SUV
Generation
MX5
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
2WD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
HEV Automatic
Engine Configuration
Inline
Power (hp)
235 hp
Power (kW)
173 kW
Torque
264 Nm (195 lb-ft)
Top speed
190 km/h (118 mph)
0–60 mph
9.0 seconds (estimated)
0–100 km/h
9.5 seconds
Displacement
1,598 cc

Dimensions

Length
4,830 mm (190.2 in)
Width
1,900 mm (74.8 in)
Height
1,720 mm (67.7 in)
Wheelbase
2,815 mm (110.8 in)
Curb weight
2,225 kg (4,905 lb)

Engine & Performance

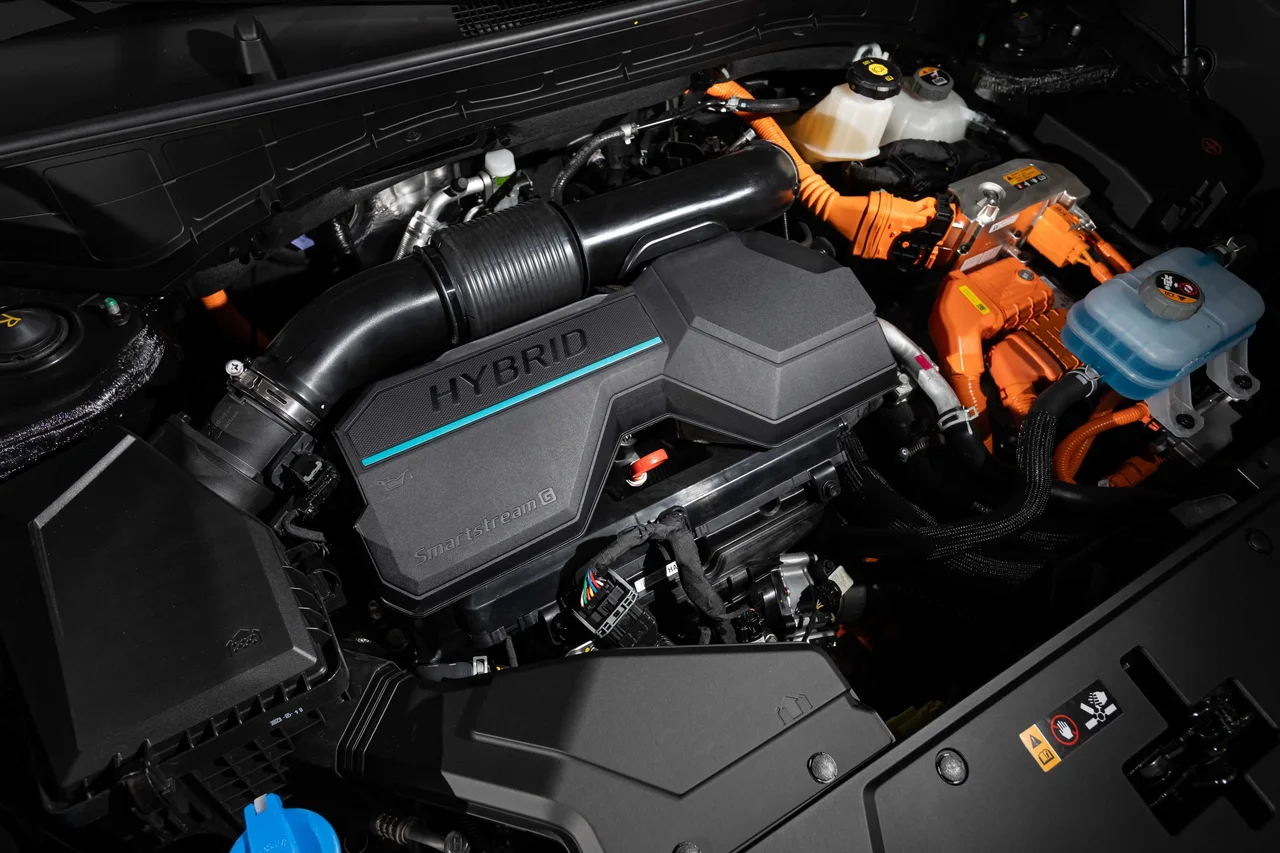

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,500 rpm
Configuration Combustion
Engine Configuration
Inline
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Hybrid
Electric Engine Power
47.7 kW
Electric Engine Horsepower (Metric)
65 hp
Torque
264 Nm (195 lb-ft)
Type of Battery
Li-ion
Service Intervals
Air Filter
30,000 km / 2 years
Spark Plug
75,000 km (46,603 mi)
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
30,000 km / 2 years
Interior Filter
30,000 km / 2 years
Accessory Belt
105,000 km / 4 years

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Fuel

General
Tank Volume
67 litres

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Exterior

Track, Front
1,637 - 1,646 mm (64.4 - 64.8 in)
Track, Rear
1,647 - 1,656 mm (64.8 - 65.2 in)
Overhang, Front
915 mm (36.0 in)
Overhang, Rear
1,100 mm (43.3 in)
Approach Angle
17.4 °
Breakover Angle
15.3 - 15.5
Departure Angle
20.9 °
Turning Circle
11.6 m
Ground Clearance
177 mm (7.0 in)

Interior

Head Room, Front
1,020 - 1,045 mm (40.2 - 41.1 in)
Head Room, Rear
1,007 - 1,030 mm (39.6 - 40.6 in)
Head Room, Third Row
958 mm (37.7 in)
Leg Room, Front
1,052 mm (41.4 in)
Leg Room, Rear
1,075 mm (42.3 in)
Leg Room, Third Row
761 mm (30.0 in)
Shoulder Room, Front
1,511 mm (59.5 in)
Shoulder Room, Rear
1,475 mm (58.1 in)
Shoulder Room, Third Row
1,360 mm (53.5 in)

Weight

Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Sun Visors
Optional
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Black

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Headlight Range Adjustment
Fog Lights
Rear
LED

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Central Bore (CB), rear
67.1
Fastening Type
Lug Nuts
Tightening Torque
107 - 127 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional

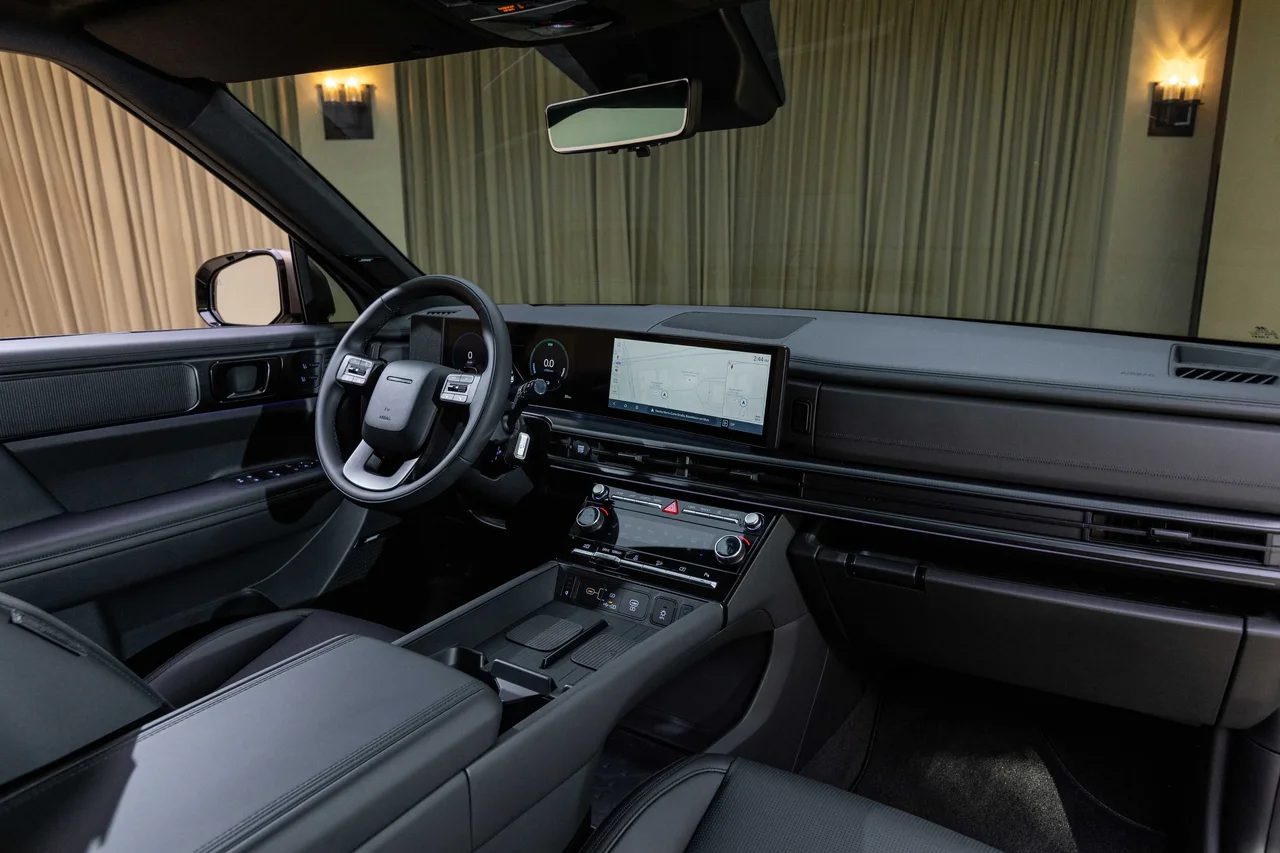

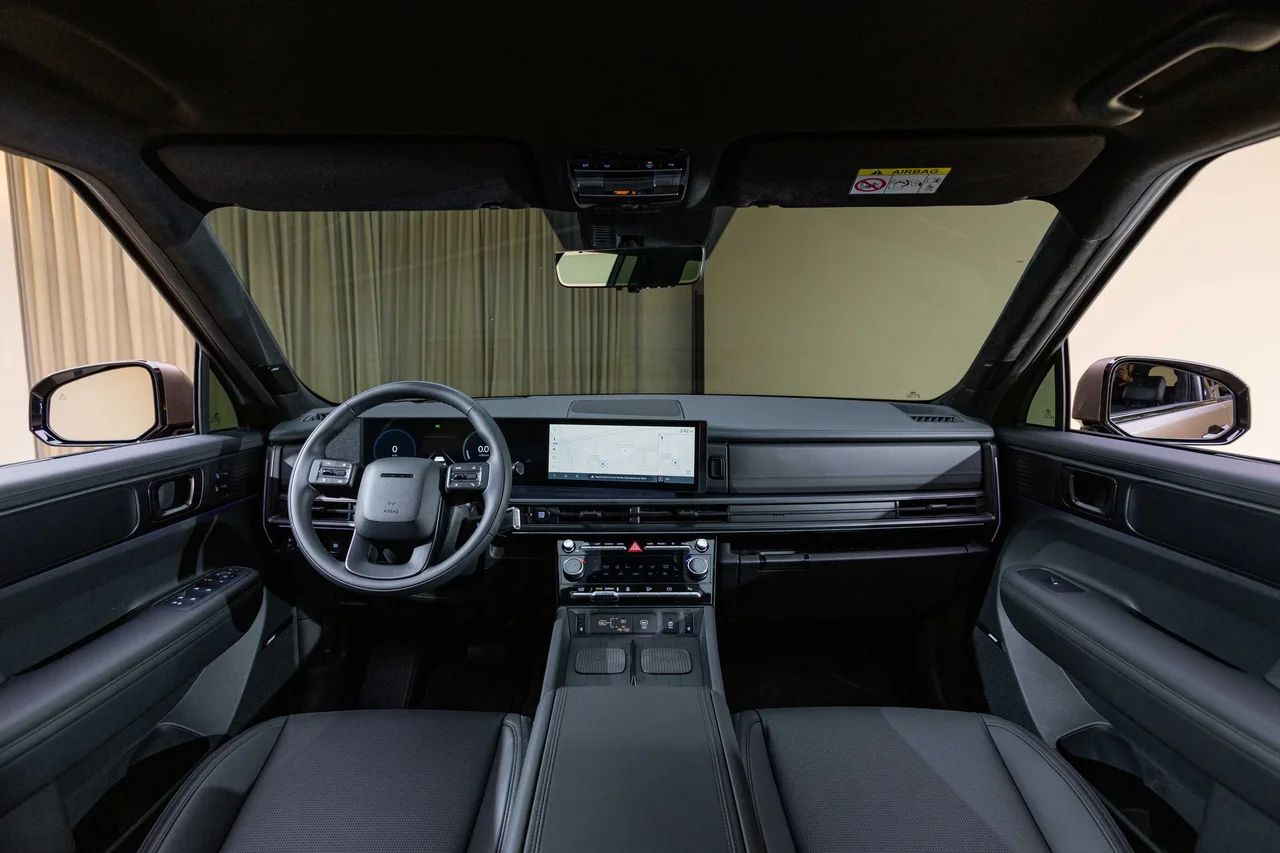

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
  • Rotary Dials
  • Touchscreen
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Displays
Center Display
12.3"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 - 12 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › 230V Outlet
Front
Optional
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
  • Buttons
  • Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • From Inside Car
  • Key Button
Automatic Close
Yes
Cover
Yes
Barrier Net/Grid
Yes
Cargo Hooks
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
725 litres
Volume, Back Seat Collapsed
2,032 litres
Opening Width
1,275 mm (50.2 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Massage
Driver
Optional
Passenger
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Adjustments
Seat Depth
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Powered Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes
Second Seat Row › Adjustments
Backrest Angle
Optional
Third/Fourth Seat Row
Third Seat Row
Optional

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Front
Cruise Control
Adaptive Cruise Control
Queue Assist
Cameras
View Location
Center Display

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
Normal
Horn
Dual Note

Accessories

Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Optional
Trailer Stability Assist (TSA)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Active Lane Change
Yes
Speed Assist
Speeding Alert
Yes
Speed Assist › Speeding Alert
Audible
Yes
Visual
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Hands off-warning
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Electrical
Emergency Call
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2024
Adult Occupant
84 %
Child Occupant
88 %
Vulnerable Road Users
77 %
Safety Assist
79 %
Overall
5/5 stars
Adult Occupant
Total Points
34 /38
Frontal Impact
12.7 /16
Lateral Impact
15.3 /16
Rear Impact
3.4 /4
Rescue and Extrication
2.7 /2
Child Occupant
Total Points
43.2 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
7.3 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
48.7 /49
Pedestrian
  • 12.1
  • 3.3
  • 4.5
AEB Pedestrian
5.7 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
7.5 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.2 /3
Speed Assistance (assesment)
Adequate
Occupant Status Monitoring (points)
2.3 /3
Occupant Status Monitoring (assesment)
Good
Seat Belt Reminder (points)
0.8 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
1.5
Driver Monitoring (assesment)
Good
Lane Support (points)
3 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
6.9 /6
AEB Car-to-Car (assesment)
Good
IIHS
Test Year
2024
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Front Crash Prevention: Vehicle-to-pedestrian
Superior
Headlight
Acceptable
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

Similar suvs

Suggested vehicles
