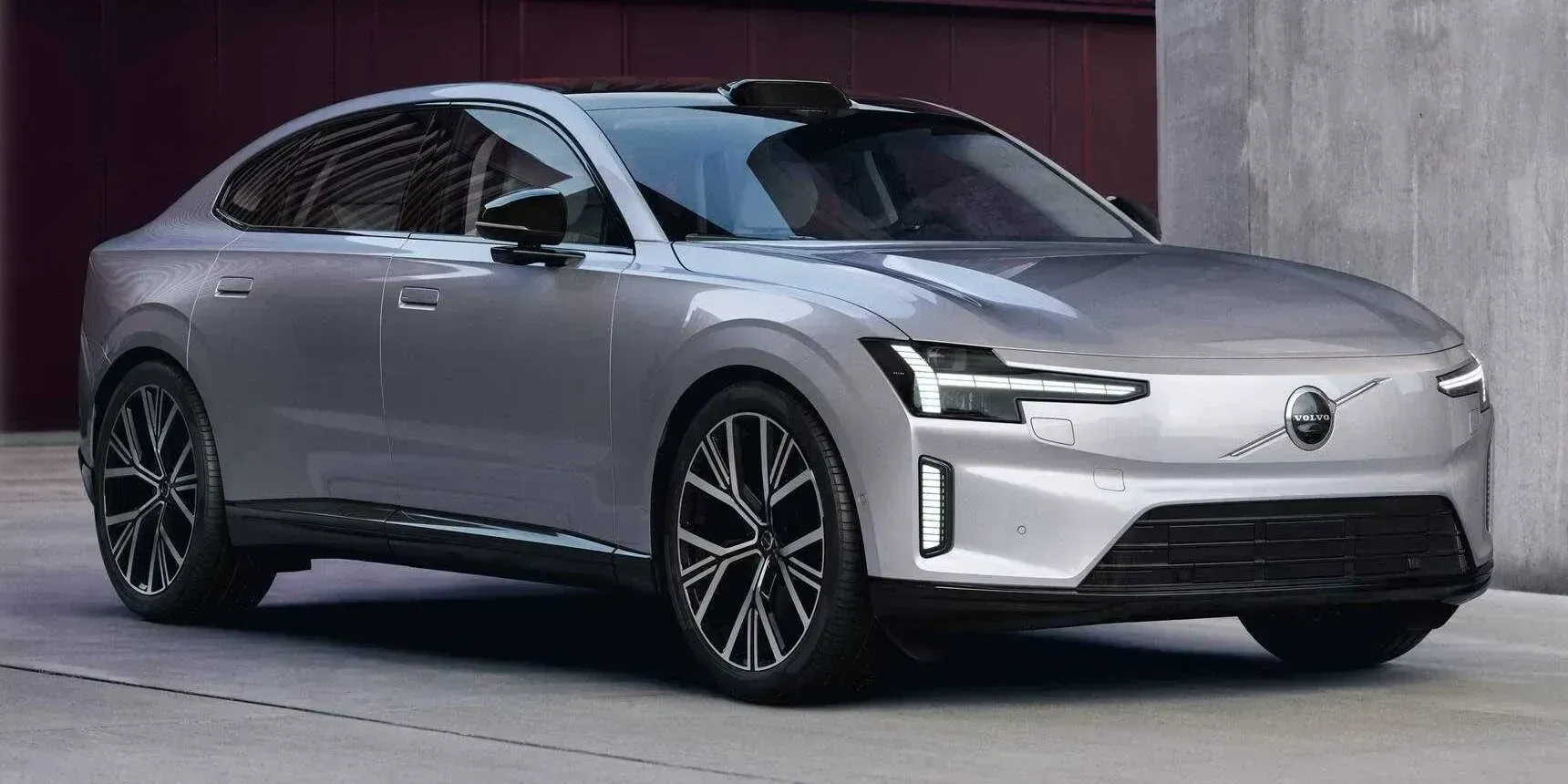

2026 Volvo ES90 Single Motor Extended Range

SwedenElectricRWDHatchback

Photos

Specifications

Vehicle Details

Year
2026
Make
Volvo
Model
ES90
Variant
Single Motor Extended Range
Body Style
Hatchback
Generation
1st Generation (1S)
Seats
5
Doors
5
Fuel
Electric
Drivetrain
RWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
Single Motor Extended Range Single Speed
Engine Configuration
Electric
Power (hp)
333 hp
Power (kW)
245 kW
Torque
480 Nm (354 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
6.6 seconds (estimated)
0–100 km/h
6.9 seconds
Electric range
650 km (404 mi)
Battery
92 kWh

Dimensions

Length
5,000 mm (196.9 in)
Width
1,942 mm (76.5 in)
Height
1,549 mm (61.0 in)
Wheelbase
3,102 mm (122.1 in)
Curb weight
2,048 kg (4,515 lb)

Engine & Performance

Engine

Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
245 kW
Electric Engine Horsepower (Metric)
333 hp
Torque
480 Nm (354 lb-ft)
Battery Capacity, Gross
92 kWh
Type of Battery
Li-NMC
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2 (CCS)
Engine Configuration › Charge AC
Charge Time
8 h
Charge Power
11 kW
Charge Ampere
16 A
Engine Configuration › Charge DC
Charge Time, to 80%
20 min
Charge Power
350 kW

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
364 mm (14.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
350 mm (13.8 in)
Cooling
Ventilated

Suspensions

Spring, Front
Pneumatic Air
Spring, Rear
Pneumatic Air
Suspension, Front
Active/Adaptive Suspension
Yes
Suspension, Rear
Active/Adaptive Suspension
Yes

Energy & Range

WLTP Consumption
Energy consumption
16.1 kWh/100km
Electric Range
650 km (404 mi)
Electric Range, City
845 km (525 mi)
Fuel Consumption NEDC
Combined
0 litres / 100 km
Emission WLTP
CO₂, Combined
0 g/km
Emission NEDC
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,120 mm (83.5 in)
Track, Front
1,666 mm (65.6 in)
Track, Rear
1,642 mm (64.6 in)
Turning Circle
11.8 m

Interior

Head Room, Front
1,075 mm (42.3 in)
Head Room, Rear
960 mm (37.8 in)
Leg Room, Front
1,079 mm (42.5 in)
Leg Room, Rear
899 mm (35.4 in)
Hip Room, Front
1,391 mm (54.8 in)
Hip Room, Rear
1,396 mm (55.0 in)
Shoulder Room, Front
1,449 mm (57.0 in)
Shoulder Room, Rear
1,422 mm (56.0 in)

Weight

Gross Weight
2,850 kg (6,283 lb)
Max Trailer Load, braked 12%
1,600 kg (3,527 lb)
Cargo Capacity
802 kg (1,768 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback (Liftback)
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Yes
Door Handles
Pop-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
  • Driver side
  • Passenger side
Heated
Yes
House Colour
Black
Windscreen Wipers
Integrated Water Nozzles in Wipers
Yes
Heated Wiper Blades
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
  • Front
  • Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Laminated
Rear
Laminated
Other Equipment
Sunroof
Panoramic (Not Openable)
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Material
Glass
Shading
Tinted Glass
Other Equipment › Sunroof › Shading
Sun Blind
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Adaptive Headlights
  • Dynamic Cornering Lights
  • Headlight Washers
Special Features
Headlight Range Adjustment
Automatic (Dynamic)
Pixel LED
Optional

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Central Bore (CB), rear
63.4
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Yes
Speedometer
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Shape
Cockpit
Instrument Cluster › Head-up Display (HUD)
Navigation
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
4
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
Touchscreen
Back Seat Controls
Touchscreen
Air Ionizer
Yes
Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Cellular Network
5G
WiFi
Yes
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Number of Ports
4 pcs
Displays
Center Display
14.5"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
14 pcs
Speakers Max. Watt
940 - 1,610 W
Rear-view Mirror
Adjustments
Electrical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Armrest Hatch
  • Front
  • Back
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
  • Driver
  • Passenger
  • Rear Seat
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
  • Door Handles (Exterior)
Ambient Light
Yes
Selectable Light Colour
Yes
Lights › Guide Light
Bottom of the Doors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
  • Rear Seat
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Adjustments
User Memory
Number of Spokes
3
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
Tilt
Powered
Telescope
Powered

Trunk

Total Trunk Volume
468 litres
Rear Trunk
Yes
Front Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • From Inside Car
  • Key Button
  • Motion Activated
Automatic Close
Yes
Cover
Sliding (Manual)
Barrier Net/Grid
Yes
Cargo Hooks
Yes
Carpet
Optional
Light
Yes
Rear Trunk
Volume
446 litres
Volume, Back Seat Collapsed
1,256 litres
Depth
641 mm (25.2 in)
Depth, Back Seat Collapsed
1,706 mm (67.2 in)
Width, Between Wheel Arches
1,050 mm (41.3 in)
Front Trunk
Volume
22 litres
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Accent
Wood

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Manual
Backrest Angle
Powered
Lumbar Support
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Manual
Backrest Angle
Powered
Lumbar Support
Powered
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Type of Seat
Comfort Seat (Driver | Passenger)
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Power Seat, Passenger
User Memory
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
  • Knee
Number of Heat Levels
3
Front Seats › Massage
Driver
Optional
Passenger
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Powered
Features
  • Heated Seats
  • Ventilated Seats
  • Powered Seats
Adjustments
Backrest Angle
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
  • From Trunk
  • On Top of Backrest
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Yes
Second Seat Row › Adjustments
Cushion Tilt
Optional

Features

Comfort Features

Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Parking Heater
Yes
Cameras
  • Front
  • Sides
  • Rear
Voice Control
Phone
Wireless Phone Connection with Antenna
Yes
Wireless Phone Charger
Front
Parking Heater
Type
Cabin Heater
Controls
Remote
Cameras
360° Camera
Yes

Other Features

GPS
Navigation
Smartphone App
Yes
Horn
Single Note

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Front Cross-Traffic Alert (FCTA)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Yes
Sign Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Speed Assist
Speeding Alert
Yes
Parking Assist
Autonomous
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Reverse
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
  • Side
Blind Spot Detection (BLIS)
Yes
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Obstacle Detection Sensor
Yes
Driver Alertness Warning (DAW)
Yes
Hands off-warning
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Active Headrests
Yes
Alcohol Ignition Interlock Device
Yes
Type of Keys
  • Keycards (NFC)
  • Smartphone as a Key
Key Features
Window Control
Immobiliser
Electronic
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Car Classification

European Segment
E-Segment
Car.info Classification
Executive Car

Similar hatchbacks

Suggested vehicles
