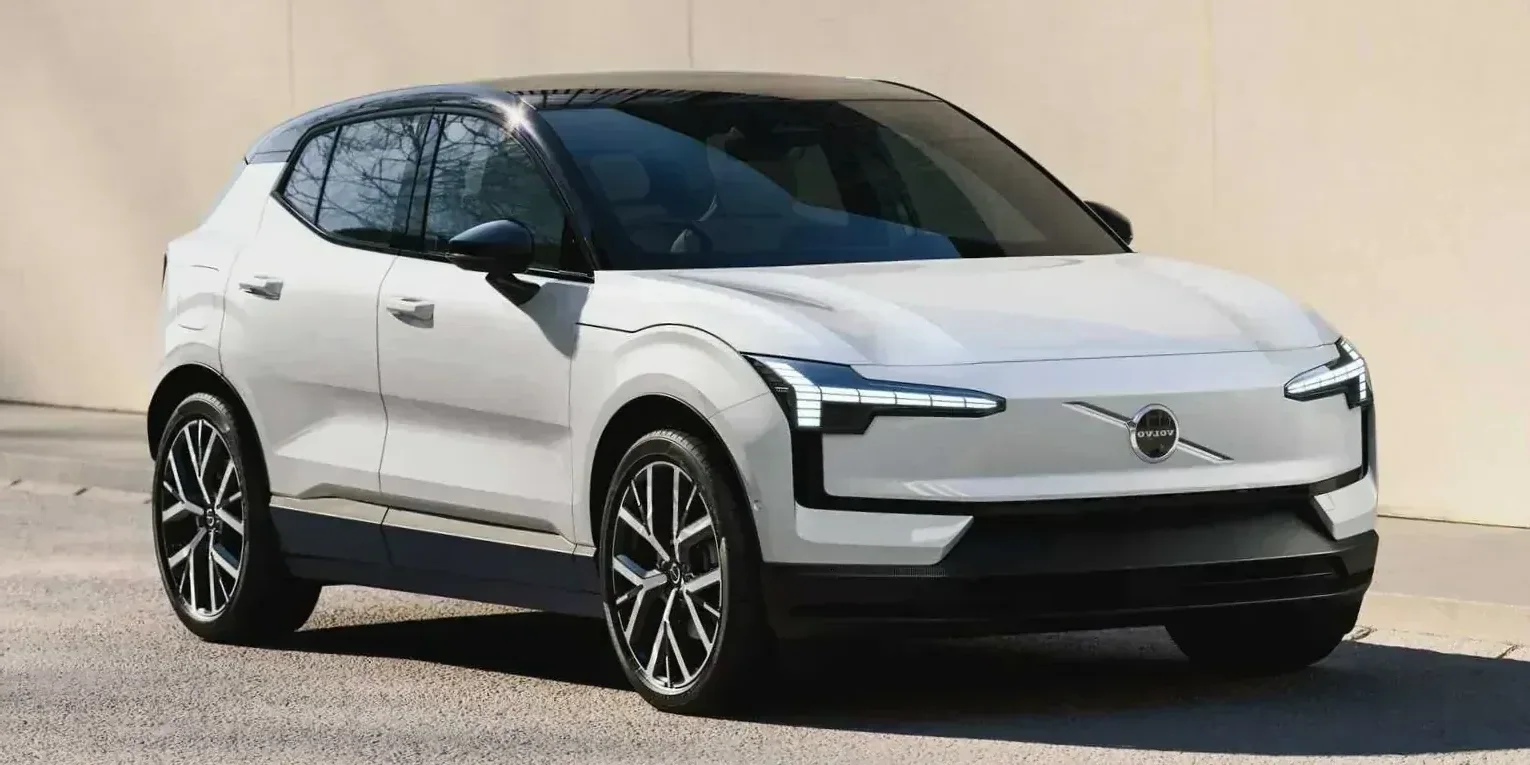

2027 Volvo EX30

SwedenElectricRWDSUV

Photos

Specifications

Vehicle Details

Year
2027
Make
Volvo
Model
EX30
Body Style
SUV
Generation
1st Generation (2Y/2Z)
Seats
5
Doors
5
Fuel
Electric
Drivetrain
RWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
P3 Long Range
Engine Configuration
Electric
Power (hp)
150 hp
Power (kW)
110 kW
Torque
343 Nm (253 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
7.9 seconds (estimated)
0–100 km/h
8.3 seconds
Electric range
475 km (295 mi)

Dimensions

Length
4,233 mm (166.7 in)
Width
1,838 mm (72.4 in)
Height
1,550 mm (61.0 in)
Wheelbase
2,650 mm (104.3 in)
Curb weight
1,775 kg (3,913 lb)

Engine & Performance

Engine

Engine Configuration
Type of Electric Car
Electric
AC Charge Type
Three-phase
Charging Plugs
Type 2 (CCS)
Engine Configuration › Charge AC
Charge Time
8 h
Charge Power
11 kW
Charge Ampere
16 A
Engine Configuration › Charge DC
Charge Time, to 80%
27 min
Charge Power
175 kW

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Energy & Range

WLTP Consumption
Energy consumption
17 kWh/100km
Electric Range
475 km (295 mi)
Electric Range, City
635 km (395 mi)
Fuel Consumption NEDC
Electric Range
339 km (211 mi)
Emission WLTP
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,032 mm (80.0 in)
Track, Front
1,590 mm (62.6 in)
Track, Rear
1,595 mm (62.8 in)
Overhang, Front
788 mm (31.0 in)
Overhang, Rear
795 mm (31.3 in)
Turning Circle
11.1 m
Ground Clearance
171 mm (6.7 in)
Wading Depth
450 mm (17.7 in)

Interior

Head Room, Front
1,058 mm (41.7 in)
Head Room, Rear
974 mm (38.3 in)
Leg Room, Front
1,063 mm (41.9 in)
Leg Room, Rear
821 mm (32.3 in)
Hip Room, Front
1,379 mm (54.3 in)
Hip Room, Rear
1,175 mm (46.3 in)
Shoulder Room, Front
1,400 mm (55.1 in)
Shoulder Room, Rear
1,346 mm (53.0 in)

Weight

Gross Weight
2,240 kg (4,938 lb)
Max Trailer Load, braked 12%
1,200 kg (2,646 lb)
Cargo Capacity
465 kg (1,025 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip
Rear
Bottom-Strip
Sides
Bottom-Strip
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
User Memory
Optional
Turning Signal
Yes
Windscreen Wipers
Intermittent Control
Yes
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Come Home/Leaving Lights
  • Headlight Washers
  • Headlight Range Adjustment
Fog Lights
Rear
Yes

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Nut/Bolt Dimensions
M14x1.5
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 5G
  • 4G
  • 3G
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Number of Ports
4 pcs
Displays

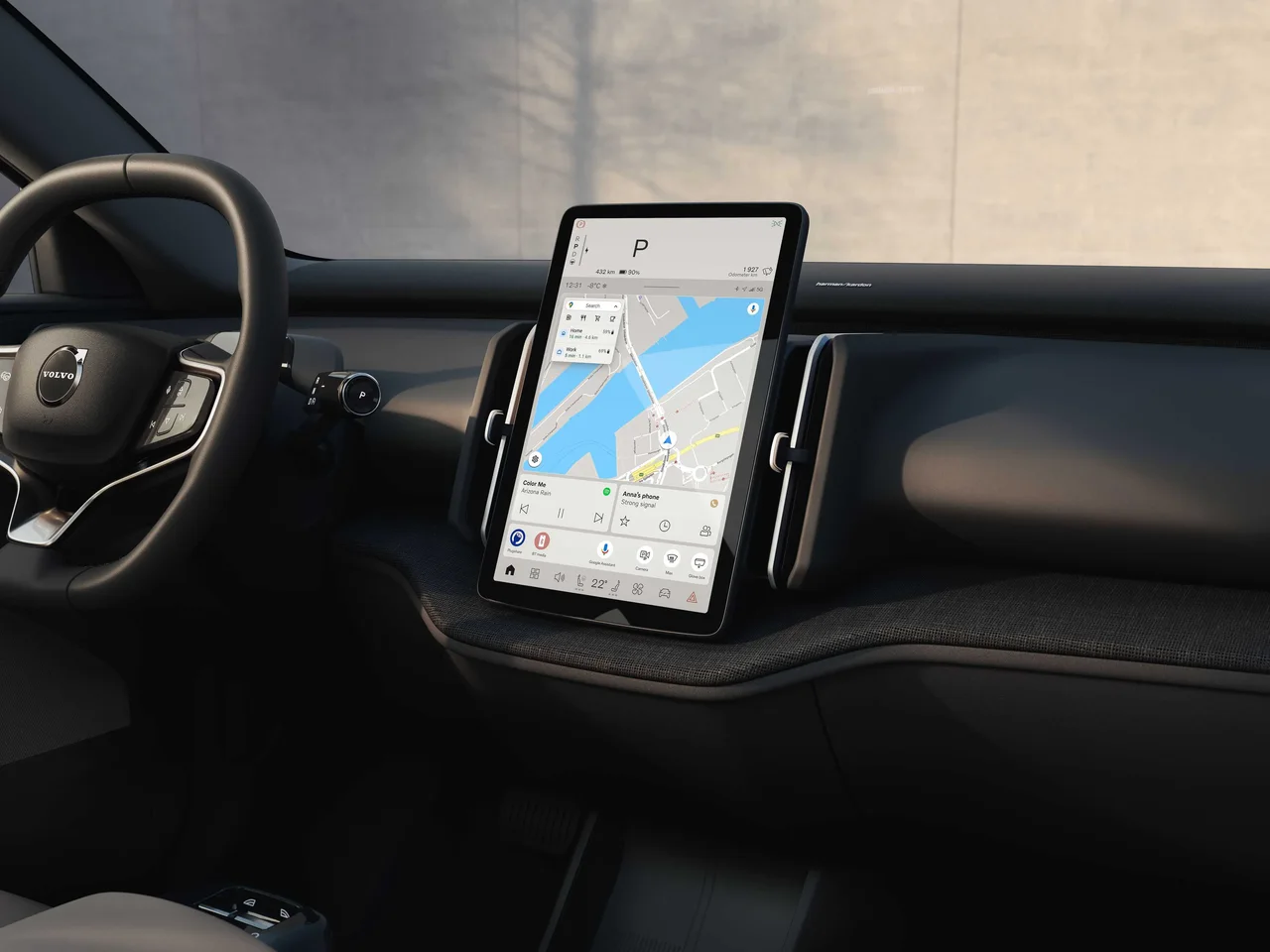

Center Display
12.3"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
9 pcs
Speakers Max. Watt
1,040 W
Subwoofer
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
Touchscreen
Climate Control › Air Condition
Refrigerant
R1234yf
Rear-view Mirror
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Trunk
Carpets
  • Front
  • Rear
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
15.3 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Speed Up/Down
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes

Trunk

Total Trunk Volume
325 litres
Rear Trunk
Yes
Front Trunk
Yes
Cover
Yes
Barrier Net/Grid
Optional
Carpet
Optional
Flat Surface
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
318 litres
Volume, Back Seat Collapsed
904 litres
Depth
720 mm (28.3 in)
Depth, Back Seat Collapsed
1,460 mm (57.5 in)
Width
994 mm (39.1 in)
Opening Width
1,019 mm (40.1 in)
Opening Width (at roof)
895 mm (35.2 in)
Height
623 mm (24.5 in)
Sill Height
736 mm (29.0 in)
Front Trunk
Volume
7 litres
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Interior Decor Colour
Black
Accent
Painted Inserts (Blue)

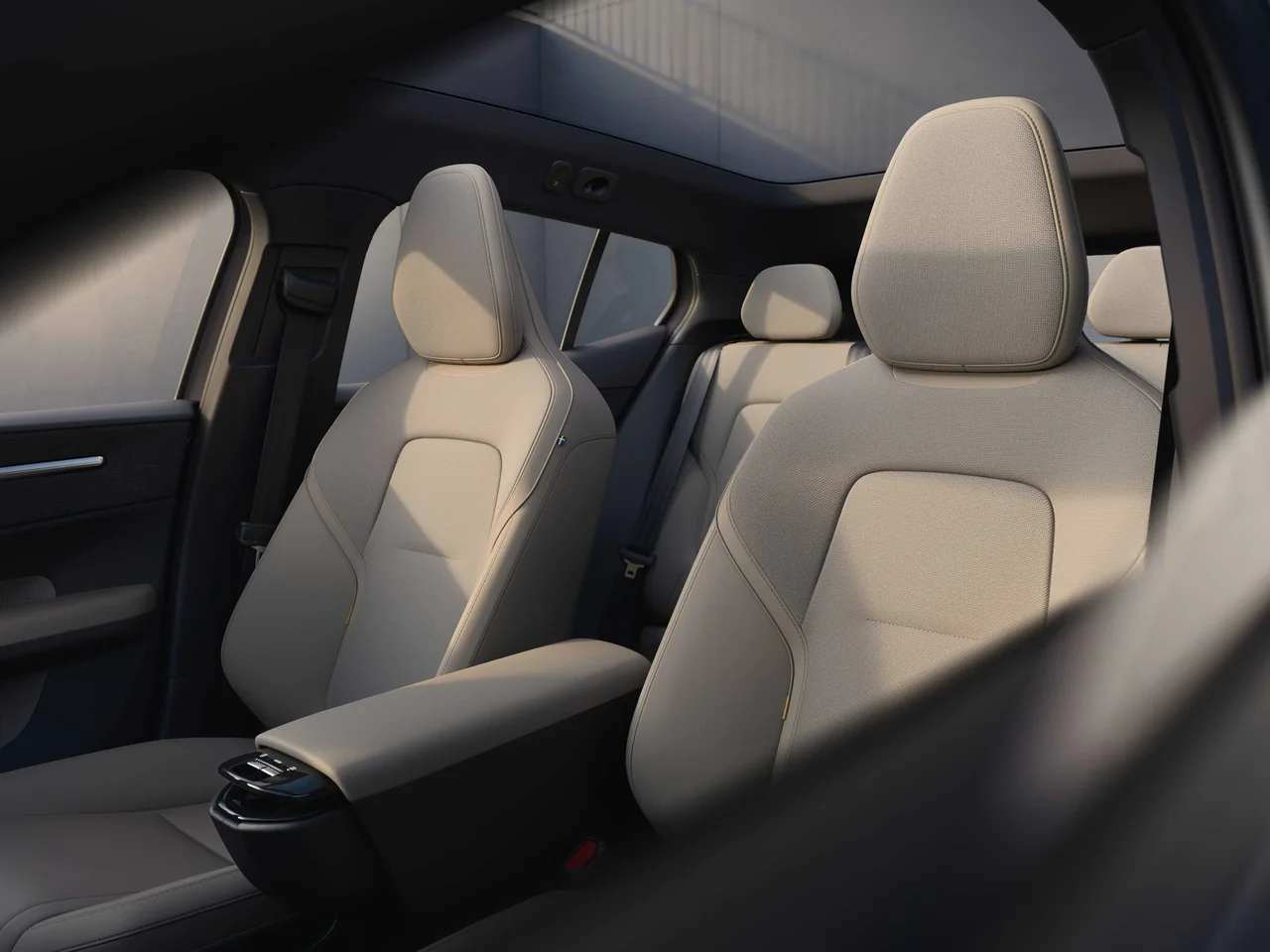

Seats

Colour & Material
Upholstery
  • Textile
  • Vinyl
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Parking Heater
Yes
Cameras
Rear
Voice Control
Yes
Parking Heater
Type
Cabin Heater
Power Source
Battery-operated
Controls
Timer
Cameras
View Location
Center Display

Other Features

GPS
Navigation
Smartphone App
Yes
Over-the-Air Updates
Yes
Sound Generator, External
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Automatic Locking Retractor
Yes
Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Emergency Steering Assist
Yes
Front Cross-Traffic Alert (FCTA)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Optional
Sign Assist
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Speed Assist
Speeding Alert
Yes
Speed Assist › Speeding Alert
Audible
Yes
Visual
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Reverse
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Yes
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Manual
Active Bonnet
No
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2024
Adult Occupant
88 %
Child Occupant
85 %
Vulnerable Road Users
79 %
Safety Assist
80 %
Overall
5/5 stars
Adult Occupant
Total Points
35.3 /38
Frontal Impact
13.7 /16
Lateral Impact
15 /16
Rear Impact
4 /4
Rescue and Extrication
2.7 /2
Child Occupant
Total Points
42 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
50.4 /49
Pedestrian
  • 11.3
  • 4.4
  • 4.5
AEB Pedestrian
5.2 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
7.1 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.1 /3
Speed Assistance (assesment)
Adequate
Occupant Status Monitoring (points)
1.3 /3
Occupant Status Monitoring (assesment)
Adequate
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
0.3
Driver Monitoring (assesment)
Marginal
Lane Support (points)
3 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
7.8 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

Manufacturer
100,000 km / 3 years
EV Battery
160,000 km / 8 years

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Similar suvs

Suggested vehicles
