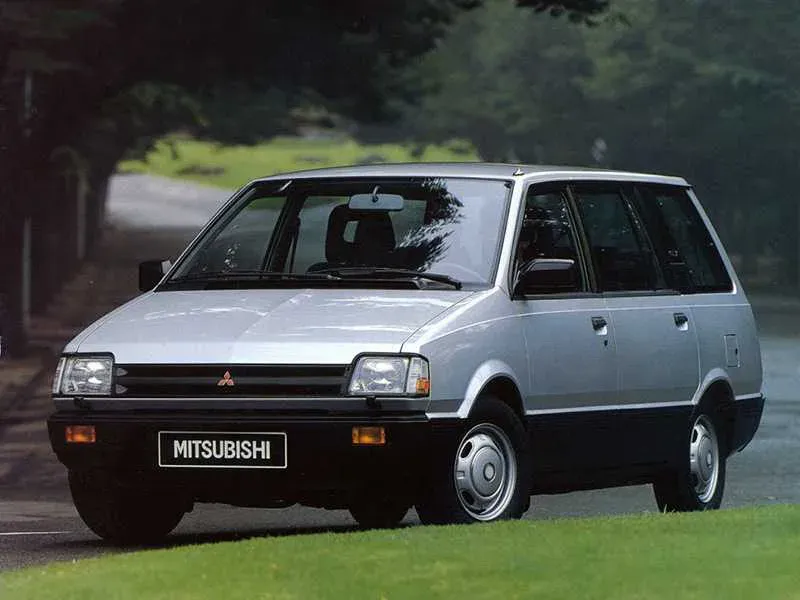

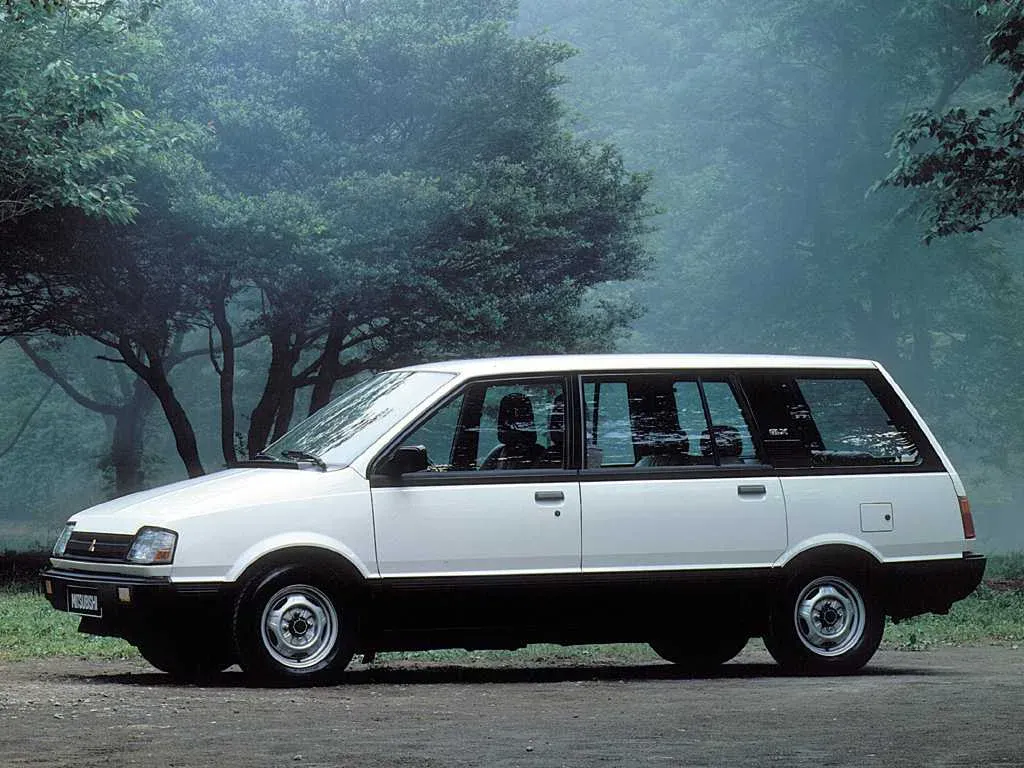

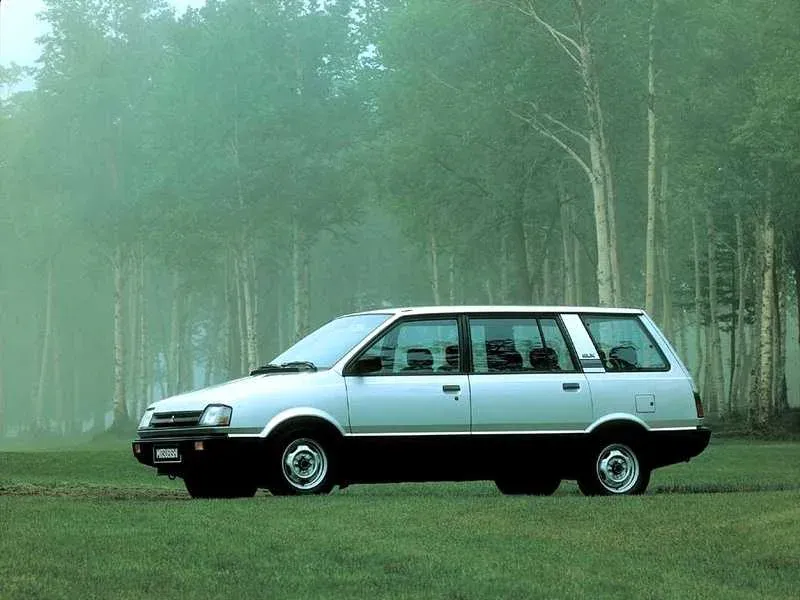

1993 Mitsubishi Space Wagon

JapanGasolineFWDMinivan

Photos

Specifications

Vehicle Details

Year
1993
Make
Mitsubishi
Model
Space Wagon
Body Style
Minivan
Generation
N30/N40
Seats
7
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Manumatic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
2.0
Engine Configuration
Inline
Power (hp)
133 hp
Power (kW)
98 kW
Top speed
170 km/h (106 mph)
0–60 mph
10.7 seconds (estimated)
0–100 km/h
11.2 seconds
Displacement
1,997 cc

Dimensions

Length
4,495 mm (177.0 in)
Width
1,695 mm (66.7 in)
Height
1,580 mm (62.2 in)
Wheelbase
2,720 mm (107.1 in)
Curb weight
1,320 kg (2,910 lb)

Engine & Performance

Engine

Engine Fluids
Synthetic Oil (viscosity)
5W-30
Semi-synthetic Oil (viscosity)
  • 15W-40
  • 20W-50
Mineral Oil (viscosity)
  • 15W-40
  • 20W-50
Engine Oil, Volume
4.3 litres
Engine Configuration
Bore
85 mm (3.3 in)
Stroke
88 mm (3.5 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Synchronization
Timing Belt
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Timing Interval
90,000 km / 6 years
Air Filter
30,000 km / 2 years
Fuel Filter
150,000 km / 10 years
Spark Plug
45,000 km / 3 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
60,000 km / 4 years
Interior Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 4
  • 5-speed

Fuel

General
Tank Volume
60 litres
Fuel Consumption NEDC
City
13.4 – 14.5 litres / 100 km
Highway
7.7 – 8.7 litres / 100 km
Combined
9.8 – 10.8 litres / 100 km
Emission NEDC
CO₂, Combined
239 – 258 g/km

Dimensions & Weight

Exterior

Track, Front
1,460 mm (57.5 in)
Track, Rear
1,460 mm (57.5 in)
Turning Circle
11 m

Weight

Gross Weight
1,980 kg (4,365 lb)
Max Trailer Load, braked 12%
1,200 kg (2,646 lb)
Max Trailer Load, unbraked
550 kg (1,213 lb)
Cargo Capacity
640 – 660 kg (1,411 – 1,455 lb)
Max Roof Load
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
  • Station Wagon
  • MPV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel

Equipment

Other Equipment
Roof Railing
Optional

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1

Interior

Seats

Third/Fourth Seat Row
Third Seat Row
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
212 litres
Volume, Back Seat Collapsed
1,714 litres

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Centre
Fuse Box
Yes

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Large MPV
