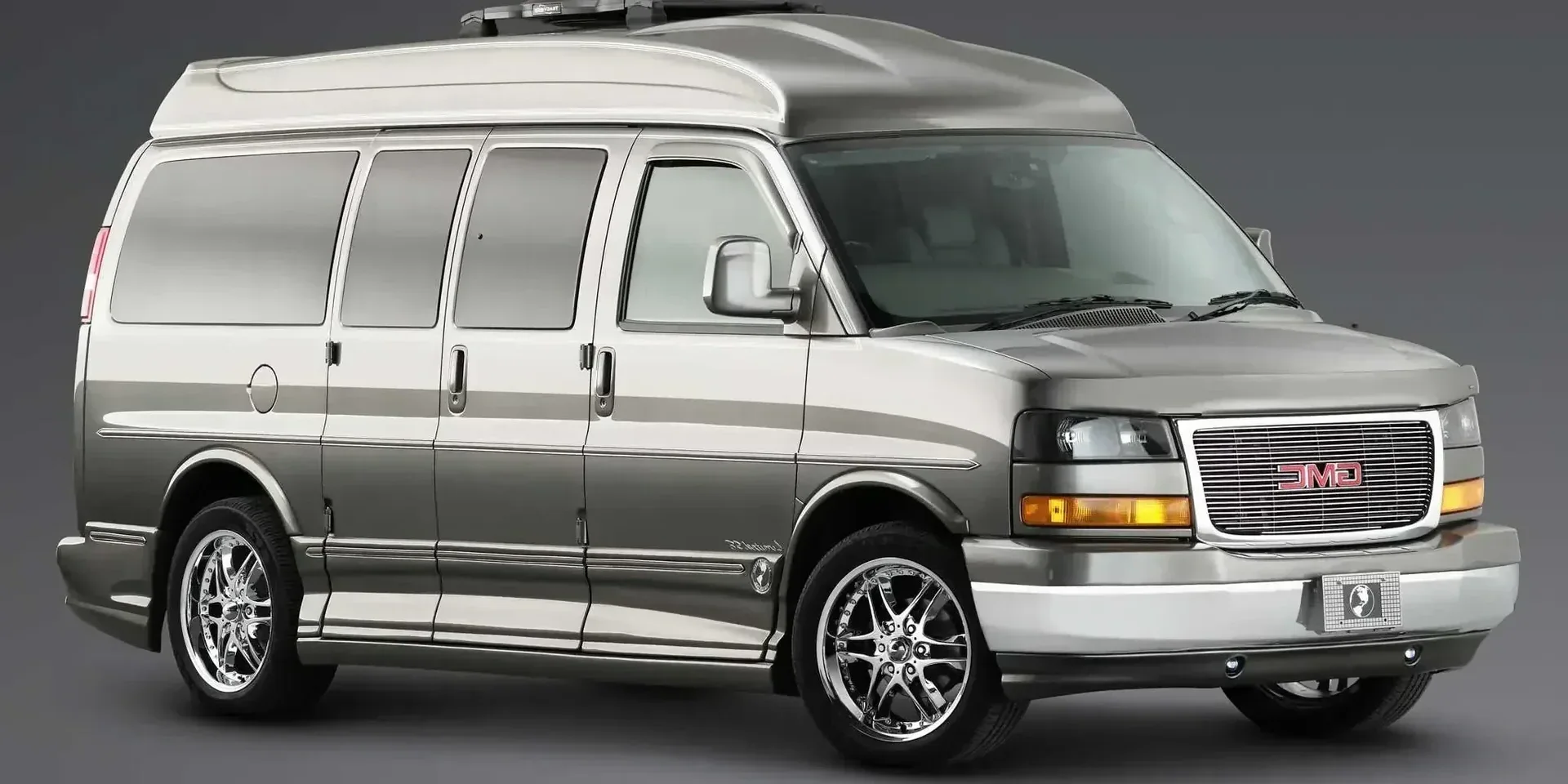

2010 GMC Savana G2500

United StatesEthanol E85RWDLCV

Photos

Specifications

Vehicle Details

Year
2010
Make
GMC
Model
Savana
Variant
G2500
Body Style
LCV
Generation
GMT610 Facelift
Seats
5
Doors
4
Fuel
Ethanol E85
Drivetrain
RWD
Transmission
Automatic (Electrohydraulic), 6-speed

Powertrain

Engine Name
G2500 Conversion Van Hydra-Matic
Engine Configuration
V
Power (hp)
328 hp
Power (kW)
241 kW
Torque
586 Nm (432 lb-ft)
Displacement
5,967 cc

Dimensions

Width
2,018 mm (79.4 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,600 rpm
Rev. at Max Torque
4,400 rpm
Redline
5,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 5W-30
Engine Oil, Volume
5.6 litres
Engine Coolant, Volume
13.6 litres
Engine Fluids › Engine Coolant
OAT
GM OE DEX-COOL
Car Battery
Voltage
12 V
Battery Capacity
61 - 80 Ah
Cold Start Power
600 - 770 A
Alternator Charge Current
105 A
Alternator Voltage
14 V
Engine Configuration
Bore
101.6 mm (4.0 in)
Stroke
92 mm (3.6 in)
Compression Ratio
9.4 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
72,000 km / 4 years
Spark Plug
156,000 km (96,934 mi)
Oil Change & Engine Filter
12,070 km / 1 years
Engine Coolant
240,000 km / 5 years
Transmission, Fluid
80,000 km (49,710 mi)
Transmission, Fluid Filter
80,000 km (49,710 mi)
Accessory Belt
240,000 km (149,129 mi)

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 6-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column
Overdrive
Yes
Gear Ratio
1st Gear
4.03 :1
2nd Gear
2.36 :1
3rd Gear
1.53 :1
4th Gear
1.15 :1
5th Gear
0.85 :1
6th Gear
0.67 :1
Final Drive
3.73 :1
Reverse
3.06 :1

Fuel

General
Tank Volume
117 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
305 mm (12.0 in)
Width
29 mm (1.1 in)
Cooling
Ventilated
Rear Brakes
Diameter
330 mm (13.0 in)
Width
30 mm (1.2 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf (Longitudinal Spring)
Anti-roll Bar
Yes
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Dependent
Beam Axle (Dead Axle)
Anti-roll Bar
Front
35 mm (1.4 in)

Dimensions & Weight

Exterior

Track, Front
1,721 mm (67.8 in)
Track, Rear
1,721 mm (67.8 in)
Overhang, Front
1,008 mm (39.7 in)
Ground Clearance
180 mm (7.1 in)

Interior

Head Room, Front
1,021 mm (40.2 in)
Leg Room, Front
1,049 mm (41.3 in)
Hip Room, Front
1,664 mm (65.5 in)
Shoulder Room, Front
1,748 mm (68.8 in)

Weight

Max Trailer Load, unbraked
450 kg (992 lb)
Max Towbar Download
181 kg (399 lb)
Permitted Axle Load, front
1,860 kg (4,101 lb)
Permitted Axle Load, rear
2,431 kg (5,359 lb)

LCV Specific

General
Version
  • L1H1
  • L1H2
  • L2H1
  • L2H2
Dimensions › Length
L1
5,691 mm (224.1 in)
Dimensions › Height
L1H1
2,108 mm (83.0 in)
L1H2
2,362 mm (93.0 in)
L2H1
2,108 mm (83.0 in)
L2H2
2,362 mm (93.0 in)
Dimensions › Wheel Base
L1
3,429 mm (135.0 in)
Dimensions › Turning Circle
L1
14.8 m
Side Door › Side Door Height
H1
1,217 mm (47.9 in)
H2
1,217 mm (47.9 in)
Side Door › Side Door Width
L1
1,120 mm (44.1 in)
L2
1,120 mm (44.1 in)
Side Door › Ground to Door Height
L1H1
513 mm (20.2 in)
L1H2
498 mm (19.6 in)
Rear Doors › Rear Doors Height
L1H1
1,255 mm (49.4 in)
L2H1
1,255
Rear Doors
Rear Doors Width
1,448 mm (57.0 in)
Rear Doors › Sill Height
L1H1
704 mm (27.7 in)
L1H2
693 mm (27.3 in)
Cargo Space › Cargo Volume
L1H1
5,777 litres
L2H1
6,720 litres
Cargo Space › Depth
L1
3,246 mm (127.8 in)
L2
3,754 mm (147.8 in)
Cargo Space › Height
H1
1,318 mm (51.9 in)
Cargo Space › Space Width, Between Wheel Arches
L1
1,272 mm (50.1 in)
L2
1,272 mm (50.1 in)
Weight › Gross Weight
L1H1
3,901 kg (8,600 lb)
L2H1
3,901 kg (8,600 lb)
Weight › Max Trailer Load, braked
L1H1
3,810 kg (8,400 lb)
L2H1
3,719 kg (8,199 lb)
Weight › Gross Train Weight
L1H1
6,350 kg (13,999 lb)
L2H1
6,350 kg (13,999 lb)

Exterior

Chassis & Body

Chassis
Chassis
LCV (Minibus)
Pillars
A-D
Chassis Construction
Body-on-Frame (Ladder Frame)
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
  • Sliding Right
  • Dual Swing-out
Door Handles
Pull-up
Platform
General Motors Platforms
GMT Platform (GMT610)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Optional
Turning Signal
Optional
House Colour
Same as Car
Windscreen Wipers
Number of Wiper Speeds
2
Integrated Water Nozzles in Wipers
Yes
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Optional
Heat-Insulating Windows
  • Front
  • First Row
Sun Visors
Optional
Tinted Windows
Optional
Rear Windows, Pop-out
Optional
Windows › Heated Windows
Rear
Optional
Windows › Heat-Insulating Windows
Second Row
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Rear Windows, Pop-out
Manual
Optional
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Antenna
Whip
Air Intakes
1-port
Number of Exhaust Pipes
1
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Daytime Running Light
Halogen

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
8 pcs
Nut/Bolt Dimensions
M14x1.5
Fastening Type
Lug Nuts
Tightening Torque
190 Nm
Rim Material
Steel
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Compass
Optional
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Climate Control
Manual
Air Condition
Yes
Outside Temperature Indicator
Optional
Number of Vents, Front
5 pcs
Controls
Rotary Dials
Back Seat Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
900 g
Connectivity
Radio
  • AM
  • FM
  • RDS
TV Receiver
Optional
Media Format
  • MP3
  • WMA
Bluetooth
Optional
WiFi
Optional
Connectivity › Radio
XM
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Blu-Ray
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Number of Ports
1 pcs
Connectivity › Bluetooth
Phone
Optional
Displays
Entertainment Screens
Optional
Equalizer
Yes
Displays › Entertainment Screens
Middle of Roof
15"
Speakers
Total Number of Speakers
2 - 6 pcs
Interior Storage › Storage Compartments
Fridge
Optional
Door
  • Driver Side
  • Passenger Side
Total Number of Compartments
12 pcs
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
3
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Door
Lights
Read Light
Optional
Ambient Light
Optional
Lights › Read Light
Front
Optional
Rear
Optional
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
Clock
Yes
12V Outlet
Front
110V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Clock
Digital
Dashboard
Other Equipment › 12V Outlet
Rear
Optional
Trunk
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Hydraulic
Number of Spokes
4
Colour
Black
Steering Ratio
17.2 :1
Steering Mechanism
  • Rack and Pinion
  • Recirculating Ball
Multifunction Steering Wheel
Media
Yes
Number of Buttons
7 - 11 pcs
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Power Steering
Tilt
Optional

Trunk

Release Button
Yes
Hatch Opening Type
Two-parted Doors

Design

Transmission Knob Material
Plastic
Entry Guard Material
Plastic
Entry Guard Material
Black
Optional
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Optional
Front Seats
Number of Driver Seat Adjustments, Powered
8 - 10
Number of Driver Seat Adjustments, Total
8 - 10
Number of Passenger Seat Adjustments, Powered
8 - 10
Number of Passenger Seat Adjustments, Total
8 - 10
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Armrest
  • Driver
  • Passenger
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Optional
Second Seat Row
Armrest
Yes
Type of Seat
Adult
Second Seat Row › Armrest
Massage
Optional
Powered Seats
Optional
Seat Depth
Optional
Backrest Angle
Optional
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Upholstery
Leather

Features

Comfort Features

Keyless Entry
Optional
Remote Engine Start
Optional
Cruise Control
Optional
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Parking Heater
Engine Heater
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Horn
Single Note

Accessories

Tool Kit and Jack
Yes
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Optional
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Type of Belt › Three-Point-Belt
Centre Rear Seat
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
  • Yes
  • Optional
Electronic Brake Assist (BA/EBA)
  • Yes
  • Optional

Sensors

Parking Sensors
Optional
Light Sensor
Yes
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Optional
Child Safety Locks
Manual
Emergency Call
Optional
Number of Remote Keys
2
Number of Standard Keys
2
Total Number of Keys
4
Central Locking
Remote
Optional

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Optional

Other

Identification

VIN Location
Left Side Casing of Window
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Passenger Van
British Classification
Minibus
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Passenger Van

Similar lcvs

Suggested vehicles
