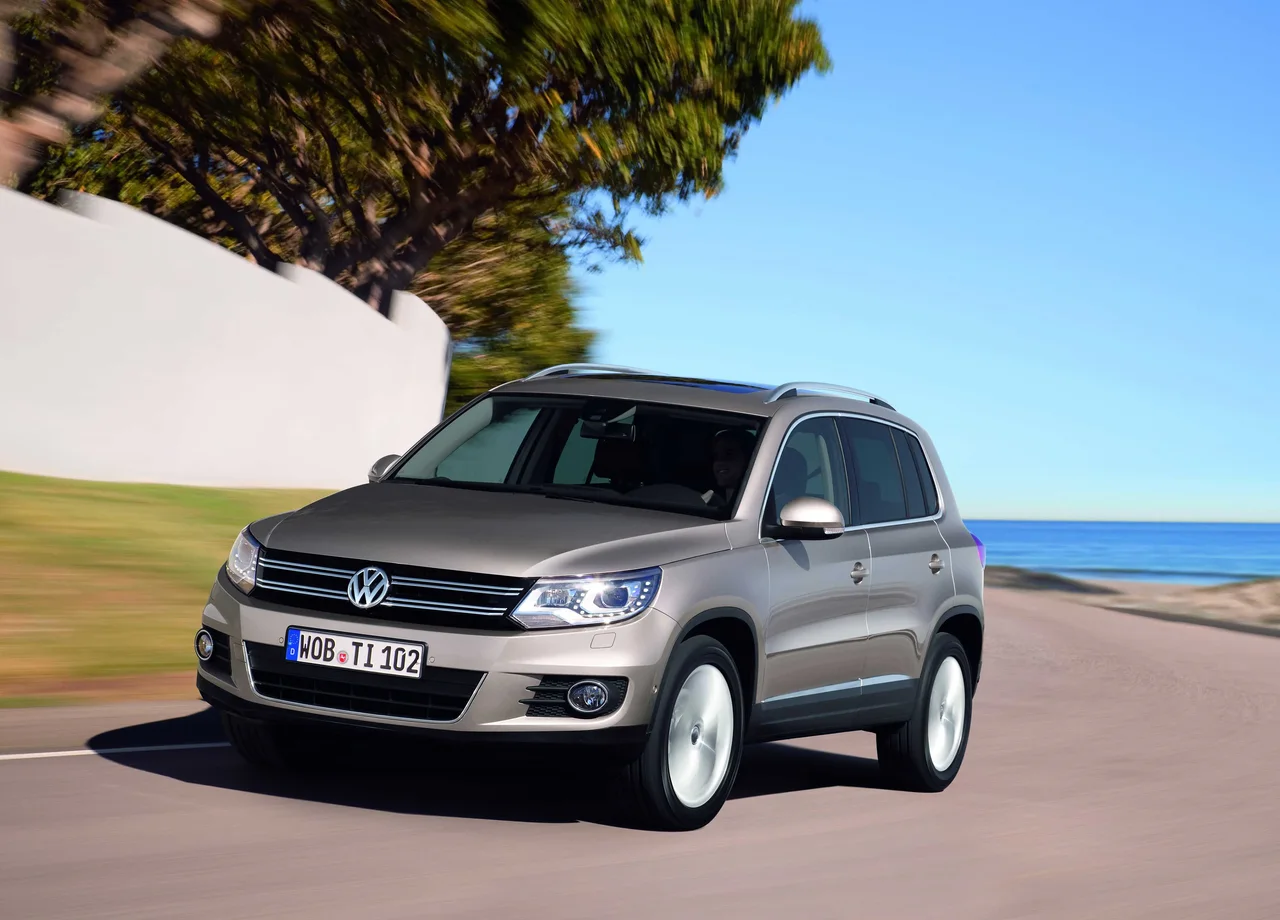

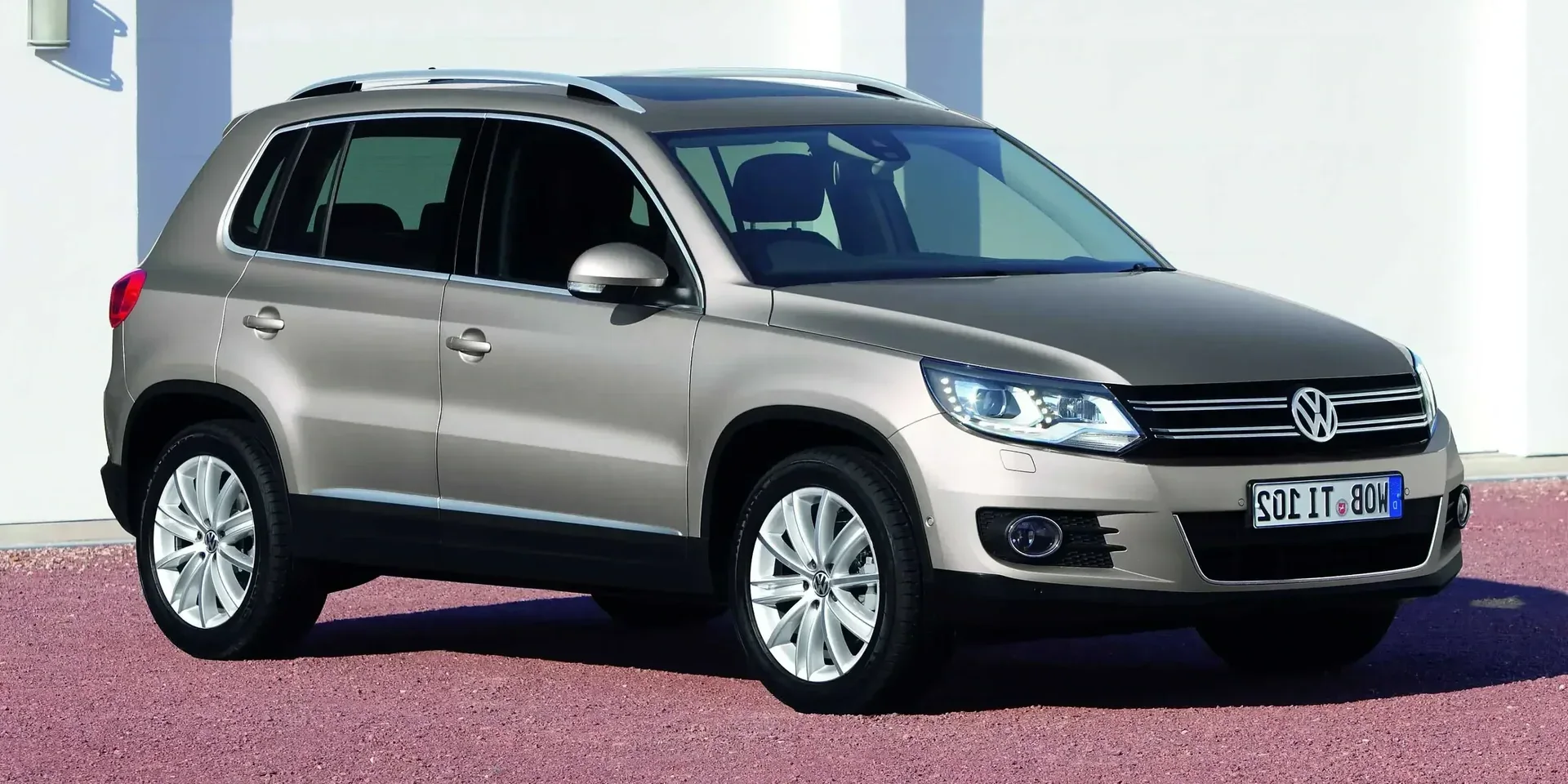

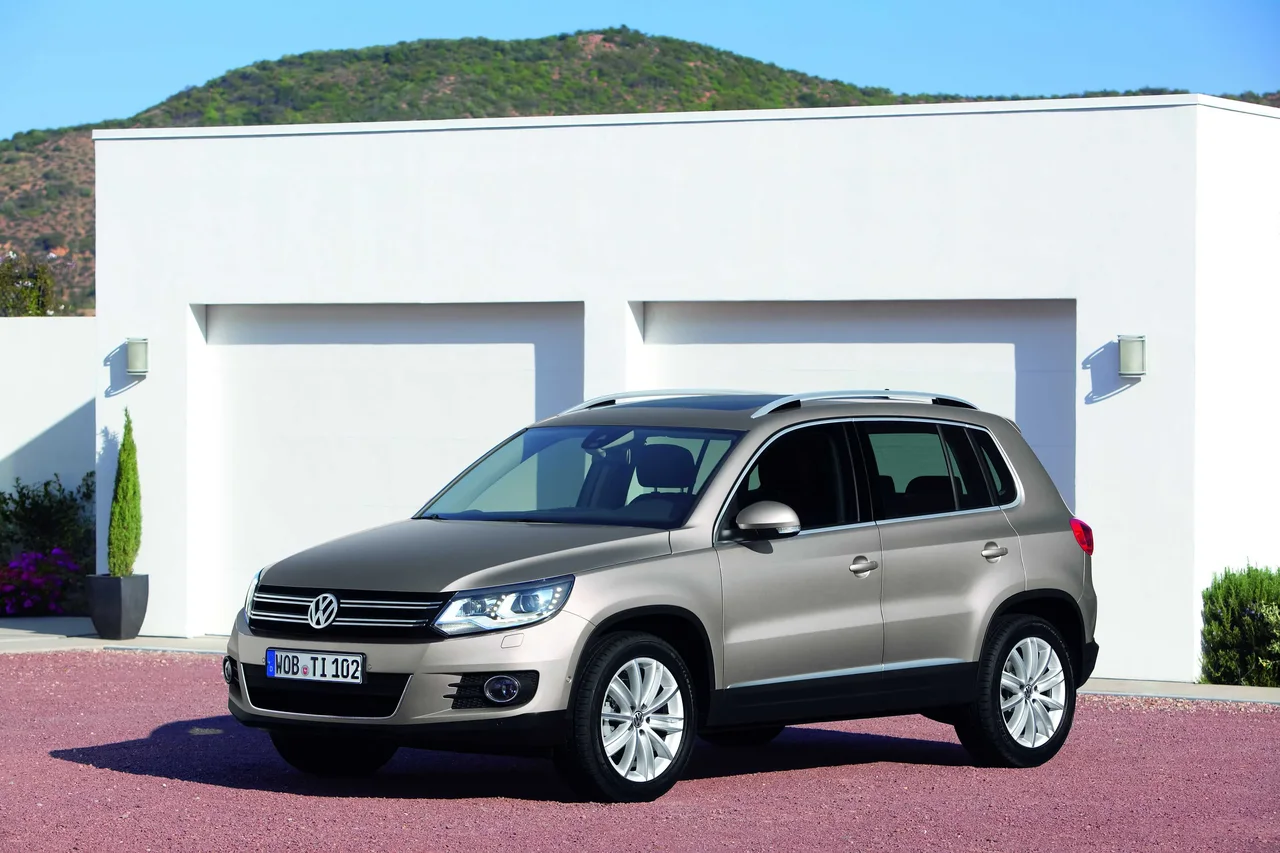

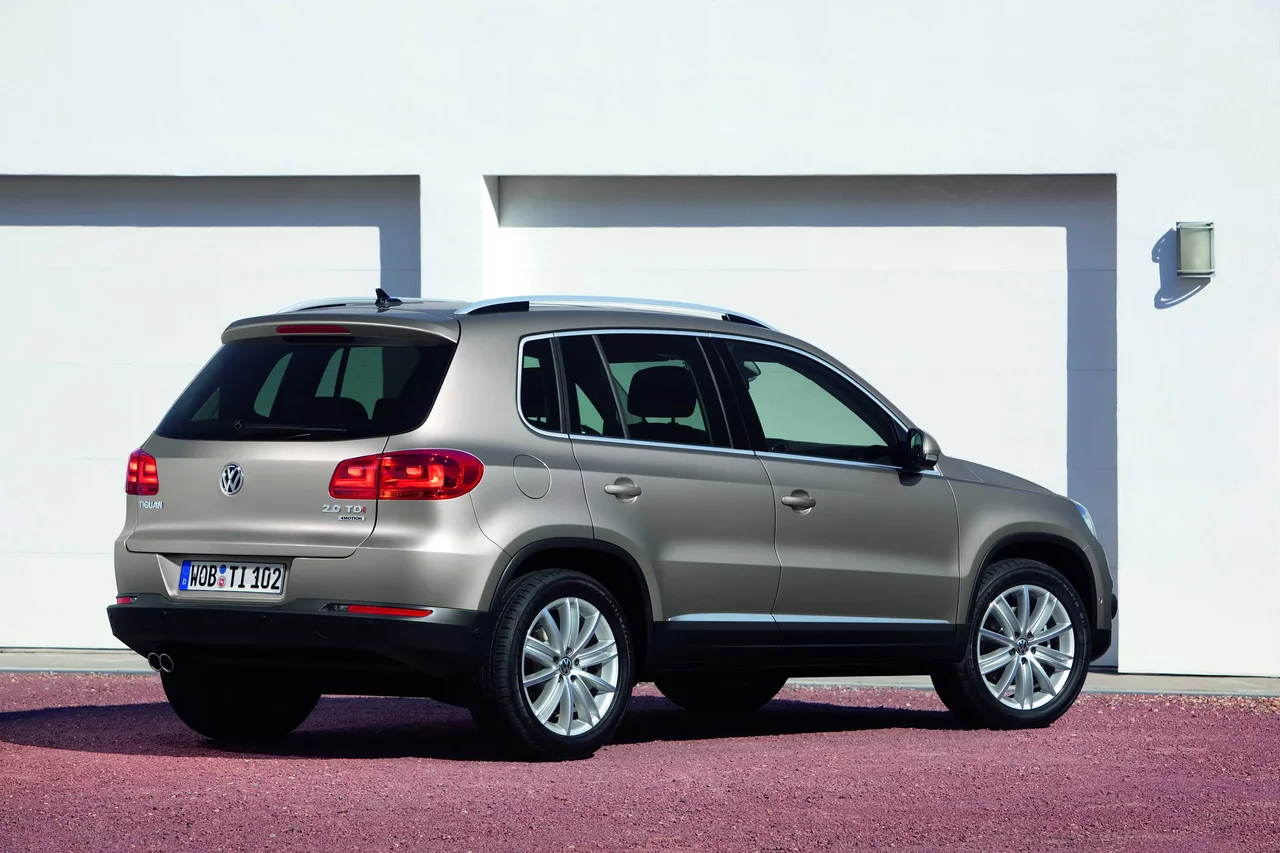

2010 Volkswagen Tiguan

GermanyDieselAWDSUV

Photos

Specifications

Vehicle Details

Year
2010
Make
Volkswagen
Model
Tiguan
Body Style
SUV
Generation
I (Typ 5N)
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Powertrain

Engine Name
2.0 TDI DPF 4Motion
Engine Configuration
Inline
Power (hp)
136 hp
Power (kW)
100 kW
Torque
320 Nm (236 lb-ft)
Top speed
182 km/h (113 mph)
0–60 mph
10.0 seconds (estimated)
0–100 km/h
10.5 seconds
Displacement
1,968 cc

Dimensions

Length
4,427 mm (174.3 in)
Width
1,809 mm (71.2 in)
Height
1,686 mm (66.4 in)
Wheelbase
2,604 mm (102.5 in)
Curb weight
1,590 kg (3,505 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,200 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Fluids
Engine Oil, Volume
4 litres
Car Battery
Voltage
12 V
Battery Capacity
61 Ah
Alternator Charge Current
140 A
Alternator Voltage
14 V
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
95.5 mm (3.8 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
180,000 km (111,847 mi)
Air Filter
90,000 km / 6 years
Fuel Filter
90,000 km (55,923 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
312 mm (12.3 in)
Width
25 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
286 mm (11.3 in)
Width
12 mm (0.5 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
64 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 4
Emission Control
  • Catalyst
  • Particle Filter
  • Exhaust Gas Recirculation
Fuel Consumption NEDC
City
8 – 9.2 litres / 100 km
Highway
5.4 – 5.9 litres / 100 km
Combined
6.4 – 7.1 litres / 100 km
Emission NEDC
CO₂, Combined
167 – 186 - 189 – 199 g/km

Performance

Acceleration
0-80 km/h
7.2 – 7.3 sec
80-120 km/h
14 sec
Drag Coefficient
0.37

Dimensions & Weight

Exterior

Width, with Mirrors
2,041 mm (80.4 in)
Width, open Doors
3,658 mm (144.0 in)
Height (Bonnet Open)
1,868 mm (73.5 in)
Track, Front
1,570 mm (61.8 in)
Track, Rear
1,570 mm (61.8 in)
Overhang, Front
925 - 955 mm (36.4 - 37.6 in)
Overhang, Rear
898 mm (35.4 in)
Approach Angle
18 °
Breakover Angle
20
Departure Angle
25 °
Turning Circle
12 m
Ground Clearance
195 mm (7.7 in)

Interior

Head Room, Front
961 - 992 mm (37.8 - 39.1 in)
Head Room, Rear
952 - 991 mm (37.5 - 39.0 in)
Leg Room, Front
1,019 mm (40.1 in)
Leg Room, Rear
910 mm (35.8 in)
Knee Room, Rear
30 mm (1.2 in)
Hip Room, Front
1,428 mm (56.2 in)
Hip Room, Rear
1,398 mm (55.0 in)

Weight

Gross Weight
2240 – 2260 kg (4,938 – 4,982 lb)
Max Trailer Load, braked 12%
2000 – 2200 kg (4,409 – 4,850 lb)
Max Trailer Load, braked 8%
2000 – 2200 kg (4,409 – 4,850 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
650 – 656 kg (1,433 – 1,446 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
100 kg (220 lb)
Permitted Axle Load, front
1160 – 1180 kg (2,557 – 2,601 lb)
Permitted Axle Load, rear
1,130 kg (2,491 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
A6/PQ46

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Fog Lights
Optional
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic | Semi-Static)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
140 Nm
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Full-size
Tire Pressure Monitoring System (TPMS)
Indirect
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
CD
Yes
Memory Card Reader
Optional
AAC
Optional
WMA
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Optional
USB
Optional
Connectivity › Media Inputs › AUX
Armrest Hatch/Mid-console
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Optional
Card Holder
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Ratio
16.3 :1
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
Yes
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
470 litres
Volume, Back Seat Collapsed
1,510 litres
Depth
936 mm (36.9 in)
Depth, Back Seat Collapsed
1,679 mm (66.1 in)
Opening Width
1,053 mm (41.5 in)
Height
1,025 mm (40.4 in)
Height, to Trunk Cover
607 mm (23.9 in)
Trunk Door Opening Height
2,086 mm (82.1 in)
Sill Height
771 mm (30.4 in)
Carpet
Rubber
Optional

Design

Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Parking Heater
Optional
Cameras
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Reversing Alarm
Optional
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2009
Adult Occupant
87 %
Child Occupant
79 %
Vulnerable Road Users
48 %
Safety Assist
71 %
Overall
5/5 stars
Test Year
2008
Overall Score
34.25
ANCAP Safety Rating
5
Adult Occupant
Total Points
31.4 /38
Frontal Impact
14.3 /16
Lateral Impact
14.1 /16
Rear Impact
3 /4
Frontal Offset
14.25
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Child Occupant
Total Points
38.8 /49
Safety Features
4 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 11.2
  • 0
  • 6
Safety Assist
Speed Assistance (points)
0 /3
Seat Belt Reminder (points)
2 /2
Seat Belt Reminders
2
Pedestrian
Protection (Assessment)
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Trunk
on Floor

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D1S
Datyime Running Light
H15
Fog Light, Front
HB4
Fog Light, Rear
BAY9s (H21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side Mirrors
W2.1×9.5d (W5W)
Turn Indicators, Rear
  • BAU15s (PY21W)
  • WX3×16d (WY21W)
Glove Compartment
W2.1×9.5d (W3W)
Read Light
  • SV8.5 (C5W)
  • W2.1×9.5d (W5W)
Entry Light
W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)

Similar suvs

Suggested vehicles
