2013 Mercedes-Benz B-Class

GermanyDieselFWDHatchback

Photos

Specifications

Vehicle Details

Year
2013
Make
Mercedes-Benz
Model
B-Class
Body Style
Hatchback
Generation
W246
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
B 180 CDI
Engine Configuration
Inline
Power (hp)
109 hp
Power (kW)
80 kW
Torque
260 Nm (192 lb-ft)
Top speed
190 km/h (118 mph)
0–60 mph
11.0 seconds (estimated)
0–100 km/h
11.6 seconds
Displacement
1,461 cc

Dimensions

Length
4,359 mm (171.6 in)
Width
1,786 mm (70.3 in)
Height
1,557 mm (61.3 in)
Wheelbase
2,699 mm (106.3 in)
Curb weight
1,335 kg (2,943 lb)

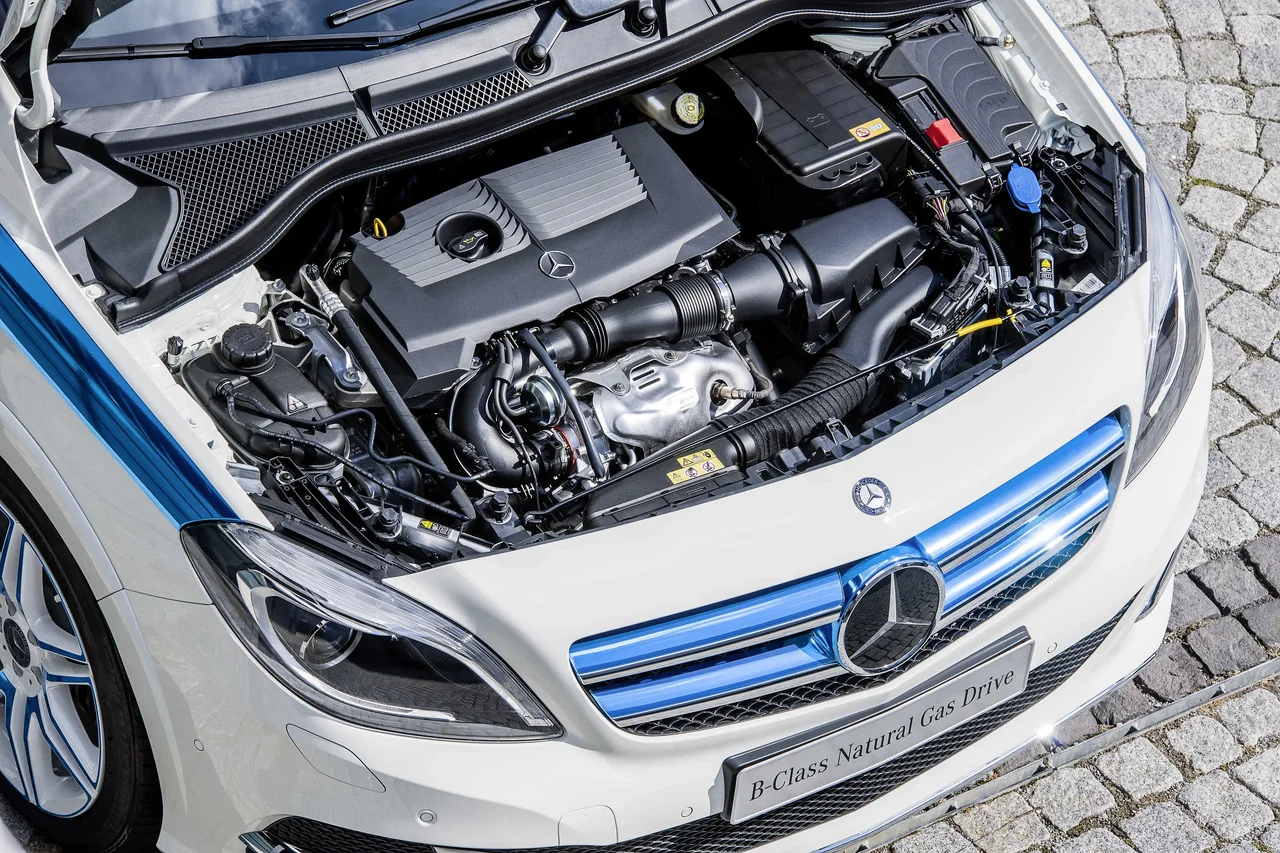

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
Engine Oil, Volume
7 litres
Engine Configuration
Bore
76 mm (3.0 in)
Stroke
80.5 mm (3.2 in)
Compression Ratio
15.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Oil Change & Engine Filter
25,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
50 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 5
Emission Class
A
Fuel Consumption NEDC
City
4.9 litres / 100 km
Highway
3.7 litres / 100 km
Combined
4.1 litres / 100 km
Emission NEDC
CO₂, Combined
108 g/km

Dimensions & Weight

Exterior

Track, Front
1,552 mm (61.1 in)
Track, Rear
1,549 mm (61.0 in)
Turning Circle
11 m
Ground Clearance
127 mm (5.0 in)

Interior

Head Room, Front
1,013 mm (39.9 in)
Head Room, Rear
985 mm (38.8 in)
Leg Room, Front
1,060 mm (41.7 in)
Leg Room, Rear
975 mm (38.4 in)
Hip Room, Front
1,330 mm (52.4 in)
Hip Room, Rear
1,446 mm (56.9 in)
Shoulder Room, Front
1,411 mm (55.6 in)
Shoulder Room, Rear
1,382 mm (54.4 in)

Weight

Gross Weight
2,000 kg (4,409 lb)
Max Trailer Load, braked 12%
1,200 kg (2,646 lb)
Max Trailer Load, unbraked
715 – 730 kg (1,576 – 1,609 lb)
Cargo Capacity
635 – 665 kg (1,400 – 1,466 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

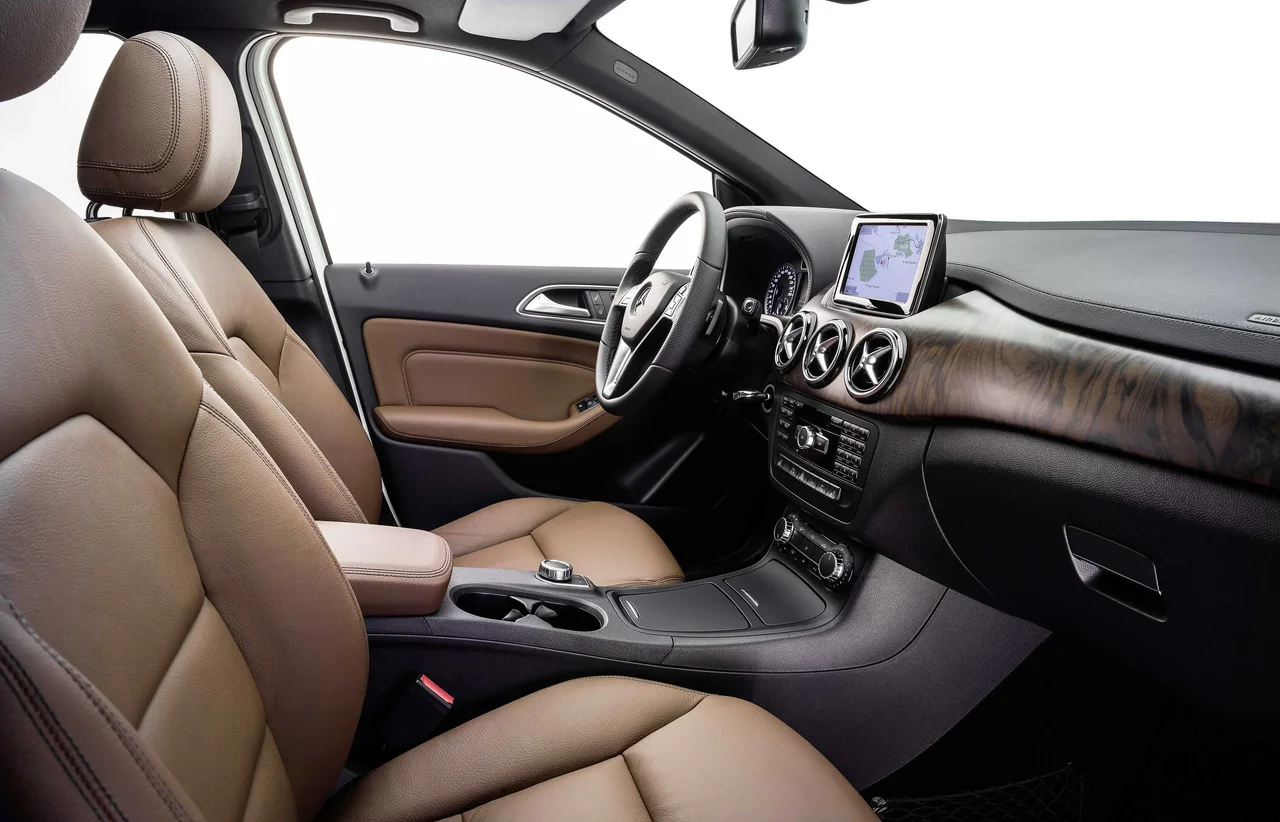

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
Yes
Media Format
  • MP3
  • WMA
Media Inputs
USB
Bluetooth
Yes
Connectivity › Media Format
CD
Yes
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
486 litres
Volume, Back Seat Collapsed
1,545 litres
Depth
744 mm (29.3 in)
Depth, Back Seat Collapsed
1,421 mm (55.9 in)
Sill Height
538 mm (21.2 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Lane Departure Warning (LDW)
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2011
Adult Occupant
97 %
Child Occupant
81 %
Vulnerable Road Users
56 %
Safety Assist
86 %
Overall
5/5 stars
Overall Score
36.78
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.78
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
  • A-Pillar, Right
  • B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D1S
Fog Light, Front
H11
Fog Light, Rear
  • BA15s (P21W)
  • BAY9s (H21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)

ACRISS

Category
Intermediate Elite (J)
Type
4-5 Doors (D)
