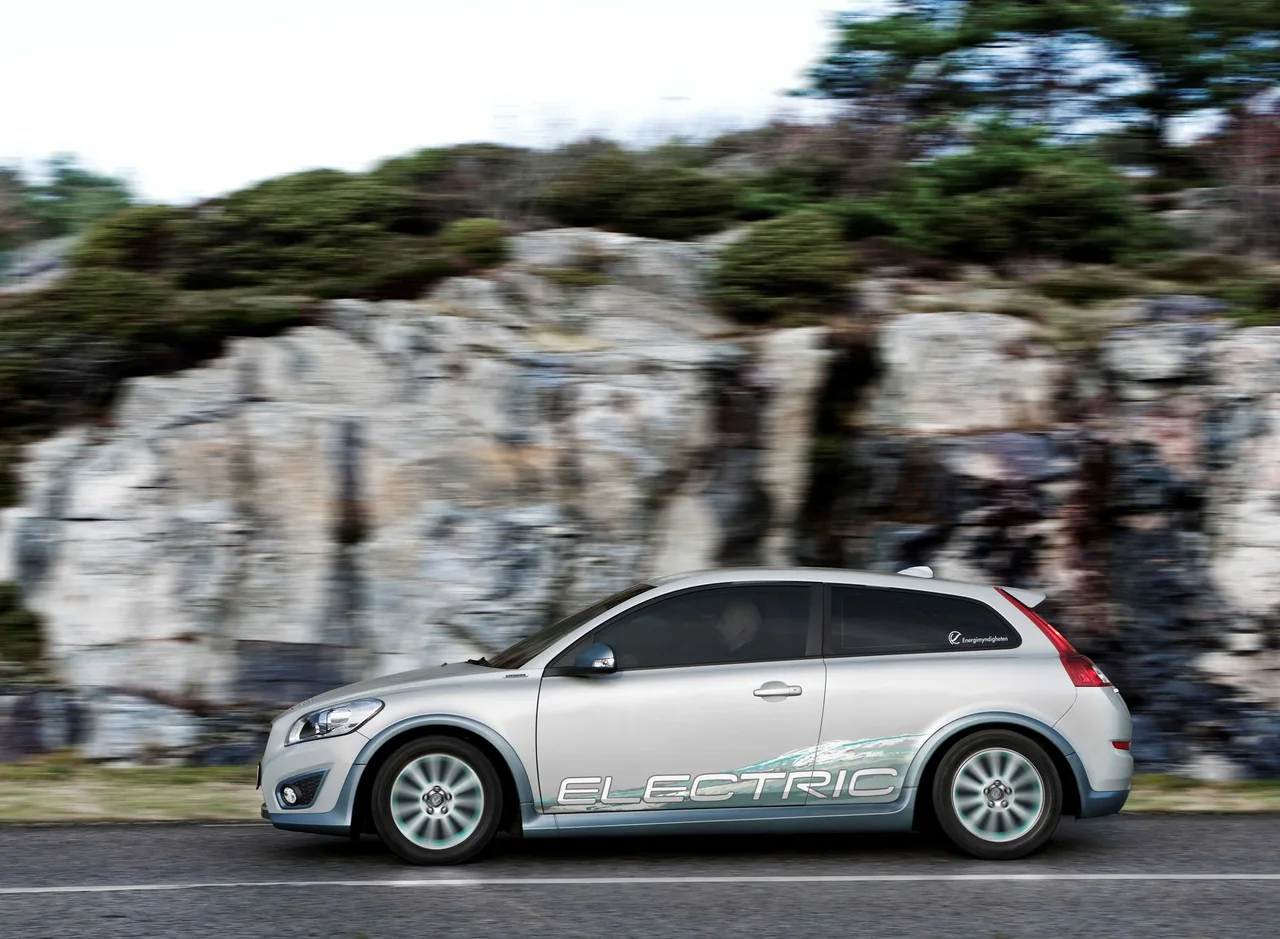

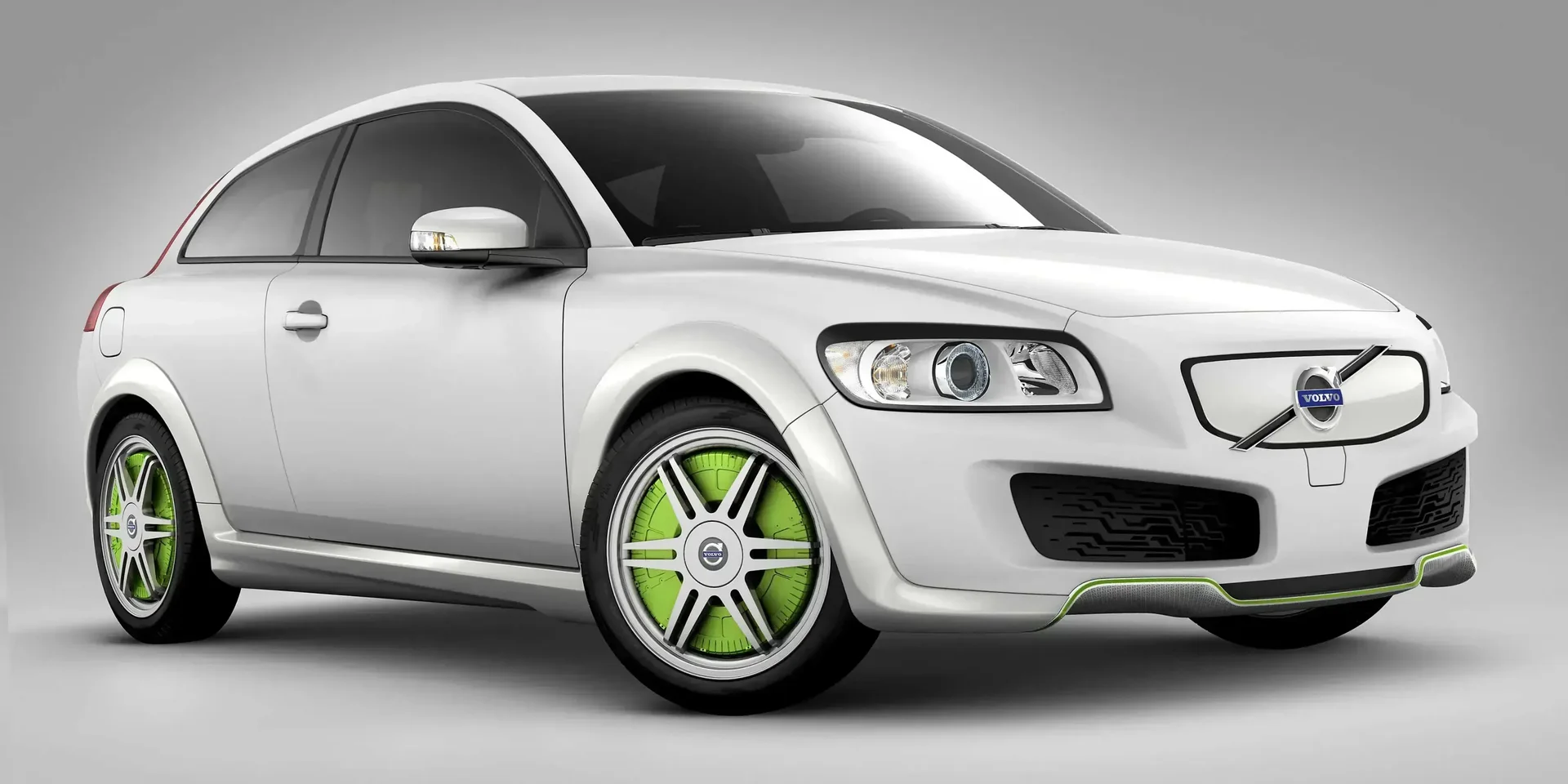

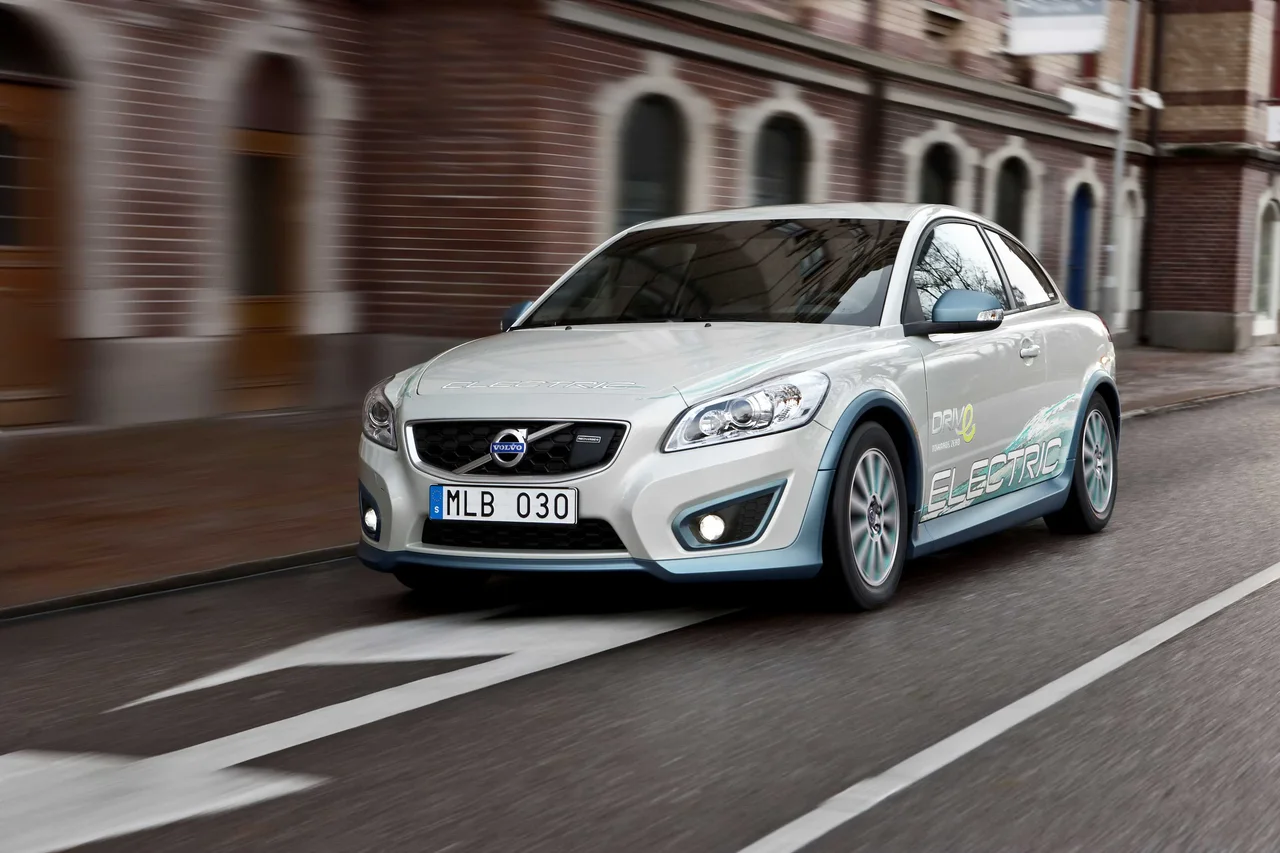

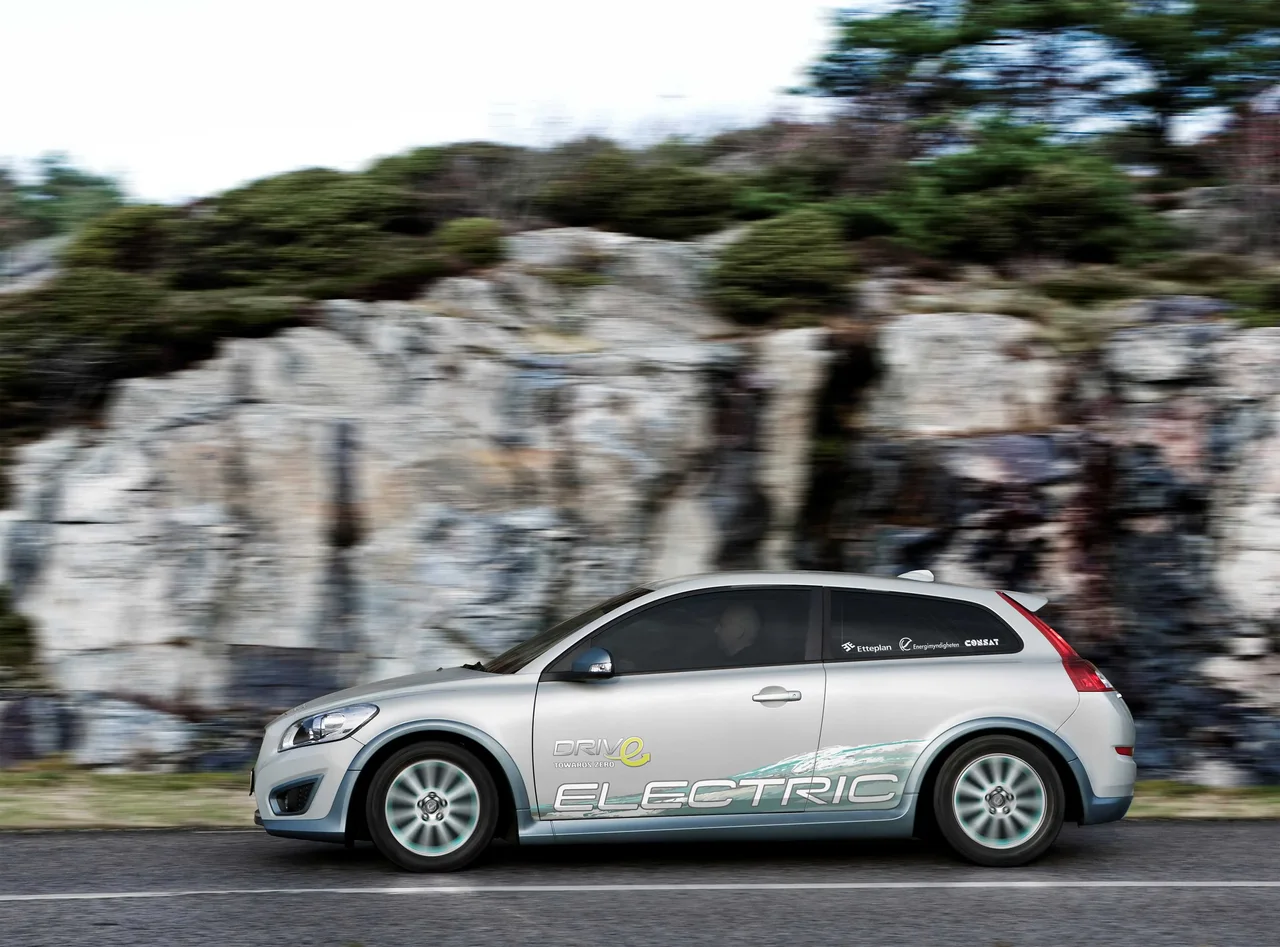

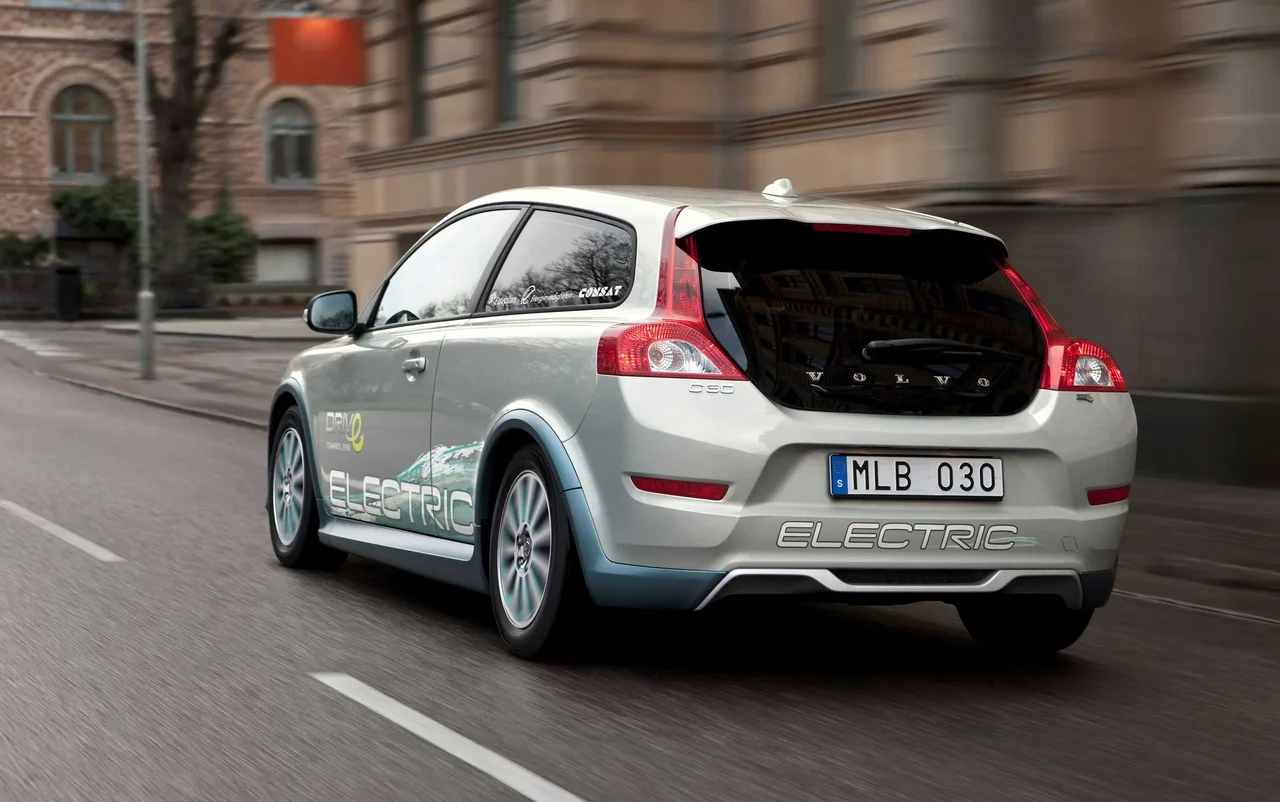

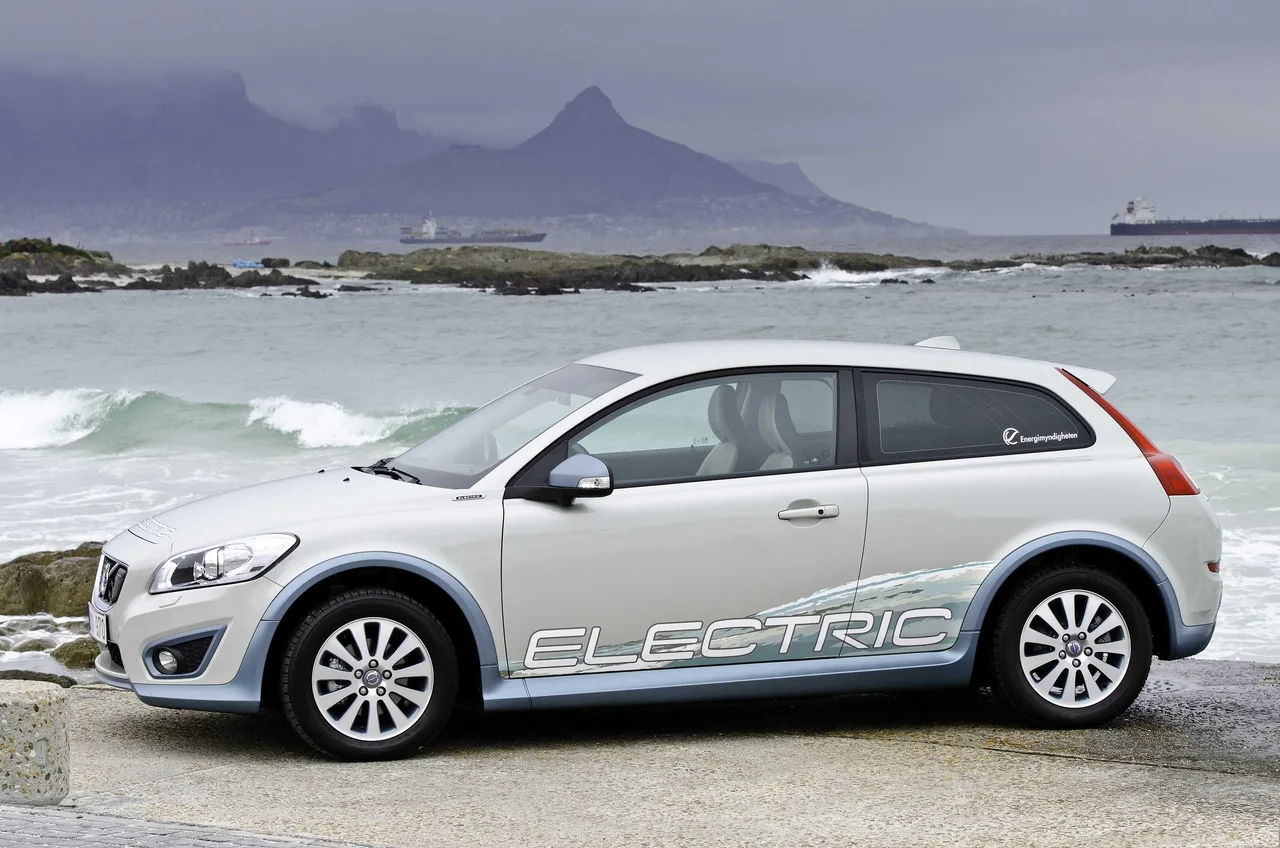

2013 Volvo C30

SwedenElectricFWDHatchback

Photos

Specifications

Vehicle Details

Year
2013
Make
Volvo
Model
C30
Body Style
Hatchback
Generation
M Facelift
Seats
4
Doors
3
Fuel
Electric
Drivetrain
FWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
Electric Single Speed
Engine Configuration
Electric
Power (hp)
111 hp
Power (kW)
82 kW
Torque
250 Nm (184 lb-ft)
Top speed
130 km/h (81 mph)
0–60 mph
10.0 seconds (estimated)
0–100 km/h
10.5 seconds
Electric range
120 km (75 mi)
Battery
24 kWh

Dimensions

Length
4,266 mm (168.0 in)
Width
1,782 mm (70.2 in)
Height
1,443 mm (56.8 in)
Wheelbase
2,640 mm (103.9 in)
Curb weight
1,415 kg (3,120 lb)

Engine & Performance

Engine

Car Battery
Voltage
12 V
Battery Capacity
60 - 80 Ah
Cold Start Power
590 - 760 A
Configuration Combustion
Engine Mount
Transversally
Configuration Electric
Type of Electric Car
Electric
Torque
250 Nm (184 lb-ft)
Front Engines
Yes
Battery Capacity, Gross
24 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase
Charging Plugs
Type 2
Configuration Electric › Front Engines
Power (kW)
82 kW
Number of Engines
1
Service Intervals
Interior Filter
10,000 km / 1 years

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (1)
  • Rear (1)
Front Brakes
Diameter
278 mm (10.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
280 mm (11.0 in)
Cooling
Solid

Energy & Range

WLTP Consumption
Electric Range
120 - 150 km (75 - 93 mi)
Fuel Consumption NEDC
City
0 litres / 100 km
Highway
0 litres / 100 km
Electric Range
150 km (93 mi)
Emission NEDC
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Track, Front
1,535 mm (60.4 in)
Track, Rear
1,531 mm (60.3 in)
Turning Circle
10.6 m
Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
988 mm (38.9 in)
Head Room, Rear
958 mm (37.7 in)
Leg Room, Front
1,057 mm (41.6 in)
Leg Room, Rear
869 mm (34.2 in)
Shoulder Room, Front
1,389 mm (54.7 in)
Shoulder Room, Rear
1,303 mm (51.3 in)

Weight

Gross Weight
1,725 kg (3,803 lb)
Max Trailer Load, braked 12%
1,350 kg (2,976 lb)
Max Trailer Load, unbraked
650 kg (1,433 lb)
Cargo Capacity
310 kg (683 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Platform
Ford Motor Company
C1 Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Fog Lights
Yes
Special Features
Automatic Headlight Activation
Fog Lights
Rear
Halogen
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Headlight Washers
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Nuts
Tightening Torque
110 - 130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Media Format
CD
Media Inputs
USB
Bluetooth
Yes
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
251 litres
Volume, Back Seat Collapsed
894 litres
Depth
663 mm (26.1 in)
Depth, Back Seat Collapsed
1,486 mm (58.5 in)
Width
1,531 mm (60.3 in)
Opening Width
954 mm (37.6 in)
Height
642 mm (25.3 in)
Sill Height
805 mm (31.7 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Yes

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2009
Adult Occupant
91 %
Child Occupant
78 %
Vulnerable Road Users
26 %
Safety Assist
71 %
Overall
5/5 stars
Test Year
2007
Overall Score
33.99
ANCAP Safety Rating
5
Adult Occupant
Total Points
32.8 /38
Frontal Impact
15 /16
Lateral Impact
14.6 /16
Rear Impact
3.2 /4
Whiplash Protection (Assessment)
Not Assessed
Child Occupant
Total Points
38 /49
Safety Features
2 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 5.2
  • 0
  • 4
Safety Assist
Speed Assistance (points)
0 /3
Seat Belt Reminder (points)
2 /2
Pedestrian
Protection (Assessment)
Poor
IIHS
Test Year
2009
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Optional

Other

Warranty

EV Battery
80,000 km / 4 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H9
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Positioning-/Parking Lights, Front Side
W2.1×9.5d (WY5W)
Reversing Light
BAX9s (H6W)
Turn Indicators, Front
PGU20 (PGU20/4 - PY24W)
Turn Indicators, Rear
BAU15s (PY21W)
Trunk
SV8.5 (C5W)
License Plate Light
SV8.5 (C5W)

Production

Statistics
Production Number (Series)
192,024
Statistics › Production Number (Model)
1st Generation
192,024
Statistics › Production Number (Year)
2006
7,350
2007
53,190
2008
39,966
2009
31,216
2010
35,248
2011
19,256
2012
5,628
2013
170

Similar hatchbacks

Suggested vehicles
