2016 Mazda CX-9

JapanGasolineFWDSUV

Photos

Specifications

Vehicle Details

Year
2016
Make
Mazda
Model
CX-9
Body Style
SUV
Generation
2nd Generation
Seats
7
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic, 6-speed

Powertrain

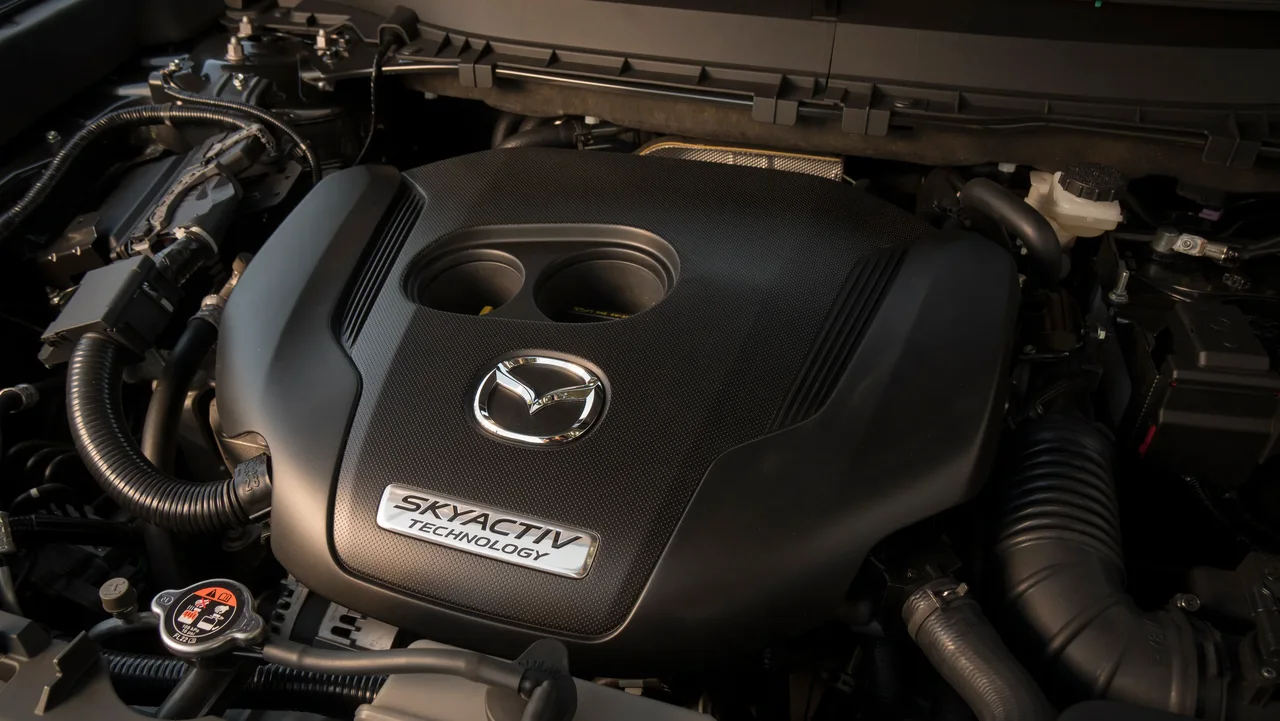

Engine Name
2.5 SKYACTIV-G Automatic
Engine Configuration
Inline
Power (hp)
231 hp
Power (kW)
170 kW
Torque
420 Nm (310 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
7.8 seconds (estimated)
0–100 km/h
8.2 seconds
Displacement
2,488 cc

Dimensions

Length
5,075 mm (199.8 in)
Width
1,969 mm (77.5 in)
Height
1,747 mm (68.8 in)
Wheelbase
2,930 mm (115.4 in)
Curb weight
1,878 kg (4,140 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
2,000 rpm
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
100 mm (3.9 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Synchronization
Timing Chain

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front
Front Brakes
Diameter
320 mm (12.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
325 mm (12.8 in)
Cooling
Solid

Fuel

General
Tank Volume
72 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
11 litres / 100 km
Highway
6.9 litres / 100 km
Combined
8.4 litres / 100 km
Emission NEDC
CO₂, Combined
197 g/km

Dimensions & Weight

Exterior

Track, Front
1,663 mm (65.5 in)
Track, Rear
1,663 mm (65.5 in)
Turning Circle
11.8 m
Ground Clearance
220 mm (8.7 in)

Interior

Head Room, Front
998 - 1,019 mm (39.3 - 40.1 in)
Head Room, Rear
978 mm (38.5 in)
Head Room, Third Row
899 mm (35.4 in)
Leg Room, Front
1,041 mm (41.0 in)
Leg Room, Rear
1,001 mm (39.4 in)
Leg Room, Third Row
754 mm (29.7 in)
Hip Room, Front
1,440 mm (56.7 in)
Hip Room, Rear
1,458 mm (57.4 in)
Shoulder Room, Front
1,471 mm (57.9 in)
Shoulder Room, Rear
1,476 mm (58.1 in)
Shoulder Room, Third Row
1,349 mm (53.1 in)

Weight

Gross Weight
2,505 kg (5,523 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
627 kg (1,382 lb)
Max Roof Load
45 kg (99 lb)
Max Towbar Download
150 kg (331 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Turning Signal
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Spoiler
Yes
Electric
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Main Beam Assist
Fog Lights
Front
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Central Bore (CB), rear
67.1
Fastening Type
Lug Nuts
Tightening Torque
108 - 147 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
725 g
Connectivity
Radio
  • HD Radio
  • Internet Radio
Bluetooth
Phone
Connectivity › Media Inputs
AUX
Yes
USB
Yes
Connectivity › Media Inputs › USB
Number of Ports
2 pcs
Displays
Center Display
7 - 8"
Center Display Controls
Touchscreen
Speakers
Total Number of Speakers
6 pcs
Other Equipment
12V Outlet
  • Front
  • Trunk

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Adjustments
  • Tilt
  • Telescope
Material
Leather
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
230 litres
Depth
528 mm (20.8 in)
Depth, Back Seat Collapsed
1,554 mm (61.2 in)
Width
1,483 mm (58.4 in)
Width, Between Wheel Arches
1,025 mm (40.4 in)
Height
762 mm (30.0 in)

Design

Transmission Knob Material
Leather

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes
Second Seat Row
Collapsible
Yes
Third/Fourth Seat Row
Third Seat Row
Yes
Third/Fourth Seat Row › Third Seat Row
Collapsible
Yes

Features

Comfort Features

Keyless Entry
Yes
Cruise Control
Yes
Cameras
Rear

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Lane Departure Warning (LDW)
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Yes
Child Safety Locks
Yes
Emergency Call
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
Overall Score
35.87
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
14.87
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3
IIHS
Test Year
2017
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Warranty

Manufacturer
100,000 km / 3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
1 years

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Positioning-/Parking Lights, Front Side
W2.1×9.5d (WY5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
WX3×16d (WY21W)
License Plate Light
W2.1×9.5d (W5W)
