2016 Kia Sorento

South KoreaGasolineFWDSUV

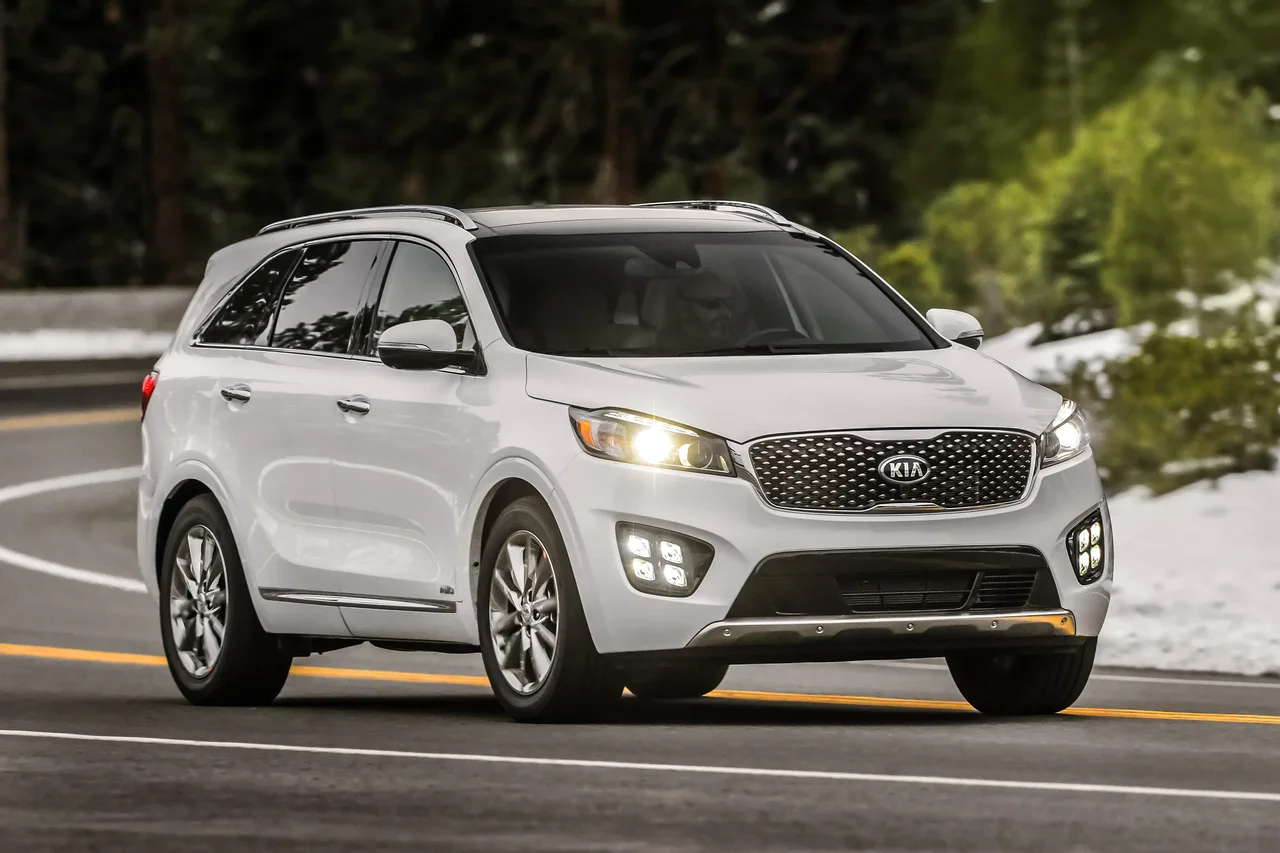

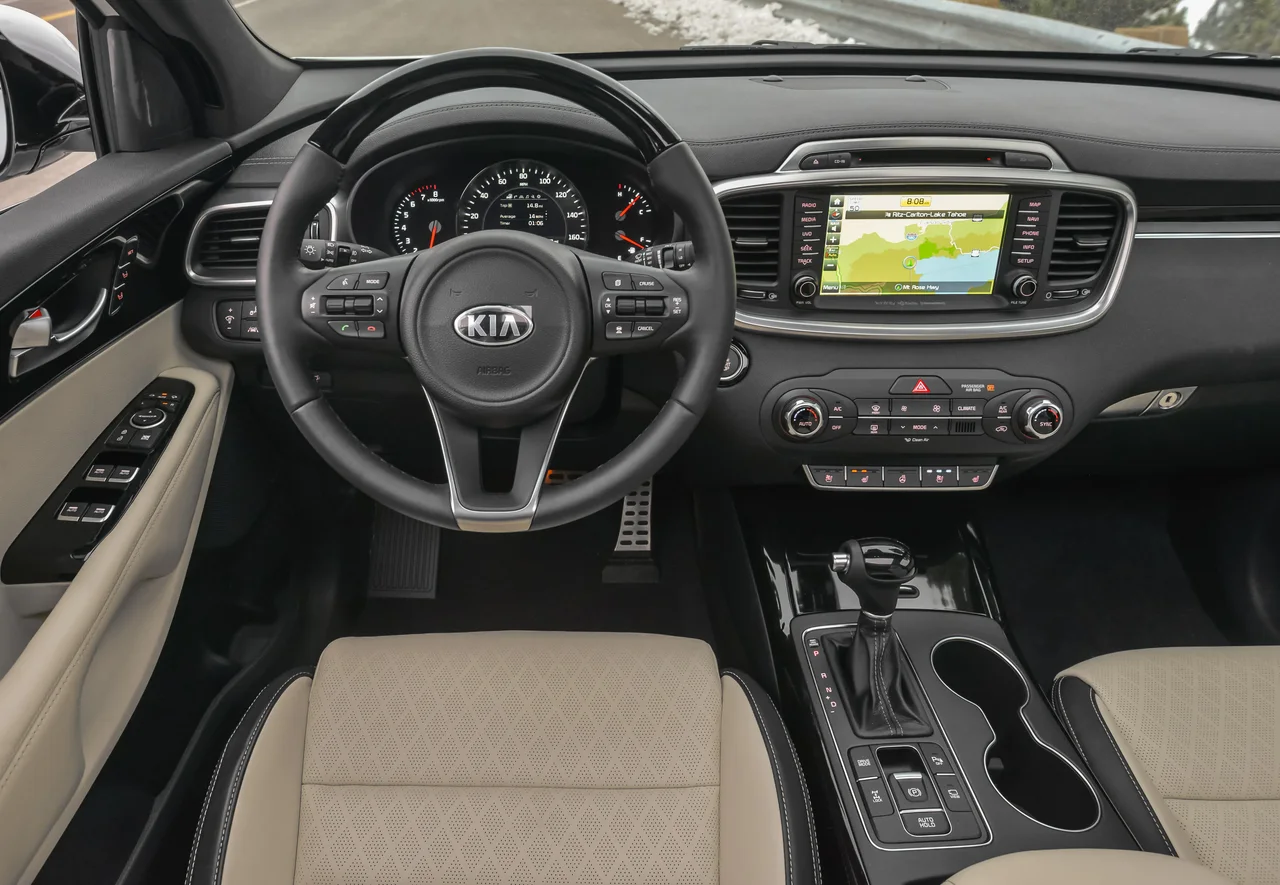

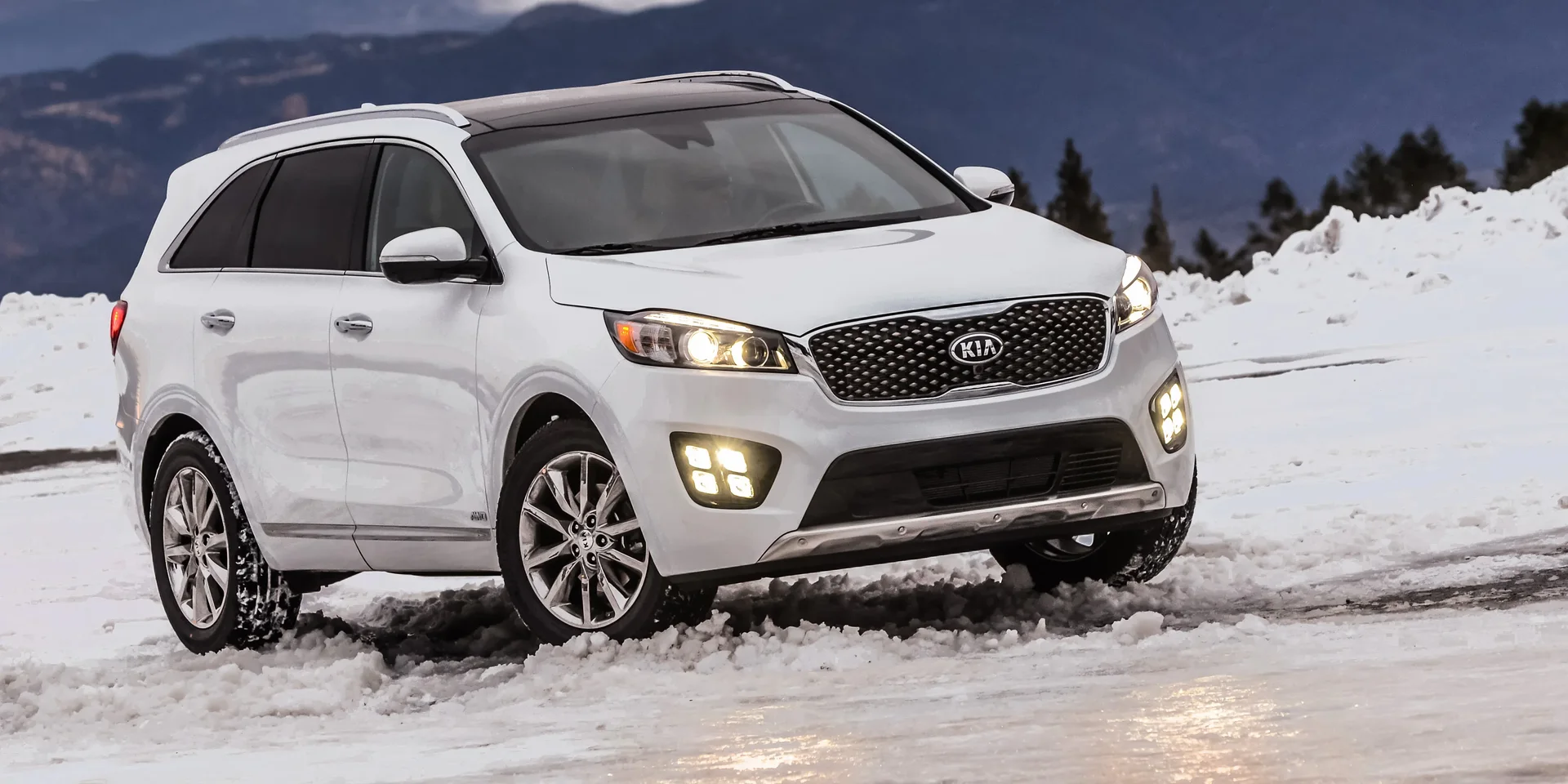

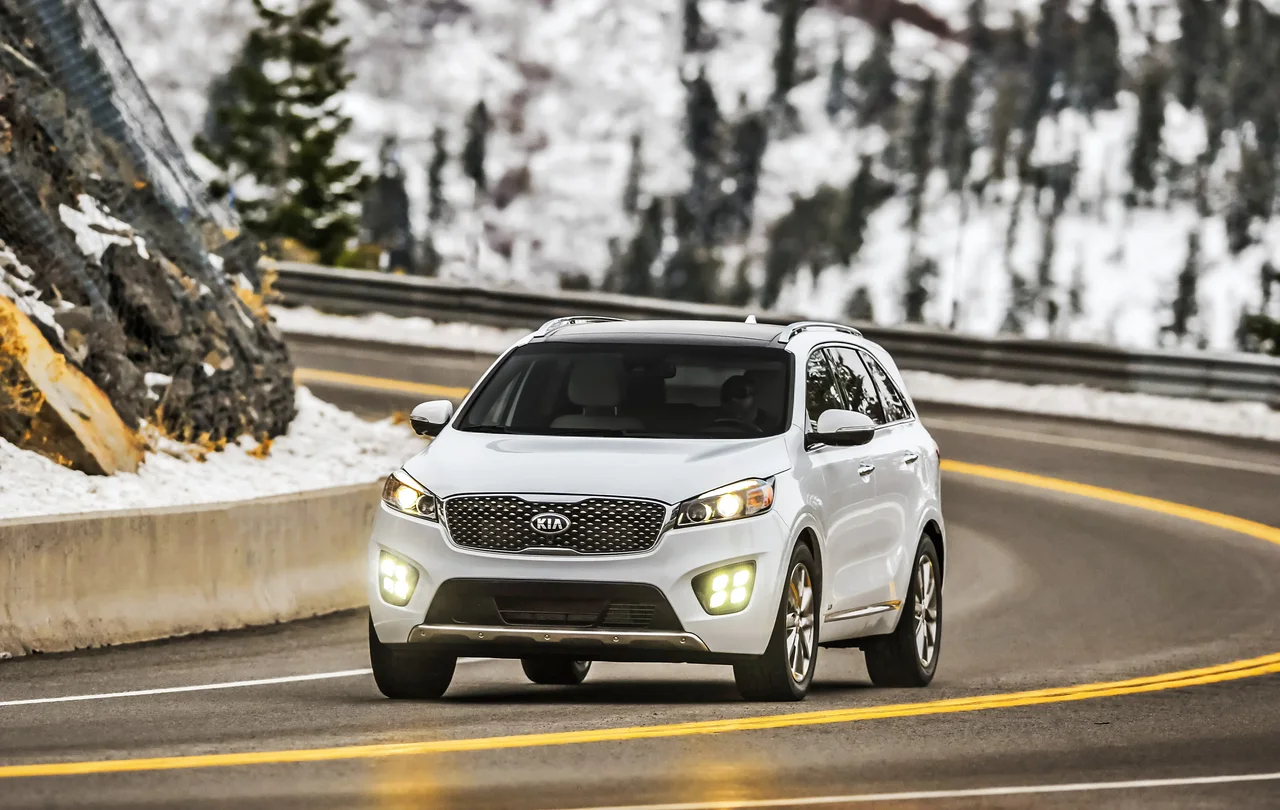

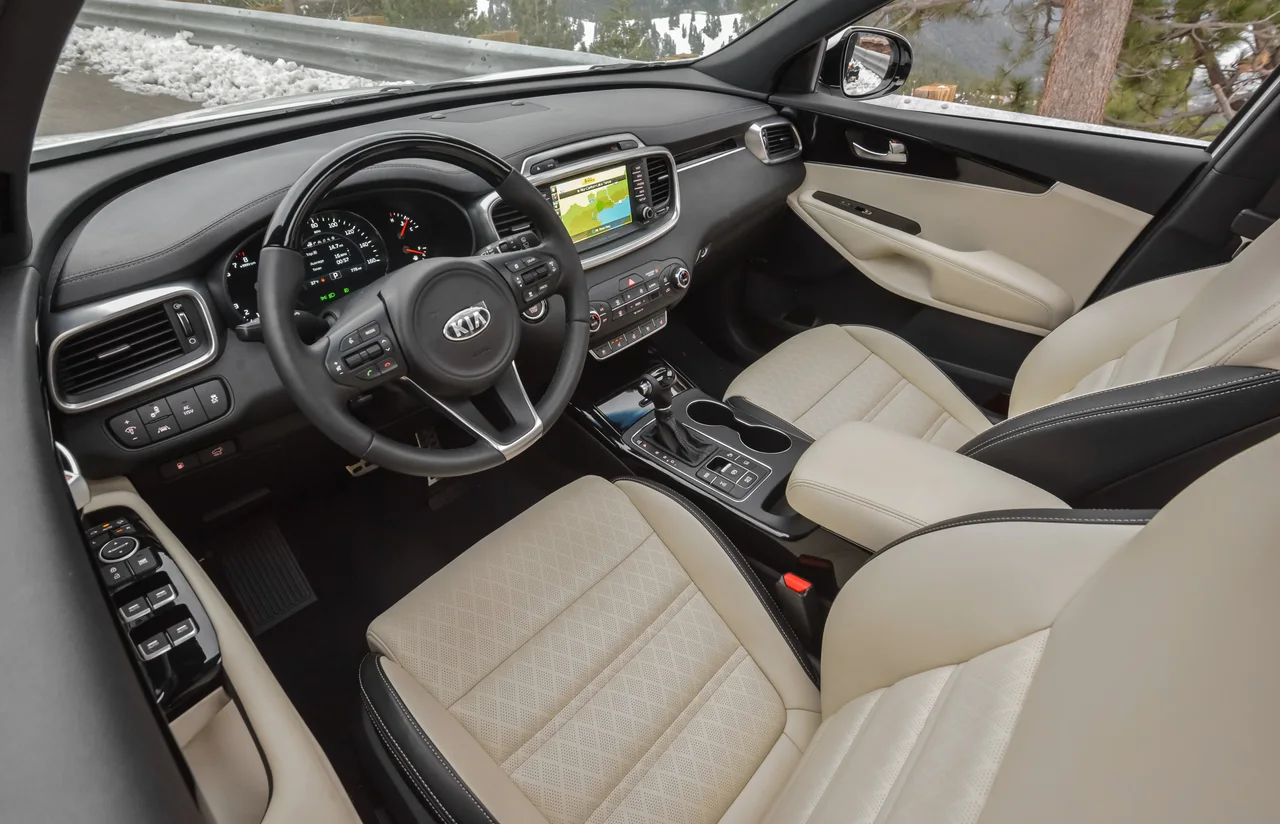

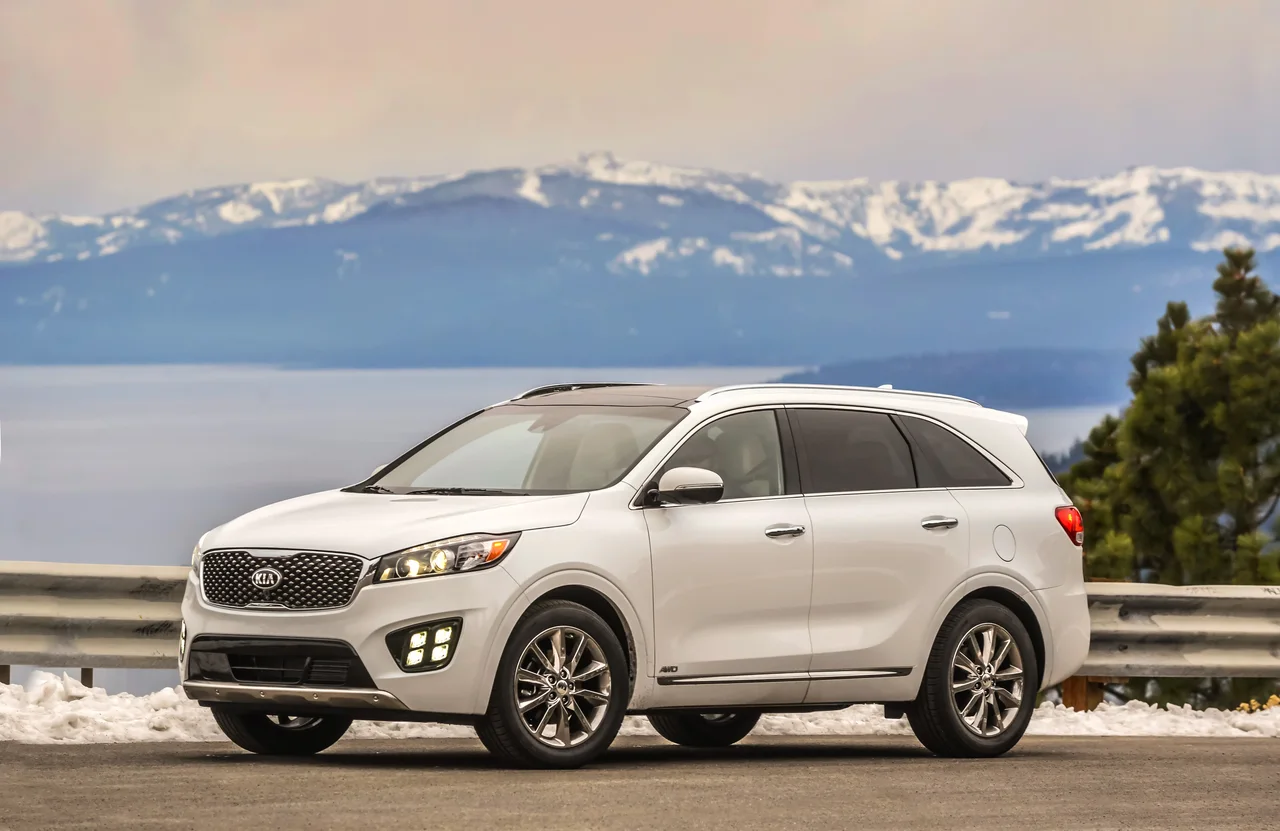

Photos

Specifications

Vehicle Details

Year
2016
Make
Kia
Model
Sorento
Body Style
SUV
Generation
UM
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
2.0 Automatic
Power (hp)
243 hp
Power (kW)
179 kW
Displacement
1,997 cc

Dimensions

Length
4,780 mm (188.2 in)
Width
1,890 mm (74.4 in)
Height
1,685 mm (66.3 in)
Wheelbase
2,780 mm (109.4 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Engine Configuration
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
210,000 km / 10 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Fuel

General › Fuel Cap Position
Rear
Left
General
Lockable Fuel Cap
Yes

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Brake Caliper Colour
Black
Front Brakes
Diameter
320 mm (12.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
305 mm (12.0 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Exterior

Track, Front
1,640 mm (64.6 in)
Track, Rear
1,650 mm (65.0 in)
Overhang, Front
945 mm (37.2 in)
Overhang, Rear
1,055 mm (41.5 in)
Turning Circle
11.1 m
Ground Clearance
180 mm (7.1 in)

Interior

Head Room, Front
1,004 mm (39.5 in)
Head Room, Rear
998 mm (39.3 in)
Head Room, Third Row
920 mm (36.2 in)
Leg Room, Front
1,048 mm (41.3 in)
Leg Room, Rear
1,000 mm (39.4 in)
Leg Room, Third Row
805 mm (31.7 in)
Hip Room, Front
1,440 mm (56.7 in)
Hip Room, Rear
1,433 mm (56.4 in)
Shoulder Room, Front
1,500 mm (59.1 in)
Shoulder Room, Rear
1,472 mm (58.0 in)
Shoulder Room, Third Row
1,342 mm (52.8 in)

Weight

Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Hyundai-Kia Platforms
Y Platform (Y6)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Heated Wiper Blades
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
  • Front
  • First Row
Tinted Windows
  • Second Row
  • Rear Window
Manual
Optional
Second Row Windows
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Mud Flaps
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Come Home/Leaving Lights
Fog Lights
Front
Yes
Rear
Yes
Special Features
Adaptive Headlights
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
88 - 107 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
7"
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
  • Internet Radio
Media Format
  • CD
  • MP3
  • WMA
Media Inputs
USB
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Phone
Connectivity › Radio
HD Radio
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Equalizer
Yes
Speakers
Total Number of Speakers
10 pcs
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Yes
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Lights
Read Light
  • Front
  • Rear
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
  • Front
  • Rear
Carpets
Yes
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Carpets
Material
Textile

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Release Button
Yes
Cover
Foldable
Carpet
Rubber
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
605 litres
Volume, Back Seat Collapsed
1,662 litres
Automatic Open
Motion Activated
Optional

Design

Interior Decor Colour
Black
Accent
Aluminium
Transmission Knob Material
Leather

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Number of Driver Seat Adjustments, Total
12
Number of Passenger Seat Adjustments, Total
10
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Ventilated Seats
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
  • 60/40
  • 40/20/40
Heated Seats
Optional
Third/Fourth Seat Row
Third Seat Row
Yes
Third/Fourth Seat Row › Third Seat Row
Collapsible
Yes
Number of Seats
2
Type of Seat
Adult
Seat Angle
Front Facing
Colour & Material
Upholstery
Leather
Stitching Colour
Black

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Wireless Phone Charger
Optional
Phone
Yes
Cruise Control
Adaptive Cruise Control
Optional

Other Features

GPS
Optional
Driving Mode Selection
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Dynamic Torque Vectoring (DTV)
Optional
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Stability Assist (TSA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Headrests
Yes

Safety Testing

General
Test Year
2014
Adult Occupant
90 %
Child Occupant
83 %
Vulnerable Road Users
67 %
Safety Assist
71 %
Overall
5/5 stars
Overall Score
36.62
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.62
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
15.8 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2016
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
7 years
12V Battery
2 years
Paintwork
150,000 km / 5 years
Rust Damage
150,000 km / 7 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
150,000 km / 7 years

Identification

VIN Location
Left Side Casing of Window
Yes
Right Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
H9
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
License Plate Light
W2.1×9.5d (W5W)

Similar suvs

Suggested vehicles
