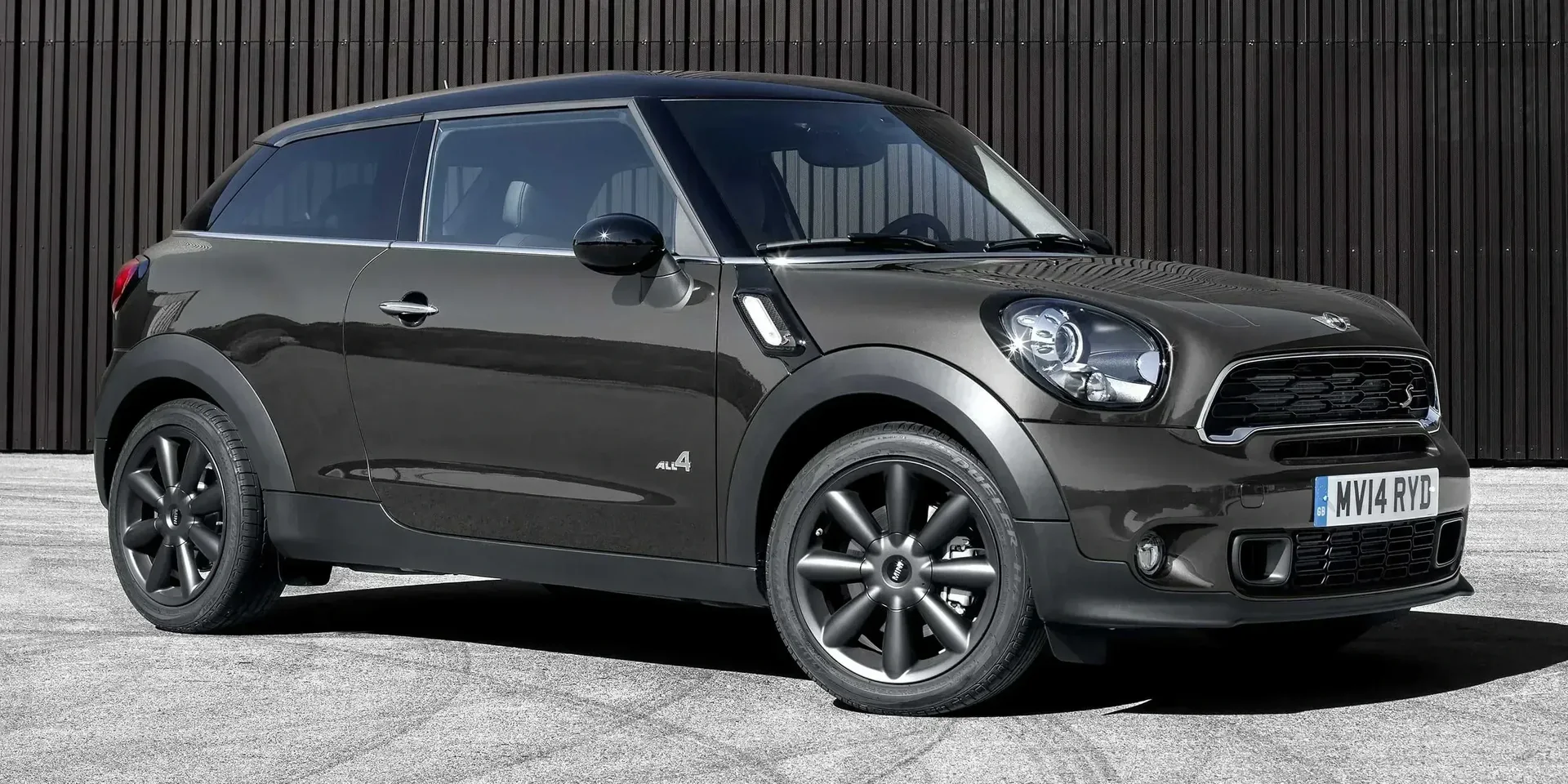

2016 Mini Countryman Paceman Cooper S ALL4

United KingdomGasolineAWDCrossover

Photos

Specifications

Vehicle Details

Year
2016
Make
Mini
Model
Countryman
Variant
Paceman Cooper S ALL4
Body Style
Crossover
Generation
R60 LCI
Seats
4
Doors
3
Fuel
Gasoline
Drivetrain
AWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
Cooper S ALL4
Engine Configuration
Inline
Power (hp)
190 hp
Power (kW)
140 kW
Torque
240 Nm (177 lb-ft)
Top speed
215 km/h (134 mph)
0–60 mph
7.2 seconds (estimated)
0–100 km/h
7.6 seconds
Displacement
1,598 cc

Dimensions

Length
4,114 mm (162.0 in)
Width
1,786 mm (70.3 in)
Height
1,518 mm (59.8 in)
Wheelbase
2,595 mm (102.2 in)
Curb weight
1,380 kg (3,042 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,600 - 5,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Engine Configuration
Bore
77 mm (3.0 in)
Stroke
85.8 mm (3.4 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Service Intervals
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
4 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed
Transmission
Paddles
Optional
Gear Ratio
1st Gear
3.3 – 4.04 :1
2nd Gear
2.13 – 2.37 :1
3rd Gear
1.48 – 1.55 :1
4th Gear
1.14 – 1.16 :1
5th Gear
0.85 – 0.95 :1
6th Gear
0.67 – 0.81 :1
Final Drive
3.68 – 3.7 :1
Reverse
3.19 – 3.23 :1

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
307 mm (12.1 in)
Width
22 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
280 mm (11.0 in)
Width
10 mm (0.4 in)

Performance

Drag Coefficient
0.35

Fuel

General
Tank Volume
47 litres
Emission
Emission Standard
Euro 6
Emission Class
  • C
  • D
Emission Control
Catalyst
Fuel Consumption NEDC
City
8 – 9.5 litres / 100 km
Highway
5.5 – 5.7 litres / 100 km
Combined
6.4 – 7.1 litres / 100 km
Emission NEDC
CO₂, Combined
148 – 165 g/km

Dimensions & Weight

Exterior

Track, Front
1,531 - 1,538 mm (60.3 - 60.6 in)
Track, Rear
1,558 mm (61.3 in)
Turning Circle
11.6 m
Ground Clearance
124 - 133 mm (4.9 - 5.2 in)

Interior

Head Room, Front
1,000 mm (39.4 in)
Head Room, Rear
925 mm (36.4 in)
Leg Room (est.), Rear
856 mm (33.7 in)

Weight

Gross Weight
1850 – 1875 kg (4,079 – 4,134 lb)
Max Trailer Load, braked 12%
750 – 1000 kg (1,653 – 2,205 lb)
Max Trailer Load, unbraked
500 kg (1,102 lb)
Cargo Capacity
470 kg (1,036 lb)
Max Roof Load
75 kg (165 lb)
Permitted Axle Load, front
980 – 1005 kg (2,161 – 2,216 lb)
Permitted Axle Load, rear
890 kg (1,962 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-C
Doors
Front Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Optional
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Roof Railing
Optional
Spoiler
Fixed
Antenna
Whip
Number of Exhaust Pipes
2
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Fog Lights
Yes
Fog Lights
Rear
Yes
Adaptive Headlights
Optional
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
72.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Digital
Climate Control
Number of Climate Zones
1
Air Condition
Yes
Number of Vents, Front
4 pcs
Number of Vents, Rear
0 pcs
Connectivity
Radio
  • AM
  • FM
  • DAB
Media Format
CD
Media Inputs
USB
Bluetooth
Phone
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
6.5"
Equalizer
Optional
Speakers
Total Number of Speakers
10 pcs
Tweeters
1 pcs
Speakers Max. Watt
480 W
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Adjustments
Tilt
Colour
Black
Steering Ratio
14.1 :1
Voice Command
Optional
Answer Phone
Optional
Channels
Optional
Volume
Optional

Trunk

Rear Trunk
Yes
Barrier Net/Grid
Optional
Cargo Hooks
Optional
Rear Trunk
Volume
330 litres
Volume, Back Seat Collapsed
1,080 litres

Design

Interior Decor Colour
Black
Interior Decor Colour
Grey
Optional

Seats

Colour & Material
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
2

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Phone
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Portable Cooling Box
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2010
Adult Occupant
84 %
Child Occupant
83 %
Vulnerable Road Users
63 %
Safety Assist
71 %
Overall
5/5 stars
Overall Score
31.89
ANCAP Safety Rating
4
Adult Occupant
Frontal Offset
11.89
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
2

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H13
Main Beam
H13
Datyime Running Light
PG20 (PSX24W)
Fog Light, Front
H8
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAU15s (PY21W)

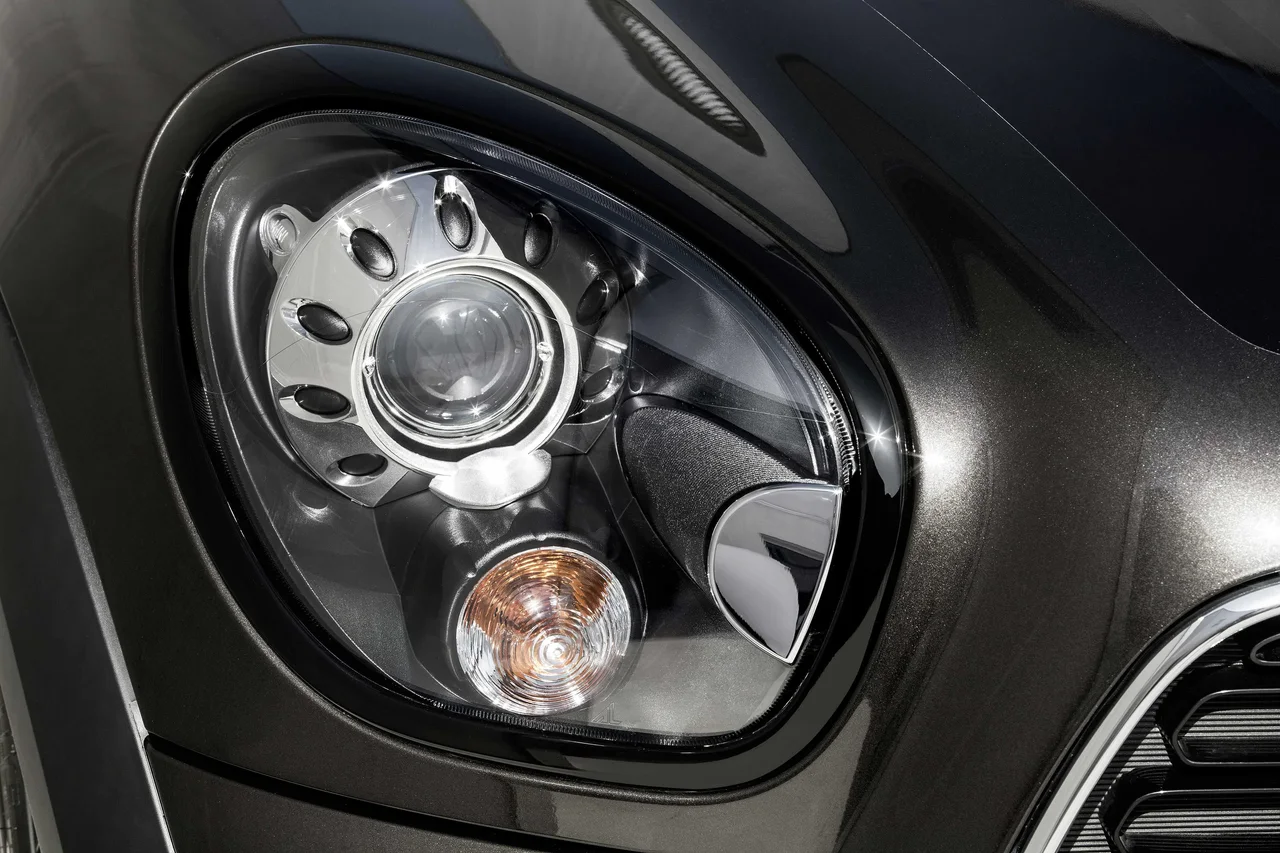

Turn Indicators, Front
  • BA15s (P21W)
  • BAU15s (PY21W)
Turn Indicators, Rear
W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)

Similar crossovers

Suggested vehicles
