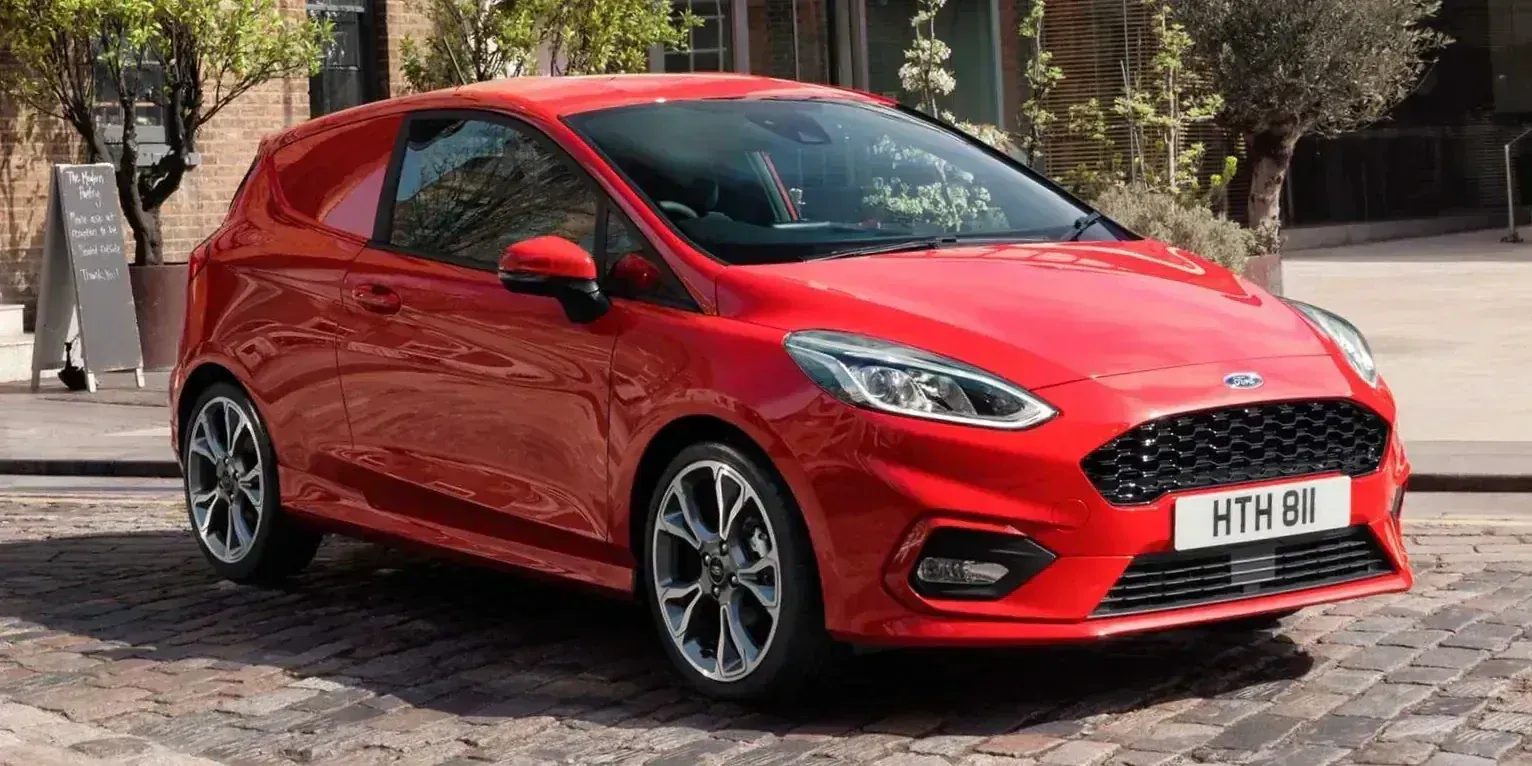

2017 Ford Fiesta

United StatesDieselFWDHatchback

Photos

Specifications

Vehicle Details

Year
2017
Make
Ford
Model
Fiesta
Body Style
Hatchback
Generation
HF/HG/HJ
Seats
2
Doors
3
Fuel
Diesel
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.5 TDCi Manual
Engine Configuration
Inline
Power (hp)
120 hp
Power (kW)
88 kW
Torque
270 Nm (199 lb-ft)
Top speed
190 km/h (118 mph)
0–60 mph
9.0 seconds (estimated)
0–100 km/h
9.5 seconds
Displacement
1,499 cc

Dimensions

Length
4,040 mm (159.1 in)
Width
1,783 mm (70.2 in)
Height
1,476 mm (58.1 in)
Wheelbase
2,493 mm (98.1 in)
Curb weight
1,210 kg (2,668 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,600 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Configuration
Bore
73.5 mm (2.9 in)
Stroke
88.3 mm (3.5 in)
Compression Ratio
16 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Service Intervals
Air Filter
48,000 km (29,826 mi)
Spark Plug
160,000 km (99,419 mi)
Brake Fluid
3 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
160,000 km / 6 years
Interior Filter
30,000 km / 2 years
Accessory Belt
160,000 km (99,419 mi)

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes

Suspensions

Suspension, Rear
Independent
Yes

Fuel

General
Tank Volume
42 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6
Fuel Consumption NEDC
City
4 litres / 100 km
Highway
3.4 litres / 100 km
Combined
3.6 litres / 100 km
Emission NEDC
CO₂, Combined
96 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,941 mm (76.4 in)
Overhang, Front
839 mm (33.0 in)
Overhang, Rear
708 mm (27.9 in)
Turning Circle
9.8 m
Ground Clearance
130 - 152 mm (5.1 - 6.0 in)

Weight

Gross Weight
1,670 kg (3,682 lb)
Max Trailer Load, braked 12%
1,000 kg (2,205 lb)
Max Trailer Load, unbraked
605 kg (1,334 lb)
Max Roof Load
50 kg (110 lb)
Max Towbar Download
40 kg (88 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Platform
Ford Motor Company
B3 Platform (Global B Platform)

Equipment

Side Mirrors
Mirror Type
Conventional
House Colour
Same as Car
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Windows
Heated Windows
Rear

Lights

Fog Lights
Yes
Fog Lights
Rear
Yes

Colour

Finish
Solid

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Nuts
Tightening Torque
135 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Manual
Number of Climate Zones
1
Number of Vents, Front
4 pcs
Connectivity
Radio
  • AM
  • FM
Interior Storage › Storage Compartments
Glove Compartment
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front
Ashtray
Optional
Cigarette Lighter
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Multifunction Steering Wheel
Cruise Control
Resume
Media
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Width
1,281 mm (50.4 in)
Width, Between Wheel Arches
984 mm (38.7 in)
Height
923 mm (36.3 in)

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Manual
Headrest, Height
Manual
Second Seat Row
Height Adjustment
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Traffic Light Recognition
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Yes
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Collision Avoidance System
Optional
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
87 %
Child Occupant
84 %
Vulnerable Road Users
64 %
Safety Assist
60 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Airbag cut-off Switch

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
2 years
Rust Damage
12 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
  • H1
  • H15
Datyime Running Light
H15
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (WY5W)
Turn Indicators, Rear
BAU15s (PY21W)
