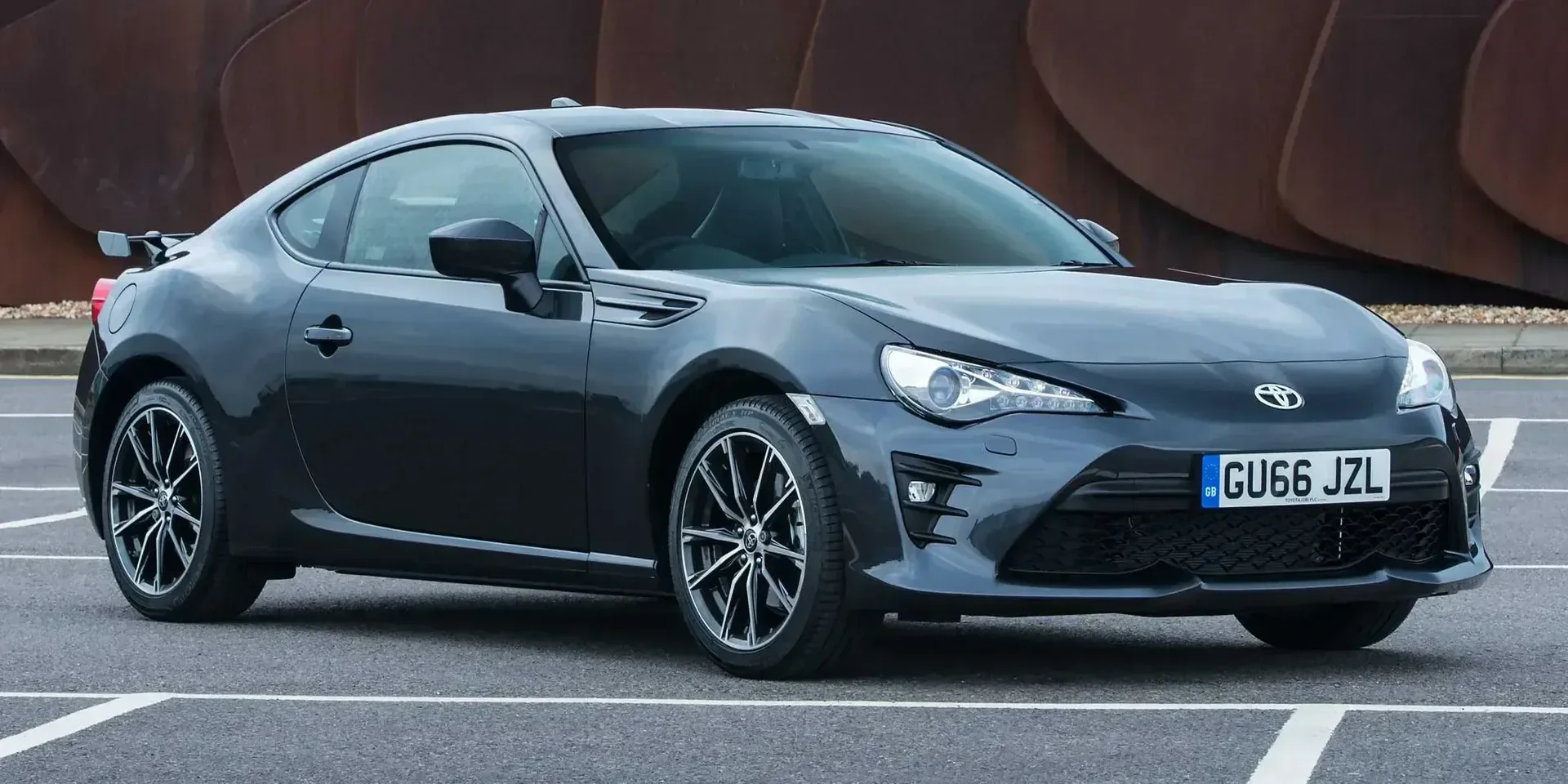

2017 Toyota 86 GT86

JapanGasolineRWDCoupe

Photos

Specifications

Vehicle Details

Year
2017
Make
Toyota
Model
86
Variant
GT86
Body Style
Coupe
Generation
ZN6 Facelift
Seats
2
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
GT86 2.0 H4
Engine Configuration
Flat
Power (hp)
200 hp
Power (kW)
147 kW
Torque
205 Nm (151 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
7.2 seconds (estimated)
0–100 km/h
7.6 seconds
Displacement
1,998 cc

Dimensions

Length
4,240 mm (166.9 in)
Width
1,775 mm (69.9 in)
Height
1,285 mm (50.6 in)
Wheelbase
2,570 mm (101.2 in)
Curb weight
1,305 kg (2,877 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
7,000 rpm
Rev. at Max Torque
6,600 rpm
Engine Configuration
Bore
86 mm (3.4 in)
Stroke
86 mm (3.4 in)
Compression Ratio
12.5 :1
Engine Configuration
Flat

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
50 litres
Emission
Emission Standard
Euro 6
Emission WLTP
CO₂, Combined
191 – 193 g/km
Emission NEDC
CO₂, Combined
183 – 196 g/km
Fuel Consumption NEDC
City
9.5 – 10.3 - 9.6 – 10.4 litres / 100 km
Highway
5.5 – 6.3 - 5.7 – 6.4 litres / 100 km
Combined
7 – 7.8 - 7.1 – 7.8 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,520 mm (59.8 in)
Track, Rear
1,540 mm (60.6 in)
Overhang, Front
845 mm (33.3 in)
Overhang, Rear
825 mm (32.5 in)
Turning Circle
11 m
Ground Clearance
125 - 130 mm (4.9 - 5.1 in)

Interior

Head Room, Front
942 mm (37.1 in)
Head Room, Rear
889 mm (35.0 in)
Leg Room, Front
1,064 mm (41.9 in)
Leg Room, Rear
760 mm (29.9 in)
Hip Room, Front
1,349 mm (53.1 in)
Hip Room, Rear
1,151 mm (45.3 in)
Shoulder Room, Front
1,384 mm (54.5 in)
Shoulder Room, Rear
1,313 mm (51.7 in)

Weight

Gross Weight
1670 – 1700 kg (3,682 – 3,748 lb)
Cargo Capacity
365 – 372 kg (805 – 820 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Tinted Windows
  • Front
  • Second Row
  • Rear Window
Other Equipment
Normal Roof
Yes
Spoiler
Yes
Antenna
Shark Fin

Lights

Main Beam
  • Xenon
  • LED
Low Beam
  • Xenon
  • LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
Yes

Colour

Finish
Metallic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.25
Central Bore (CB), front
56.1
Fastening Type
Lug Nuts
Tightening Torque
120 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
  • Analogue
  • Digital
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Manual
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
  • Yes
  • Optional
Climate Control › Climate Control
Automatic
  • Yes
  • Optional
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
  • HD Radio
Media Format
MP3
Media Inputs
USB
Bluetooth
Phone
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
7"
Displays › Center Display
Touchscreen
  • Yes
  • Optional
Speakers
Total Number of Speakers
8 pcs
Interior Storage › Storage Compartments
Coin Holder
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side

Steering Wheel

Multifunction Steering Wheel
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Material
Leather
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
243 litres

Design

Interior Decor Material
Suede
Transmission Knob Material
Leather

Seats

Front Seats › Adjustments, Driver
Seat Height
Yes
Front Seats
Type of Seat
Sport Seats
Second Seat Row
Collapsible
Yes

Features

Comfort Features

Keyless Entry
  • Yes
  • Optional
Keyless Start
  • Yes
  • Optional
Cruise Control
  • Yes
  • Optional
Cruise Control
Rear
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Optional
Lane Departure Warning (LDW)
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
4/5 stars
Rollover
Rollover Resistance
7.1 %
Overall Frontal Rating
4/5 stars
Rollver
5/5 stars
IIHS
Test Year
2014
Small Overlap Front: Driver Side
Acceptable
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car

Spare Parts BETA

Bulb Types
Low Beam
  • D4S (xenon)
  • H11
Main Beam
HB3
Bi-Xenon
D4S
Fog Light, Front
H8
Fog Light, Rear
W3×16d (W21W)
Positioning-/Parking Lights, Front Side
W2.1×9.5d (W5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Side
W2.1×9.5d (WY5W)
Turn Indicators, Rear
WX3×16d (WY21W)
Read Light
SV8.5 (C10W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Category
Standard (S)
Type
Coupe (E)
