2019–2026
Photos
Specifications
Vehicle Details
- Year
- 2017
- Make
- Volkswagen
- Model
- Passat
- Variant
- Alltrack
- Body Style
- Crossover
- Generation
- B8 (Type 3G)
- Seats
- 5
- Doors
- 5
- Fuel
- Diesel
- Drivetrain
- AWD
- Transmission
- Manual, 6-speed
Powertrain
- Engine Name
- 2.0 TDI DPF SCR BMT 4Motion Manual
- Engine Configuration
- Inline
- Power (hp)
- 150 hp
- Power (kW)
- 110 kW
- Torque
- 340 Nm (251 lb-ft)
- Top speed
- 205 km/h (127 mph)
- 0–60 mph
- 8.8 seconds (estimated)
- 0–100 km/h
- 9.2 seconds
- Displacement
- 1,968 cc
Dimensions
- Length
- 4,777 mm (188.1 in)
- Width
- 1,832 mm (72.1 in)
- Height
- 1,506 mm (59.3 in)
- Wheelbase
- 2,789 mm (109.8 in)
- Curb weight
- 1,670 kg (3,682 lb)

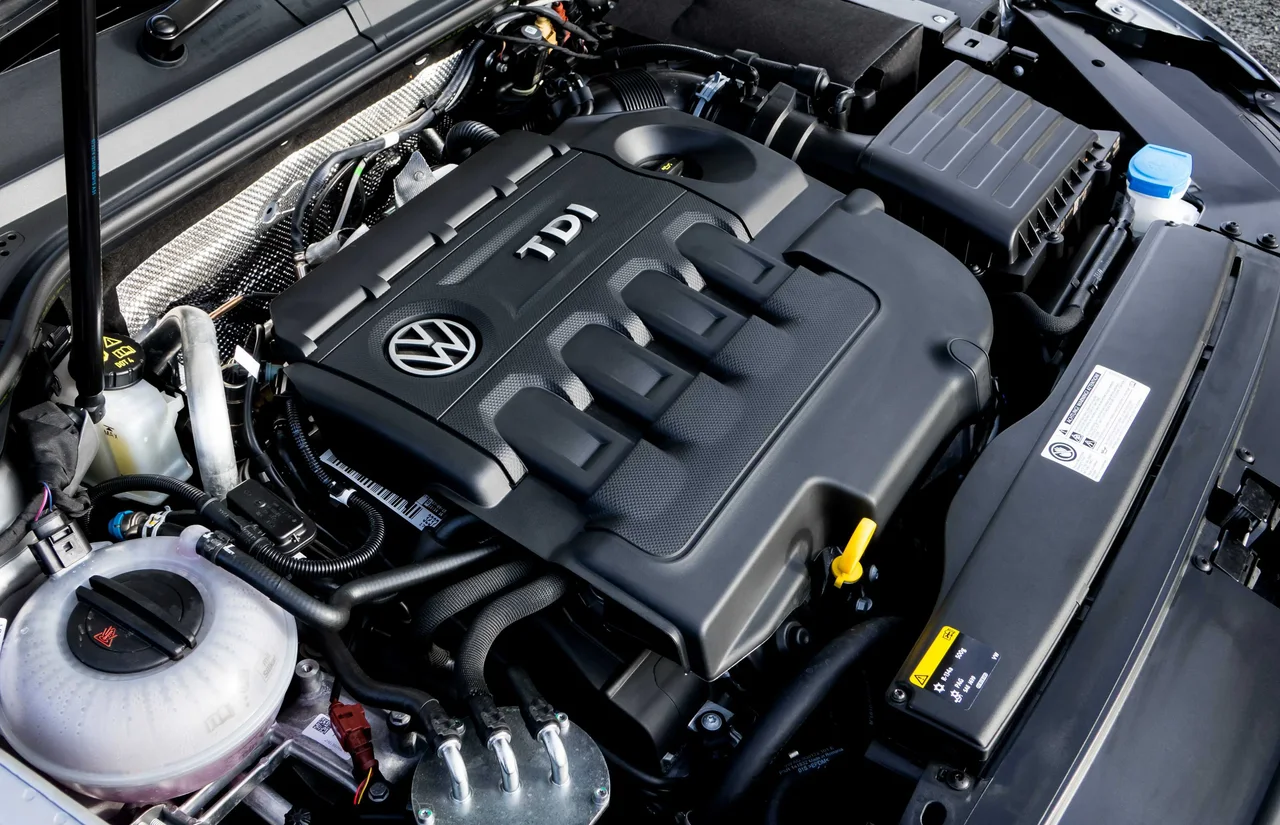

Engine
Engine Specification
- Rev. at Max Power
- 3,500 - 4,000 rpm
- Rev. at Max Torque
- 1,750 - 3,000 rpm
Engine Fluids
- Synthetic Oil (viscosity)
- 5W-30
- Semi-synthetic Oil (viscosity)
- 5W-30
- Engine Oil, Volume
- 4.7 litres
Engine Configuration
- Bore
- 81 mm (3.2 in)
- Stroke
- 95.5 mm (3.8 in)
- Compression Ratio
- 16.2 :1
- Engine Configuration
- Inline
- Turbocharger
- Single-turbo
- Synchronization
- Timing Belt
- Engine Placement
- Front
- Engine Mount
- Transversally
- Type of Combustion Engine
- Piston
- Fuel System
- Electronic (Direct) Fuel Injection
- Camshaft Type
- DOHC
- Engine Block
- Cast Iron
- Engine Heads
- Aluminium
- Engine Cooling
- Liquid Cooling
Service Intervals
- Timing Interval
- 210,000 km (130,488 mi)
- Air Filter
- 90,000 km / 6 years
- Fuel Filter
- 90,000 km (55,923 mi)
- Brake Fluid
- 2 years
- Oil Change & Engine Filter
- 15,000 km / 1 years
- Interior Filter
- 60,000 km / 2 years
Transmission & Drivetrain
- Gear Selector
- Stick
- Gear Selector Location
- Mid-Console
Brakes
Parking Brake
- Electric
- Auto Hold
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Brakes Material
- Cast Iron
Front Brakes
- Cooling
- Ventilated
Rear Brakes
- Cooling
- Solid
Suspensions
- Spring, Front
- Coil
- Spring, Rear
- Coil
Suspension, Front
- Independent
- MacPherson Strut
Suspension, Rear
- Independent
- Multi-link
Fuel
General
- Tank Volume
- 66 litres
General › Fuel Cap Position
- Rear
- Right
Emission
- Emission Standard
- Euro 6
- Emission Class
- A
- Emission Control
- Catalyst
- Particle Filter
- Exhaust Gas Recirculation
Emission › Emission Control
- Selective Catalyst Reduction (SCR)
- Yes
Emission › Emission Control › Selective Catalyst Reduction (SCR)
- Tank Volume (DEF)
- 16 litres
Fuel Consumption NEDC
- City
- 5.9 litres / 100 km
- Highway
- 4.3 litres / 100 km
- Combined
- 4.9 litres / 100 km
Emission NEDC
- CO₂, Combined
- 129 - 130 g/km
Performance
Acceleration
- 0-80 km/h
- 6.4 sec
- 80-120 km/h
- 8 sec
Exterior
- Width, with Mirrors
- 2,083 mm (82.0 in)
- Track, Front
- 1,578 - 1,586 mm (62.1 - 62.4 in)
- Track, Rear
- 1,561 - 1,569 mm (61.5 - 61.8 in)
- Turning Circle
- 11.7 m
- Ground Clearance
- 174 mm (6.9 in)
Interior
- Head Room, Front
- 990 - 1,031 mm (39.0 - 40.6 in)
- Head Room, Rear
- 972 - 1,007 mm (38.3 - 39.6 in)
- Leg Room, Front
- 1,045 mm (41.1 in)
- Leg Room, Rear
- 973 mm (38.3 in)
- Knee Room, Rear
- 116 mm (4.6 in)
- Shoulder Room, Front
- 1,506 mm (59.3 in)
- Shoulder Room, Rear
- 1,506 mm (59.3 in)
Weight
- Gross Weight
- 2,260 kg (4,982 lb)
- Max Trailer Load, braked 12%
- 2,200 kg (4,850 lb)
- Max Trailer Load, braked 8%
- 2,200 kg (4,850 lb)
- Max Trailer Load, unbraked
- 750 kg (1,653 lb)
- Cargo Capacity
- 484 - 665 kg (1,067 - 1,466 lb)
- Max Roof Load
- 100 kg (220 lb)
- Max Towbar Download
- 90 kg (198 lb)
- Permitted Axle Load, front
- 1,100 kg (2,425 lb)
- Permitted Axle Load, rear
- 1,210 kg (2,668 lb)
Chassis & Body
Chassis
- Chassis
- Station Wagon (Crossover)
- Pillars
- A-D
- Chassis Construction
- Unibody
- Body Material
- Steel
- Protective Moldings
- Yes
Chassis › Protective Moldings
- Front
- Bottom-Strip
- Rear
- Bottom-Strip
- Sides
- Bottom-Strip
- Wheel Arches
- Yes
- Colour
- Non-Painted
Doors
- Front Doors
- Conventional
- Rear Doors
- Conventional
- Door Handles
- Pull-out
Platform
- Volkswagen Group
- MQB Platform
Equipment
Side Mirrors
- Mirror Type
- Conventional
- Adjustments
- Electrical
- Automatic Anti-glare
- Driver side
- User Memory
- Optional
- Heated
- Yes
- Automatic Tilt Down
- Optional
- Ground Light
- Optional
- Turning Signal
- Yes
- House Colour
- Chrome
- Mirror Shape, Driver side
- Aspheric
- Mirror Shape, Passenger side
- Aspheric
Side Mirrors › Automatic Anti-glare
- Passenger side
- Optional
Windscreen Wipers
- Heated Washer Nozzles
- Optional
- Speed Sensing Intermittent
- Yes
- Intermittent Control
- Yes
- Rear Wiper
- Yes
- Rear Washer System
- Yes
- Windscreen Wipers: Connector type, Front
- Slim Push Button
- Number of Windscreen Wipers, Front
- 2
Windows
- Window Lifts, Front
- Powered
- Window Lifts, Rear
- Powered (Safety Lock)
- Heated Windows
- Rear
- Heat-Insulating Windows
- Front
- First Row
- Second Row
- Rear
- Noise Reducing Windows
- Optional
- Sun Visors
- Optional
- Tinted Windows
- Optional
- Safety Glass
- Yes
Windows › Window Lifts, Features
- Pinch Protection
- Driver
- Passenger
- One-touch up/down
- Driver
- Passenger
- Rear
Windows › Heated Windows
- Front
- Optional
Windows › Noise Reducing Windows
- Front
- Optional
- First Row
- Optional
Windows › Tinted Windows
- Windscreen, upper part
- Optional
- Second Row
- Optional
- Rear Window
- Optional
Windows › Safety Glass
- Front
- Laminated
- Side
- Tempered
- Rear
- Tempered
Other Equipment
- Sunroof
- Optional
- Tow Hook
- Front
- Rear
- Roof Railing
- Yes
- Antenna
- Glass-integrated
- Mud Flaps
- Optional
Other Equipment › Sunroof
- Sun Blind
- Optional
Other Equipment › Sunroof › Sun Blind
- Tinted Glass
- Optional
Other Equipment › Roof Railing
- Roof Railing Type
- Flush Rails (Closed Rails)
- Colour
- Silver
Other Equipment › Mud Flaps
- Front
- Optional
- Rear
- Optional
Lights
- Main Beam
- LED
- Low Beam
- LED
- Rear Lights
- LED
- Fog Lights
- Yes
- Special Features
- Automatic Headlight Activation
- Come Home/Leaving Lights
Fog Lights
- Front
- Halogen
- Rear
- LED
Fog Lights › Front
- Cornering Lights
- Yes
Special Features
- Main Beam Assist
- Optional
- Dynamic Turn Signal
- Optional
- Dynamic Cornering Lights
- Optional
- Headlight Washers
- Optional
- Headlight Range Adjustment
- Yes
Colour
- Door Handles
- Same as Car
Rims & Tires
- Tire Pressure Monitoring System (TPMS)
- Indirect
- Number of Bolts
- 5 pcs
- Bolt Distance
- 112
- Nut/Bolt Dimensions
- M14x1.5
- Central Bore (CB), front
- 57.1
- Fastening Type
- Lug Bolts
- Anti-Theft Locking Lug Nuts/Bolts
- Yes
- Tightening Torque
- 140 Nm
- Rim Material
- Alloy
- Rim Colour
- Silver
- Rim Type
- Disc Wheel
- Spare Wheel
- Optional
Tire Pressure Monitoring System (TPMS)
- Direct
- Optional
Spare Wheel
- Full-size
- Optional
- Temporary
- Optional
Spare Wheel › Full-size
- Alloy
- Optional
- Steel
- Optional
Equipment
Instrument Cluster
- Trip Computer
- Yes
- Head-up Display (HUD)
- Optional
- Odometer Limit
- 1,000,000 km/miles
Instrument Cluster › Trip Computer
- Display
- Yes
Instrument Cluster › Trip Computer › Display
- Type
- Colour
Climate Control
- Climate Control
- Automatic
- Air Condition
- Yes
- Micro Filter
- Yes
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Controls
- Buttons
- Rotary Dials
- Back Seat Controls
- Optional
Climate Control › Back Seat Controls
- Buttons
- Optional
Connectivity
- Radio
- AM
- FM
- TV Receiver
- Optional
- App-Connect
- Optional
- Bluetooth
- Optional
- Cellular Network
- Optional
- WiFi
- Optional
Connectivity › Radio
- DAB
- Optional
- RDS
- Optional
Connectivity › TV Receiver
- Digital
- Optional
Connectivity › TV Receiver › Digital
- Analogue
- Optional
Connectivity › Media Format
- CD
- Yes
- DVD
- Optional
- Memory Card Reader
- SD
- Hard Drive
- 32 GB
- MP3
- Optional
- WMA
- Optional
Connectivity › Media Inputs
- AUX
- Front
- USB
- Optional
Connectivity › Media Inputs › USB
- Front
- Optional
- USB-A
- Optional
Connectivity › App-Connect
- Android Auto
- Optional
- Apple CarPlay
- Optional
Connectivity › Bluetooth
- Phone
- Optional
Connectivity › Cellular Network
- 4G
- Optional
Connectivity › Cellular Network › 4G
- 3G
- Optional
Displays
- Center Display
- Yes
- Center Display Controls
- Touchscreen
- Buttons
- Rotary Dial
- Equalizer
- Yes
Displays › Center Display
- Type
- Colour
Displays › Center Display Controls
- Gesture Control
- Optional
Features
- Dynamic Volume
- Optional
Speakers
- Total Number of Speakers
- 8 - 11 pcs
- Speakers Max. Watt
- 700 W
- Subwoofer
- Optional
Rear-view Mirror
- Adjustments
- Mechanical
- Anti-glare
- Automatic
- Rear-view Mirror: Mirror Type
- Standard
Interior Storage › Storage Compartments
- Glove Compartment
- Cooled
- Light
- Lockable (Manual)
- Armrest Hatch
- Front
- Back
- Back Pocket
- Yes
- Sunglass Compartment
- Yes
- Coin Holder
- Yes
- Card Holder
- Yes
- Under Seats
- Optional
- Door
- Driver Side
- Passenger Side
- Rear
Interior Storage › Storage Compartments › Under Seats
- Front
- Optional
Interior Storage
- Cup Holders
- Yes
Interior Storage › Cup Holders
- Front
- 2
- Rear
- 2
Interior Storage › Cup Holders › Front
- Placement
- Middle Console
Interior Storage › Cup Holders › Rear
- Placement
- Armrest
Lights
- Read Light
- Front
- Rear
- Guide Light
- Entry Guard
- Footwell (Front)
- Ambient Light
- Optional
- Selectable Light Colour
- Optional
Lights › Guide Light
- Side Mirrors
- Optional
- Door Handles
- Optional
Other Equipment
- Make-up Mirror
- Driver Side
- Passenger Side
- Clock
- Yes
- 12V Outlet
- Front
- Rear
- Trunk
- 230V Outlet
- Optional
- Carpets
- Front
- Rear
- Ashtray
- Optional
- Cigarette Lighter
- Optional
Other Equipment › Make-up Mirror
- Make-up Light
- Driver
- Passenger
Other Equipment › Clock
- Analogue
- Dashboard
- Digital
- Center Display
- Instrument Cluster
Other Equipment › 230V Outlet
- Rear
- Optional
Other Equipment › Carpets
- Colour
- Black
Other Equipment › Ashtray
- Front
- Optional
- Rear
- Optional
Steering Wheel
- Multifunction Steering Wheel
- Yes
- Heated
- Optional
- Power Steering
- Electro-mechanical
- Adjustments
- Tilt
- Telescope
- Number of Spokes
- 3
- Material
- Leather
- Steering Mechanism
- Rack and Pinion
Multifunction Steering Wheel
- Menu Navigation
- Buttons
- Cruise Control
- Activate/Deactivate
- Speed Up/Down (Buttons)
- Media
- Yes
Multifunction Steering Wheel › Media
- Voice Command
- Yes
- Answer Phone
- Yes
- Channels
- Yes
- Volume
- Buttons
- Mute Audio
- Yes
Trunk
- Rear Trunk
- Yes
- Automatic Open
- Optional
- Automatic Close
- Optional
- Cover
- Sliding (Electrical | Manual)
- Barrier Net/Grid
- Yes
- Cargo Hooks
- Yes
- Carpet
- Optional
- Flat Surface
- Yes
- Hatch Through Rear Seats
- Yes
- Light
- Yes
- Hatch Opening Type
- From Roof
Rear Trunk
- Volume
- 639 litres
- Volume, Back Seat Collapsed
- 1,769 litres
- Depth
- 1,172 mm (46.1 in)
- Depth, Back Seat Collapsed
- 2,018 mm (79.4 in)
- Trunk Door Opening Height
- 2,076 mm (81.7 in)
Automatic Open
- Button on Trunk Door
- Optional
- From Inside Car
- Optional
Carpet
- Rubber
- Optional
- Rubber/Rug
- Optional
Design
- Transmission Knob Material
- Leather
- Entry Guard Material
- Stainless steel
- Pedals
- Stainless Steel
Seats
Front Seats › Adjustments, Driver
- Seat Depth
- Yes
- Seat Height
- Yes
- Cushion Edge
- Optional
- Backrest Angle
- Powered
- Lumbar Support
- Powered
- Headrest, Height
- Manual
- Headrest, Tilt
- Manual
Front Seats › Adjustments, Passenger
- Seat Depth
- Yes
- Seat Height
- Yes
- Cushion Edge
- Optional
- Backrest Angle
- Yes
- Lumbar Support
- Yes
- Headrest, Height
- Manual
- Headrest, Tilt
- Manual
- Collapsible
- Optional
Front Seats
- Power Seat, Driver
- Yes
- Power Seat, Passenger
- Optional
- Heated Seats
- Optional
- Armrest
- Middle
- Massage
- Optional
- Ventilated Seats
- Optional
- Type of Seat
- Comfort Seat (Driver | Passenger)
Front Seats › Power Seat, Driver
- Semi-Powered
- Yes
Front Seats › Heated Seats
- Cushion
- Optional
Front Seats › Heated Seats › Cushion
- Backrest
- Optional
Front Seats › Massage
- Driver
- Optional
Front Seats › Ventilated Seats
- Driver
- Optional
- Passenger
- Optional
Second Seat Row
- Armrest
- Yes
- Collapsible
- Manual
- Number of Seats
- 3
- Type of Seat
- Adult
Second Seat Row › Collapsible
- Backrest Release
- On Top of Backrest
- Split Fold Ratio
- 60/40
- Heated Seats
- Optional
Second Seat Row › Headrests
- Outer Seats
- Height Adjustment
- Centre Seat
- Yes
Second Seat Row › Headrests › Centre Seat
- Height Adjustment
- Yes
Comfort Features
- Keyless Entry
- Optional
- Keyless Start
- Yes
- Cruise Control
- Optional
- Speed Limiter
- Optional
- Parking Heater
- Optional
- Cameras
- Optional
- Voice Control
- Optional
- Wireless Phone Charger
- Optional
Cruise Control
- Adaptive Cruise Control
- Optional
Parking Heater
- Cabin Heater
- Optional
Parking Heater › Cabin Heater
- Engine Heater
- Optional
- Remote
- Optional
- Timer
- Optional
Cameras
- Rear
- Optional
Voice Control
- Media
- Optional
- Navigation
- Optional
- Phone
- Optional
Wireless Phone Charger
- Front
- Optional
Other Features
- GPS
- Optional
- Start & Stop
- Yes
- Driving Mode Selection
- Optional
- Dynamic Chassis Control (DCC)
- Optional
- Horn
- Dual Note
Driving Mode Selection
- Comfort
- Optional
- Eco
- Optional
- Individual
- Optional
- Normal
- Optional
- Sport
- Optional
Accessories
- Tool Kit and Jack
- Yes
- Tire Repair Kit
- Optional
- Compressor
- Optional
- Fire Extinguisher
- Optional
- Warning Triangle
- Yes
- First Aid Kit
- Yes
- Trunk Modules
- Optional
- Bicycle Holder
- Optional
- Ski/Snowboard-bag
- Optional
Seat Belt
- Height Adjustable Retractor
- Yes
- Rear Centre Seat Belt
- Yes
Feature
Driver
Passenger
Rear
Seat Belt Reminder
Yes
Yes
Yes
Belt Pretensioner
Yes
Yes
-
Belt Load Limiter
Yes
Yes
Yes
Height Adjustable Retractor
- Manual
- Yes
Type of Belt
- Three-Point-Belt
- Front Seats
- Outer Rear Seats
- Centre Rear Seat
Assist Systems
- Electronic Stability Control (ESC)
- Yes
- Rear Collision Warning (RCW)
- Optional
- Rear Cross-Traffic Alert (RCTA)
- Optional
- Lane Assist System
- Optional
- Speed Assist
- Optional
- Hill Start Assist (HSA)
- Yes
- Hill Descent Control (HDC)
- Yes
- Sign Assist
- Optional
- Trailer Assist
- Optional
- Trailer Stability Assist (TSA)
- Yes
- Emergency Stop Signal (ESS)
- Yes
Brake Systems
- Autonomous Emergency Brake System (AEB)
- Yes
- Power Brakes
- Yes
- Anti-lock Braking System (ABS)
- Four-channel
- Traction Control System (TCS)
- Yes
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Brake Pad Wear Indicator
- Yes
- Differential Lock
- Electronic
Autonomous Emergency Brake System (AEB)
- Car-to-car
- Yes
- City
- Yes
Sensors
- Parking Sensors
- Front
- Rear
- Blind Spot Detection (BLIS)
- Optional
- Driver Alertness Warning (DAW)
- Yes
- Light Sensor
- Yes
- Rain Sensors
- Yes
Other Features
- Immobiliser
- Yes
- Anti-theft Alarm
- Optional
- Central Locking
- Remote
- Child Safety Locks
- Manual
- Active Headrests
- Yes
Immobiliser
- Electronic
- Yes
Safety Testing
General
- Test Year
- 2014
- Adult Occupant
- 85 %
- Child Occupant
- 87 %
- Vulnerable Road Users
- 66 %
- Safety Assist
- 76 %
- Overall
- 5/5 stars
- Test Year
- 2015
- Overall Score
- 35.89
- ANCAP Safety Rating
- 5
Adult Occupant
- Total Points
- 32.6 /38
- Frontal Impact
- 14.9 /16
- Lateral Impact
- 15.4 /16
- Rear Impact
- 2.3 /4
- Frontal Offset
- 14.89
- Side Impact
- 16
- Pole
- 2
- Whiplash Protection (Assessment)
- Good
Child Occupant
- Total Points
- 42.9 /49
- Safety Features
- 7 /13
- CRS Installation Check
- 12 /12
Vulnerable Road Users
- Pedestrian
- 15.3
- 2.6
- 6
Safety Assist
- Speed Assistance (points)
- 1.3 /3
- Seat Belt Reminders
- 3
Pedestrian
- Protection (Assessment)
- Acceptable
Airbags
Feature
Driver
Passenger
Rear
Frontal Airbag
Yes
Yes
-
Side Chest Airbag
Yes
Yes
Optional
Side Head Airbag
Yes
Yes
Yes
Knee Airbag
Optional
Optional
-
Curtain Airbag
Yes
Yes
Yes
Airbag cut-off Switch
-
Yes
-
Child Protection
Feature
Passenger
Rear
Isofix
-
Yes
Integrated Child Seat
-
Optional
Warranty
- Manufacturer
- 2 years
- Paintwork
- 3 years
- Rust Damage
- 12 years
Identification
VIN Location
- Engine Compartment, Bulkhead
- Right
- Left Side Casing of Window
- Yes
- Pillar
- B-Pillar, Left
Car Classification
- American Classification
- Mid-Size Car
- British Classification
- Large Family Car
- Australian Classification
- Medium Car
- European Segment
- D-Segment
- Car.info Classification
- Large Family Car
Spare Parts BETA
Bulb Types
- Low Beam
- H7
- Main Beam
- H9
- Datyime Running Light
- W3×16d (W21W)
- Fog Light, Front
- H8
- Positioning-/Parking Lights, Front
- W2.1×9.5d (W5W)
- Turn Indicators, Front
- WX3×16d (WY21W)
- Glove Compartment
- W2.1×9.5d (W3W)
- Read Light
- W2.1×9.5d (W5W)
ACRISS
- Type
- Wagon/Estate (W)
Awards
- European Car of the Year
- 2015
Golden Steering Wheel
- Middle and Luxury
- 2014
Similar crossovers
Suggested vehicles
2017–2020
2017 Audi Q2
2017–2020
2017 Mercedes-Benz E-Class
2017–2020
2017 Holden Trax
2018–2020
2018 Kia Stonic
2018–2020
2018 Subaru Crosstrek
2018–2021
2018 Honda Vezel
2018–2025
2018 Hyundai Nexo
2016–2019
2016 Kia Sportage
2017–2020
2017 Mini Countryman Cooper S ALL4
2018–2021
2018 Chevrolet Equinox
2017–2020
