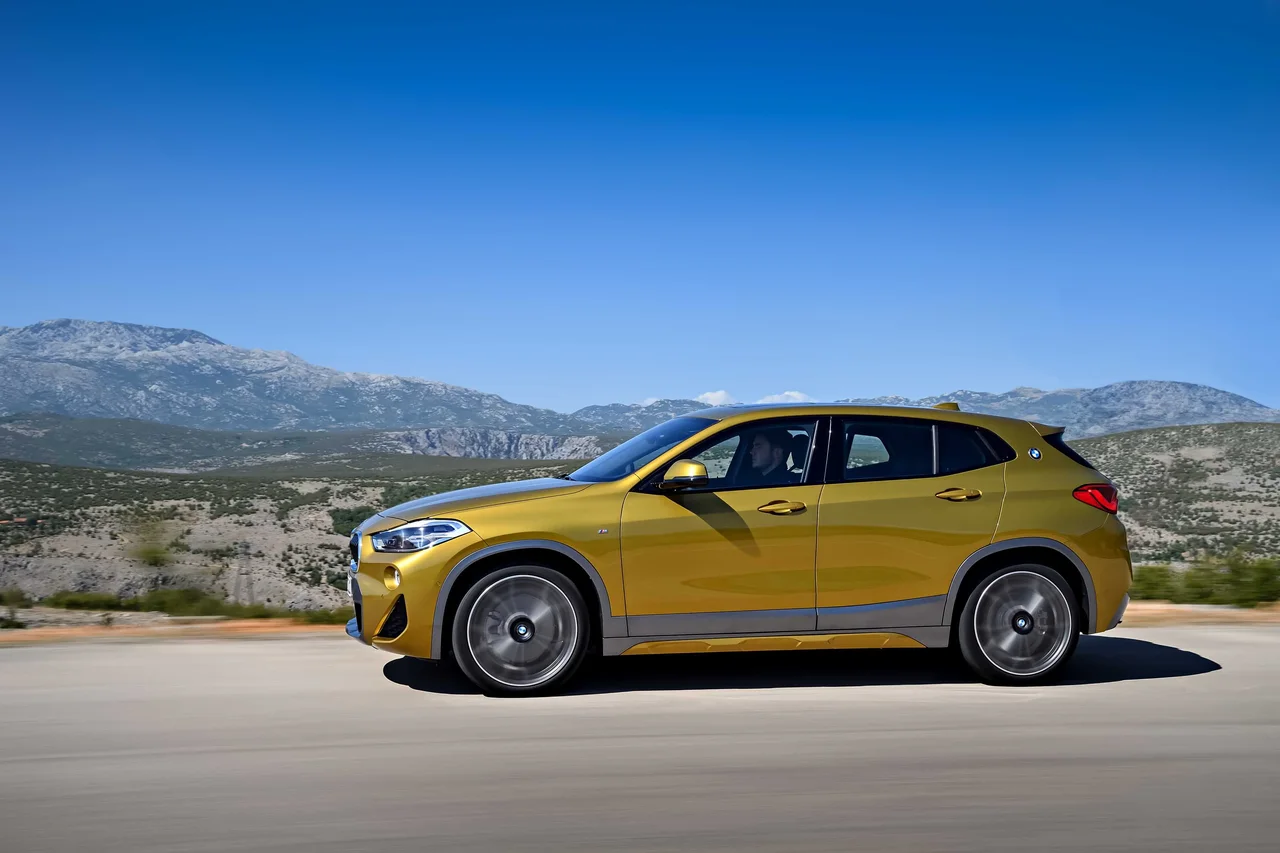

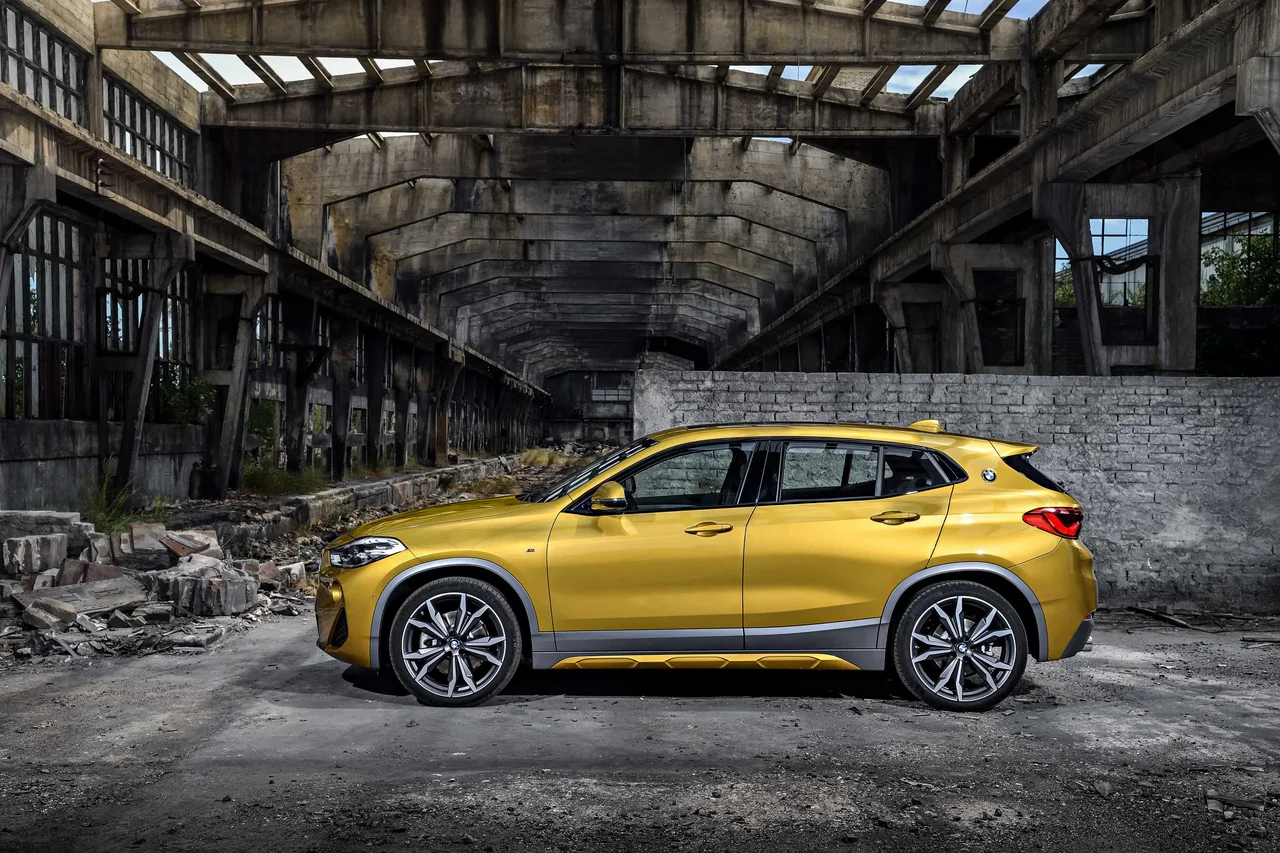

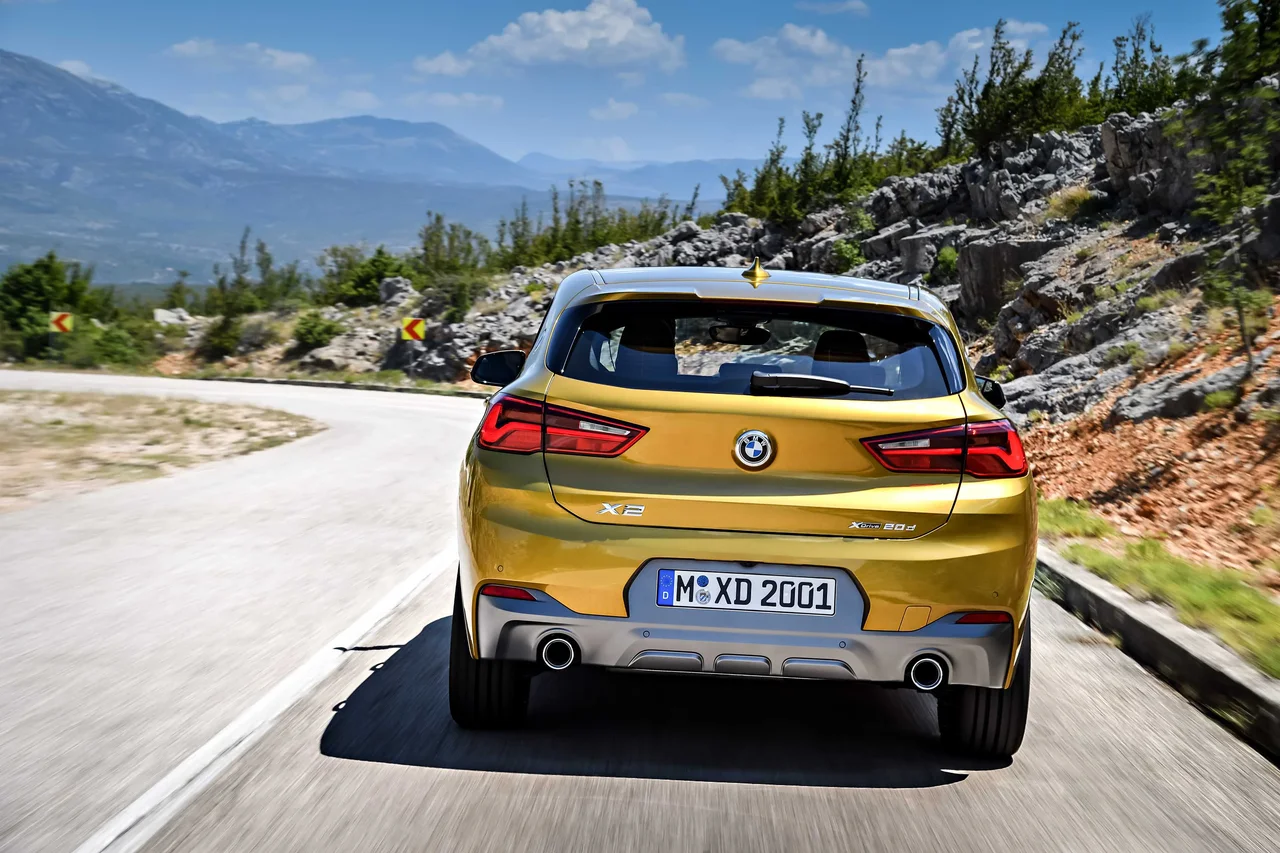

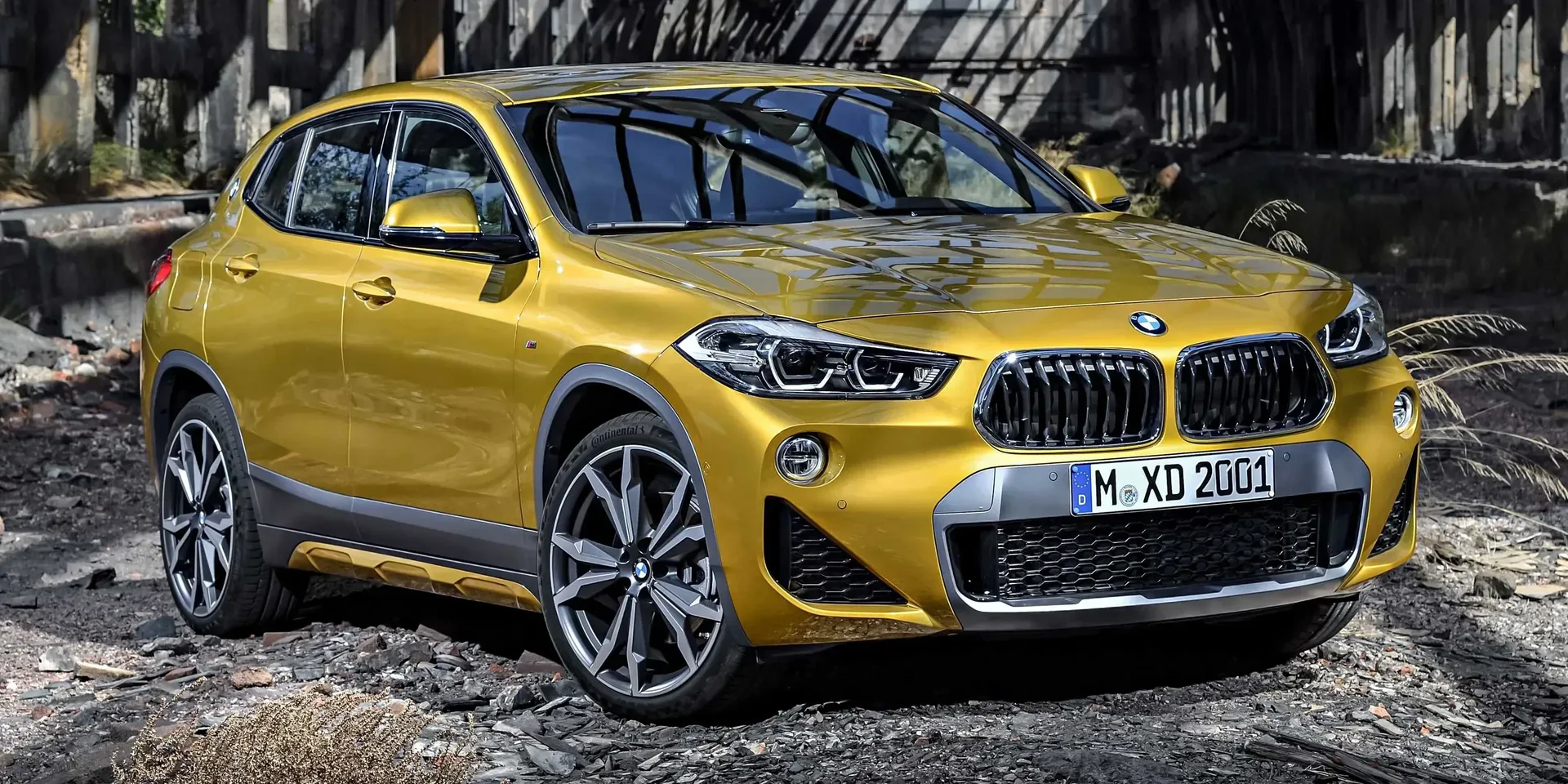

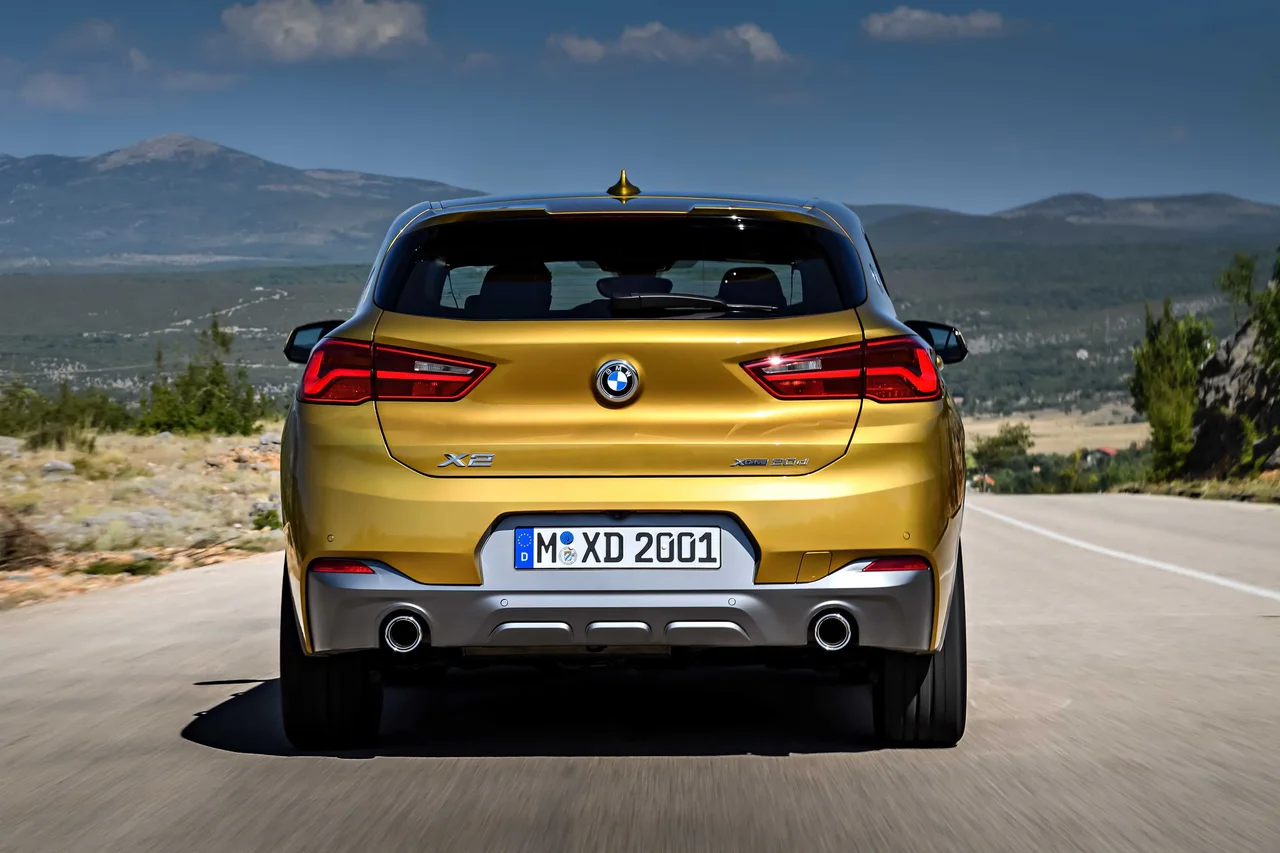

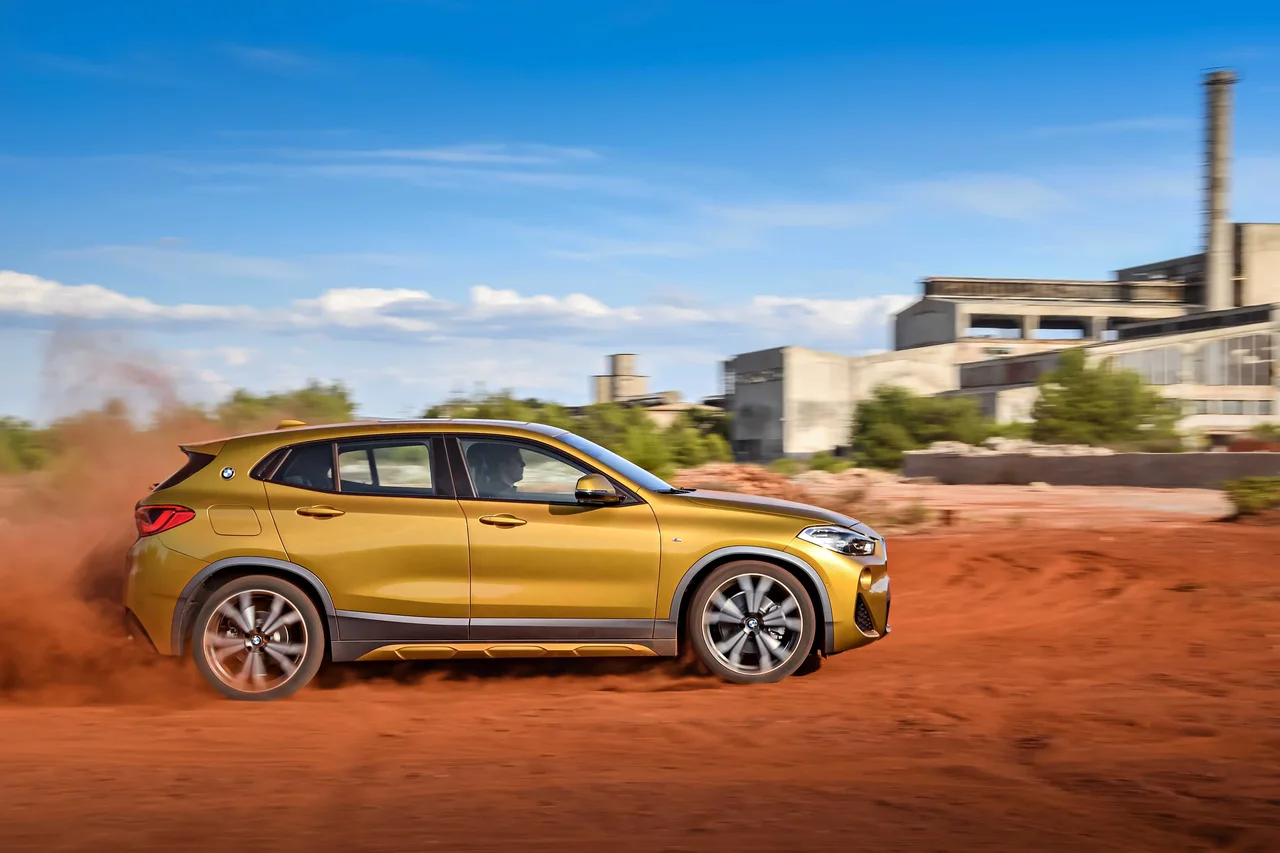

2018 BMW X2 xDrive20d

GermanyDieselAWDSUV

Photos

Specifications

Vehicle Details

Year
2018
Make
BMW
Model
X2
Variant
xDrive20d
Body Style
SUV
Generation
F39
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
xDrive20d Steptronic
Engine Configuration
Inline
Power (hp)
190 hp
Power (kW)
140 kW
Torque
400 Nm (295 lb-ft)
Top speed
221 km/h (137 mph)
0–60 mph
7.3 seconds (estimated)
0–100 km/h
7.7 seconds
Displacement
1,995 cc

Dimensions

Length
4,360 mm (171.7 in)
Width
1,824 mm (71.8 in)
Height
1,526 mm (60.1 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,675 kg (3,693 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Oil, Volume
5.5 litres
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
25,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
330 mm (13.0 in)
Width
24 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Fuel

General
Tank Volume
51 litres
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
5.6 litres / 100 km
Fuel Consumption NEDC
City
5.2 - 5.4 litres / 100 km
Highway
4.3 - 4.5 litres / 100 km
Combined
4.6 - 4.8 litres / 100 km
Emission WLTP
CO₂, Combined
149 - 160 g/km
Emission NEDC
CO₂, Combined
121 - 126 g/km

Dimensions & Weight

Exterior

Track, Front
1,563 mm (61.5 in)
Track, Rear
1,562 mm (61.5 in)
Turning Circle
11.3 m
Ground Clearance
182 mm (7.2 in)

Interior

Head Room, Front
1,011 mm (39.8 in)
Head Room, Rear
942 mm (37.1 in)
Leg Room, Front
1,024 mm (40.3 in)
Leg Room, Rear
932 mm (36.7 in)
Hip Room, Front
1,412 mm (55.6 in)
Hip Room, Rear
1,369 mm (53.9 in)
Shoulder Room, Front
1,440 mm (56.7 in)
Shoulder Room, Rear
1,443 mm (56.8 in)

Weight

Gross Weight
2,190 kg (4,828 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, braked 8%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
590 kg (1,301 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
BMW Platform
UKL Platform (UKL2)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Heated Washer Nozzles
Yes
Rear Wiper
Yes
Windows
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Optional

Lights

Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
Yes
Main Beam Assist
Optional
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
App-Connect
Optional
Bluetooth
Optional
Connectivity › Radio
CD
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › App-Connect
Apple CarPlay
Optional
Displays
Center Display
Yes
Displays › Center Display
Touchscreen
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Glove Compartment
Light
Optional
Interior Storage
Cup Holders
Yes
Lights
Read Light
Front
Guide Light
Yes
Lights › Read Light
Rear
Optional
Lights › Guide Light
Footwell
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Carpets
Yes
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
470 litres
Volume, Back Seat Collapsed
1,355 litres
Depth
762 mm (30.0 in)
Width
991 mm (39.0 in)
Height
711 mm (28.0 in)

Design

Interior Decor Material
Plastic
Colour
Black

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Optional
Speed Limiter
Yes
Cameras
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes

Accessories

Warning Triangle
Yes
First Aid Kit
Yes
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Parking Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Active Bonnet
Yes
Emergency Call
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
90 %
Child Occupant
87 %
Vulnerable Road Users
74 %
Safety Assist
77 %
Overall
5/5 stars
Test Year
2015
ANCAP Safety Rating
5
Adult Occupant
Total Points
34.5 /38
Lateral Impact
16 /16
Rear Impact
2.3 /4
Protection
90 %
Protection
34.5
Full Width
7.64
Frontal Offset
6.47
Side Impact
8
Pole
8
Whiplash Protection (Front)
2.34
AEB (City)
2.03
Child Occupant
Total Points
43 /49
Safety Features
7 /13
CRS Installation Check
12 /12
Protection
87 %
Protection
43
Vulnerable Road Users
Total Points
26.7 /49
Pedestrian
  • 19.4
  • 1.3
  • 6
Safety Assist
Speed Assistance (points)
2.3 /3
Lane Support (points)
0 /4
Safety Assist
70 %
Safety Assist
9.1
Speed Assistance System
1.3
ESC
3
Seat Belt Reminders
3
Lane Support System
0
AEB (Interurban)
1.8
Pedestrian
Protection
74 %
Protection
26.7
IIHS
Test Year
2018
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Advanced
Headlight
Acceptable
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BA15s (P21W)

ACRISS

Category
Intermediate (I)
Type
Crossover (G)

Tests

Autotest
Body/Trunk
2.8
Interior
2.4
Comfort
2.6
Motor/Drivetrain
1.7
Driving Characteristics
2.4
Environment/EcoTest
2.5
Security
2.2
Judgment Technology/Environment
2.4
Judgment Technology/Environment
Good
Judgment Car Cost
2.8
Judgment Car Cost
Satisfactory

Similar suvs

Suggested vehicles
