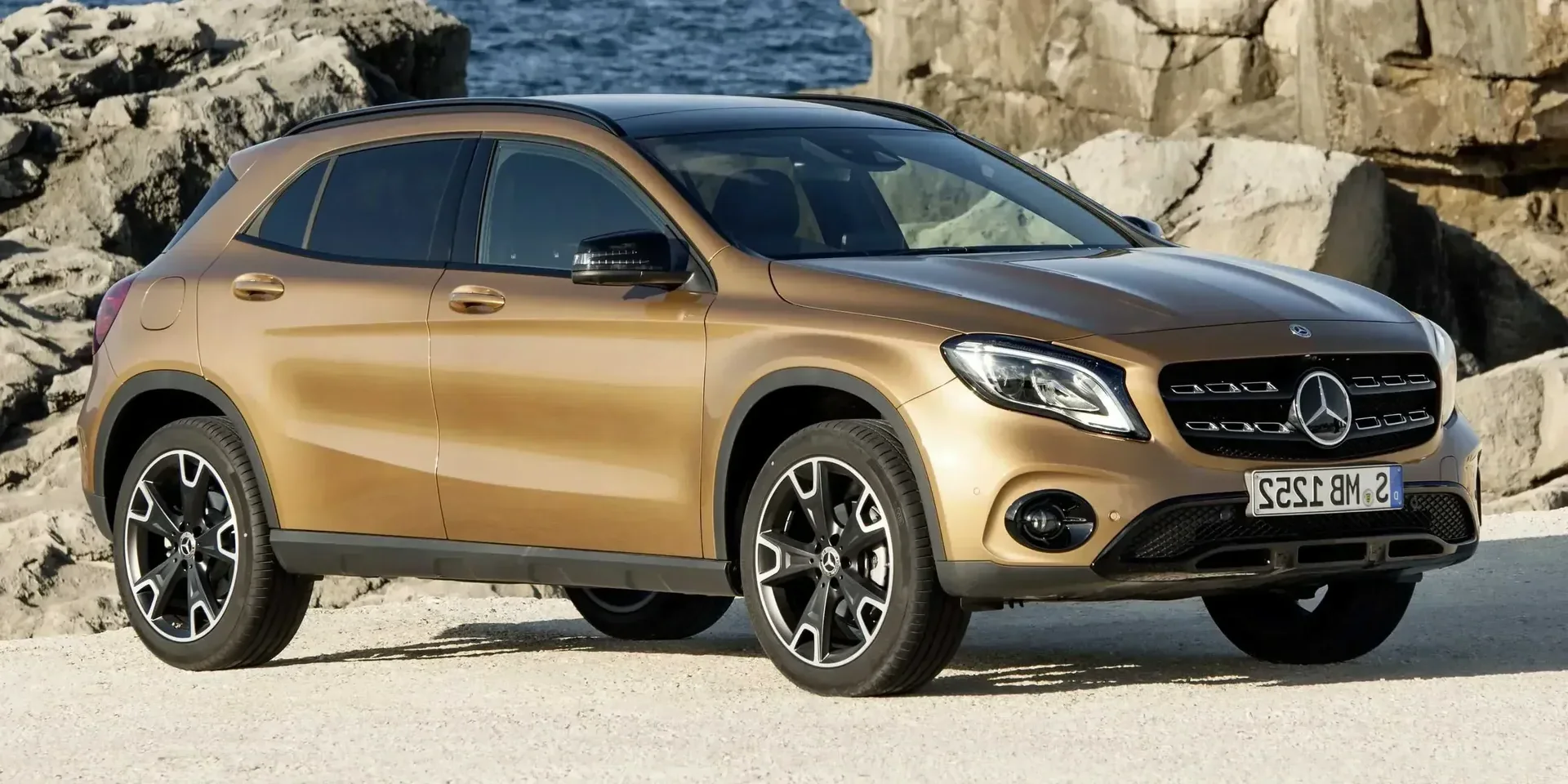

2018 Mercedes-Benz GLA

GermanyDieselAWDSUV

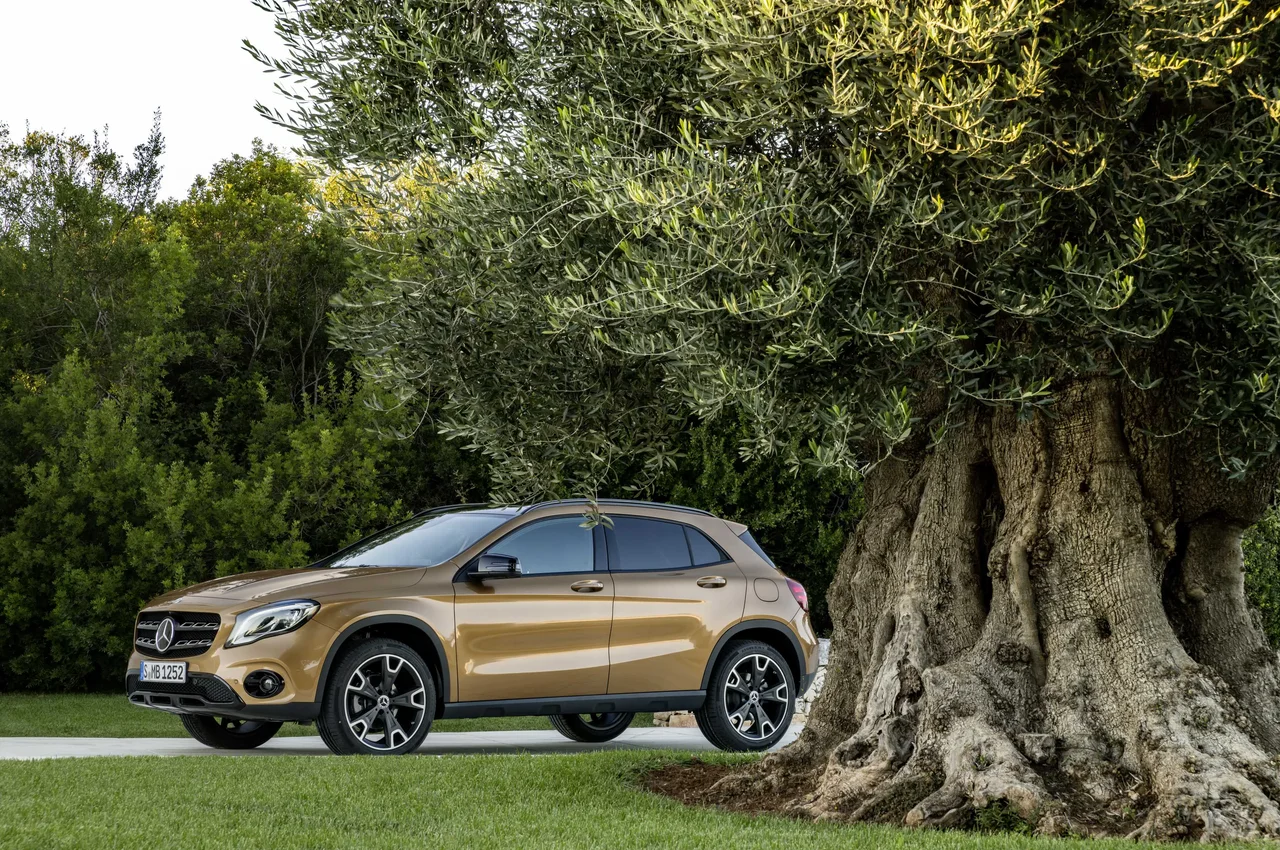

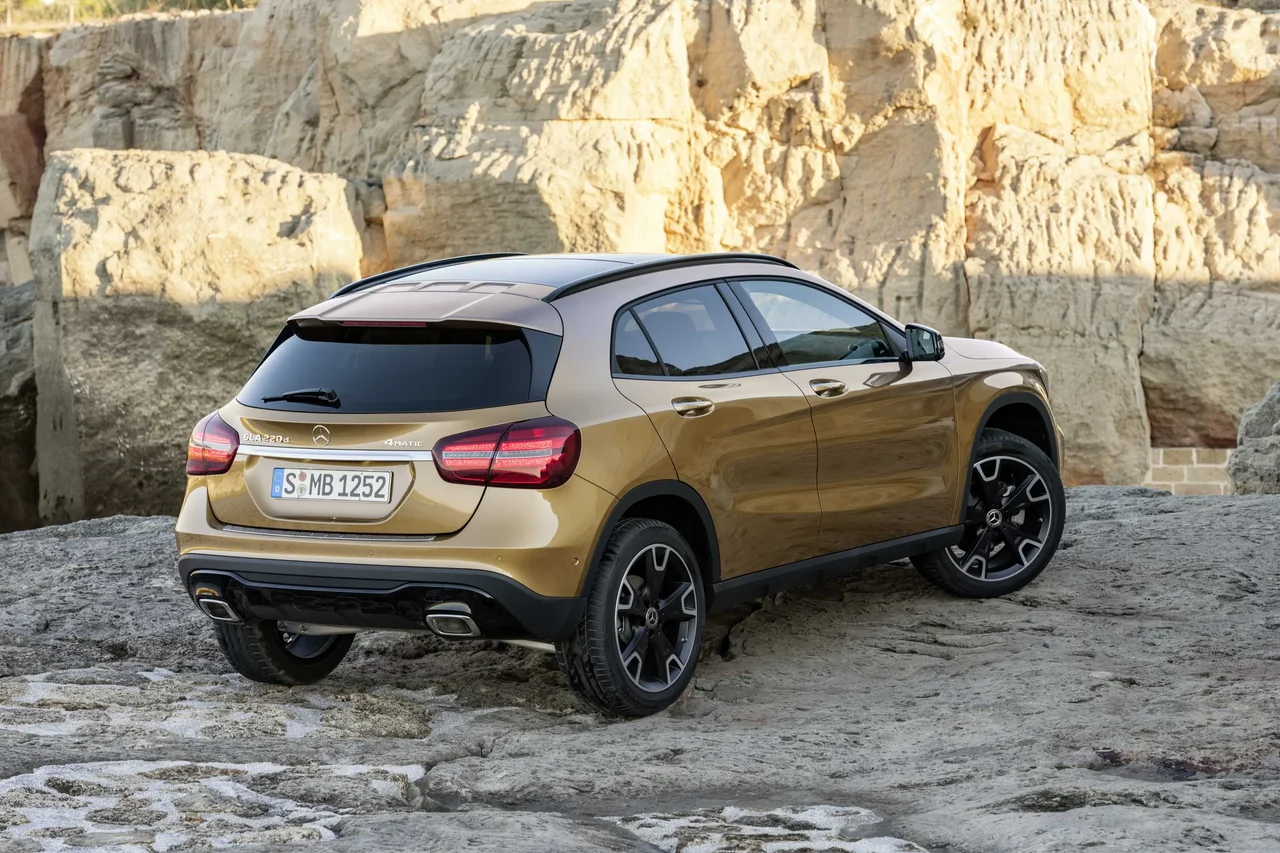

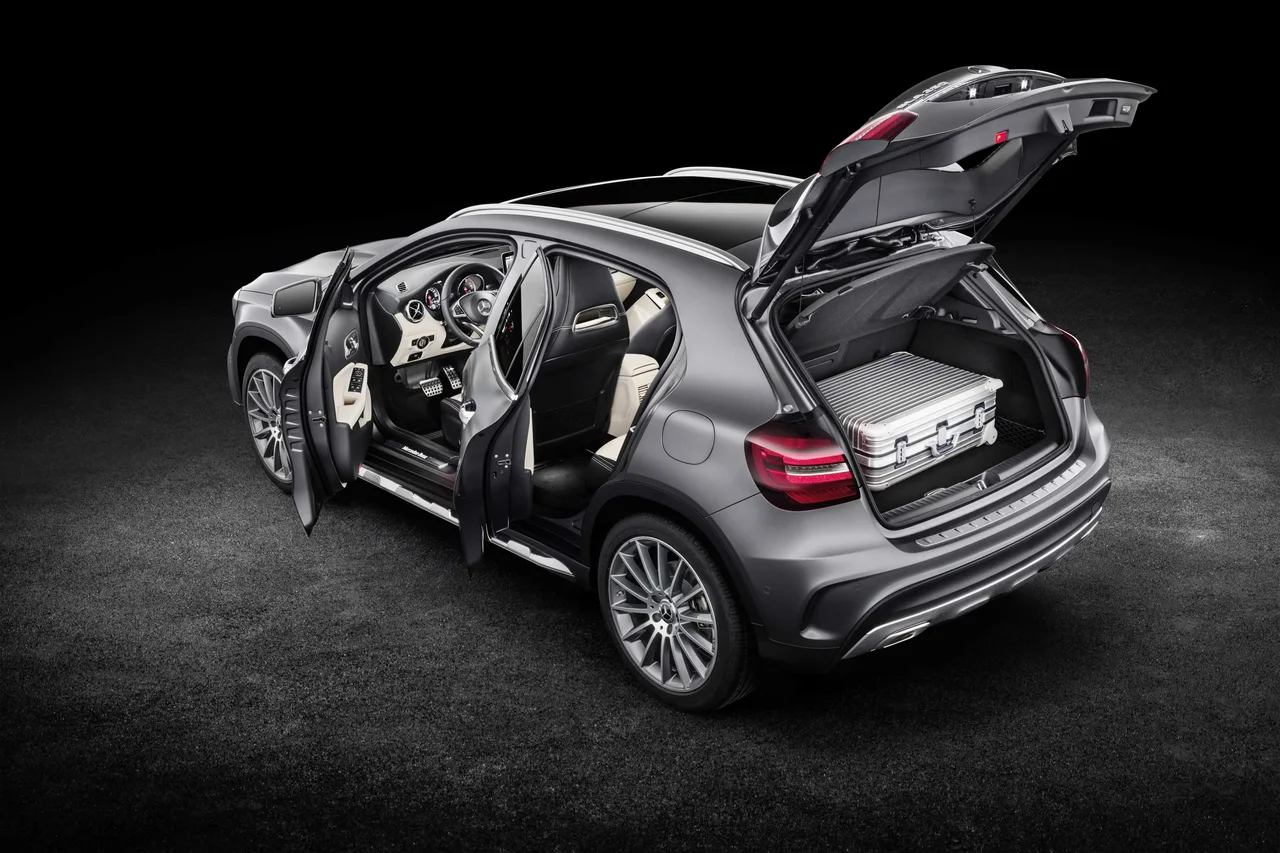

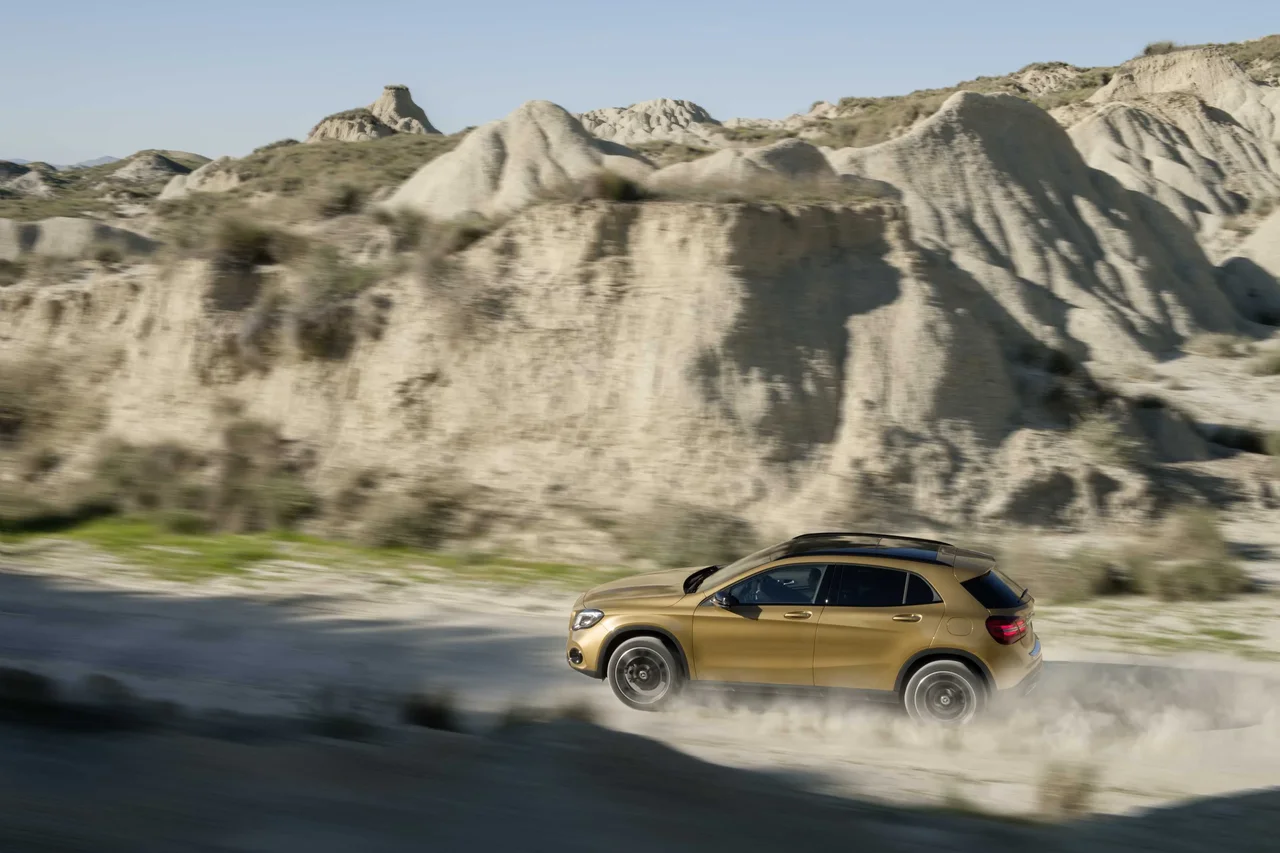

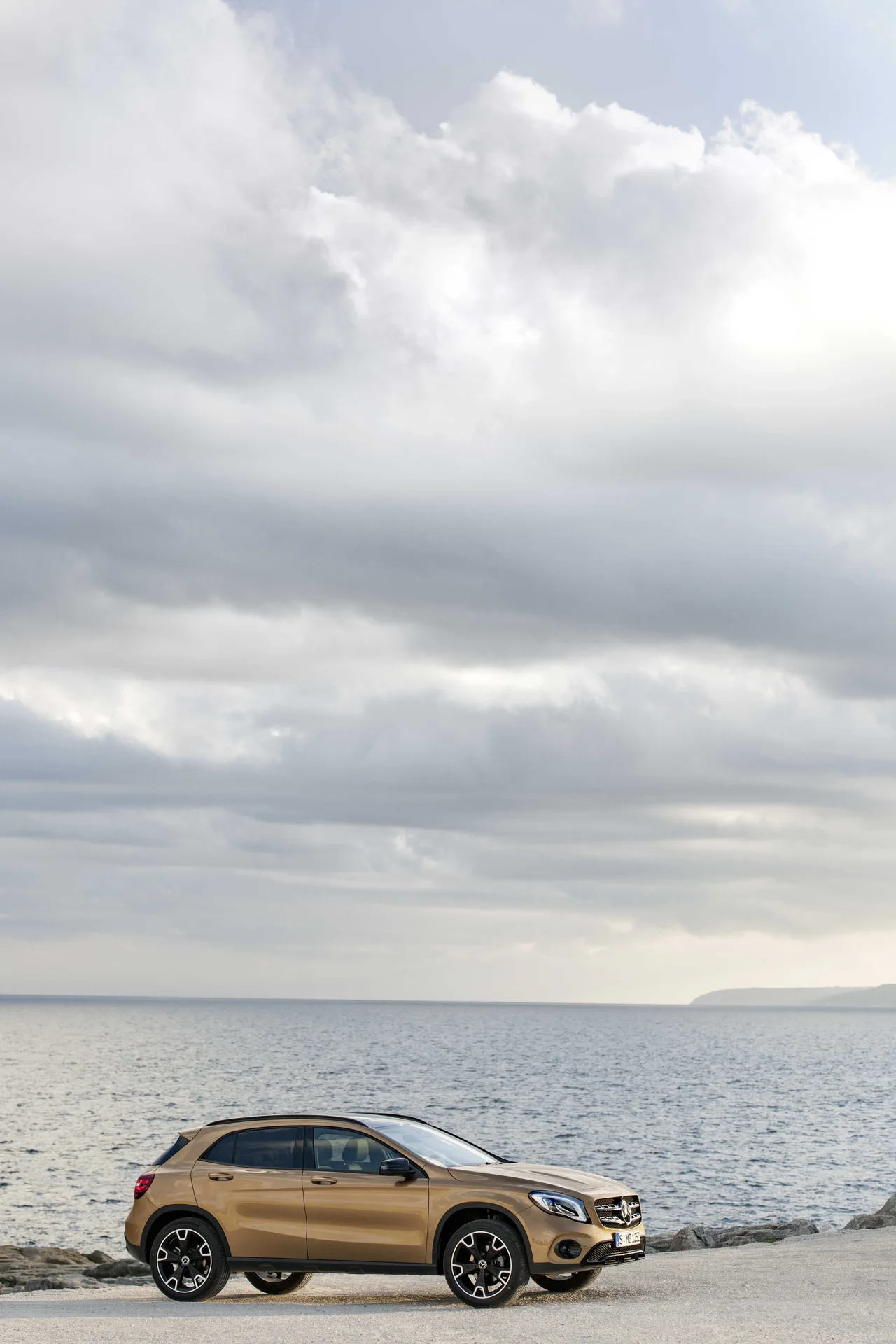

Photos

Specifications

Vehicle Details

Year
2018
Make
Mercedes-Benz
Model
GLA
Body Style
SUV
Generation
X156 Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic

Powertrain

Engine Name
220 d 4MATIC 7G-DCT
Engine Configuration
Inline
Power (hp)
177 hp
Power (kW)
130 kW
Torque
350 Nm (258 lb-ft)
Top speed
218 km/h (135 mph)
0–60 mph
7.3 seconds
0–100 km/h
7.7 seconds
Displacement
2,143 cc

Dimensions

Length
4,424 mm (174.2 in)
Width
1,804 mm (71.0 in)
Height
1,494 mm (58.8 in)
Wheelbase
2,699 mm (106.3 in)
Curb weight
1,520 kg (3,351 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,600 - 3,800 rpm
Rev. at Max Torque
1,400 - 3,400 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
99 mm (3.9 in)
Compression Ratio
16.2 :1
Engine Configuration
Inline
Turbocharger
Yes
Engine Mount
Longitudinally
Service Intervals
Air Filter
80,000 km (49,710 mi)
Fuel Filter
200,000 km / 10 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
200,000 km / 10 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
56 litres
Emission
Emission Standard
Euro 6
Emission Class
C
Emission WLTP
CO₂, Combined
174 - 184 g/km
Emission NEDC
CO₂, Combined
127 g/km
Fuel Consumption NEDC
City
5.8 litres / 100 km
Highway
4.3 litres / 100 km
Combined
4.8 litres / 100 km

Dimensions & Weight

Exterior

Height (Bonnet Open)
1,956 mm (77.0 in)
Track, Front
1,569 mm (61.8 in)
Track, Rear
1,560 mm (61.4 in)
Overhang, Front
913 mm (35.9 in)
Overhang, Rear
812 mm (32.0 in)
Approach Angle
15.8 °
Departure Angle
21.5 °
Turning Circle
11.84 m
Ground Clearance
134 mm (5.3 in)

Interior

Head Room, Front
1,015 mm (40.0 in)
Head Room, Rear
975 mm (38.4 in)
Leg Room, Front
1,064 mm (41.9 in)
Leg Room, Rear
861 mm (33.9 in)
Shoulder Room, Front
1,391 mm (54.8 in)
Shoulder Room, Rear
1,350 mm (53.1 in)

Weight

Gross Weight
2,090 kg (4,608 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
570 kg (1,257 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Mercedes-Benz Platforms
MFA2

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Automatic Anti-glare
Driver side
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
Side Mirrors › Automatic Anti-glare
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Heated Wiper Blades
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Yes
Mud Flaps
Optional
Electric
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Silver
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Main Beam Assist
  • Headlight Range Adjustment
Fog Lights
Front
Yes

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
Yes
Media Format
  • CD
  • Memory Card Reader
  • MP3
Media Inputs
USB
App-Connect
Optional
Bluetooth
Yes
Connectivity › Media Inputs
AUX
Yes
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
Yes
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Rear Trunk
Volume
421 litres
Volume, Back Seat Collapsed
1,235 litres
Depth
807 mm (31.8 in)
Depth, Back Seat Collapsed
1,395 mm (54.9 in)
Trunk Door Opening Height
2,045 mm (80.5 in)
Sill Height
714 mm (28.1 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2014
Adult Occupant
96 %
Child Occupant
88 %
Vulnerable Road Users
67 %
Safety Assist
70 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Rust Damage
30 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H15
Main Beam
H15
Fog Light, Rear
BAY9s (H21W)
Rear/Brake Light
W2.1×9.5d (W16W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)

ACRISS

Category
Standard (S)
Type
Crossover (G)

Similar suvs

Suggested vehicles
