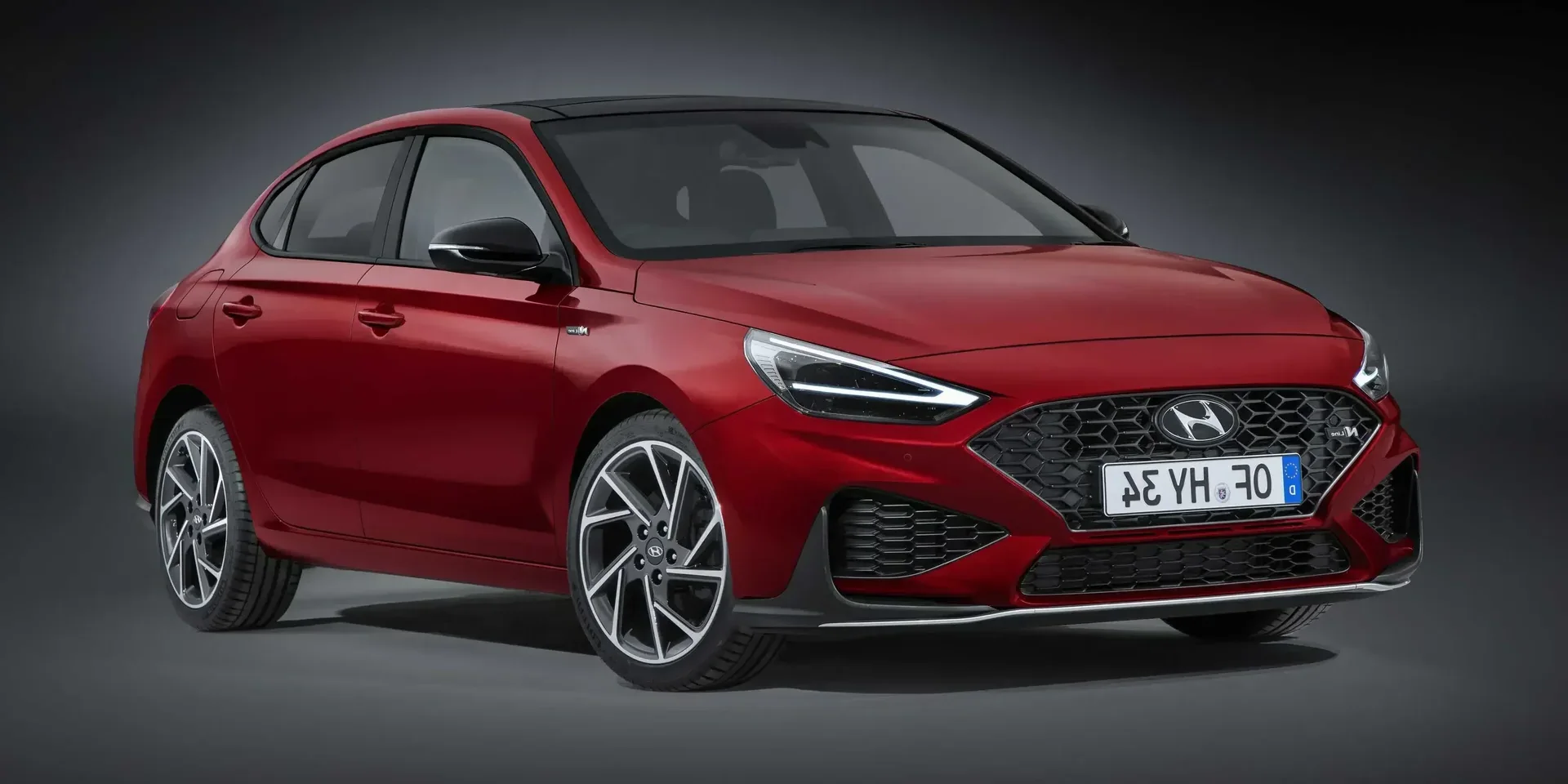

2019 Hyundai i30 N

South KoreaGasolineFWDHatchback

Specifications

Vehicle Details

Year
2019
Make
Hyundai
Model
i30
Variant
N
Body Style
Hatchback
Generation
PD 1st Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
N Manual
Engine Configuration
Inline
Power (hp)
250 hp
Power (kW)
184 kW
Torque
378 Nm (279 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
6.1 seconds (estimated)
0–100 km/h
6.4 seconds
Displacement
1,998 cc

Dimensions

Length
4,455 mm (175.4 in)
Width
1,795 mm (70.7 in)
Height
1,425 mm (56.1 in)
Wheelbase
2,650 mm (104.3 in)
Curb weight
1,419 kg (3,128 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,750 - 3,500 rpm
Engine Configuration
Bore
86 mm (3.4 in)
Stroke
86 mm (3.4 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
75,000 km / 5 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
10,000 km / 1 years
Engine Coolant
30,000 km / 2 years
Interior Filter
30,000 km / 2 years

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
MacPherson Strut

Fuel

General
Tank Volume
50 litres
Emission
Emission Standard
Euro 6
WLTP Consumption
Combined (l/100km)
7.7 litres / 100 km
Fuel Consumption NEDC
Combined
7 litres / 100 km
Emission WLTP
CO₂, Combined
175 g/km
Emission NEDC
CO₂, Combined
159 g/km

Dimensions & Weight

Exterior

Track, Front
1,559 mm (61.4 in)
Track, Rear
1,567 mm (61.7 in)
Overhang, Front
905 mm (35.6 in)
Overhang, Rear
900 mm (35.4 in)
Ground Clearance
135 mm (5.3 in)

Interior

Head Room (est.), Front
975 - 990 mm (38.4 - 39.0 in)
Head Room (est.), Rear
945 - 955 mm (37.2 - 37.6 in)
Leg Room (est.), Rear
900 - 910 mm (35.4 - 35.8 in)

Weight

Gross Weight
1,930 kg (4,255 lb)
Max Trailer Load, braked 12%
1,600 kg (3,527 lb)
Max Trailer Load, unbraked
700 kg (1,543 lb)
Cargo Capacity
511 kg (1,127 lb)
Max Roof Load
80 kg (176 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Openable
Normal Roof
Yes
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Main Beam Assist
Fog Lights
Front
Yes
Rear
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Headlight Range Adjustment
Manual

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
107 - 127 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB
  • RDS
Media Inputs
USB
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Phone
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 pcs
Tweeters
2 pcs
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Door
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Cover
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
450 litres
Volume, Back Seat Collapsed
1,351 litres

Design

Interior Decor Colour
Black
Transmission Knob Material
Leather

Seats

Colour & Material
Upholstery
Textile
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Cushion Tilt
Manual
Backrest Angle
Manual
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Cushion Tilt
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes
Ventilated Seats
Optional
Type of Seat
Sport Seats
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear

Other Features

GPS
Optional
Horn
Dual Note

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Type of Belt
Three-Point-Belt
Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Autonomous Emergency Brake System (AEB)
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
88 %
Child Occupant
84 %
Vulnerable Road Users
64 %
Safety Assist
68 %
Overall
5/5 stars
Test Year
2017
Overall Score
35.01
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
14.01
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Good
Pedestrian
Protection (Assessment)
Acceptable
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
5 years
Paintwork
5 years
Rust Damage
12 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Datyime Running Light
BA15s (P21W)
Fog Light, Front
HB4
Fog Light, Rear
BA15s (P21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
BAU15s (PY21W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Category
Compact Elite (D)
Type
4-5 Doors (D)
