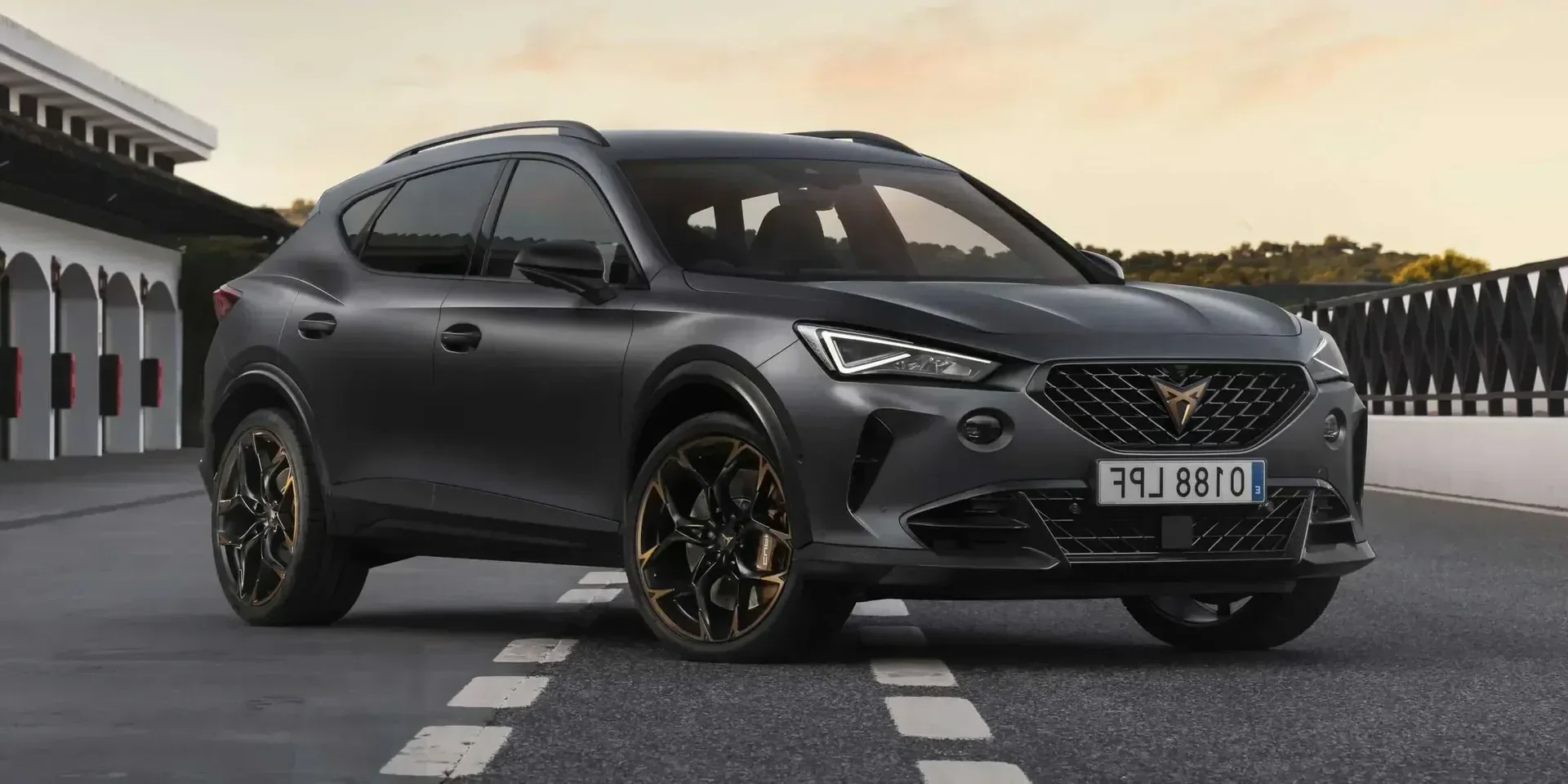

2022 Cupra Formentor VZ5

SpainGasolineAWDCrossover

Photos

Specifications

Vehicle Details

Year
2022
Make
Cupra
Model
Formentor
Variant
VZ5
Body Style
Crossover
Generation
1st Generation
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
VZ5 DSG Sequential
Engine Configuration
Inline
Power (hp)
390 hp
Power (kW)
287 kW
Torque
480 Nm (354 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.0 seconds (estimated)
0–100 km/h
4.2 seconds
Displacement
2,480 cc

Dimensions

Length
4,450 mm (175.2 in)
Width
1,839 mm (72.4 in)
Height
1,511 mm (59.5 in)
Wheelbase
2,680 mm (105.5 in)
Curb weight
1,683 kg (3,710 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,700 - 7,000 rpm
Rev. at Max Torque
2,250 - 5,700 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-30
Engine Oil, Volume
7.1 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
8.3 :1
Engine Configuration
Inline
Turbocharger
Yes
Service Intervals
Air Filter
60,000 km (37,282 mi)
Spark Plug
60,000 km (37,282 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Brake Caliper Colour
Black
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General › Fuel Cap Position
Rear
Right
General
Lockable Fuel Cap
Yes
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
10.1 - 10.2 litres / 100 km
Fuel Consumption NEDC
City
12.8 litres / 100 km
Highway
7.5 litres / 100 km
Combined
9.3 litres / 100 km
Emission WLTP
CO₂, Combined
230 - 231 g/km
Emission NEDC
CO₂, Combined
212 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,992 mm (78.4 in)
Track, Front
1,585 mm (62.4 in)
Track, Rear
1,559 mm (61.4 in)
Overhang, Front
893 mm (35.2 in)
Overhang, Rear
877 mm (34.5 in)
Turning Circle
11.4 m
Ground Clearance
150 - 161 mm (5.9 - 6.3 in)

Interior

Head Room, Front
1,075 mm (42.3 in)
Head Room, Rear
986 mm (38.8 in)
Shoulder Room, Front
1,409 mm (55.5 in)
Shoulder Room, Rear
1,362 mm (53.6 in)
Leg Room (est.), Rear
850 - 900 mm (33.5 - 35.4 in)

Weight

Gross Weight
2,120 kg (4,674 lb)
Cargo Capacity
512 kg (1,129 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-C
Chassis Construction
Unibody
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip
Rear
Bottom-Strip
Sides
Bottom-Strip
Wheel Arches
Yes
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Yes
Turning Signal
Yes
House Colour
Black
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Other Equipment
Roof Railing
Yes
Antenna
Shark Fin
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Black

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Main Beam Assist
  • Come Home/Leaving Lights
Fog Lights
Front
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

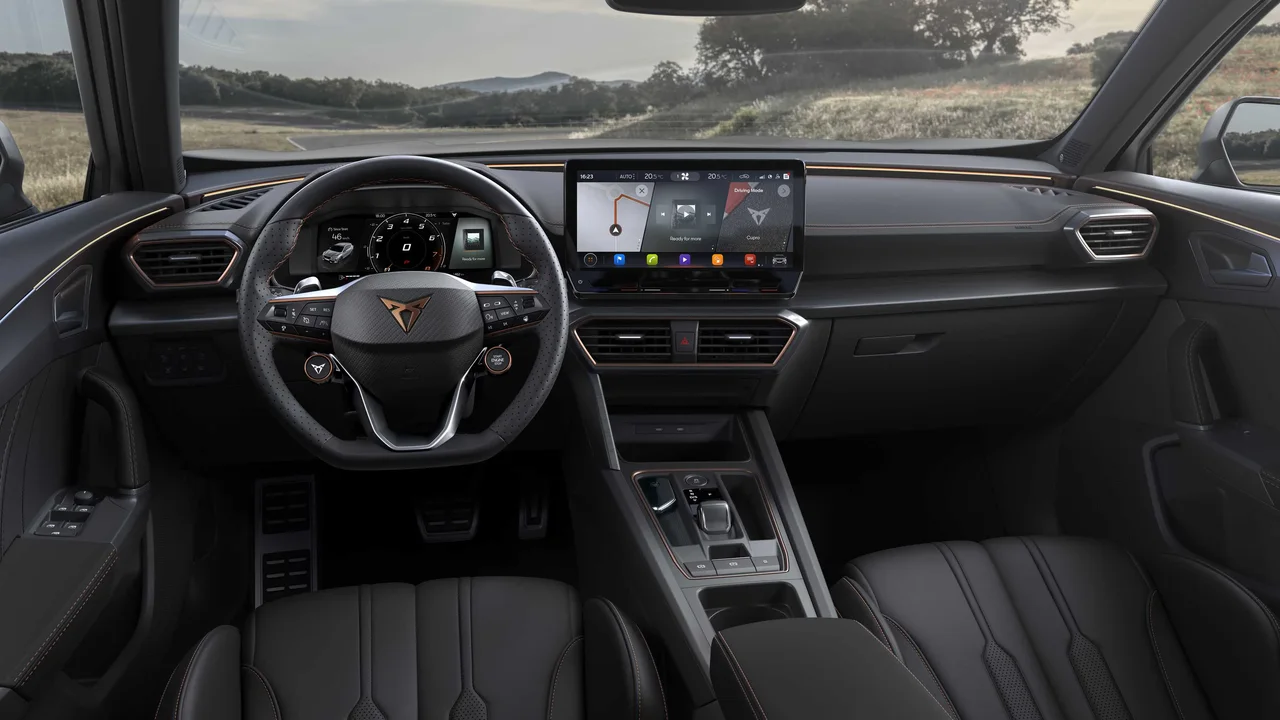

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Back Seat Controls
Buttons
Connectivity
Radio
  • AM
  • FM
  • DAB+
Media Format
  • MP3
  • WMA
App-Connect
  • Android Auto
  • Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Displays
Center Display
12"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
7 - 10 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
Ambient Light
Yes
Selectable Light Colour
Yes
Lights › Guide Light
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
230V Outlet
Trunk
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Material
Textile

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Foldable
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
410 litres
Automatic Open
Button on Trunk Door
Optional
Motion Activated
Optional

Design

Transmission Knob Material
Leatherette
Pedals
Standard
Pedals
Aluminium
Optional
Sport
Optional
Blue
Optional

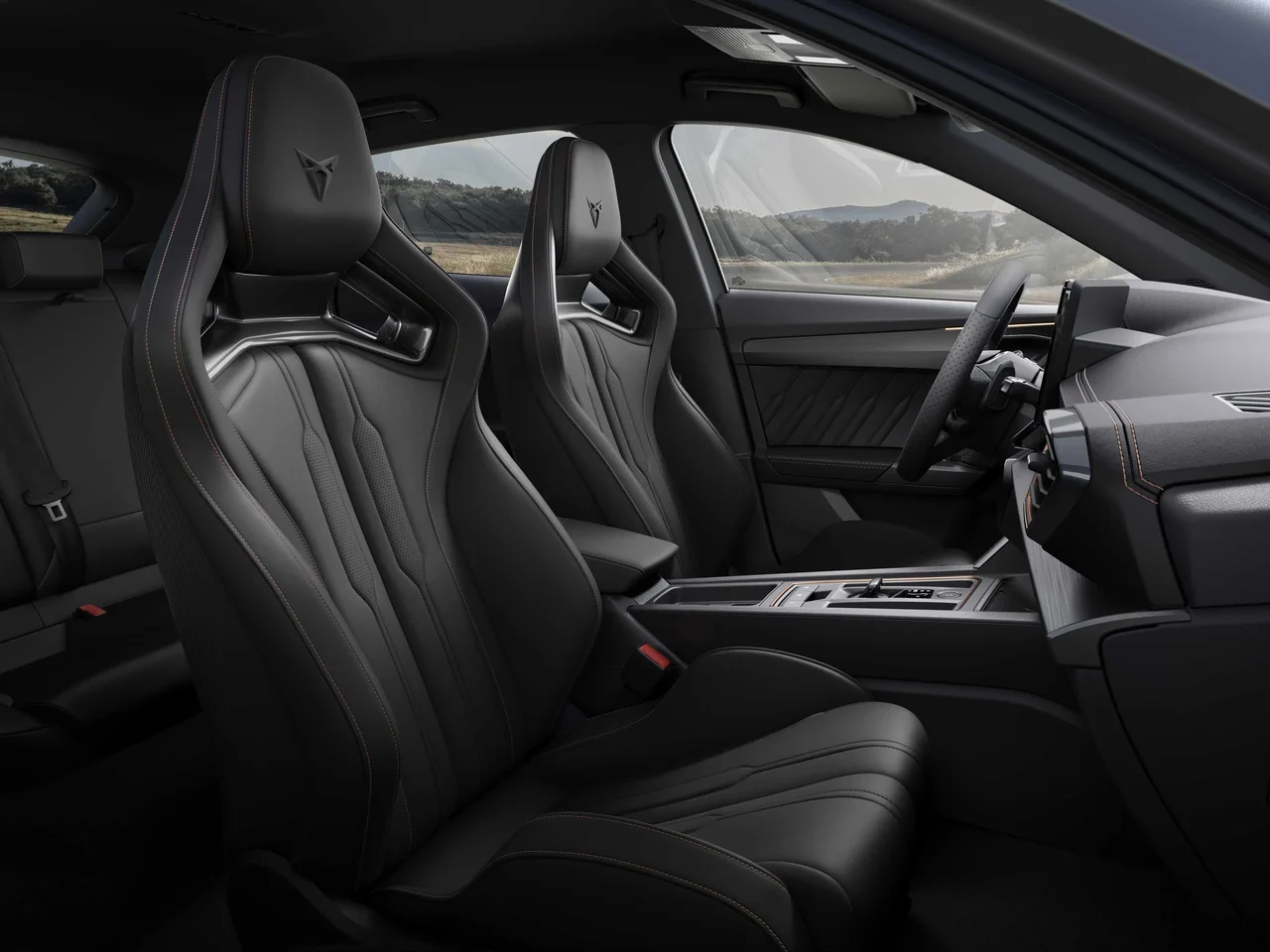

Seats

Colour & Material
Stitching Colour
Brown
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes
Armrest
Middle
Ventilated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Yes
Cameras
360° Camera
Yes
View Location
Center Display

Other Features

GPS
Navigation
Driving Mode Selection
  • Comfort
  • Individual
  • Off-road
  • Sport
Horn
Dual Note
GPS
Map-update
  • Internet
  • USB

Accessories

Tire Repair Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Sign Assist
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
Front
Blind Spot Detection (BLIS)
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Emergency Call
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2021
Adult Occupant
93 %
Child Occupant
88 %
Vulnerable Road Users
68 %
Safety Assist
80 %
Overall
5/5 stars
Adult Occupant
Total Points
35.6 /38
Frontal Impact
13.9 /16
Lateral Impact
16 /16
Rear Impact
3.6 /4
Rescue and Extrication
2 /2
Child Occupant
Total Points
43.6 /49
Crash Test Performance
  • 15.6
  • 8 /16
Safety Features
8 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
36.9 /49
Pedestrian
  • 15.7
  • 3.7
  • 6
AEB Vulnerable Road Users
11.6 /18
AEB Pedestrian
5.4 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
6.2 /9
AEB Cyclist (assesment)
Adequate
Safety Assist
Speed Assistance (points)
1.3 /3
Speed Assistance (assesment)
Marginal
Occupant Status Monitoring (points)
3 /3
Occupant Status Monitoring (assesment)
Good
Seat Belt Reminder (points)
2 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
1
Driver Monitoring (assesment)
Good
Lane Support (points)
3.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
5.1 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment
Car.info Classification
Medium SUV

ACRISS

Category
Standard Elite (R)
Type
Crossover (G)

Similar crossovers

Suggested vehicles
