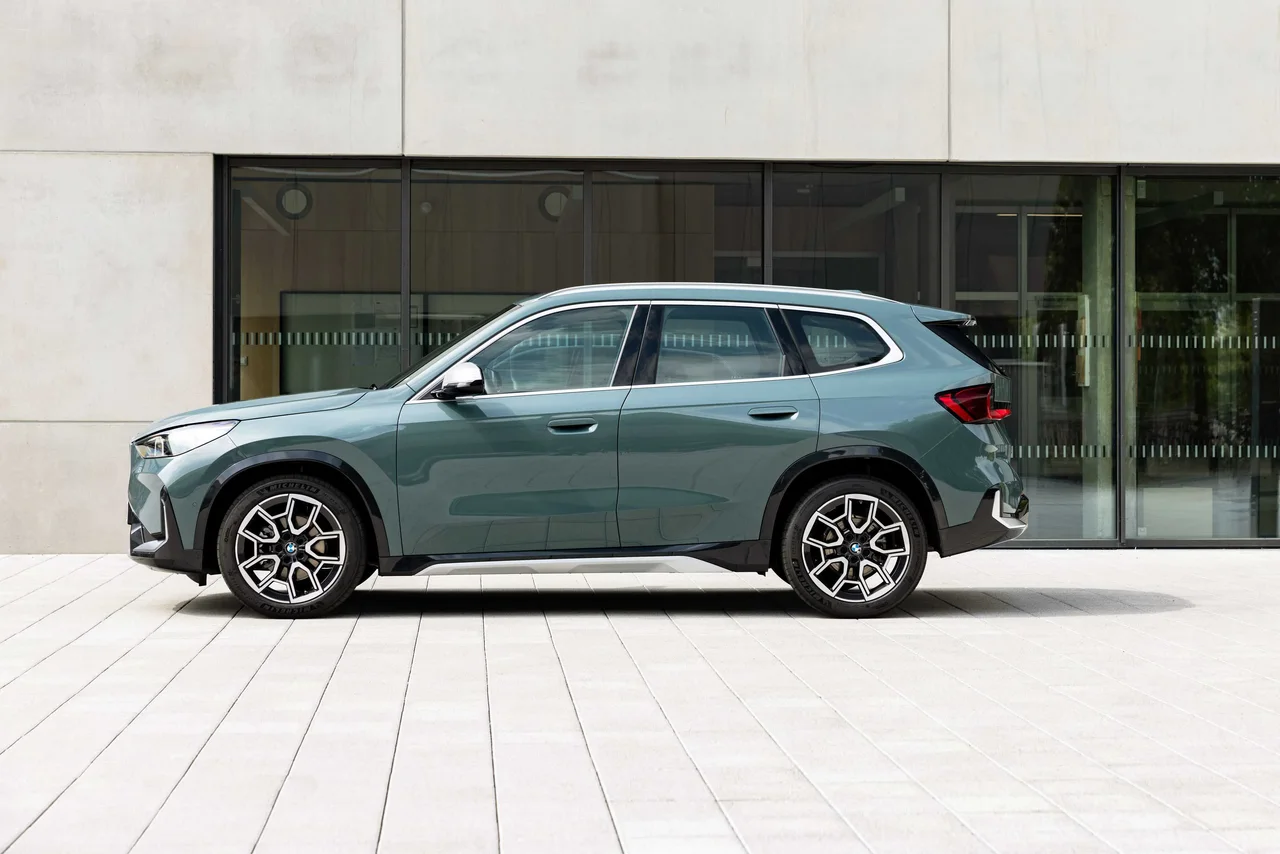

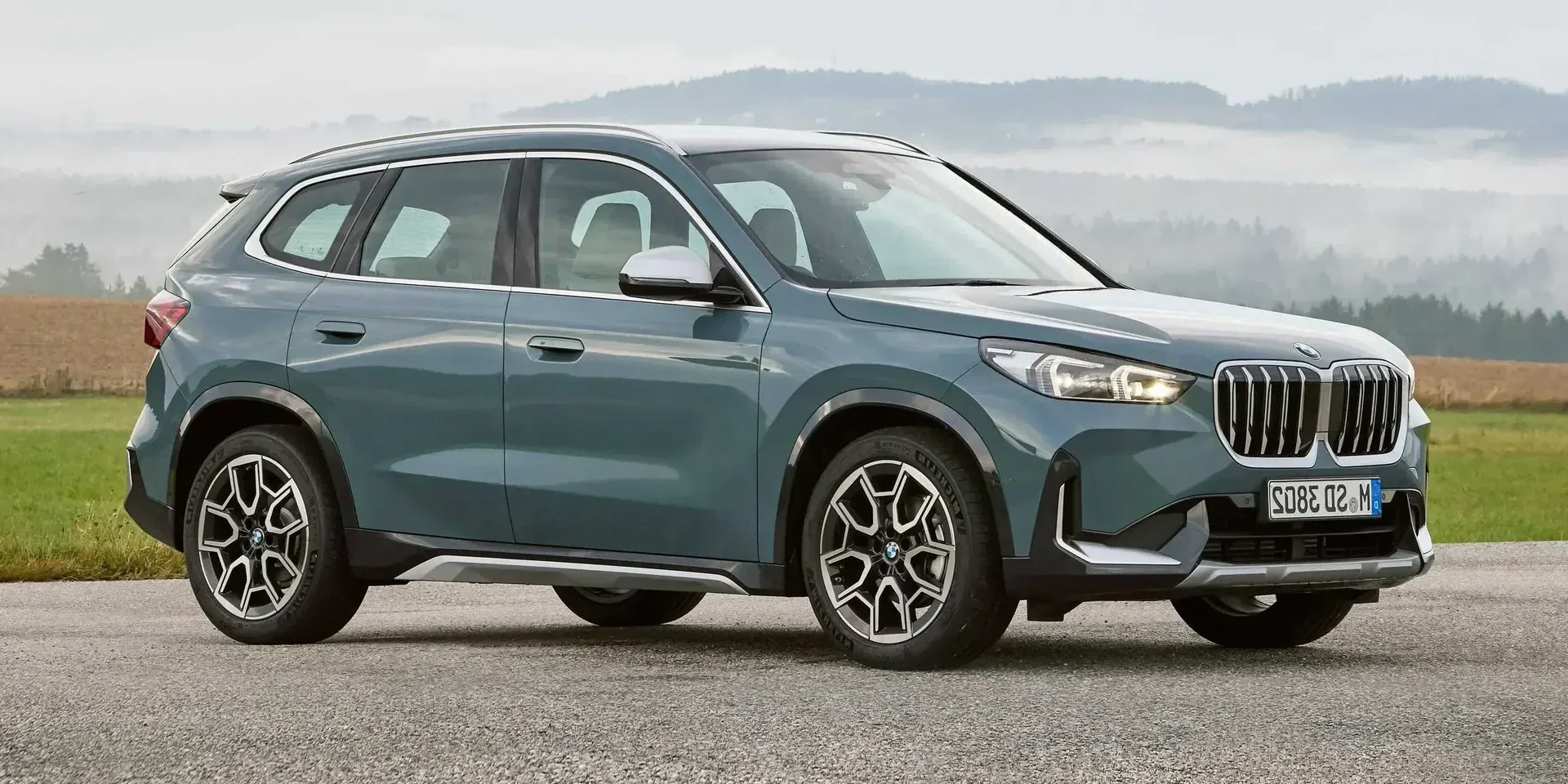

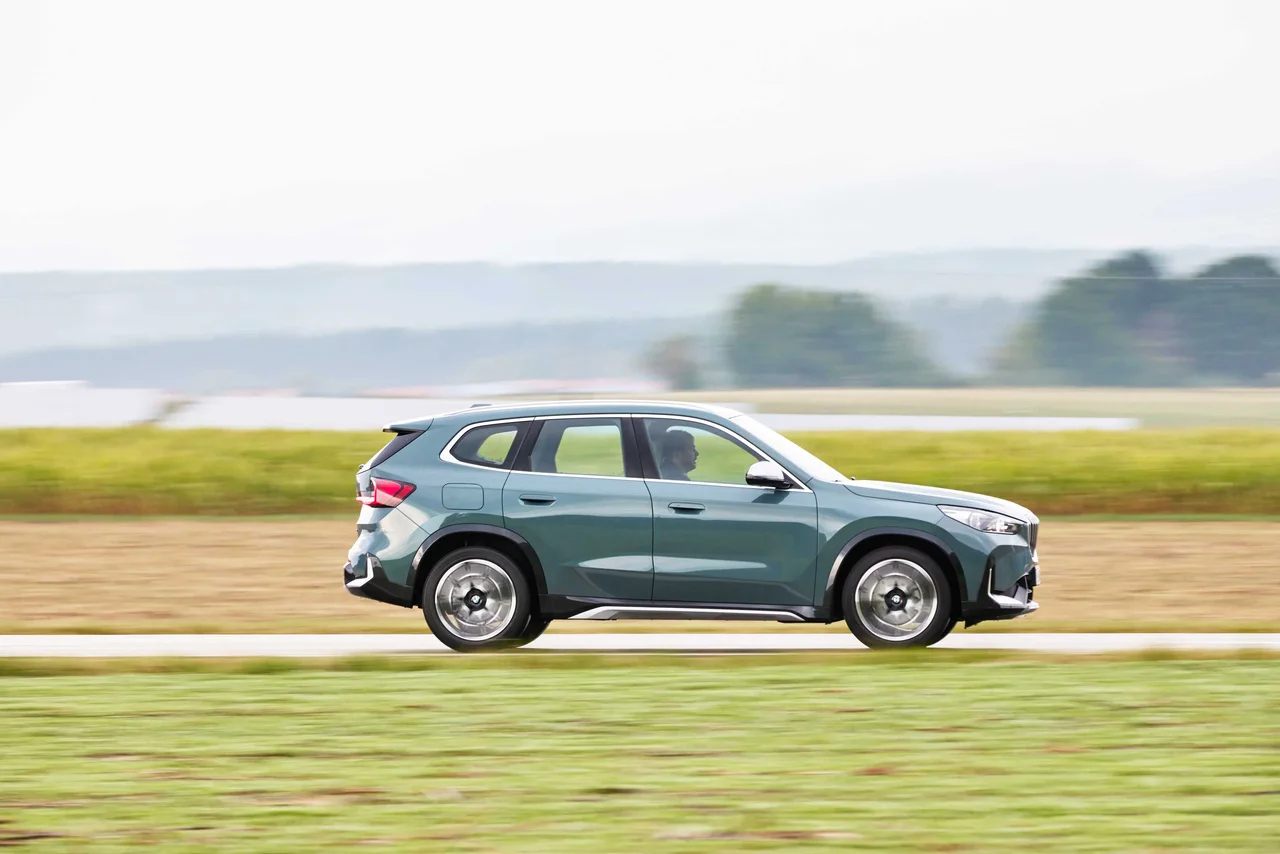

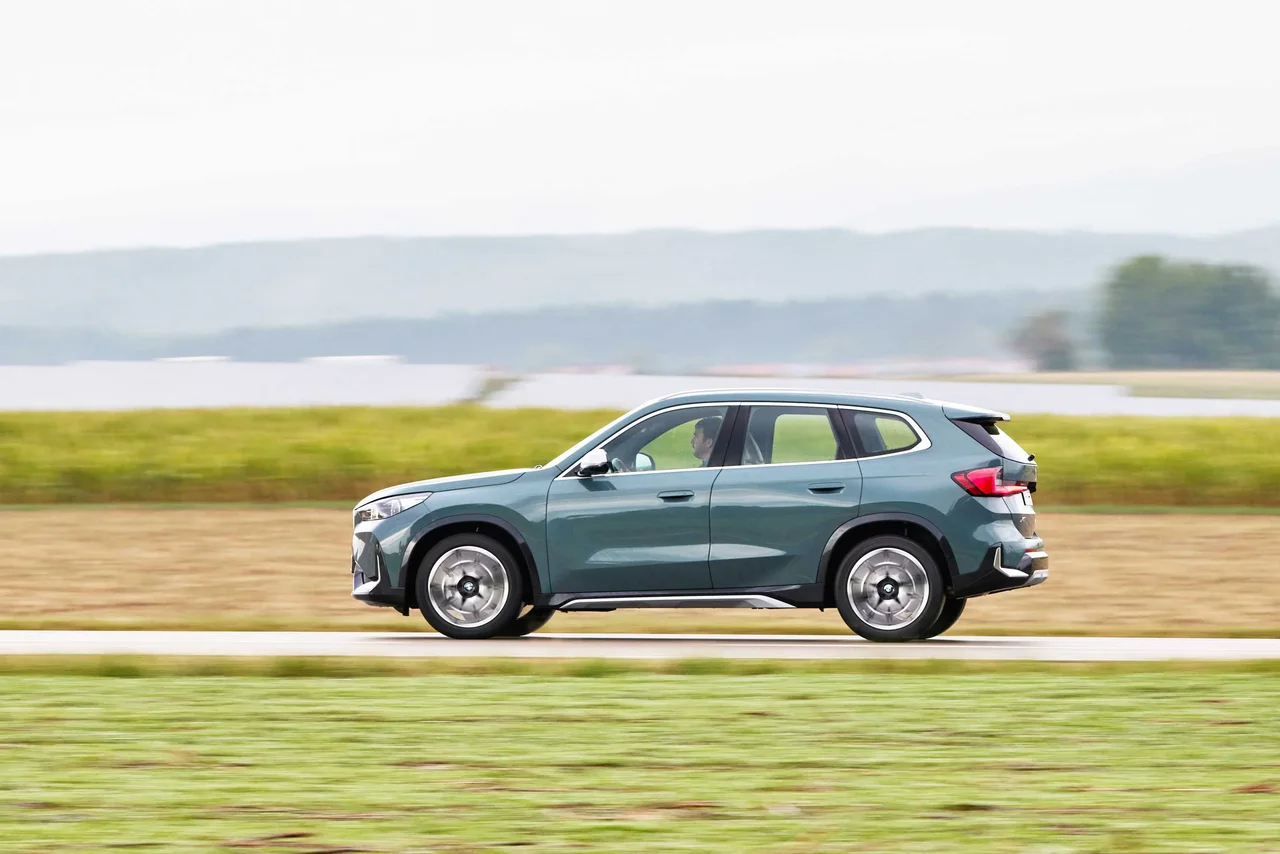

2023 BMW X1 sDrive18d

GermanyDieselFWDSUV

Photos

Specifications

Vehicle Details

Year
2023
Make
BMW
Model
X1
Variant
sDrive18d
Body Style
SUV
Generation
U11
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
Automatic (Manumatic), 7-speed

Powertrain

Engine Name
sDrive18d Steptronic
Engine Configuration
Inline
Power (hp)
150 hp
Power (kW)
110 kW
Torque
360 Nm (266 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
8.5 seconds (estimated)
0–100 km/h
8.9 seconds
Displacement
1,995 cc

Dimensions

Length
4,500 mm (177.2 in)
Width
1,845 mm (72.6 in)
Height
1,642 mm (64.6 in)
Wheelbase
2,692 mm (106.0 in)
Curb weight
1,650 kg (3,638 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,750 - 4,000 rpm
Rev. at Max Torque
1,500 - 2,500 rpm
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Twin-turbo
Service Intervals
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km / 4 years
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
120,000 km / 8 years
Interior Filter
40,000 km / 2 years
Accessory Belt
120,000 km (74,565 mi)

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 7-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (1)
  • Rear (1)
Front Brakes
Diameter
307 mm (12.1 in)
Width
24 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
280 mm (11.0 in)
Width
10 mm (0.4 in)
Cooling
Ventilated

Fuel

General
Tank Volume
45 litres
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
4.9 - 5.5 litres / 100 km
Emission WLTP
CO₂, Combined
129 - 145 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,104 mm (82.8 in)
Track, Front
1,592 mm (62.7 in)
Track, Rear
1,593 mm (62.7 in)
Overhang, Front
875 mm (34.4 in)
Overhang, Rear
933 mm (36.7 in)
Turning Circle
11.7 m
Ground Clearance
205 mm (8.1 in)

Interior

Head Room, Front
1,069 mm (42.1 in)
Head Room, Rear
998 mm (39.3 in)
Leg Room, Front
1,026 mm (40.4 in)
Leg Room, Rear
940 mm (37.0 in)
Hip Room, Front
1,425 mm (56.1 in)
Hip Room, Rear
1,400 mm (55.1 in)
Shoulder Room, Front
1,460 mm (57.5 in)
Shoulder Room, Rear
1,458 mm (57.4 in)

Weight

Gross Weight
2,150 kg (4,740 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, braked 8%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
575 kg (1,268 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-up
Platform
BMW Platform
UKL Platform (UKL2)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Convex
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Optional
Special Features
  • Automatic Headlight Activation
  • Come Home/Leaving Lights
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Headlight Range Adjustment
Yes

Colour

Door Handles
Same as Car

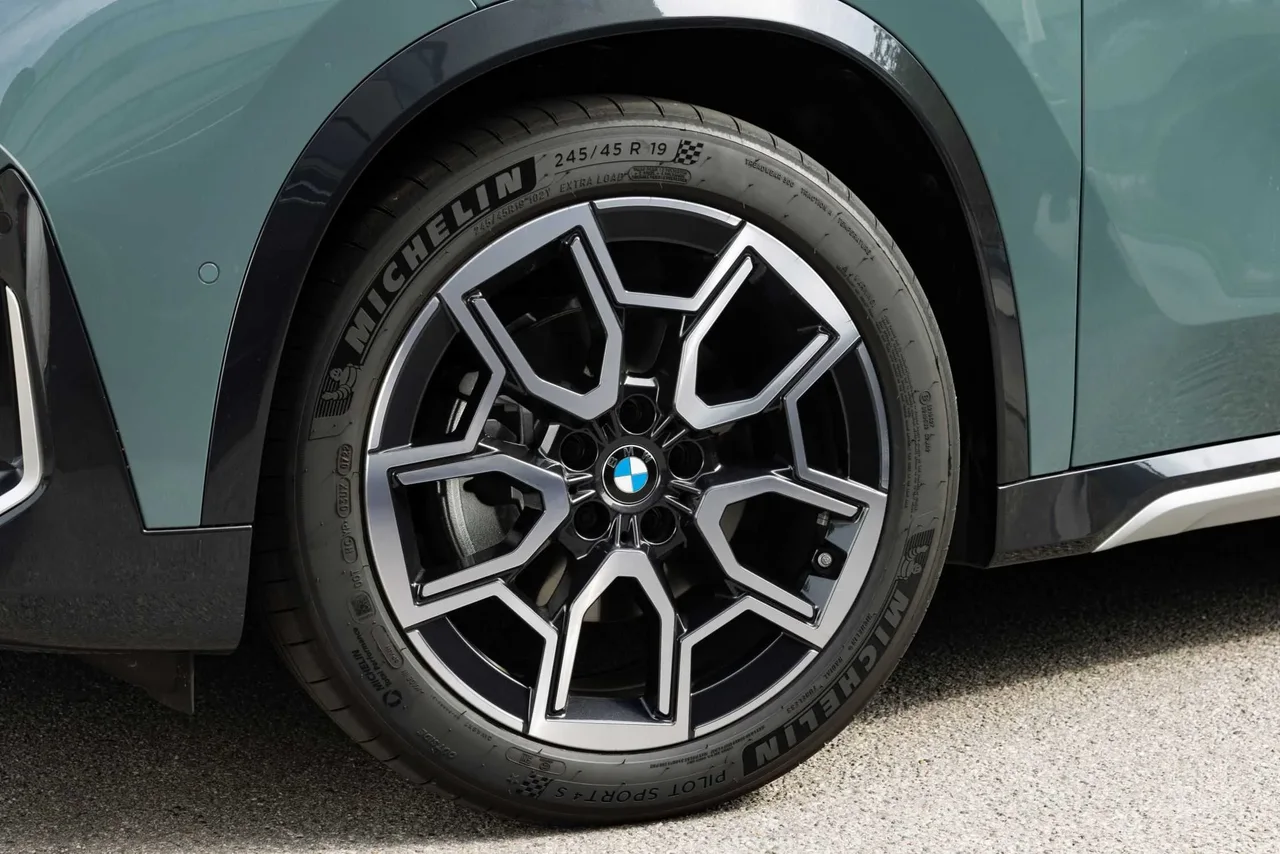

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
Touchscreen
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
App-Connect
  • Amazon Alexa
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 5G
  • 4G
  • 3G
WiFi
Yes
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Armrest Hatch/Mid-console
  • Rear
Number of Ports
4 pcs
Displays
Center Display
10.7"
Center Display Controls
Touchscreen
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Detachable
Optional
Speakers
Total Number of Speakers
6 - 12 pcs
Tweeters
5 pcs
Midrange Speakers
4 - 5 pcs
Bass Speakers
2 pcs
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
Front
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Material
Textile
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
  • Buttons
  • Scrolling Wheel
Cruise Control
Speed Up/Down (Buttons)
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • From Inside Car
  • Key Button
Automatic Close
Yes
Cover
Foldable
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
540 litres
Volume, Back Seat Collapsed
1,600 litres
Automatic Open
Motion Activated
Optional

Design

Pedals
Standard
Pedals
Aluminium
Optional
Sport
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Seat Depth
Optional
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Climate Control
  • Media
Wireless Phone Charger
Optional
Cruise Control
Active Cruise Control
Optional
Cameras
View Location
Center Display
Wireless Phone Charger
Front
Optional

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Individual
  • Sport
Smartphone App
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Yes
Emergency Steering Assist
Optional
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System
Yes
Parking Assist
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Stop Signal (ESS)
Optional
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
  • Side
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Location Tracking
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Active Bonnet
Yes
Emergency Call
Yes
Immobiliser
Electronic
Yes
Emergency Call
Smartphone as a Key
Optional
Restricted
Optional

Safety Testing

General
Test Year
2022
Adult Occupant
86 %
Child Occupant
89 %
Vulnerable Road Users
76 %
Safety Assist
92 %
Overall
5/5 stars
Adult Occupant
Total Points
32.8 /38
Frontal Impact
11 /16
Lateral Impact
16 /16
Rear Impact
3.7 /4
Rescue and Extrication
2 /2
Child Occupant
Total Points
43.9 /49
Crash Test Performance
  • 15.9
  • 8 /16
Safety Features
8 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
41.1 /49
Pedestrian
  • 19.3
  • 0.2
  • 6
AEB Vulnerable Road Users
15.6 /18
AEB Pedestrian
6.9 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
8.7 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.8 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
3 /3
Occupant Status Monitoring (assesment)
Good
Seat Belt Reminder (points)
2 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
1
Driver Monitoring (assesment)
Good
Lane Support (points)
3.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
5.5 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Small SUV

Similar suvs

Suggested vehicles
