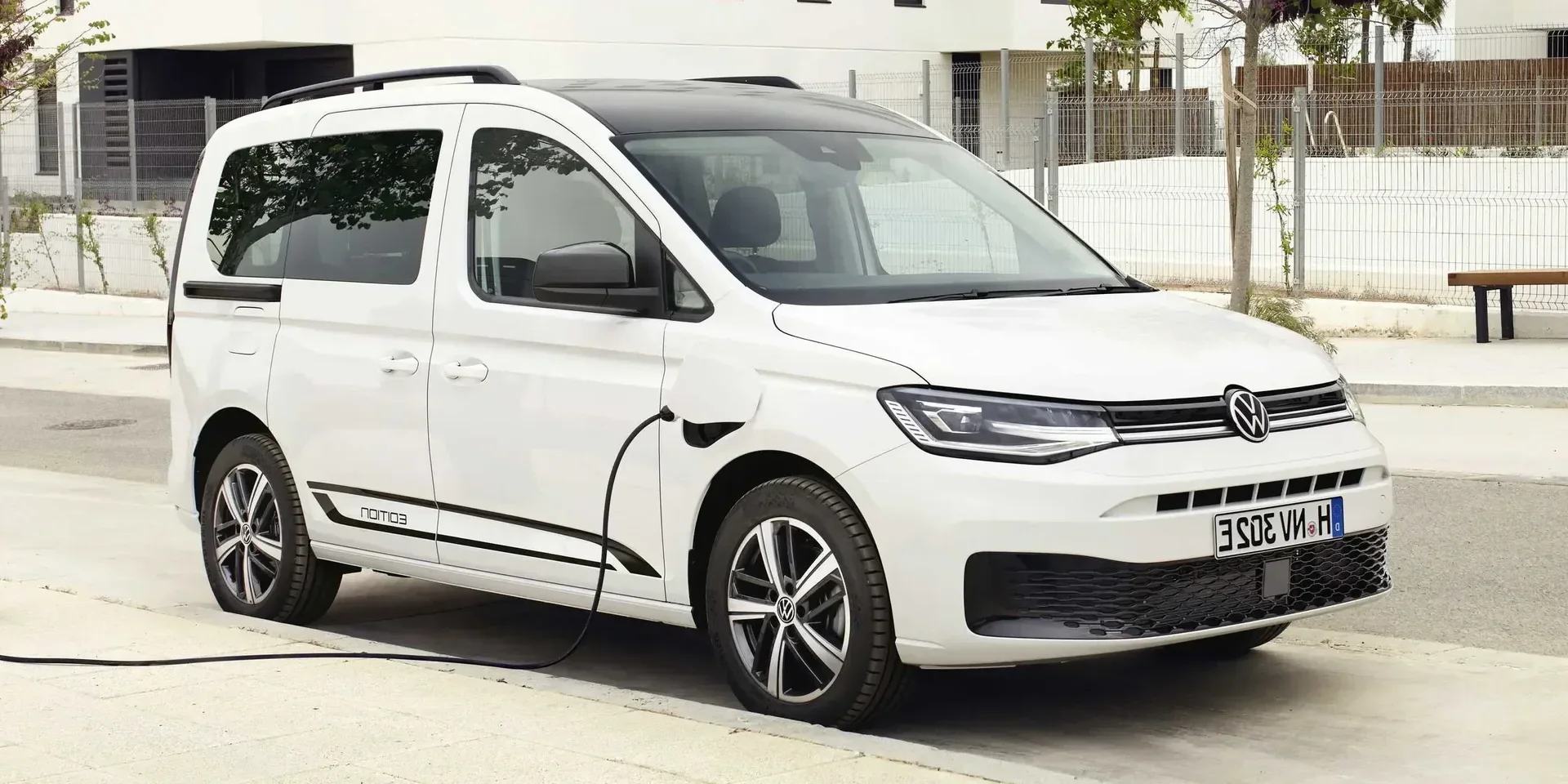

2026 Volkswagen Caddy eHybrid

GermanyPlug In Hybrid GasolineFWDLCV

Photos

Specifications

Vehicle Details

Year
2026
Make
Volkswagen
Model
Caddy
Variant
eHybrid
Body Style
LCV
Generation
Typ SB
Seats
5
Doors
4
Fuel
Plug In Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Dual-clutch), 6-speed

Powertrain

Engine Name
eHybrid DSG Sequential
Engine Configuration
Inline
Power (hp)
150 hp
Power (kW)
110 kW
Torque
250 Nm (184 lb-ft)
Top speed
183 km/h (114 mph)
Electric range
115 km (71 mi)
Battery
19.7 kWh
Displacement
1,498 cc

Dimensions

Length
4,500 mm (177.2 in)
Width
1,855 mm (73.0 in)
Height
1,798 mm (70.8 in)
Wheelbase
2,755 mm (108.5 in)
Curb weight
1,860 kg (4,101 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,500 rpm
Rev. at Max Torque
1,500 - 3,000 rpm
Configuration Combustion
Engine Configuration
Inline
Turbocharger
Yes
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
85 kW
Front Engines
Yes
Battery Capacity, Net
19.7 kWh

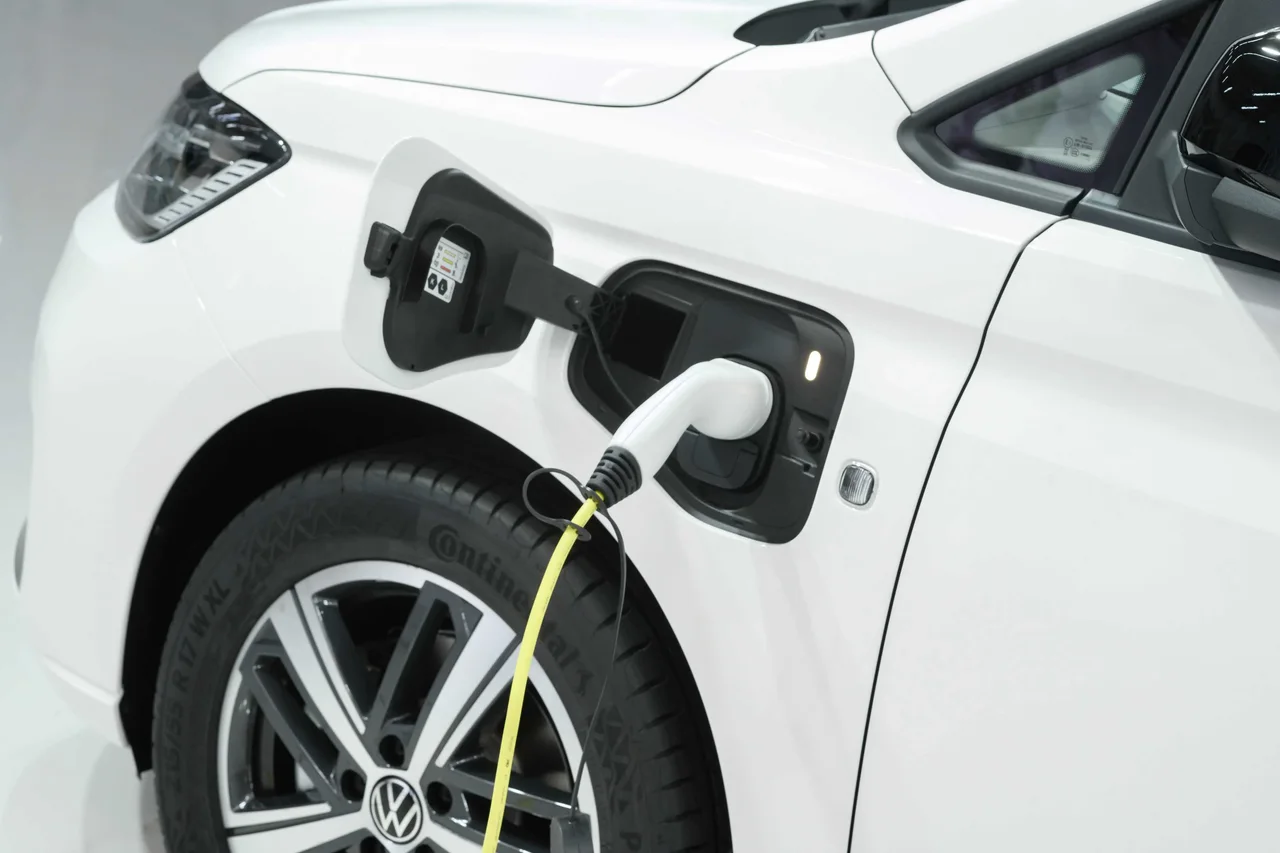

AC Charge Type
  • Single-phase
  • Three-phase
Configuration Electric › Front Engines
Power (kW)
85 kW
Number of Engines
1

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 6-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
288 - 312 mm (11.3 - 12.3 in)
Width
25 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
272 - 310 mm (10.7 - 12.2 in)
Width
12 mm (0.5 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Twist-Beam

Fuel

General › Fuel Cap Position
Rear
Left
General
Lockable Fuel Cap
Yes
Emission
Emission Standard
Euro 6
WLTP Consumption
Combined (l/100km)
6.1 - 6.5 litres / 100 km
Weighted, Combined
0.4 - 0.5 litres / 100 km
Combined
18.3 - 19.2 kWh/100km
Electric Range
115 - 122 km (71 - 76 mi)
Emission WLTP
CO₂, Weighted, Combined
10 - 12 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,100 mm (82.7 in)
Overhang, Front
890 mm (35.0 in)
Overhang, Rear
855 mm (33.7 in)
Approach Angle
14.2 °
Departure Angle
15.9 °
Turning Circle
11.4 m
Ground Clearance
144 mm (5.7 in)

Interior

Head Room, Front
1,129 mm (44.4 in)
Head Room, Rear
1,103 mm (43.4 in)
Head Room, Third Row
952 mm (37.5 in)

Weight

Gross Weight
2,425 kg (5,346 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
565 kg (1,246 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
LCV (Minibus)
Pillars
A-D
Chassis Construction
Unibody
Body Material
  • Plastic
  • Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Headlight Range Adjustment
Fog Lights
Rear
Yes
Special Features
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Nut/Bolt Dimensions
M14x1.5
Fastening Type
Lug Bolts
Tightening Torque
120 Nm
Rim Type
Disc Wheel
Tire Pressure Monitoring System (TPMS)
Direct
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
Hard Drive
Optional
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
Front
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
MirrorLink
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
6.5 - 10"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Rear
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Lights › Read Light
Rear
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
  • Foldable
  • Sliding
Barrier Net/Grid
Optional
Carpet
Optional
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
1,213 litres
Volume, Back Seat Collapsed
2,556 litres
Volume (third seat row)
191 litres
Depth
1,100 mm (43.3 in)
Depth, Back Seat Collapsed
1,780 mm (70.1 in)
Opening Width
1,185 mm (46.7 in)
Height
1,200 mm (47.2 in)
Trunk Door Opening Height
1,122 mm (44.2 in)
Sill Height
562 mm (22.1 in)
Carpet
Rubber
Optional

Design

Interior Decor Colour
Black
Transmission Knob Material
Plastic
Pedals
Standard
Colour
Black

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Seat Colour
Black
Stitching Colour
Black

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Optional
Cameras
Optional
Voice Control
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Climate Control
Optional
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Multifunction Camera
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Optional
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Electrical
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2025
Adult Occupant
72 %
Child Occupant
80 %
Vulnerable Road Users
80 %
Safety Assist
71 %
Overall
4/5 stars
Adult Occupant
Total Points
29 /38
Frontal Impact
10.6 /16
Lateral Impact
12.1 /16
Rear Impact
3.6 /4
Rescue and Extrication
2.7 /2
Child Occupant
Total Points
39.3 /49
Crash Test Performance
  • 15.3
  • 8 /16
Safety Features
6 /13
CRS Installation Check
10 /12
Vulnerable Road Users
Total Points
50.5 /49
Pedestrian
  • 11.1
  • 4.2
  • 8.3
AEB Pedestrian
6.6 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
7.8 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
1.7 /3
Speed Assistance (assesment)
Adequate
Occupant Status Monitoring (points)
1.3 /3
Occupant Status Monitoring (assesment)
Marginal
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
0.3
Driver Monitoring (assesment)
Weak
Lane Support (points)
2.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
7.4 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Engine Compartment, Bulkhead
Yes
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Trunk
Right Side
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
  • Medium MPV
  • Passenger Van

Similar lcvs

Suggested vehicles
