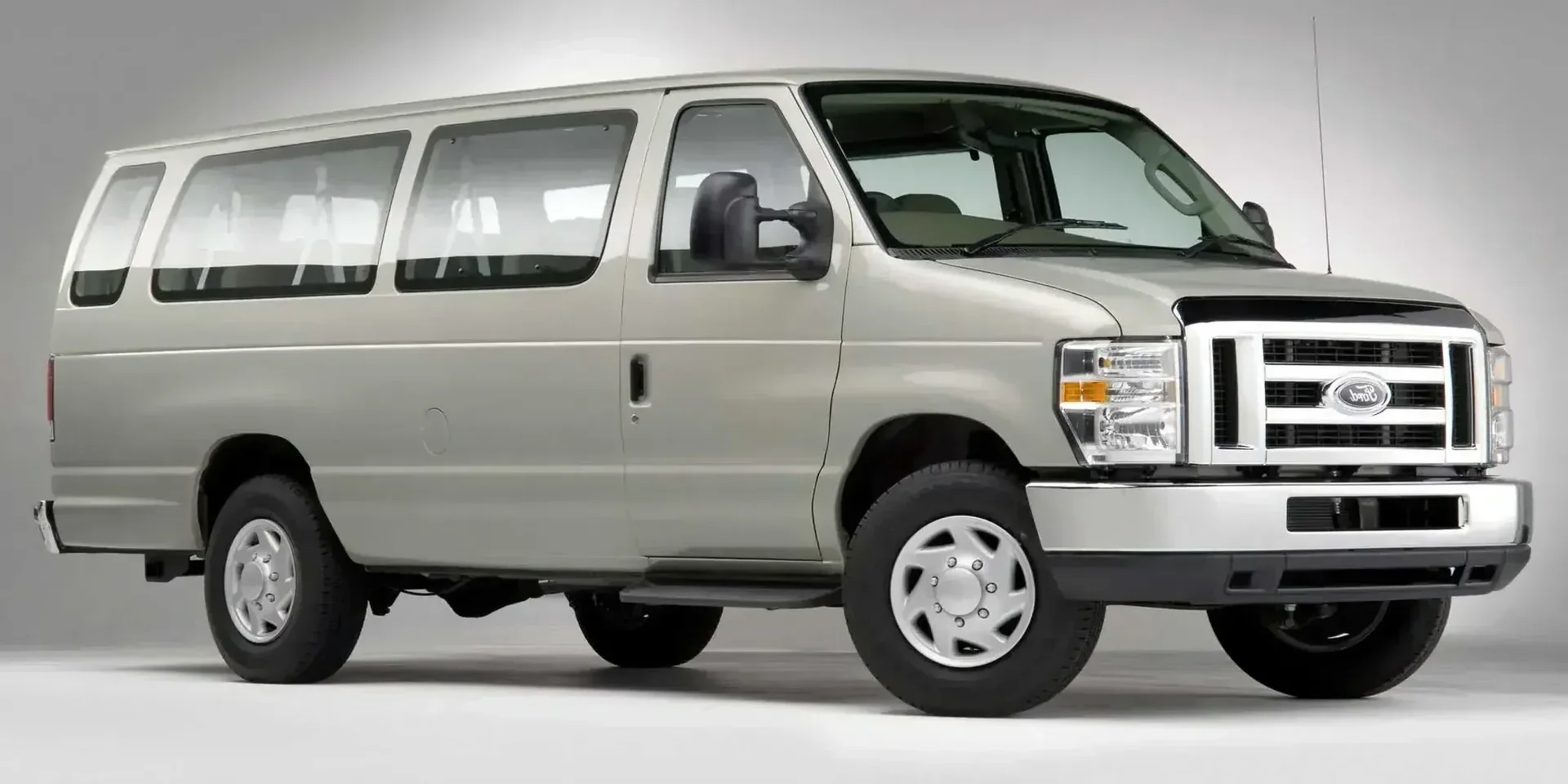

2008 Ford E-Series E-350 Super Duty

United StatesGasolineRWDLCV

Photos

Specifications

Vehicle Details

Year
2008
Make
Ford
Model
E-Series
Variant
E-350 Super Duty
Body Style
LCV
Generation
1st Generation 2nd Facelift
Seats
2
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic (Electrohydraulic), 4-speed

Powertrain

Engine Name
5.4 V8 SEFI 2V Automatic
Engine Configuration
V
Power (hp)
258 hp
Power (kW)
190 kW
Torque
475 Nm (350 lb-ft)
Displacement
5,409 cc

Dimensions

Width
2,017 mm (79.4 in)
Curb weight
2,444 kg (5,388 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,500 rpm
Rev. at Max Torque
2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-20
Engine Oil, Volume
5.7 litres
Engine Coolant, Volume
27.2 litres
Car Battery
Voltage
12 V
Battery Capacity
65 - 72 Ah
Cold Start Power
650 - 750 A
Secondary Battery
Optional
Alternator Charge Current
120 - 225 A
Alternator Voltage
14 V
Engine Configuration
Bore
90.2 mm (3.6 in)
Stroke
105.8 mm (4.2 in)
Compression Ratio
9 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
48,000 km (29,826 mi)
Spark Plug
145,000 km (90,099 mi)
Oil Change & Engine Filter
12,000 km (7,456 mi)
Engine Coolant
169,000 km (105,012 mi)
Accessory Belt
241,000 km (149,750 mi)

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 4-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column
Overdrive
Yes
Gear Ratio
1st Gear
2.84 :1
2nd Gear
1.55 :1
3rd Gear
1 :1
4th Gear
0.7 :1
Final Drive
3.73 :1
Reverse
2.32 :1

Fuel

General
Tank Volume
132 - 140 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
345 mm (13.6 in)
Width
12.42 mm (0.5 in)
Rear Brakes
Diameter
345 mm (13.6 in)
Width
12.42 mm (0.5 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf (Longitudinal Spring)
Anti-roll Bar
Yes
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Dependent
Beam Axle (Dead Axle)
Anti-roll Bar
Front
25.4 mm (1.0 in)

Dimensions & Weight

Exterior

Width, with Mirrors
2,692 mm (106.0 in)
Track, Front
1,763 mm (69.4 in)
Track, Rear
1,692 mm (66.6 in)
Overhang, Front
988 mm (38.9 in)

Interior

Head Room, Front
1,067 mm (42.0 in)
Head Room, Rear
1,021 mm (40.2 in)
Leg Room, Front
1,016 mm (40.0 in)
Leg Room, Rear
980 - 983 mm (38.6 - 38.7 in)
Hip Room, Front
1,664 mm (65.5 in)
Hip Room, Rear
1,689 mm (66.5 in)
Shoulder Room, Front
1,730 mm (68.1 in)
Shoulder Room, Rear
1,821 mm (71.7 in)

Weight

Gross Weight
4,309 kg (9,500 lb)
Max Trailer Load, braked 12%
3,266 kg (7,200 lb)
Gross Train Weight
5,897 kg (13,001 lb)
Cargo Capacity
1,801 - 1,865 kg (3,971 - 4,112 lb)
Permitted Axle Load, front
1,837 kg (4,050 lb)
Permitted Axle Load, rear
2,760 kg (6,085 lb)
Weight Distribution, front
55.2 %
Weight Distribution, rear
44.8 %

LCV Specific

General
Version
  • L1H1
  • L2H1
Dimensions › Length
L1
5,504 mm (216.7 in)
L2
6,012 mm (236.7 in)
Dimensions › Wheel Base
L1
3,505 mm (138.0 in)
L2
3,505 mm (138.0 in)
Dimensions › Overhang, Rear
L1
1,113 mm (43.8 in)
L2
1,621 mm (63.8 in)
Dimensions › Turning Circle
L1
14.81 m
L2
16.7 m
Side Door › Side Door Height
H1
1,224 mm (48.2 in)
Side Door › Side Door Width
L1
1,138 mm (44.8 in)
L2
1,138 mm (44.8 in)
Side Door › Ground to Door Height
L1H1
711 mm (28.0 in)
L1H2
726 mm (28.6 in)
Rear Doors › Rear Doors Height
L1H1
1,257 mm (49.5 in)
Rear Doors
Rear Doors Width
1,369 mm (53.9 in)
Rear Doors › Sill Height
L1H1
711 mm (28.0 in)
L2H1
726 mm (28.6 in)
Cargo Space › Cargo Volume
L1H1
6,530 litres
L1H2
7,682 litres
Cargo Space › Depth
L1
3,109 mm (122.4 in)
L2
3,617 mm (142.4 in)
Cargo Space
Space Width
1,869 mm (73.6 in)
Cargo Space › Space Width, Between Wheel Arches
L1
1,334 mm (52.5 in)

Exterior

Chassis & Body

Chassis
Chassis
LCV (Panel Van)
Pillars
A-D
Chassis Construction
Body-on-Frame (Ladder Frame)
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
  • Sliding Right
  • Dual Swing-out
Door Handles
Pull-up
Platform
Ford Motor Company
VN Platform (VN58/VN127)

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
House Colour
Non-painted
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Windows
Heated Windows
Optional
Heat-Insulating Windows
  • Front
  • First Row
Tinted Windows
Optional
Rear Windows, Pop-out
Optional
Windows › Heated Windows
Rear
Optional
Windows › Heat-Insulating Windows
Second Row
Optional
Rear
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Rear Windows, Pop-out
Manual
Optional
Other Equipment
Antenna
Optional
Air Intakes
1-port
Number of Exhaust Pipes
1
Side Steps
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Special Features
Headlight Range Adjustment
Manual

Colour

Bumper
Optional
Door Handles
Non-painted

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
8 pcs
Fastening Type
Lug Nuts
Tightening Torque
190 Nm
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional
Spare Wheel › Full-size
Steel
Optional

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Climate Control
Manual
Air Condition
Yes
Outside Temperature Indicator
Optional
Number of Vents, Front
4 pcs
Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
1,134 g
Connectivity
Radio
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › Media Format
CD
Optional
MP3
Optional
Displays
Equalizer
Optional
Speakers
Total Number of Speakers
4 pcs
Rear-view Mirror
Compass
Optional
Oustide Temperature
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Coin Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
4
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
Clock
Optional
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Clock
Digital
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Hydraulic
Adjustments
Tilt
Number of Spokes
2
Material
Plastic
Colour
Black
Steering Ratio
17 :1
Steering Mechanism
Recirculating Ball
Multifunction Steering Wheel
Number of Buttons
5 pcs

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Front Seats
Number of Driver Seat Adjustments, Manual
4 - 6
Number of Driver Seat Adjustments, Powered
6
Number of Driver Seat Adjustments, Total
4 - 8
Number of Passenger Seat Adjustments, Manual
4 - 6
Number of Passenger Seat Adjustments, Powered
6
Number of Passenger Seat Adjustments, Total
4 - 8
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional

Trunk

Release Button
Yes
Cargo Hooks
Yes
Light
Yes
Hatch Opening Type
Two-parted Doors

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Entry Guard Material
Plastic

Features

Comfort Features

Keyless Entry
Optional
Remote Engine Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater
Engine Heater
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes

Safety & Security

Airbags

Other Airbags
Pedestrian Airbag
No
Middle Airbag
No
Door-mounted Airbags
No
Seat Belt Airbag
No
Seat Cushion
No
Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Seat Belt

Height Adjustable Retractor
Yes
Feature
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Optional

Other Features

Immobiliser
Optional
Reversing Alarm
Optional
Number of Remote Keys
2
Number of Standard Keys
2
Total Number of Keys
4

Child Protection

Isofix
  • Passenger: No
  • Rear: No

Other

Identification

VIN Location
Left Side Casing of Window
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Middle

Car Classification

American Classification
Cargo Van
British Classification
Van
Australian Classification
Van
European Segment
M-Segment
Car.info Classification
Cargo Van
