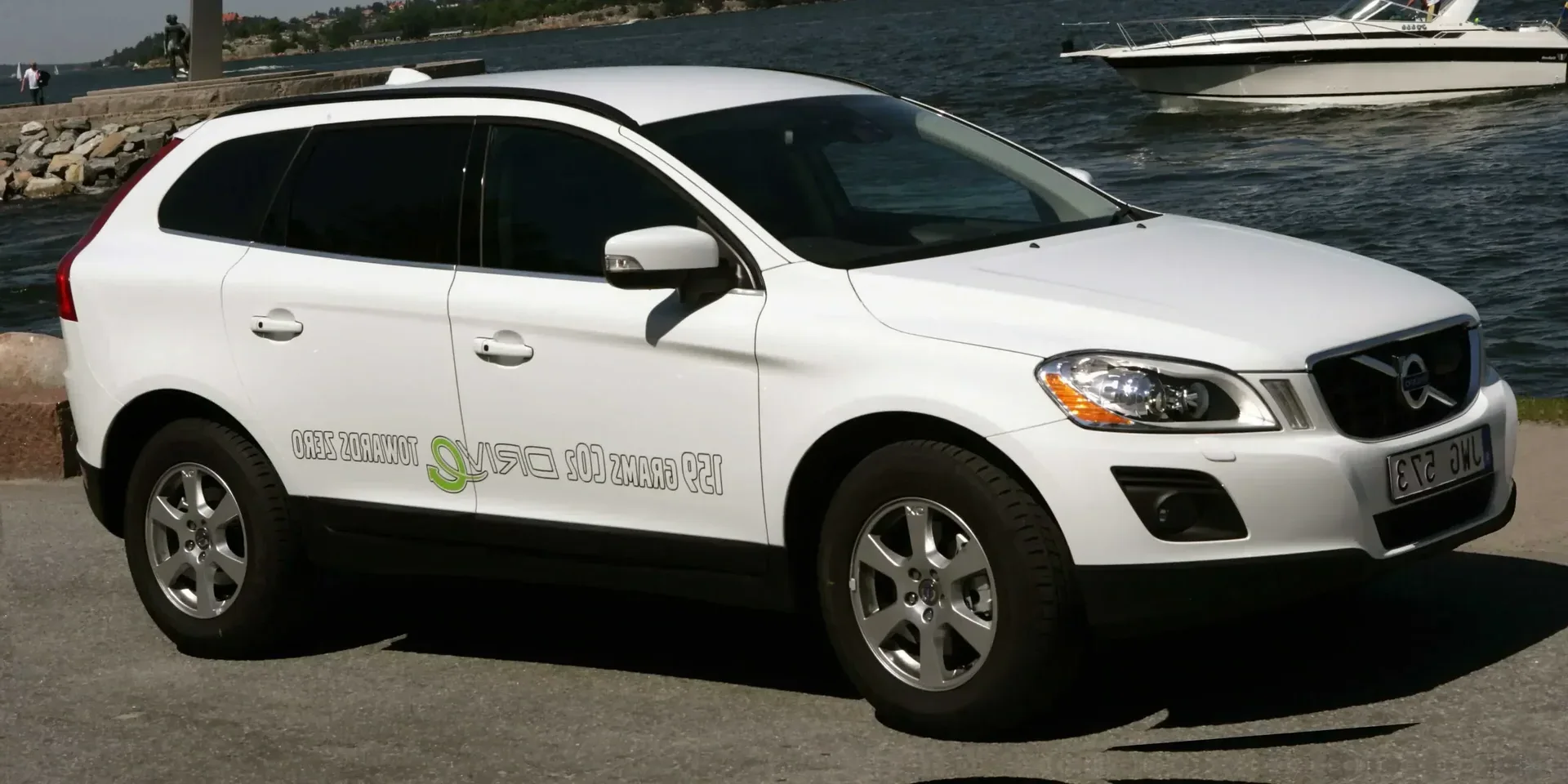

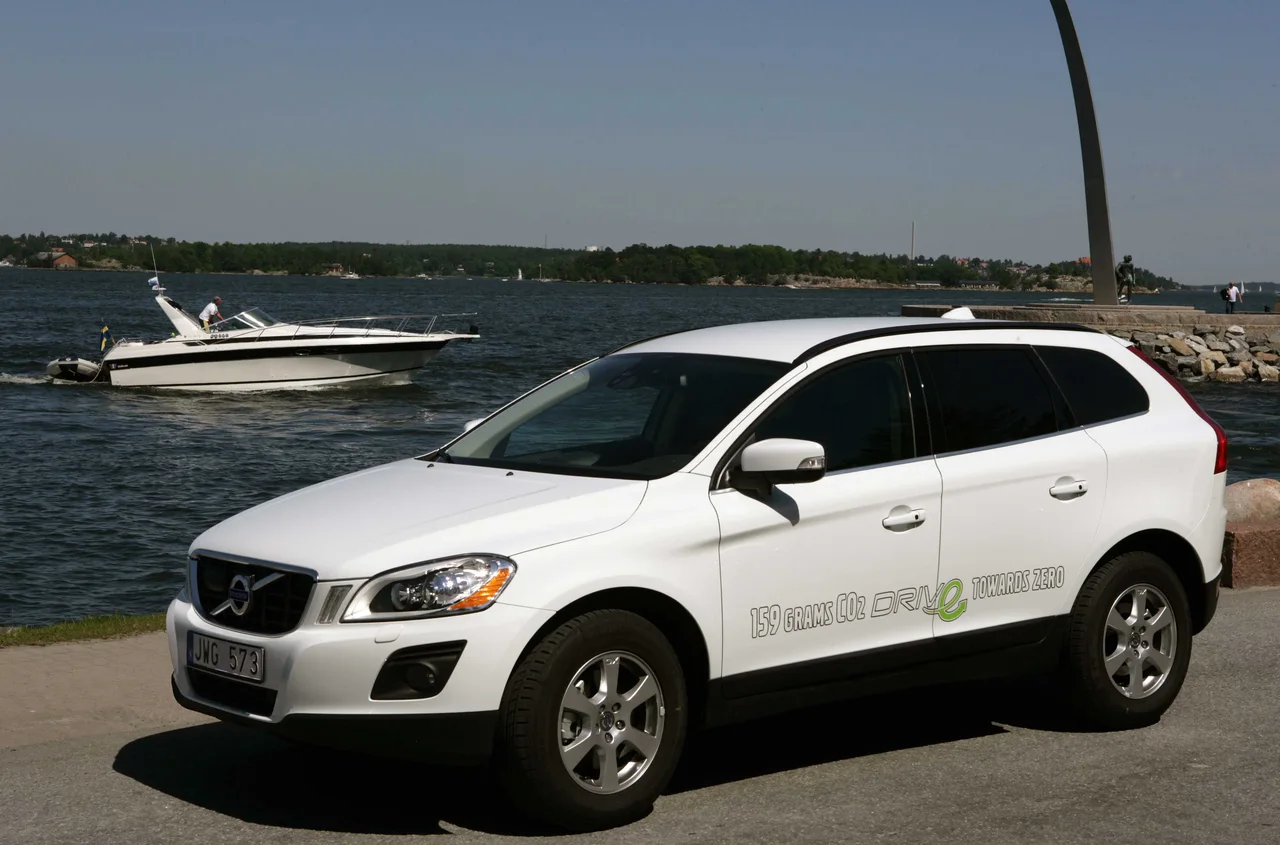

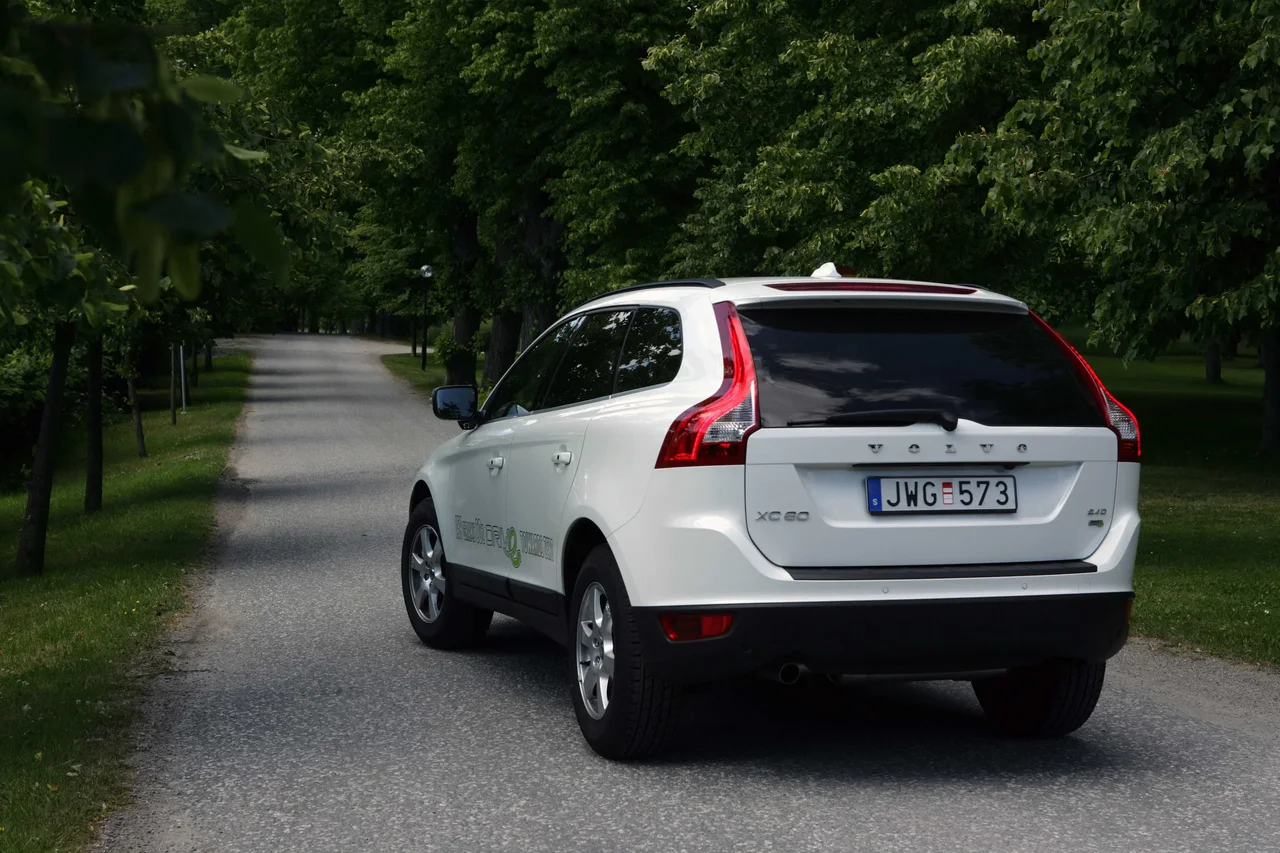

2010 Volvo XC60

SwedenDieselFWDSUV

Photos

Specifications

Vehicle Details

Year
2010
Make
Volvo
Model
XC60
Body Style
SUV
Generation
1st Generation
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Powertrain

Engine Name
2.4D
Engine Configuration
Inline
Power (hp)
175 hp
Power (kW)
129 kW
Torque
420 Nm (310 lb-ft)
Top speed
205 km/h (127 mph)
0–60 mph
9.3 seconds (estimated)
0–100 km/h
9.8 seconds
Displacement
2,400 cc

Dimensions

Length
4,628 mm (182.2 in)
Width
1,891 mm (74.4 in)
Height
1,713 mm (67.4 in)
Wheelbase
2,774 mm (109.2 in)
Curb weight
1,718 kg (3,788 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,000 - 4,000 rpm
Rev. at Max Torque
1,500 - 2,750 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-30
Engine Oil, Volume
5.5 litres
Car Battery
Voltage
12 V
Cold Start Power
700 - 800 A
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
93.15 mm (3.7 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Mount
Transversally
Service Intervals
Timing Interval
180,000 km / 10 years
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km (37,282 mi)
Brake Fluid
1 years
Oil Change & Engine Filter
30,000 km / 1 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
328 mm (12.9 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
302 - 324 mm (11.9 - 12.8 in)

Fuel

General
Tank Volume
70 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 4
Fuel Consumption NEDC
City
7.8 – 9.3 litres / 100 km
Highway
5 – 5.6 litres / 100 km
Combined
6 – 6.9 litres / 100 km
Emission NEDC
CO₂, Combined
159 – 183 g/km

Dimensions & Weight

Exterior

Track, Front
1,632 mm (64.3 in)
Track, Rear
1,586 mm (62.4 in)
Overhang, Front
909 mm (35.8 in)
Overhang, Rear
944 mm (37.2 in)
Approach Angle
22 °
Departure Angle
27 °
Turning Circle
11.7 - 11.9 m
Ground Clearance
220 - 230 mm (8.7 - 9.1 in)

Interior

Head Room, Front
990 mm (39.0 in)
Head Room, Rear
1,003 mm (39.5 in)
Leg Room, Front
1,047 mm (41.2 in)
Leg Room, Rear
924 mm (36.4 in)
Shoulder Room, Front
1,439 mm (56.7 in)
Shoulder Room, Rear
1,403 mm (55.2 in)

Weight

Gross Weight
2,505 kg (5,523 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
763 – 787 kg (1,682 – 1,735 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 – 90 kg (165 – 198 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Ford Motor Company
EUCD Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Turning Signal
Yes
Windscreen Wipers
Heated Washer Nozzles
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Air Intakes
1-port
Number of Exhaust Pipes
2
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Daytime Running Light
Halogen
Special Features
Headlight Range Adjustment
Special Features
Dynamic Cornering Lights
Optional
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Digital
Instrument Cluster › Trip Computer
Display
5 - 7"
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Secondary Display
5"
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
  • DAB
TV Receiver
Optional
Media Format
  • CD
  • MP3
  • WMA
Bluetooth
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
HDMI
Optional
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Connectivity › Bluetooth
Audio
Optional
Displays
Center Display
5 - 7"
Center Display Controls
  • Buttons
  • Rotary Dial
Secondary Display
Yes
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
8"
Speakers
Total Number of Speakers
6 - 12 pcs
Speakers Max. Watt
20 - 130 W
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
1 pcs
Rear-view Mirror
Compass
Optional
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Optional
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
Yes
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Dashboard
  • Instrument Cluster
Other Equipment › Carpets
Material
Textile
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cargo Hooks
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
495 litres
Volume, Back Seat Collapsed
1,455 litres
Depth
972 mm (38.3 in)
Depth, Back Seat Collapsed
1,789 mm (70.4 in)
Width
1,165 mm (45.9 in)
Opening Width
1,166 mm (45.9 in)
Height
802 mm (31.6 in)
Sill Height
748 mm (29.4 in)

Design

Accent
Aluminium
Transmission Knob Material
Leather
Transmission Knob Material
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats › Adjustments, Passenger
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Collapsible
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Voice Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Lane Assist System
Optional
Speed Assist
Yes
Hill Descent Control (HDC)
Yes
Sign Assist
Optional
Trailer Stability Assist (TSA)
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2009
Adult Occupant
94 %
Child Occupant
79 %
Vulnerable Road Users
48 %
Safety Assist
86 %
Overall
5/5 stars
Test Year
2009
Overall Score
36.53
ANCAP Safety Rating
5
Adult Occupant
Total Points
33.7 /38
Frontal Impact
15.5 /16
Lateral Impact
14.6 /16
Rear Impact
3.5 /4
Frontal Offset
15.53
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Child Occupant
Total Points
38.9 /49
Safety Features
3 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 11.3
  • 0
  • 6
Pedestrian
Protection (Assessment)
Marginal
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H9
Fog Light, Front
H8
Positioning-/Parking Lights, Front
W2.1×9.5d (W3W)
Turn Indicators, Front
BAU15s (PY21W)
Glove Compartment
SV8.5 (C5W)
Make-up Mirrors
SV5.5
Trunk
SV8.5 (C5W)
Entry Light
SV8.5 (C5W)
License Plate Light
SV8.5 (C5W)

Similar suvs

Suggested vehicles
