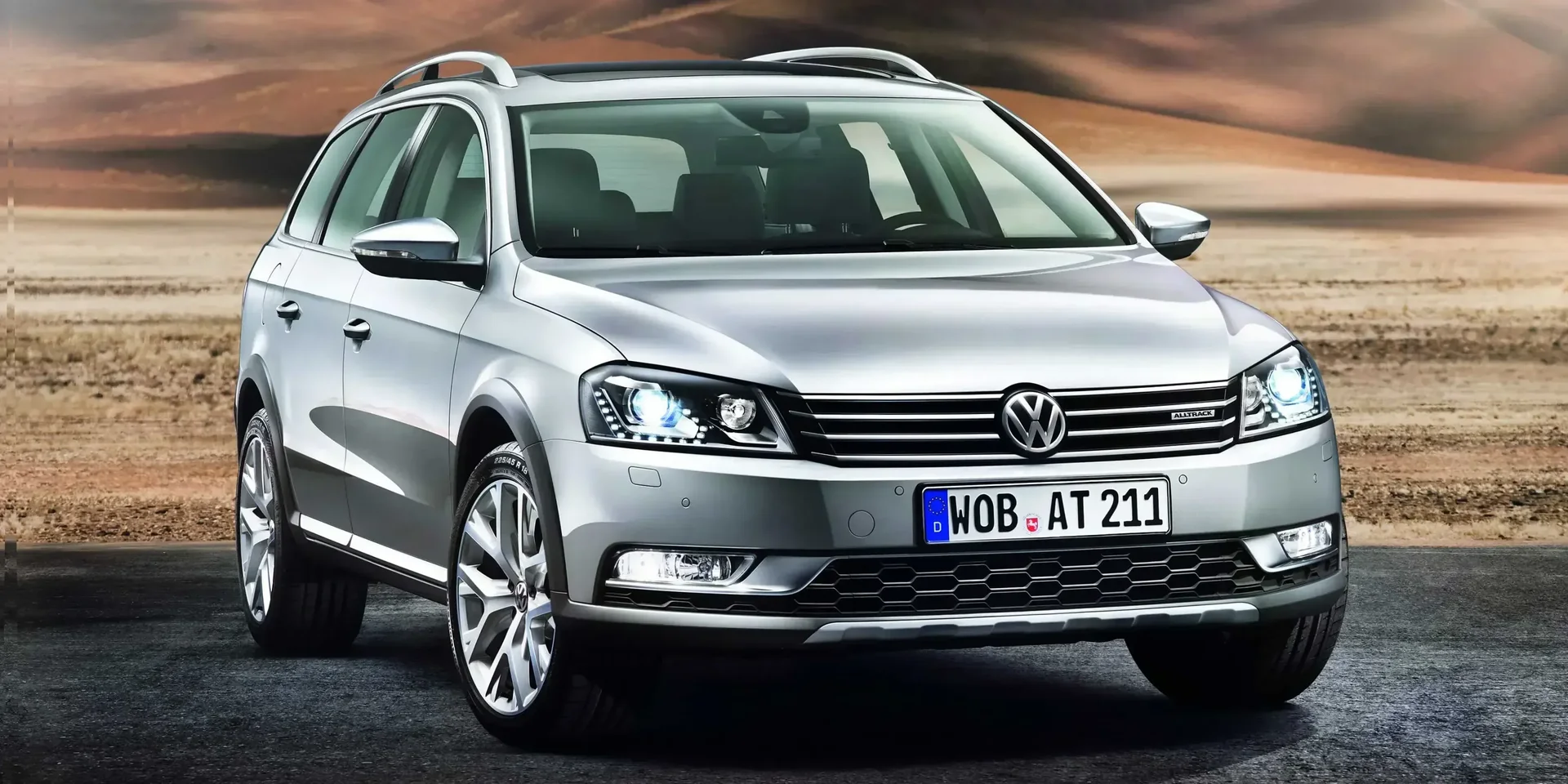

2013 Volkswagen Passat Alltrack

GermanyDieselAWDCrossover

Specifications

Vehicle Details

Year
2013
Make
Volkswagen
Model
Passat
Variant
Alltrack
Body Style
Crossover
Generation
B7 (Type 3C)
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 6-speed

Powertrain

Engine Name
2.0 TDI DPF BMT 4Motion DSG Sequential
Engine Configuration
Inline
Power (hp)
177 hp
Power (kW)
130 kW
Torque
380 Nm (280 lb-ft)
Top speed
211 km/h (131 mph)
0–60 mph
8.3 seconds (estimated)
0–100 km/h
8.7 seconds
Displacement
1,968 cc

Dimensions

Length
4,771 mm (187.8 in)
Width
1,820 mm (71.7 in)
Height
1,550 mm (61.0 in)
Wheelbase
2,710 mm (106.7 in)
Curb weight
1,726 kg (3,805 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,200 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
4.3 litres
Car Battery
Battery Capacity
68 Ah
Alternator Charge Current
180 A
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
95.5 mm (3.8 in)
Compression Ratio
16 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
210,000 km (130,488 mi)
Air Filter
90,000 km / 6 years
Fuel Filter
90,000 km (55,923 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
70 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 5
Emission Class
B
Emission Control
  • Catalyst
  • Particle Filter
  • Exhaust Gas Recirculation
Fuel Consumption NEDC
City
7 litres / 100 km
Highway
5.3 litres / 100 km
Combined
5.9 litres / 100 km
Emission NEDC
CO₂, Combined
155 g/km

Performance

Acceleration
0-80 km/h
5.8 sec

Dimensions & Weight

Exterior

Width, with Mirrors
2,062 mm (81.2 in)
Width, open Doors
3,723 mm (146.6 in)
Height (Bonnet Open)
1,835 mm (72.2 in)
Track, Front
1,549 mm (61.0 in)
Track, Rear
1,531 mm (60.3 in)
Overhang, Front
941 mm (37.0 in)
Overhang, Rear
1,118 mm (44.0 in)
Approach Angle
16 °
Breakover Angle
12.8
Departure Angle
13.6 °
Turning Circle
11.4 m
Ground Clearance
165 mm (6.5 in)

Interior

Head Room, Front
970 - 981 mm (38.2 - 38.6 in)
Head Room, Rear
980 - 983 mm (38.6 - 38.7 in)
Leg Room, Front
1,053 mm (41.5 in)
Leg Room, Rear
960 mm (37.8 in)
Knee Room, Rear
76 mm (3.0 in)
Shoulder Room, Front
1,467 mm (57.8 in)
Shoulder Room, Rear
1,491 mm (58.7 in)

Weight

Gross Weight
2,300 kg (5,071 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, braked 8%
2,200 kg (4,850 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
649 kg (1,431 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
90 kg (198 lb)
Permitted Axle Load, front
1,160 kg (2,557 lb)
Permitted Axle Load, rear
1,190 kg (2,624 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip
Rear
Bottom-Strip
Sides
Bottom-Strip
Wheel Arches
Yes
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
B7/PL47

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Automatic Anti-glare
Driver side
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Yes
Turning Signal
Yes
House Colour
Chrome
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Slim Push Button
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Yes
Number of Exhaust Pipes
2
Mud Flaps
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Silver
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Come Home/Leaving Lights
Fog Lights
Front
Halogen
Rear
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Tire Pressure Monitoring System (TPMS)
Indirect
Optional
Spare Wheel
Full-size
Optional
Temporary
Optional
Spare Wheel › Full-size
Alloy
Optional
Steel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
MP3
Bluetooth
Phone
Connectivity › Radio
DAB
Optional
RDS
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › TV Receiver › Digital
Analogue
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Memory Card Reader
Optional
Hard Drive
30 GB
WMA
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Front
USB
Optional
Connectivity › Media Inputs › USB
Front
Optional
USB-A
Optional
Displays
Center Display
Yes
Center Display Controls
  • Buttons
  • Rotary Dial
Displays › Center Display Controls
Touchscreen
Optional
Speakers
Total Number of Speakers
8 - 10 pcs
Speakers Max. Watt
600 W
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Analogue
Dashboard
Digital
Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Sliding (Manual)
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
588 litres
Volume, Back Seat Collapsed
1,716 litres
Depth
1,133 mm (44.6 in)
Depth, Back Seat Collapsed
1,941 mm (76.4 in)
Width
1,428 mm (56.2 in)
Width, Between Wheel Arches
1,003 mm (39.5 in)
Opening Width
1,000 mm (39.4 in)
Height
831 mm (32.7 in)
Height, to Trunk Cover
480 mm (18.9 in)
Trunk Door Opening Height
2,060 mm (81.1 in)
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional
Motion Activated
Optional
Carpet
Rubber
Optional

Design

Transmission Knob Material
Leather
Pedals
Aluminium

Seats

Colour & Material
Upholstery
  • Alcantara
  • Textile
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Front Seats › Power Seat, Driver
Semi-Powered
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Massage
Driver
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
  • From Trunk
  • On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Voice Control
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Phone
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Driving Mode Selection
  • Comfort
  • Normal
  • Sport
Dynamic Chassis Control (DCC)
Yes
Horn
Dual Note
GPS
SD-Card
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Forward Distance Monitoring (FDM)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Optional
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes
Towing Protection
Yes

Safety Testing

General
Test Year
2010
Adult Occupant
91 %
Child Occupant
77 %
Vulnerable Road Users
54 %
Safety Assist
71 %
Overall
5/5 stars
Test Year
2008
Overall Score
33.99
ANCAP Safety Rating
5
Adult Occupant
Total Points
32.6 /38
Frontal Impact
14 /16
Lateral Impact
15.3 /16
Rear Impact
3.3 /4
Frontal Offset
13.99
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Child Occupant
Total Points
37.8 /49
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 14
  • 0
  • 5.3
Safety Assist
Speed Assistance (points)
0 /3
Seat Belt Reminder (points)
2 /2
Seat Belt Reminders
2
Pedestrian
Protection (Assessment)
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D3S
Datyime Running Light
BA15s (P21W)
Fog Light, Front
H8
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16d (W21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
  • BAU15s (PY21W)
  • WX3×16d (WY21W)
Glove Compartment
W2.1×9.5d (W5W)
Read Light
  • SV8.5 (C5W)
  • W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

Awards

Motor Trend
Car of the Year
2012

Similar crossovers

Suggested vehicles
