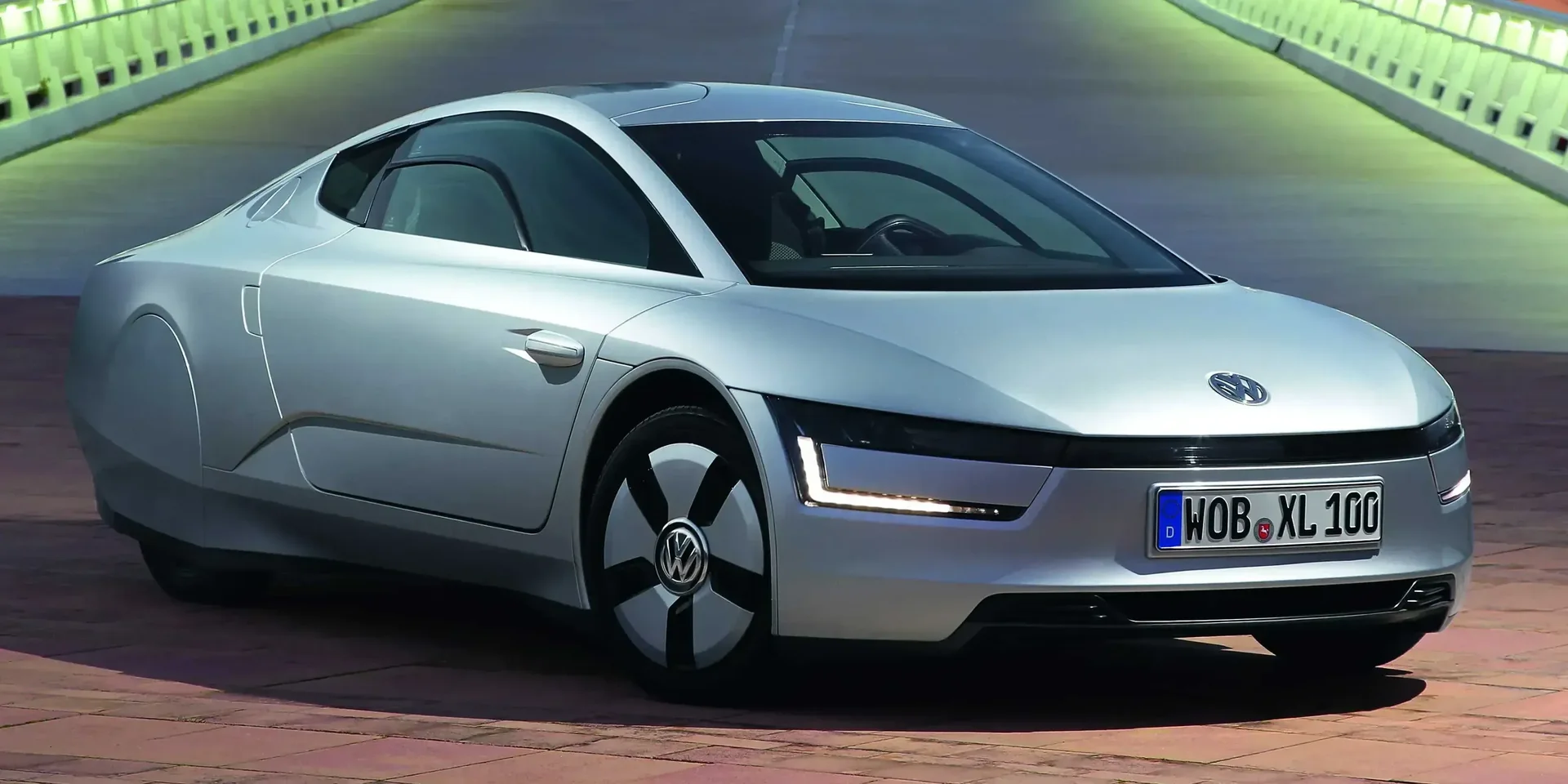

2016 Volkswagen XL1

GermanyPlug In Hybrid DieselRWDCoupe

Photos

Record board rankings

Fuel efficiency

Lowest combined fuel use among combustion-powered vehicles.

  1. 1
    2022 BYD Han DM-i
    0.6L/100 km
  2. 2
    2018 BMW i3
    0.6L/100 km
  3. 3
    2021 BYD Qin Plus DM-i
    0.7L/100 km
  4. 4
    2023 Mercedes-Benz A-Class2022 Wey Macchiato
    0.8L/100 km
  5. 5
    2020 BYD Song Plus DM-i2018 Buick Velite 52015 Volkswagen XL1This vehicle
    0.9L/100 km
  6. 6
    2012 Opel Ampera2016 Toyota Prius2017 LEVC TX
    1L/100 km
  7. 7
    2020 Mercedes-Benz GLE
    1.1L/100 km
  8. 8
    2020 Renault Mégane E-TECH Plug-in MultiMode2011 Holden Volt2012 Vauxhall Ampera2021 Volkswagen Golf eHybrid
    1.2L/100 km
  9. 9
    2020 LEVC VN5
    1.3L/100 km
  10. 10
    2019 Kia Niro P-HEV
    1.3L/100 km

Specifications

Vehicle Details

Year
2016
Make
Volkswagen
Model
XL1
Body Style
Coupe
Generation
Type 6Z
Seats
2
Doors
2
Fuel
Plug In Hybrid Diesel
Drivetrain
RWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
0.8 TDI + 5.5 kWh DSG Sequential
Engine Configuration
Inline
Power (hp)
69 hp
Power (kW)
51 kW
Torque
140 Nm (103 lb-ft)
Top speed
160 km/h (99 mph)
0–60 mph
12.1 seconds (estimated)
0–100 km/h
12.7 seconds
Electric range
50 km (31 mi)
Battery
5.5 kWh
Displacement
800 cc

Dimensions

Length
3,888 mm (153.1 in)
Width
1,665 mm (65.6 in)
Height
1,153 mm (45.4 in)
Wheelbase
2,224 mm (87.6 in)
Curb weight
795 kg (1,753 lb)

Engine & Performance

Engine

Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 5W-30
Engine Oil, Volume
3.1 litres
Configuration Combustion
Bore
81 mm (3.2 in)
Stroke
80.5 mm (3.2 in)
Compression Ratio
16.2 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Rear-Mid
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Configuration Combustion › ICE Specifications
Power
35 kW
Horsepower (Metric)
48 hp (47 bhp)
Torque
140 Nm (103 lb-ft)
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
20 kW
Electric Engine Horsepower (Metric)
27 hp (26 bhp)
Front Engines
Yes
Battery Capacity, Gross
5.5 kWh
Number of Batterycells
60
Type of Battery
Li-ion
AC Charge Type
Single-phase
Configuration Electric › Front Engines
Power (kW)
20 kW
Horsepower
27 hp
Number of Engines
1
Service Intervals
Air Filter
10,000 km (6,214 mi)
Fuel Filter
60,000 km (37,282 mi)
Oil Change & Engine Filter
5,000 km / 1 years
Interior Filter
30,000 km (18,641 mi)

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Semi-Trailing Arm

Performance

Drag Coefficient
0.19

Fuel

General
Tank Volume
10 litres
General › Fuel Cap Position
Rear
Left
General › Charging Socket Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Control
  • Catalyst
  • Particle Filter
Fuel Consumption NEDC
Combined
0.9 litres / 100 km
Electric Range
50 km (31 mi)
Emission NEDC
CO₂, Combined
21 g/km

Dimensions & Weight

Exterior

Width, open Doors
2,454 mm (96.6 in)
Height (Roof Opening)
1,950 mm (76.8 in)
Track, Front
1,510 mm (59.4 in)
Track, Rear
1,214 mm (47.8 in)

Weight

Gross Weight
1,000 kg (2,205 lb)
Cargo Capacity
205 kg (452 lb)
Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-B
Chassis Construction
Monocoque
Body Material
Plastic
Doors
Front Doors
Butterfly

Equipment

Side Mirrors
Mirror Type
Camera
Turning Signal
Yes
House Colour
Same as Car
Other Equipment
Normal Roof
Yes

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM

Steering Wheel

Number of Spokes
2
Colour
Black

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
120 litres

Features

Comfort Features

Keyless Start
Yes

Safety & Security

Sensors

Parking Sensors
Rear

Other

Car Classification

Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car

Production

Statistics
Production Number (Series)
200
Production Number (Generation)
200
Statistics › Production Number (Year)
2014
106
2015
59
2016
35
