2017 Lexus NX

JapanHybrid GasolineAWDSUV

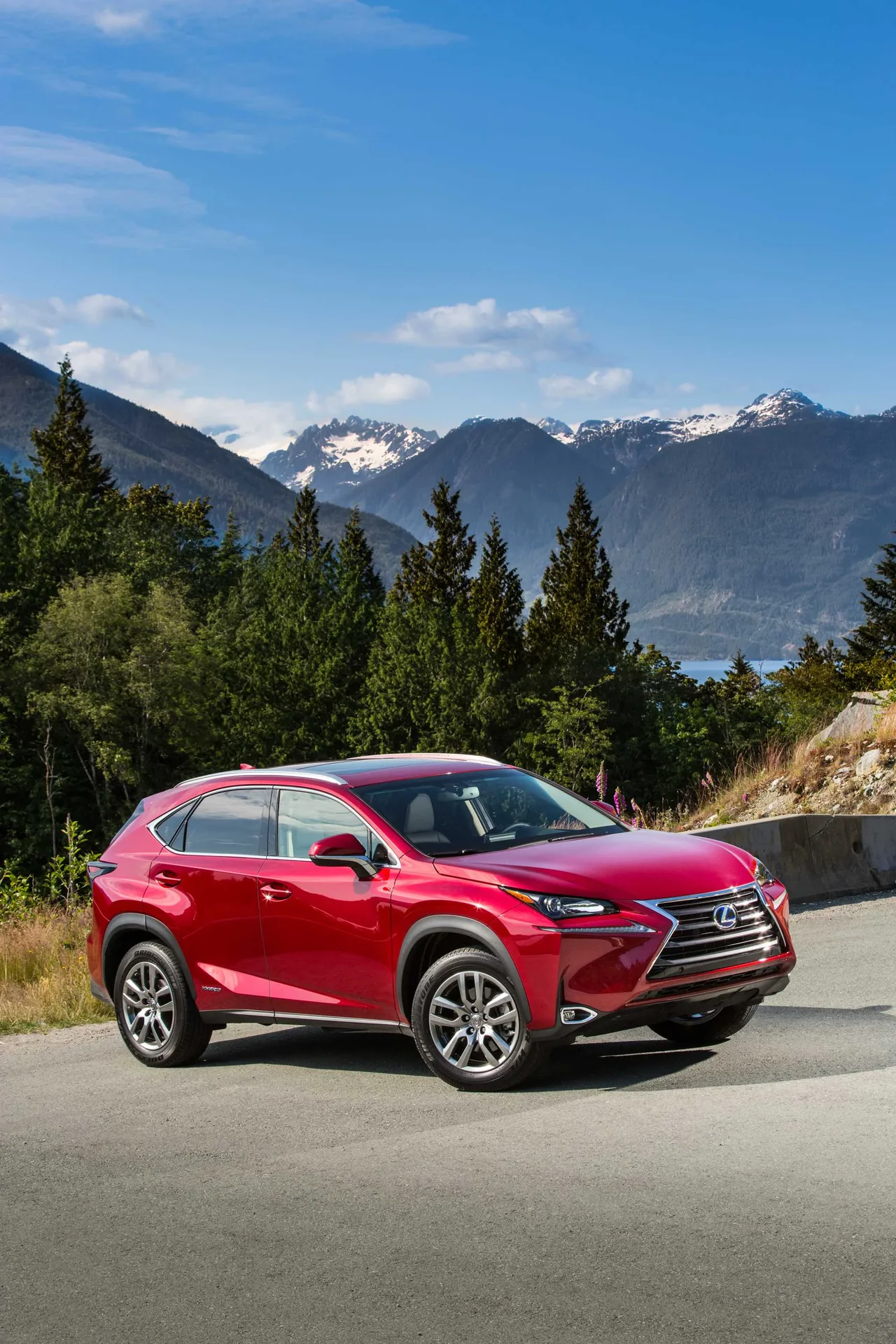

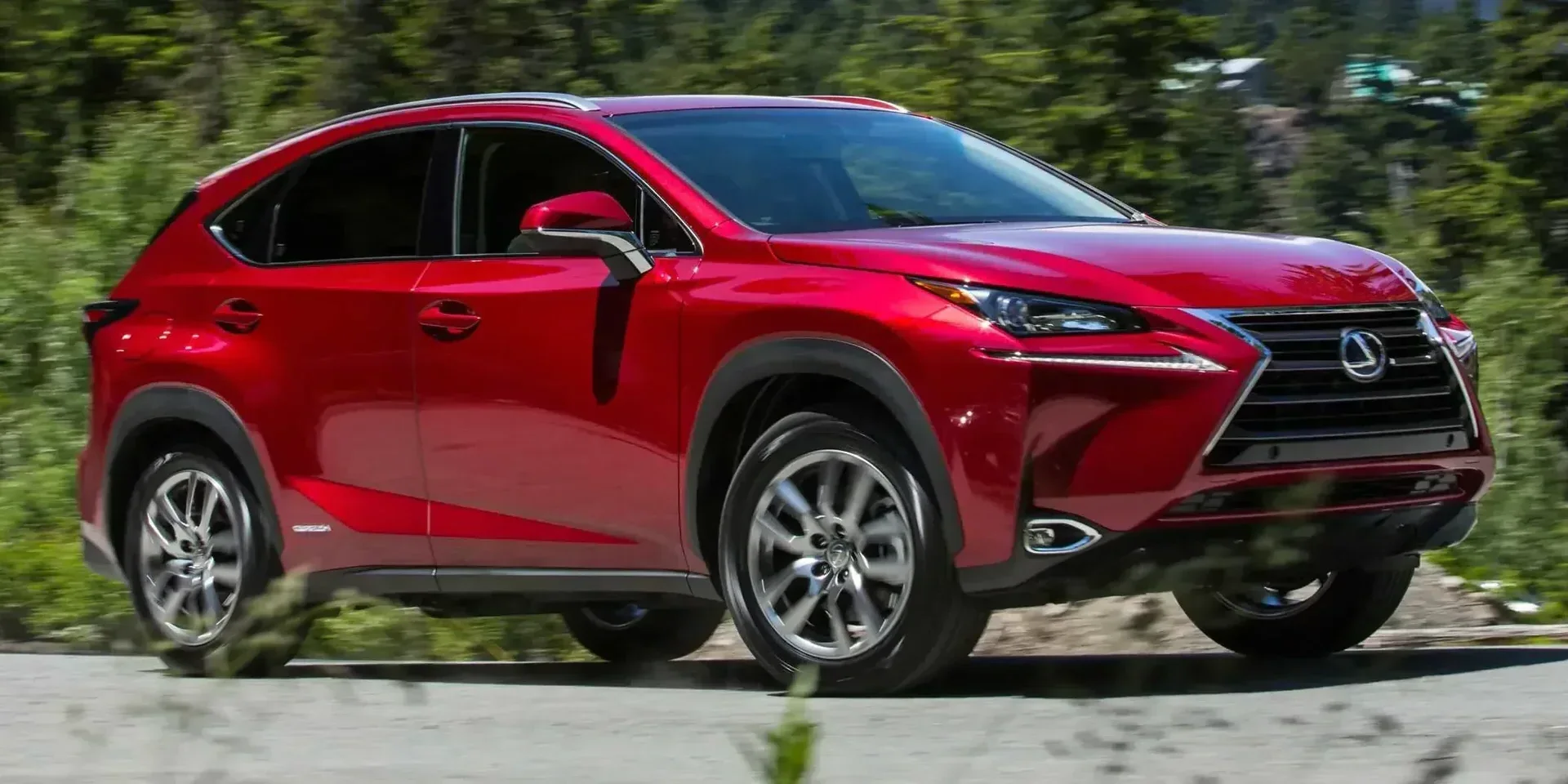

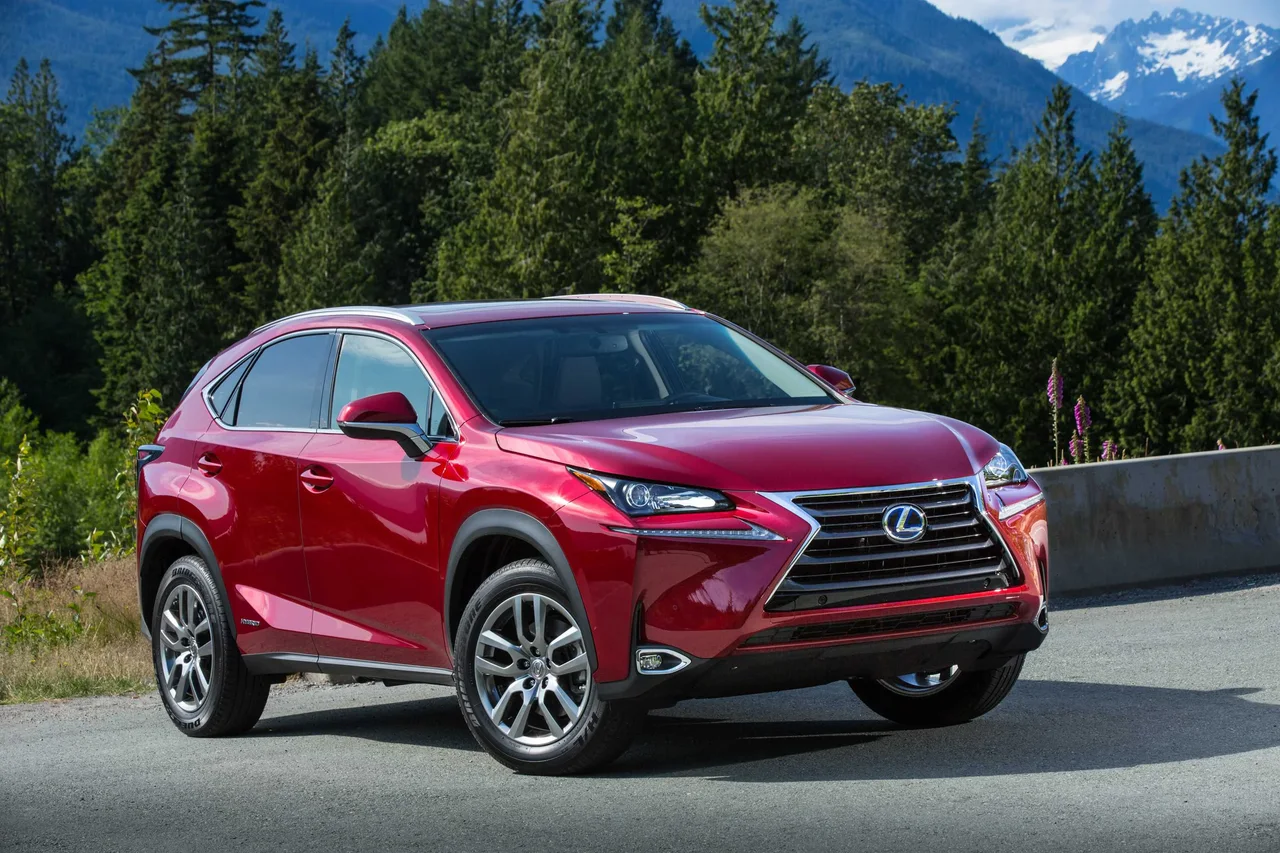

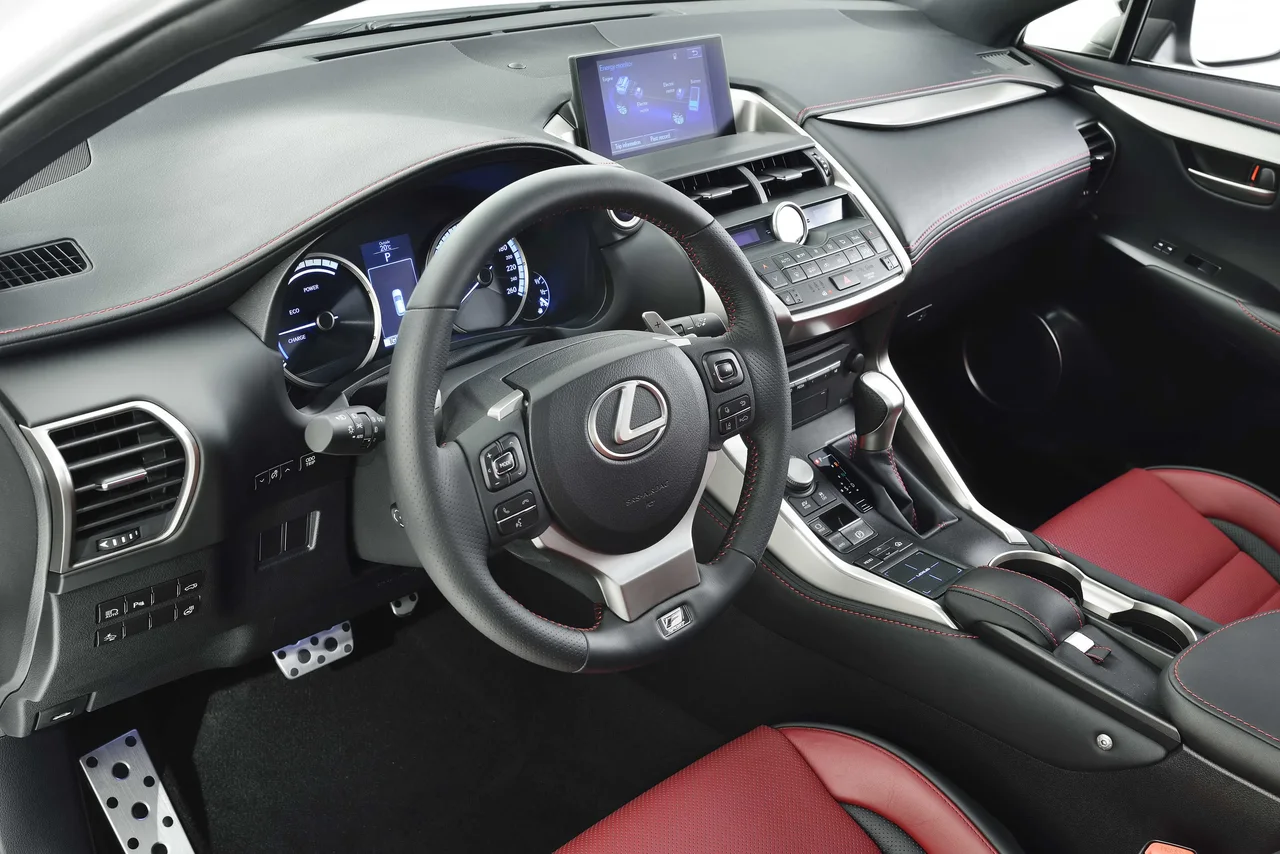

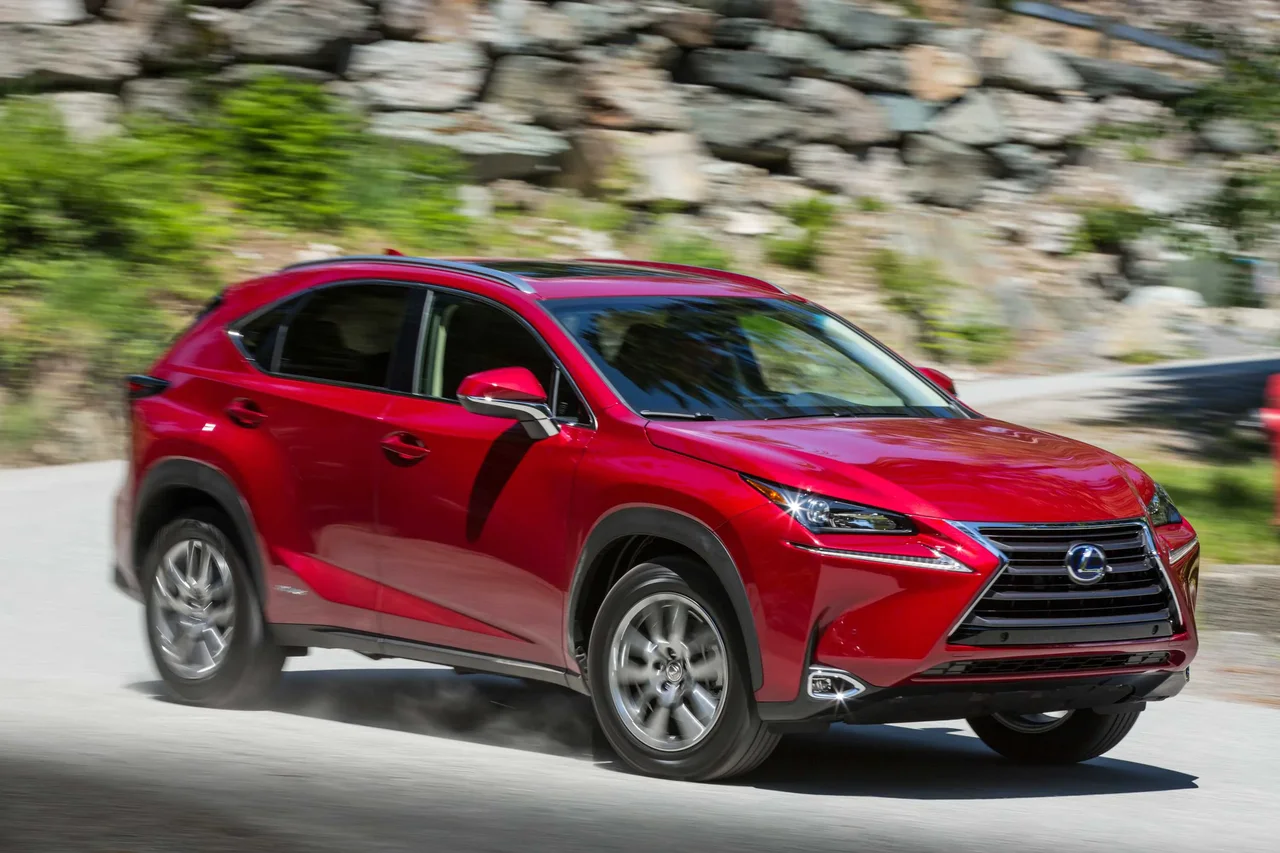

Photos

Specifications

Vehicle Details

Year
2017
Make
Lexus
Model
NX
Body Style
SUV
Generation
AZ10
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Continuously variable)

Powertrain

Engine Name
300h AWD E-CVT
Engine Configuration
Inline
Power (hp)
197 hp
Power (kW)
145 kW
Torque
210 Nm (155 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
8.9 seconds (estimated)
0–100 km/h
9.3 seconds
Displacement
2,494 cc

Dimensions

Length
4,630 mm (182.3 in)
Width
1,845 mm (72.6 in)
Height
1,645 mm (64.8 in)
Wheelbase
2,660 mm (104.7 in)
Curb weight
1,595 kg (3,516 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,700 rpm
Rev. at Max Torque
4,200 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-20
  • 5W-30
  • 10W-30
Semi-synthetic Oil (viscosity)
  • 10W-30
  • 15W-40
Mineral Oil (viscosity)
  • 15W-40
  • 20W-50
Engine Oil, Volume
4.4 litres
Configuration Combustion
Bore
91 mm (3.6 in)
Stroke
98 mm (3.9 in)
Compression Ratio
13 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Configuration Electric
Type of Electric Car
Hybrid
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
90,000 km (55,923 mi)
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
150,000 km (93,206 mi)
Interior Filter
30,000 km (18,641 mi)

Transmission & Drivetrain

Transmission
Automatic (Continuously variable)
Gear Ratio
Final Drive
3.75 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Performance

Drag Coefficient
0.32

Fuel

General
Tank Volume
66 litres
Emission
Emission Standard
Euro 6
Emission Class
A+
Fuel Consumption NEDC
City
5.3 litres / 100 km
Highway
5.1 litres / 100 km
Combined
5.2 litres / 100 km
Fuel Consumption EPA
City
33 MPG
Highway
30 MPG
Combined
31 MPG
Emission NEDC
CO₂, City
117 g/km
CO₂, Highway
115 g/km
CO₂, Combined
116 – 121 - 121 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,130 mm (83.9 in)
Track, Front
1,580 mm (62.2 in)
Track, Rear
1,580 mm (62.2 in)
Overhang, Front
995 mm (39.2 in)
Overhang, Rear
975 mm (38.4 in)
Turning Circle
12 m
Ground Clearance
175 mm (6.9 in)

Interior

Head Room, Front
971 mm (38.2 in)
Head Room, Rear
968 mm (38.1 in)
Hip Room, Front
1,455 mm (57.3 in)
Hip Room, Rear
1,405 mm (55.3 in)
Shoulder Room, Front
1,400 mm (55.1 in)
Shoulder Room, Rear
1,370 mm (53.9 in)

Weight

Gross Weight
2,130 kg (4,696 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
535 kg (1,179 lb)
Max Roof Load
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Toyota Platform
MC Platform (New MC)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Folding
Driver side
Optional
Passenger side
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Roof Railing
Optional
Spoiler
Yes
Antenna
Shark Fin
Number of Exhaust Pipes
1

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Headlight Washers
Fog Lights
Front
Yes
Rear
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
103 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel

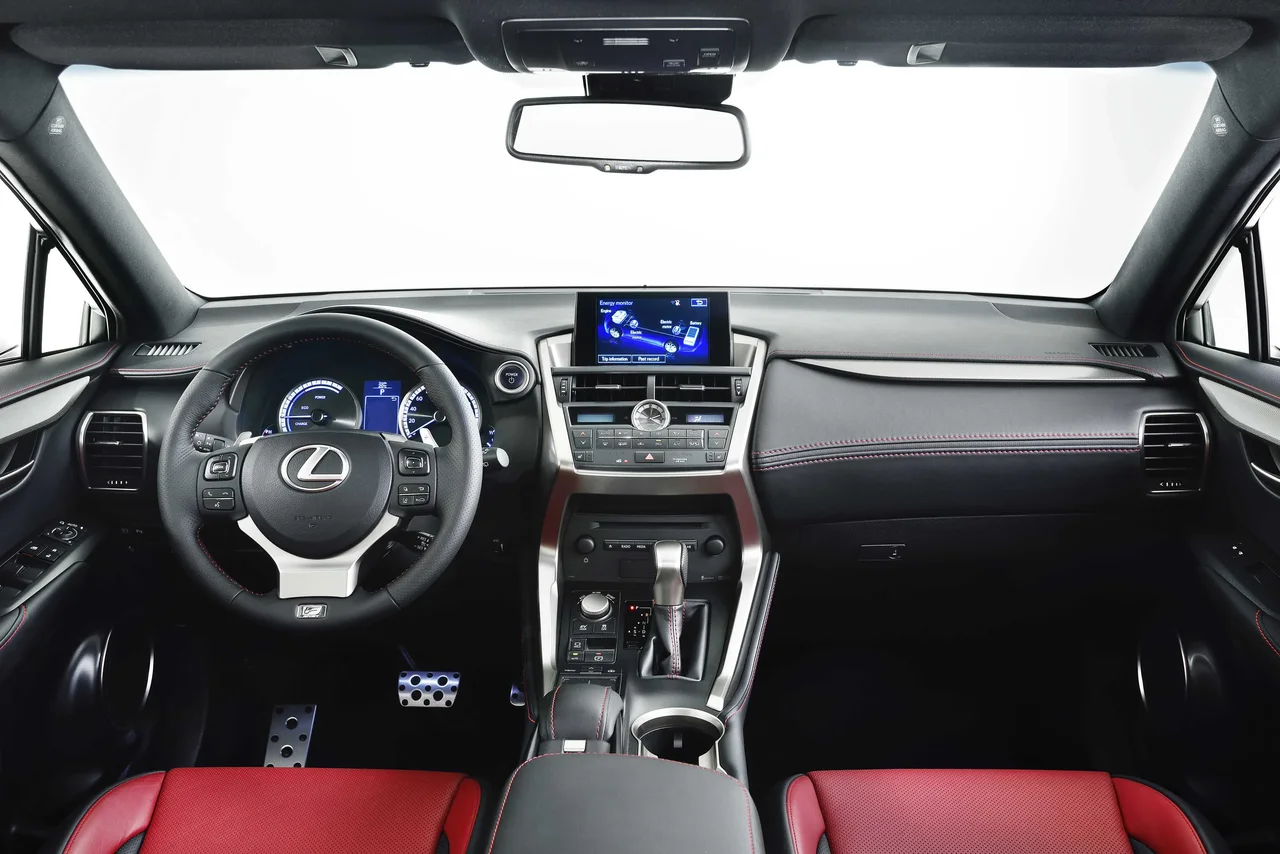

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
4.2"
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
  • HD Radio
Media Format
  • CD
  • MP3
  • WMA
Media Inputs
USB
Bluetooth
  • Phone
  • Siri Eyes Free
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
7"
Displays › Center Display
Touchscreen
  • Yes
  • Optional
Speakers
Total Number of Speakers
8 - 10 pcs
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Back Pocket
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Lights
Read Light
Front
Guide Light
Door Handles
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
12V Outlet
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Material
Leather
Colour
Black
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Automatic Close
Yes
Release Button
Yes
Light
Yes
Rear Trunk
Volume
555 litres
Volume, Back Seat Collapsed
1,600 litres
Depth
950 mm (37.4 in)
Width
1,347 mm (53.0 in)

Design

Transmission Knob Material
Leather
Colour
  • Beige
  • Black
  • Brown
  • Red

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats
Power Seat, Driver
Yes
Heated Seats
Yes
Armrest
Yes
Ventilated Seats
  • Yes
  • Optional
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Heated Seats
Areas
Cushion
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Garage Remote Control
Yes
Cruise Control
Yes
Cameras
Rear

Other Features

GPS
Navigation
Start & Stop
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Blind Spot Detection (BLIS)
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes

Safety Testing

General
Test Year
2014
Adult Occupant
82 %
Child Occupant
82 %
Vulnerable Road Users
69 %
Safety Assist
71 %
Overall
5/5 stars
Overall Score
35.39
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
14.39
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3
IIHS
Test Year
2015
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Headlight
Good
Latch Ease of Use
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right
Passenger Seat
Under

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

ACRISS

Category
Premium (P)
