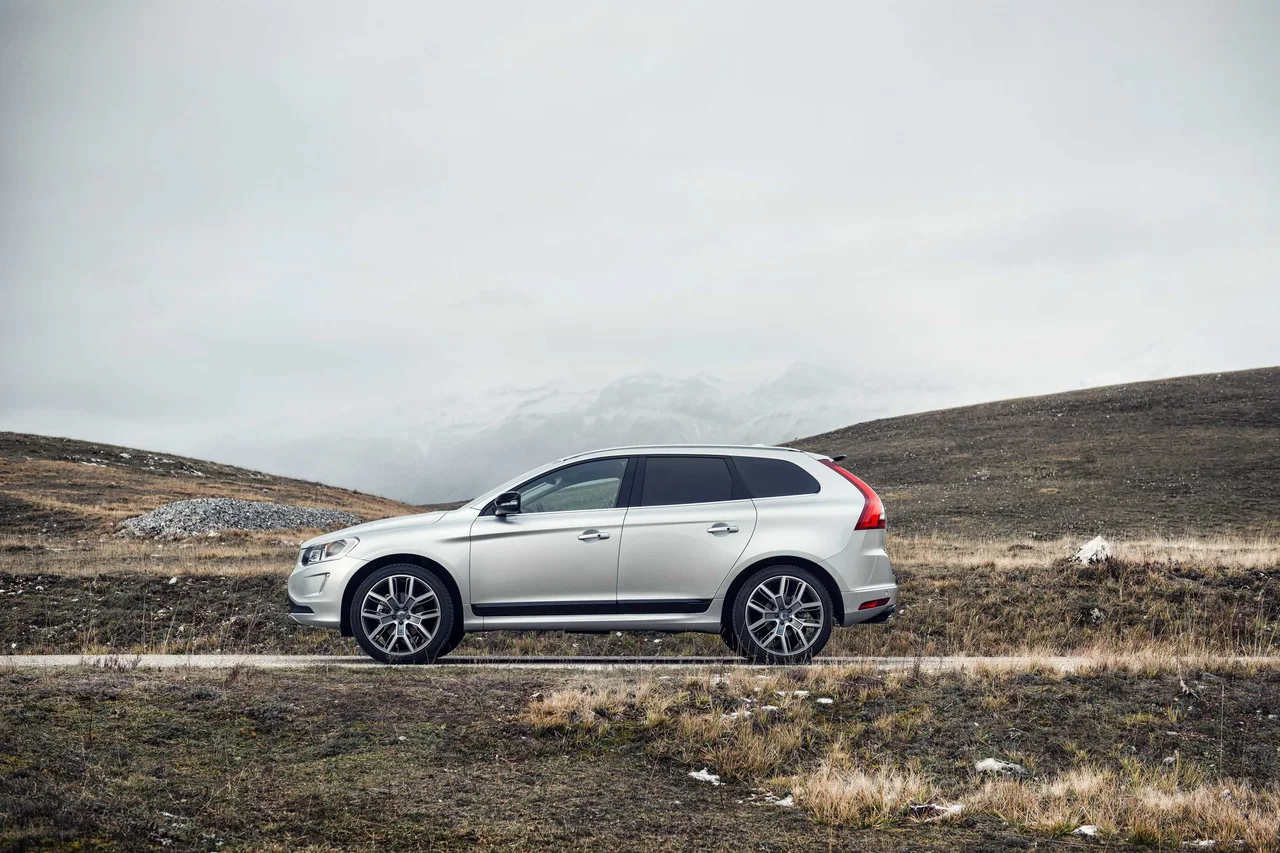

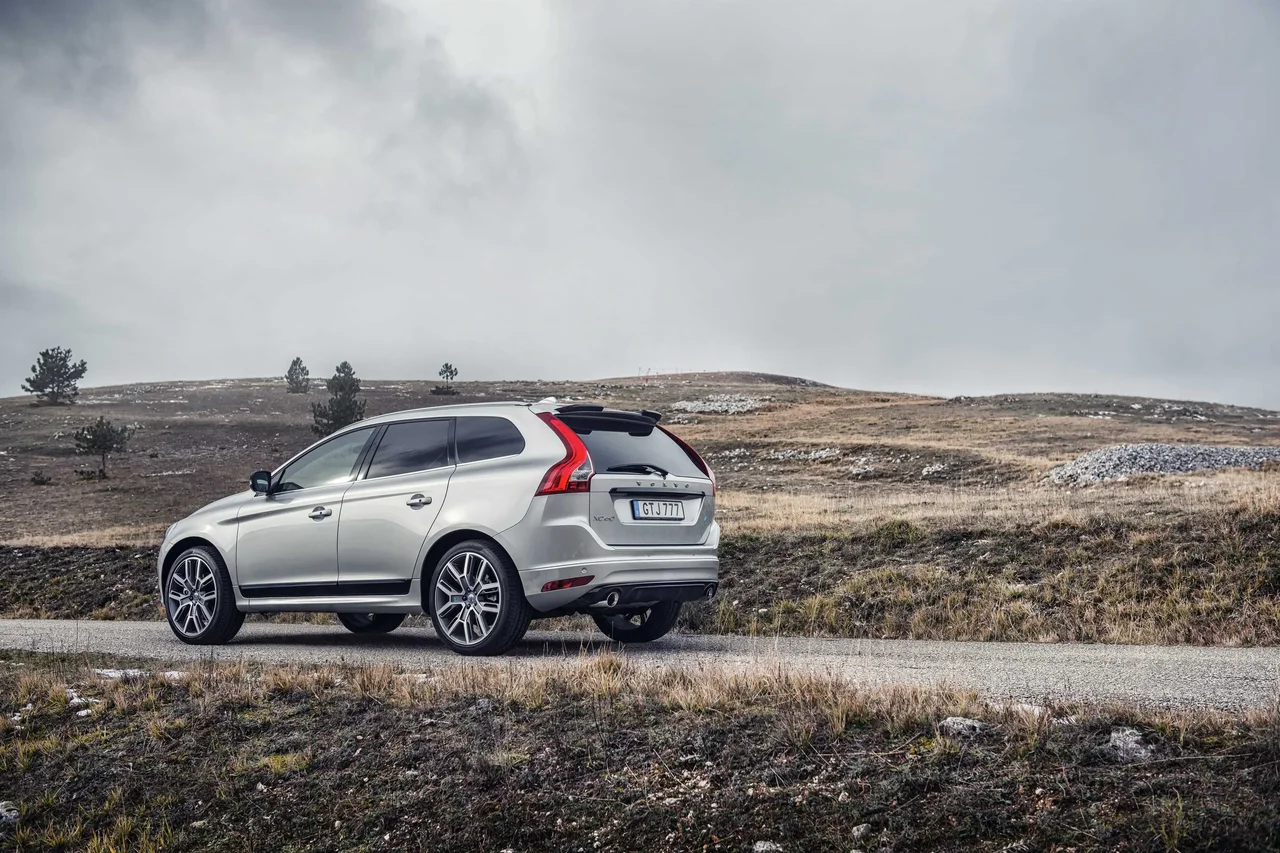

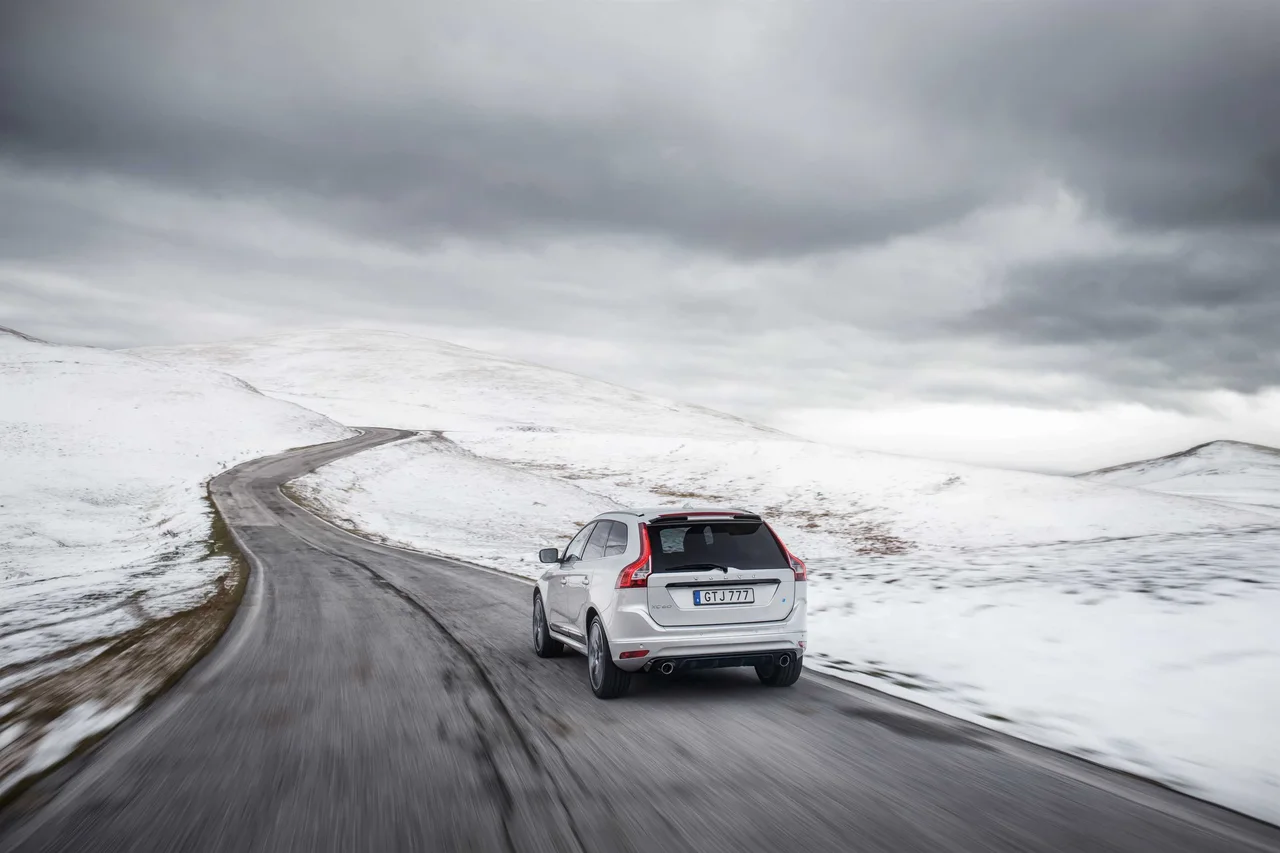

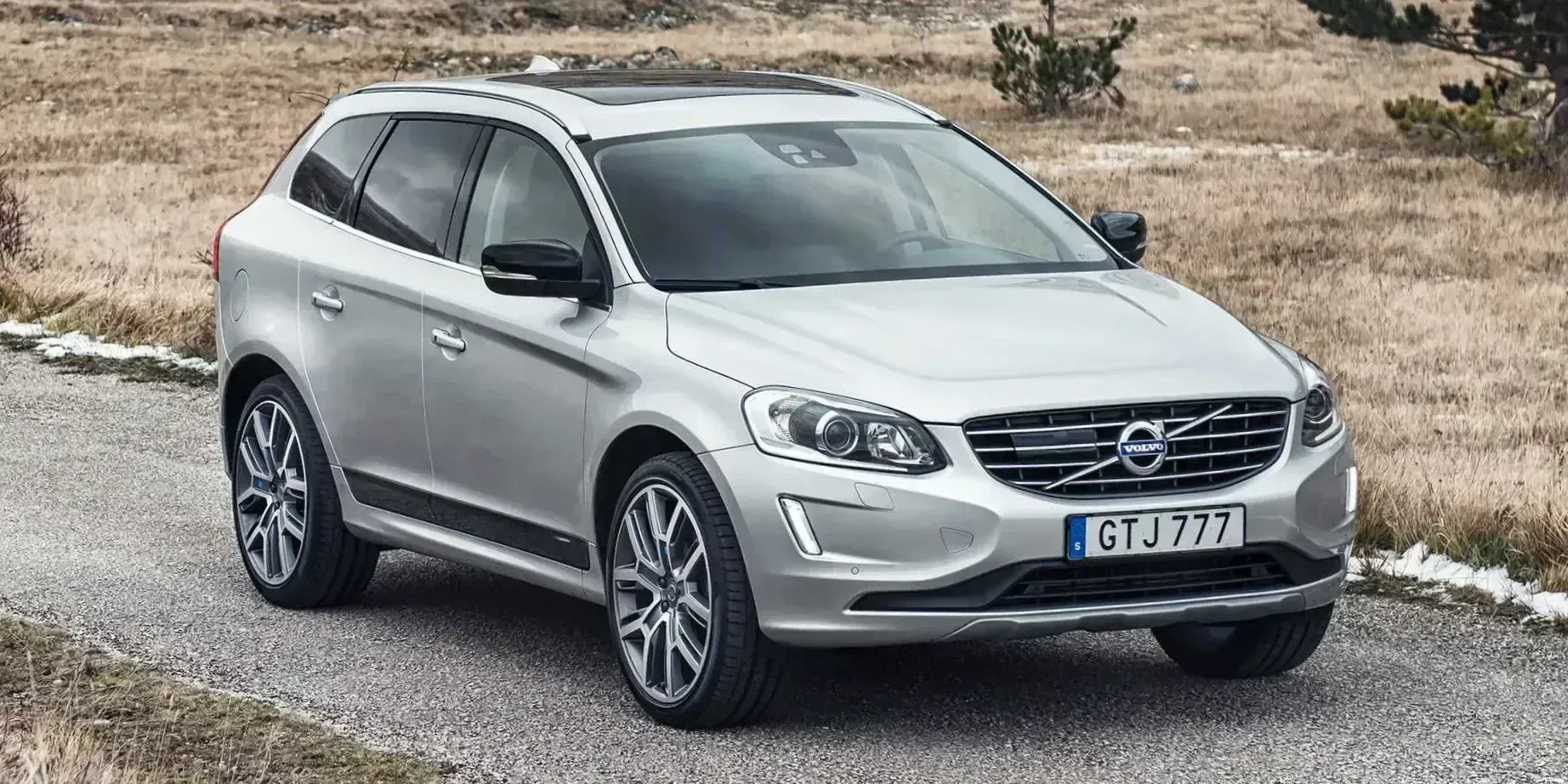

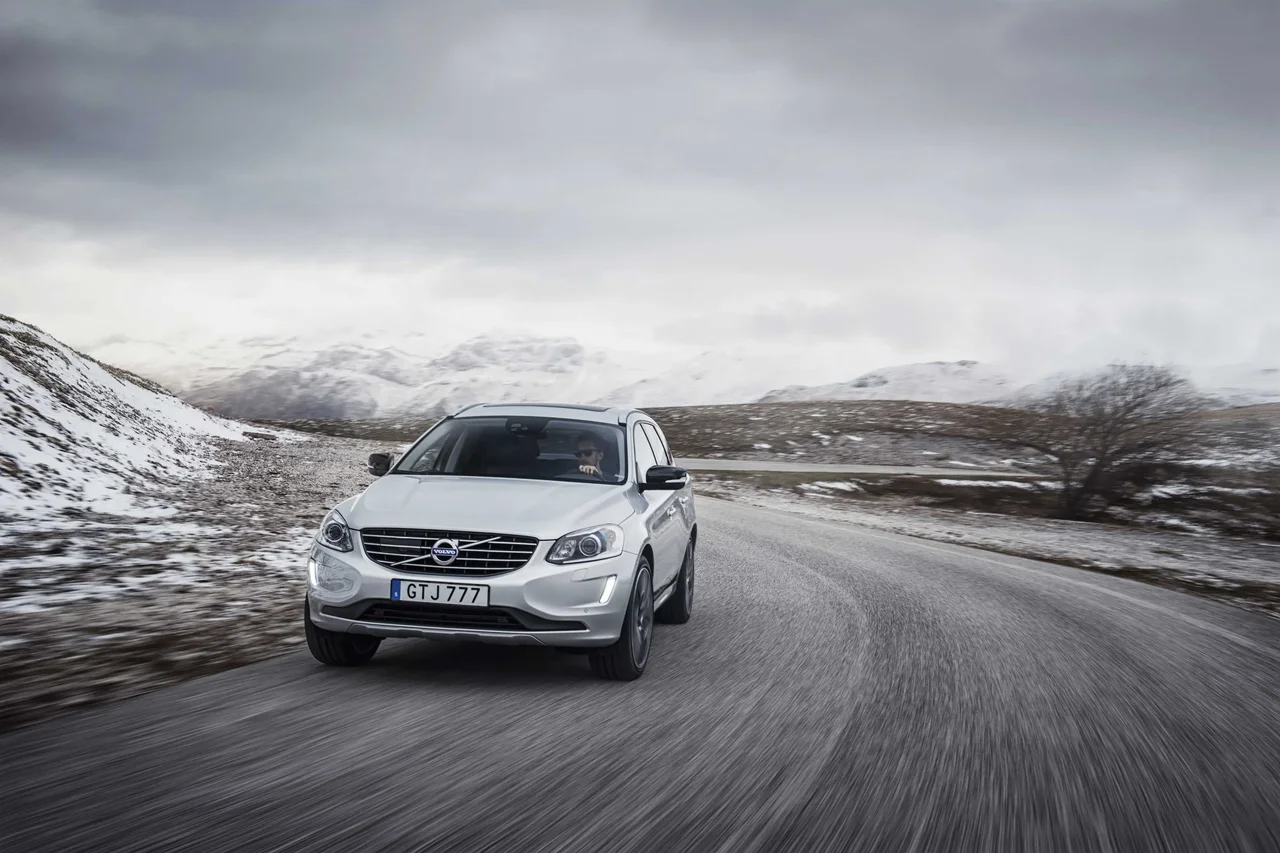

2017 Volvo XC60

SwedenDieselAWDSUV

Photos

Specifications

Vehicle Details

Year
2017
Make
Volvo
Model
XC60
Body Style
SUV
Generation
1st Generation Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Powertrain

Engine Name
D4 AWD
Engine Configuration
Inline
Power (hp)
190 hp
Power (kW)
140 kW
Torque
420 Nm (310 lb-ft)
Top speed
200 km/h (124 mph)
0–60 mph
9.1 seconds (estimated)
0–100 km/h
9.6 seconds
Displacement
2,400 cc

Dimensions

Length
4,644 mm (182.8 in)
Width
1,891 mm (74.4 in)
Height
1,713 mm (67.4 in)
Wheelbase
2,774 mm (109.2 in)
Curb weight
1,873 kg (4,129 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,500 - 2500 – 3000 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-30
Engine Oil, Volume
5.9 litres
Car Battery
Voltage
12 V
Cold Start Power
700 - 800 A
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
93.2 mm (3.7 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Mount
Transversally
Service Intervals
Timing Interval
180,000 km / 10 years
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km / 1 years
Brake Fluid
30,000 km / 1 years
Oil Change & Engine Filter
30,000 km / 1 years
Engine Coolant
30,000 km / 1 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
328 mm (12.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
302 mm (11.9 in)

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
70 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
A
Fuel Consumption NEDC
City
5.9 – 6.7 litres / 100 km
Highway
4.8 – 5.1 litres / 100 km
Combined
5.2 – 5.7 litres / 100 km
Emission NEDC
CO₂, City
156 – 176 g/km
CO₂, Highway
126 – 134 g/km
CO₂, Combined
137 – 149 g/km

Dimensions & Weight

Exterior

Track, Front
1,632 mm (64.3 in)
Track, Rear
1,586 mm (62.4 in)
Overhang, Front
924 mm (36.4 in)
Overhang, Rear
946 mm (37.2 in)
Turning Circle
11.7 m
Ground Clearance
230 mm (9.1 in)

Interior

Head Room, Front
1,025 mm (40.4 in)
Head Room, Rear
730 mm (28.7 in)
Leg Room, Front
1,047 mm (41.2 in)
Leg Room, Rear
924 mm (36.4 in)
Shoulder Room, Front
1,439 mm (56.7 in)
Shoulder Room, Rear
1,403 mm (55.2 in)

Weight

Gross Weight
2,505 kg (5,523 lb)
Max Trailer Load, braked 12%
1800 – 2000 kg (3,968 – 4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
584 – 611 - 597 – 632 kg (1,316 – 1,393 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
90 kg (198 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Ford Motor Company
EUCD Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Windblocker
Optional
Mud Flaps
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Daytime Running Light
LED
Fog Lights
Yes
Special Features
Headlight Range Adjustment
Fog Lights
Front
Halogen
Rear
Yes
Special Features
Automatic Headlight Activation
Optional
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Digital
Coolant Temperature
Analogue
Instrument Cluster › Trip Computer
Display
8"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • CD
  • MP3
  • WMA
Bluetooth
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Internet Radio
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
5 - 7"
Center Display Controls
  • Buttons
  • Rotary Dial
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
8"
Speakers
Total Number of Speakers
6 - 12 pcs
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
1 pcs
Rear-view Mirror
Compass
Optional
Oustide Temperature
Yes
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Sunglass Compartment
Optional
Card Holder
Yes
Door
Yes
Interior Storage › Storage Compartments › Armrest Hatch
Back
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
Carpets
Yes
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Colour
Black
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
495 litres
Volume, Back Seat Collapsed
1,455 litres
Depth
972 mm (38.3 in)
Depth, Back Seat Collapsed
1,789 mm (70.4 in)
Width
1,165 mm (45.9 in)
Opening Width
1,165 mm (45.9 in)
Height
802 mm (31.6 in)
Sill Height
748 mm (29.4 in)
Automatic Open
From Inside Car
Optional

Design

Accent
Aluminium
Transmission Knob Material
Leather
Transmission Knob Material
Black
Optional
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Height
Yes
Cushion Edge
Optional
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Height
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Collapsible
Optional
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Parking Heater
Optional
Cameras
Optional
Rear Camera Preparation
Optional
Voice Control
Yes
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Driving Mode Selection
Optional
Driving Mode Selection
Eco
Optional

Accessories

Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Portable Cooling Box
Optional

Safety & Security

Seat Belt

Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Forward Distance Monitoring (FDM)
Optional
Lane Assist System
Yes
Hill Start Assist (HSA)
Optional
Parking Assist
Optional
Sign Assist
Optional
Trailer Stability Assist (TSA)
Optional
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Optional
Driver Alertness Warning (DAW)
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Optional
Alcohol Ignition Interlock Device
Optional
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2009
Adult Occupant
94 %
Child Occupant
79 %
Vulnerable Road Users
48 %
Safety Assist
86 %
Overall
5/5 stars
Test Year
2009
Overall Score
36.53
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.53
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Pedestrian
Protection (Assessment)
Marginal
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
17.6 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H9
Fog Light, Rear
BAY9s (H21W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
PGU20 (PGU20/4 - PY24W)
Glove Compartment
SV8.5 (C5W)
Make-up Mirrors
W2×4.6d (W2.3W)
Trunk
SV8.5 (C5W)
Entry Light
W2.1×9.5d
License Plate Light
SV8.5 (C5W)
Bulb Types › Low Beam
D3S (xenon)
Optional

Similar suvs

Suggested vehicles
