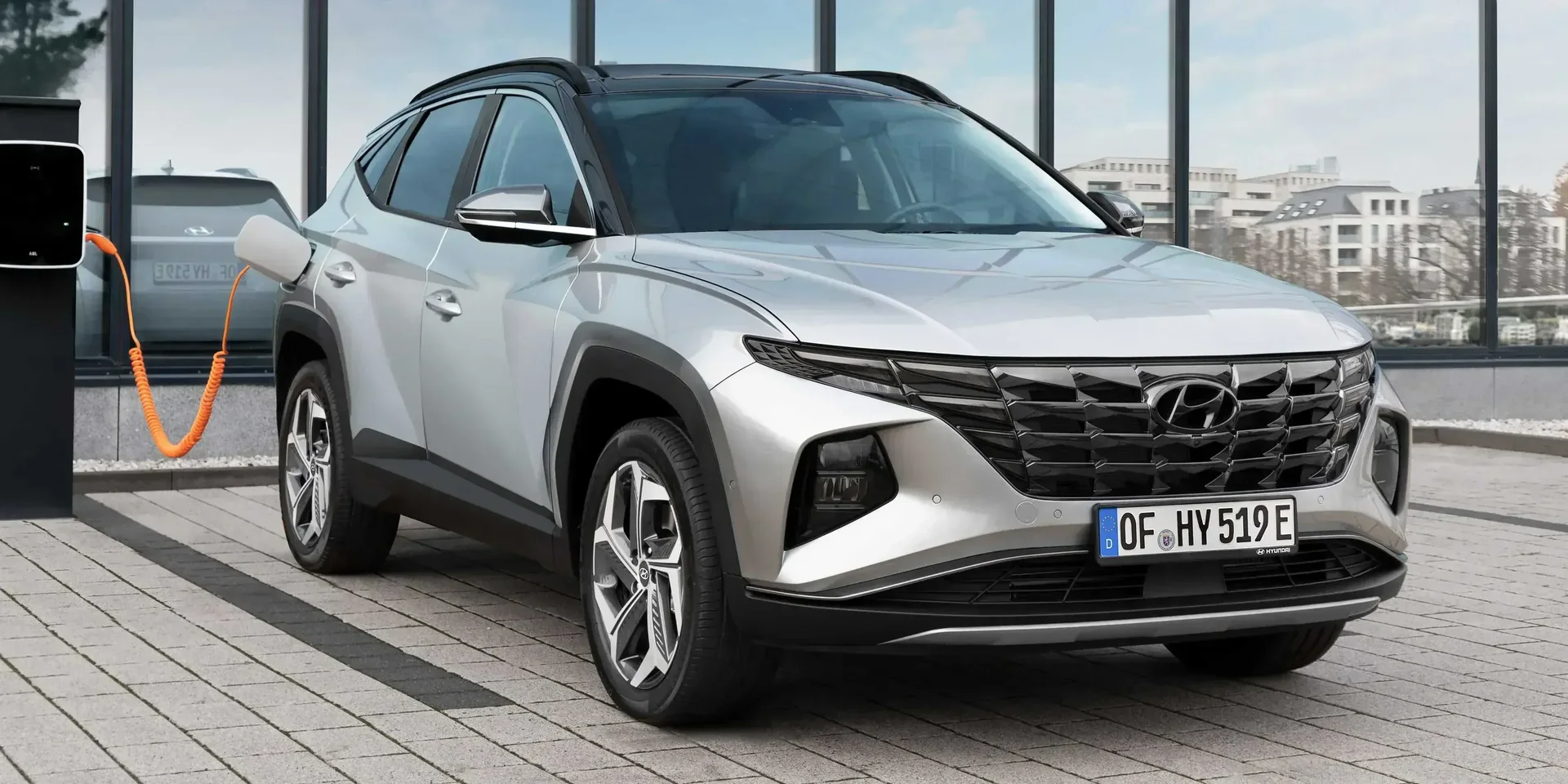

2023 Hyundai Tucson PHEV

South KoreaPlug In Hybrid GasolineAWDWagon

Specifications

Vehicle Details

Year
2023
Make
Hyundai
Model
Tucson
Variant
PHEV
Body Style
Wagon
Generation
NX
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
PHEV Automatic
Engine Configuration
Inline
Power (hp)
265 hp
Power (kW)
195 kW
Torque
265 Nm (195 lb-ft)
Top speed
191 km/h (119 mph)
0–60 mph
7.8 seconds (estimated)
0–100 km/h
8.2 seconds
Electric range
62 km (39 mi)
Battery
13.8 kWh
Displacement
1,598 cc

Dimensions

Length
4,500 mm (177.2 in)
Width
1,865 mm (73.4 in)
Height
1,650 mm (65.0 in)
Wheelbase
2,680 mm (105.5 in)
Curb weight
1,893 kg (4,173 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,500 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
4.8 litres
Configuration Combustion
Bore
75.6 mm (3.0 in)
Stroke
89 mm (3.5 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
67 kW
Electric Engine Horsepower (Metric)
91 hp
Torque
265 Nm (195 lb-ft)
Front Engines
Yes
Battery Capacity, Gross
13.8 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase
Charging Plugs
Type 2
Configuration Electric › Front Engines
Power (kW)
67 kW
Horsepower
91 hp
RPM at Max Power
4,500 rpm
Number of Engines
1
Configuration Electric › Charge AC
Charge Time
1.7 h / 102 min
Charge Power
7.2 kW
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
75,000 km / 5 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
30,000 km / 2 years
Interior Filter
30,000 km / 2 years
Accessory Belt
105,000 km / 7 years

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
42 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6d
Emission Class
A+
WLTP Consumption
Weighted, Combined
1.4 litres / 100 km
Combined
17.7 kWh/100km
Electric Range
62 - 74 km (39 - 46 mi)
Fuel Consumption NEDC
Combined
1.9 litres / 100 km
Emission WLTP
CO₂, Weighted, Combined
31 g/km
Emission NEDC
CO₂, Combined
41 g/km

Dimensions & Weight

Exterior

Track, Front
1,615 - 1,630 mm (63.6 - 64.2 in)
Track, Rear
1,622 - 1,637 mm (63.9 - 64.4 in)
Overhang, Front
895 mm (35.2 in)
Turning Circle
10.9 m
Ground Clearance
180 mm (7.1 in)

Interior

Head Room, Front
966 - 1,017 mm (38.0 - 40.0 in)
Head Room, Rear
980 - 1,000 mm (38.6 - 39.4 in)
Leg Room, Front
1,052 mm (41.4 in)
Leg Room, Rear
955 mm (37.6 in)
Shoulder Room, Front
1,464 mm (57.6 in)
Shoulder Room, Rear
1,428 mm (56.2 in)

Weight

Gross Weight
2,415 kg (5,324 lb)
Max Trailer Load, braked 12%
1,350 kg (2,976 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
416 - 522 kg (917 - 1,151 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-C
Chassis Construction
Unibody
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip
Rear
Bottom-Strip
Sides
Bottom-Strip
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Front
Sun Visors
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Black

Lights

Daytime Running Light
LED
Special Features
Main Beam Assist

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Central Bore (CB), rear
67.1
Fastening Type
Lug Nuts
Tightening Torque
107 - 127 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Voltmeter
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
Touchscreen
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • DAB
  • RDS
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-A
Connectivity › Media Inputs › USB
Number of Ports
3 pcs
Displays
Center Display
10.25"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 - 8 pcs
Subwoofer
Optional
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
4
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
  • Armrest
  • Door
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Selectable Light Colour
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Foldable
Barrier Net/Grid
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
577 litres
Volume, Back Seat Collapsed
1,737 litres
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional
Key Button
Optional

Design

Transmission Knob Material
Leather
Pedals
Standard
Pedals
White
Optional

Seats

Colour & Material
Stitching Colour
White
Front Seats › Adjustments, Driver
Seat Height
  • Manual
  • Powered
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Height
Powered
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
40/20/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Navigation
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
View Location
Center Display

Other Features

GPS
Optional
GPS Preparation
Yes
Driving Mode Selection
  • Eco
  • Normal
  • Sport
Horn
Dual Note

Accessories

Tire Repair Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Optional
Sign Assist
Yes
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2021
Adult Occupant
86 %
Child Occupant
87 %
Vulnerable Road Users
66 %
Safety Assist
70 %
Overall
5/5 stars
IIHS
Test Year
2020
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

EV Battery
160,000 km / 8 years

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
HB3
Main Beam
HB3
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

Similar wagons

Suggested vehicles
